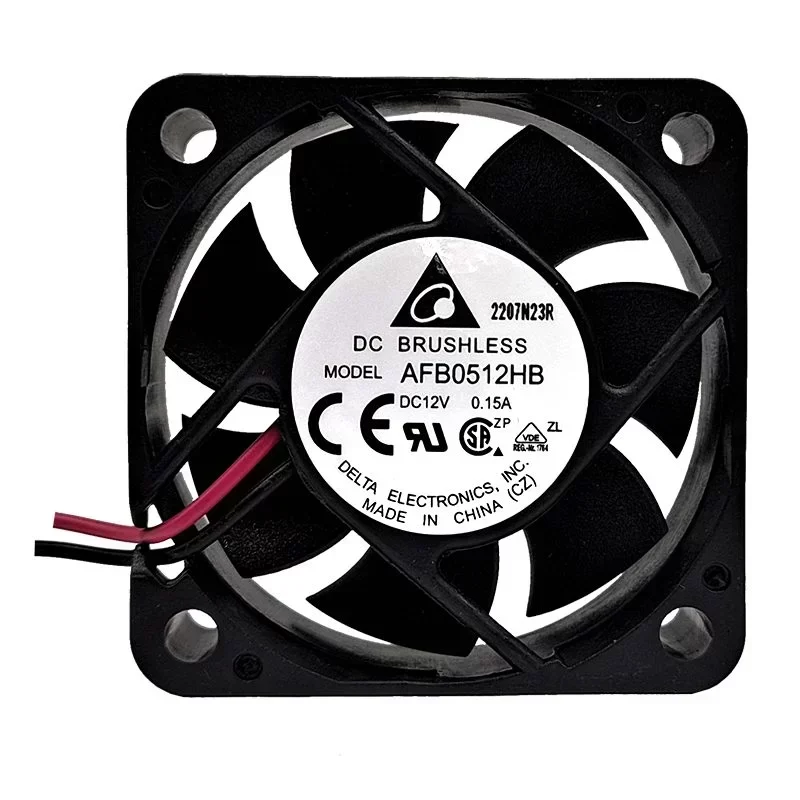

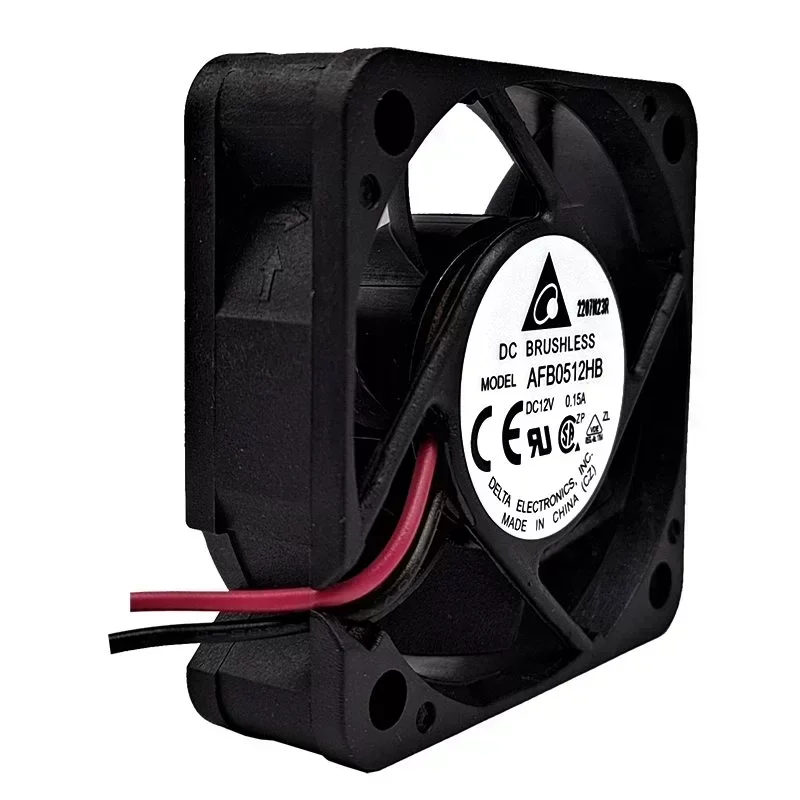

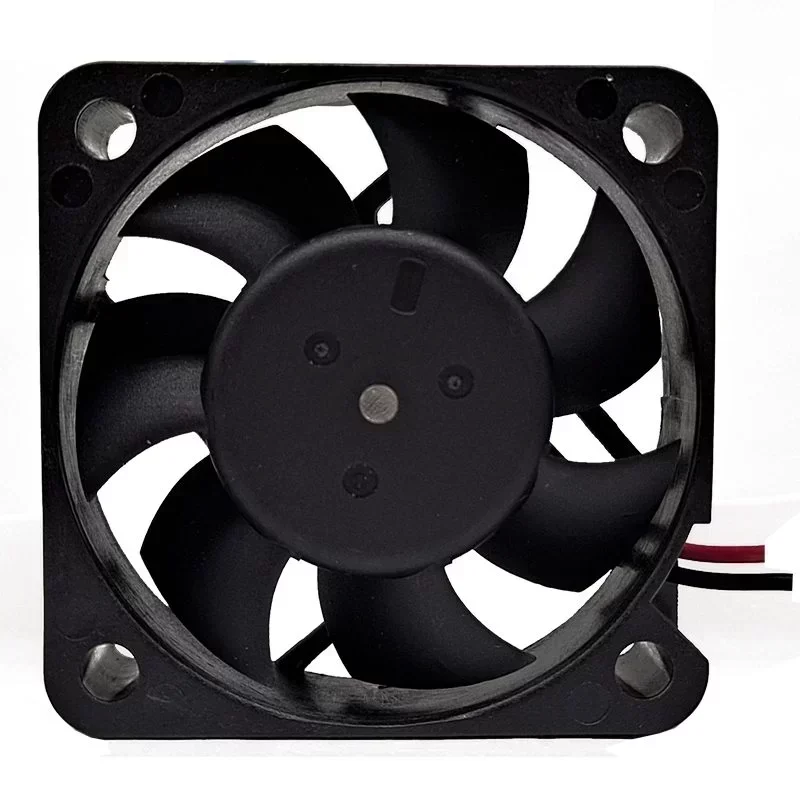

Delta AFB0512HB 12V DC 0.15A Axial Fan 50x50x15mm 5600RPM High Airflow Ball
Delta AFB0512HB 12V DC 0.15A Axial Fan 50x50x15mm 5600RPM High Airflow Ball
Delta AFB0512HB 12V DC 0.15A Axial Fan 50x50x15mm 5600RPM High Airflow Ball
Delta AFB0512HB 12V DC 0.15A Axial Fan 50x50x15mm 5600RPM High Airflow Ball

Delta AFB0512HB 12V DC 0.15A Axial Fan 50x50x15mm 5600RPM High Airflow Ball

$4.89

SKU: 1601524004208 Brand:

Description

The Delta AFB0512HB is a high-performance industrial axial flow fan engineered for continuous operation in demanding thermal management systems. Utilizing Original Engineering from Delta Electronics, this compact 50x50x15mm cooling solution delivers exceptional airflow and static pressure characteristics. Designed with a precision dual ball bearing system, it ensures extended lifecycle reliability and consistent acoustic performance across varied environmental conditions.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB0512HB
Fan Type: Axial Flow DC Fan
Dimensions: 50 x 50 x 15 mm
Operating Voltage: 12V DC
Voltage Range: 7.0V to 13.8V DC
Nominal Current: 0.15A
Input Power: 1.80W
Rated Speed: 5600 RPM ± 10%
Maximum Airflow: 14.13 CFM (0.400 m³/min)
Static Pressure: 5.00 mmH2O
Acoustic Noise: 32.0 dB(A)
Bearing Type: Dual Ball Bearing
Housing Material: Plastic UL94V-0
Impeller Material: Plastic UL94V-0
Weight: 32.0 g
Operating Temperature: -10°C to +70°C
Termination: Wire Leads
Certifications: UL, CE, RoHS, TUV

Industrial Application:
The AFB0512HB is specifically designed for high-density electronic enclosures, telecommunications equipment, and industrial automation controllers. In scenarios where compact variable frequency drives or server power supplies experience localized heat buildup, this fan’s 5600 RPM high-velocity output rapidly dissipates thermal loads, preventing thermal throttling and component degradation. Its dual ball bearing architecture is critical for applications requiring continuous uptime in elevated temperature environments up to +70°C.

Lifecycle and Procurement:
Ensuring Technical Compatibility with a wide range of OEM equipment, this fan serves as a direct drop-in replacement for critical cooling infrastructure. We maintain optimized supply chain logistics to provide a minimal Lead Time for bulk and replacement orders, ensuring your operational downtime is strictly minimized.

Key Attributes
Voltage: 12 V
Material: Plastic
Speed: 5600RPM
Mounting type: Free Standing
Type: Axial flow fan
Warranty: 1 years
Power Source: Electric
Blade material: Plastic
Bearing type: Ball bearing
Customized support: ODM, OEM
After-sales service provided: Online support
Place of origin: China
Brand name: Delta
Model number: AFB0512HB
Application: Industrial Equipment
Core Components: Motor, PLC, Bearing, Engine
Noise: 32dBA
Specification: 50*50*15mm
Weight: 32g

Packaging and Delivery
Selling Units: Single item
Single package size: 27X15X18 cm
Single gross weight: 1.000 kg

Delta AFB0512HB 12V DC 0.15A Axial Fan 50x50x15mm 5600RPM High Airflow Ball

Delta AFB0512HB 12V DC 0.15A Axial Fan 50x50x15mm 5600RPM High Airflow Ball

Delta AFB0512HB 12V DC 0.15A Axial Fan 50x50x15mm 5600RPM High Airflow Ball

Delta AFB0512HB 12V DC 0.15A Axial Fan 50x50x15mm 5600RPM High Airflow Ball

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
