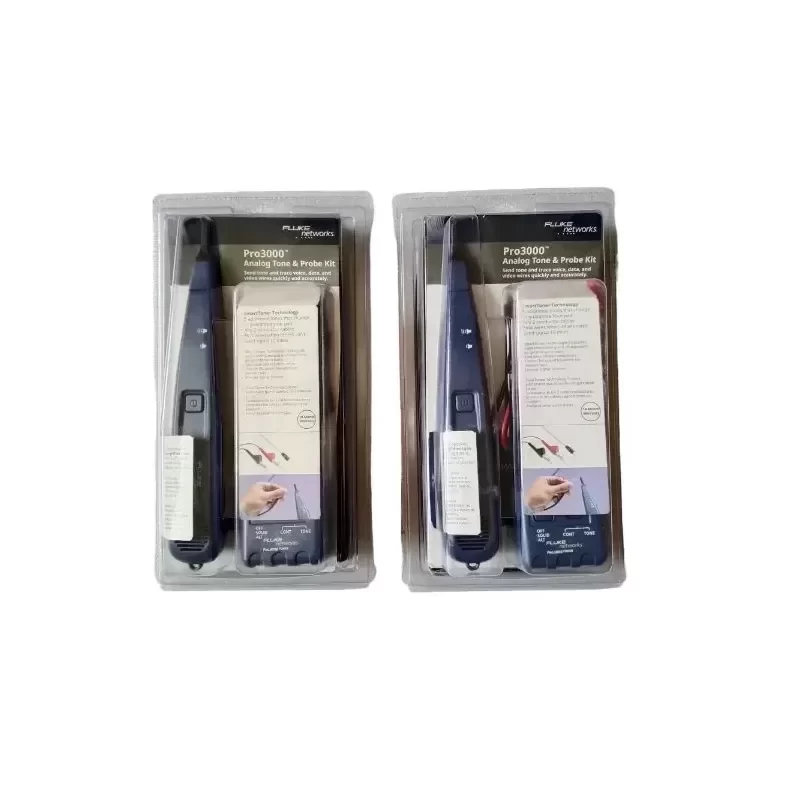

Fluke PRO3000F60-KIT Analog Testing Equipment Includes 60Hz Filter and Tone Generator

Description

Fluke Networks PRO3000F60-KIT Analog Tone and Probe Kit with 60Hz Filter,Engineered for precision wire identification in high-noise environments, the Fluke PRO3000F60-KIT represents the industry standard in analog testing equipment. This kit integrates a high-performance tone generator with an advanced filtered probe, specifically designed to eliminate 60Hz interference commonly found in North American electrical infrastructures. By leveraging Original Engineering standards, this diagnostic tool ensures maximum Technical Compatibility with unenergized AC wire, telephone/twisted pair wiring, all voice and data category cables, bare wire, and speaker wire.

Technical Specifications
Manufacturer: Fluke Networks
Model: PRO3000F60-KIT
Equipment Type: Analog Tone and Probe Kit
Filter Frequency: 60 Hz (AC line noise rejection)
Tone Technology: SmartTone (5 distinct tones for exact pair identification)
Maximum Transmission Range: 16 km (10 miles)
Generator Output Power: 8 dBm into 600 Ohms
Generator Output Frequency: 1000 Hz nominal
Voltage Protection: 60 VDC (in Toner/Polarity mode)
Power Source: 9V alkaline battery (per unit)
Battery Life (Generator): 70 hours typical
Battery Life (Probe): 50 hours typical
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Generator Dimensions: 6.9 x 6.1 x 3.6 cm
Probe Dimensions: 24.9 x 4.1 x 3.3 cm
Weight (Generator): 0.13 kg
Weight (Probe): 0.14 kg
Connection Interfaces: Angled bed-of-nails clips, RJ-11 plug

Application Scenario
The PRO3000F60-KIT is purpose-built for telecommunications technicians, network engineers, and industrial electricians tasked with tracing and isolating individual wire pairs within dense, multi-conductor bundles. The integrated 60Hz filter solves the critical problem of AC power line induction, which typically overwhelms standard probes with loud buzzing. This allows technicians to accurately trace communication lines routed in close proximity to power conduits in commercial buildings and industrial plants.

Procurement & Lifecycle
Designed for rugged field use, this testing equipment guarantees long-term reliability and minimizes diagnostic downtime. We maintain optimized inventory levels to ensure a minimal Lead Time for critical maintenance operations requiring immediate deployment of professional-grade diagnostic tools.

Key Attributes
Type: Tone Generator
Accuracy: 1
Place of origin: China
Customized support: OEM, ODM
Power: 60Hz
Protection Class: IP65
Voltage: Other
Brand name: Fluke
Warranty: 1 years
Frequencies Filtered: 60 Hz and its harmonic frequencies
Battery: 9V Alkaline
Operating Temperature: -13 to 140°F (-20 to 60°C)
User Interface: Tone mode LED Continuity/Polarity LED
Alternating Frequency: 1000/1500 Hz nominal
Output Power in Tone Mode: 8 dbm into 600 ohms
Output Voltage Level in Continuity Mode: 8 Vdc with fresh battery

Packaging and Delivery
Selling Units: Single item
Single package size: 30X16X13 cm
Single gross weight: 1.000 kg
