Description

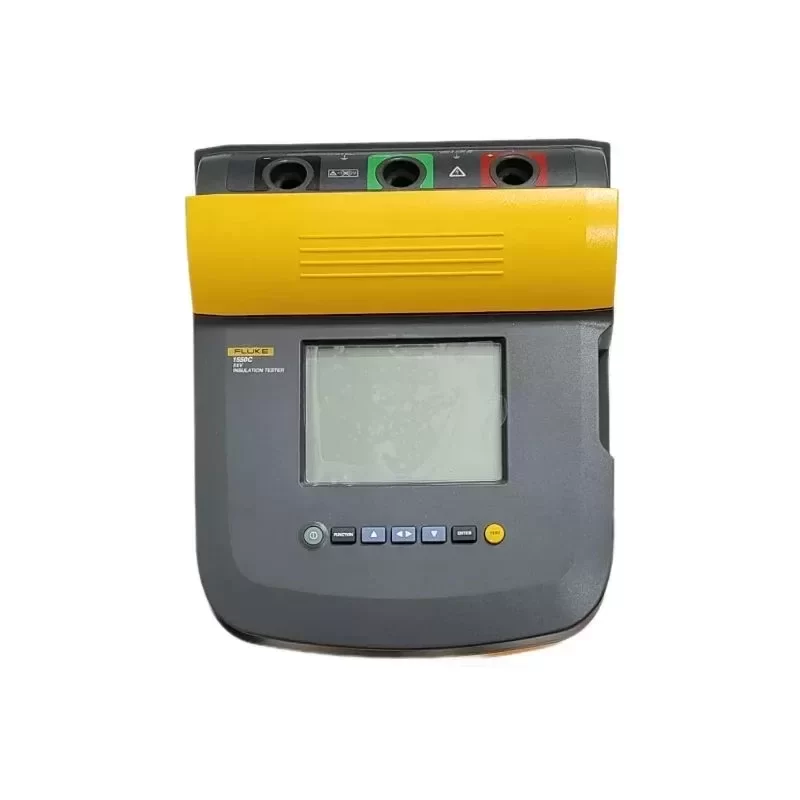

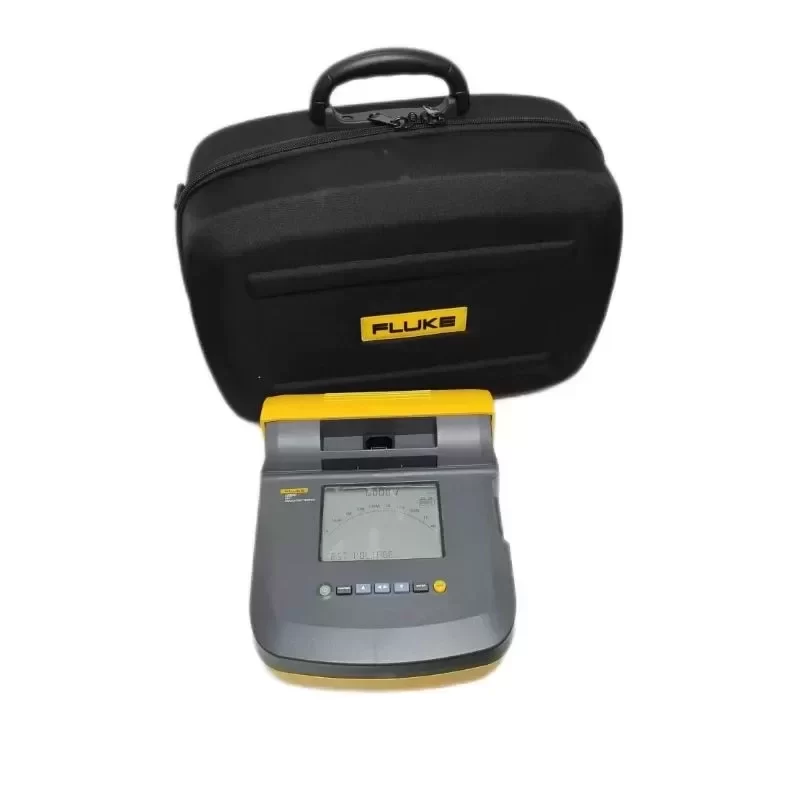

The Fluke 1550C is an industrial-grade digital insulation resistance tester engineered for predictive maintenance and diagnostic testing of high-voltage electrical distribution systems. Built with Fluke Original Engineering, this instrument delivers highly accurate insulation testing up to 5 kV, enabling comprehensive assessment of motors, generators, cables, and switchgear.
TECHNICAL SPECIFICATIONS
Manufacturer: Fluke Corporation
Model Number: 1550C
Test Voltages: 250 V, 500 V, 1000 V, 2500 V, 5000 V
Insulation Resistance Range: 200 kΩ to 2 TΩ
Test Voltage Accuracy: -0% to +10% at 1 mA charge current
Short-Circuit Current: 1.4 mA nominal
Guard System: Active guard terminal to eliminate surface leakage current
Capacitance Measurement Range: 0.01 μF to 15.00 μF
Leakage Current Measurement: 1 nA to 2 mA
Timer Range: 0 to 99 minutes
Memory Capacity: 99 storage locations
Safety Category Rating: CAT III 1000 V, CAT IV 600 V
Power Source: 12 V rechargeable lead-acid battery
Charger Input Voltage: 85 V AC to 250 V AC, 50/60 Hz
Operating Temperature: -20 °C to 50 °C
Storage Temperature: -20 °C to 65 °C
Enclosure Rating: IP40
Dimensions: 269 mm x 277 mm x 160 mm
Weight: 3.7 kg
APPLICATION AND SYSTEM INTEGRATION
In utility-scale power generation and heavy manufacturing plants, insulation breakdown in high-voltage motors and transmission cables leads to costly unplanned downtime. The Fluke 1550C addresses this by automating Polarization Index (PI) and Dielectric Absorption Ratio (DAR) calculations. Its high Technical Compatibility with modern asset management systems is supported by infrared and wireless data transfer, allowing maintenance teams to log historical trends and identify insulation degradation before failure occurs.
COMMERCIAL LOGISTICS
Lead Time: Standard dispatch within 3 to 5 business days, subject to regional inventory levels.
Key Attributes
Accuracy Class: 5%
Current Range: 1 nA to 2 mA
Insulation Resistance: 0 to 1 TΩ
Measuring Range: 5 kV,1 TΩ
Testing Voltage: 5 kV
Place of Origin: China
Model Number: 1550C
Brand Name: Fluke
Current Resolution: 1 mA
Dimensions: 269 x 277 x 160 mm
Display Type: Digital Only
Operating Temperature: -4 to 122°F (-20 to 50°C)
Speed Range: 10 m/s
Time Resolution: 10 ms
Insulation Resistance Measurement: 5 to 1 TΩ
Voltage range: 5000V
Induced AC Mains Current Rejection: 2 mA maximum
Capacitance Measurement Range: 0.01 to 15 uF
Leakage Current Measurement Range: 1 nA to 2 mA
EMC: EN 61326
Dimensions: 269 x 277 x 160 mm
Packaging and Delivery
Selling Units: Single item
Single package size: 45X35X26 cm
Single gross weight: 5.000 kg
