Description

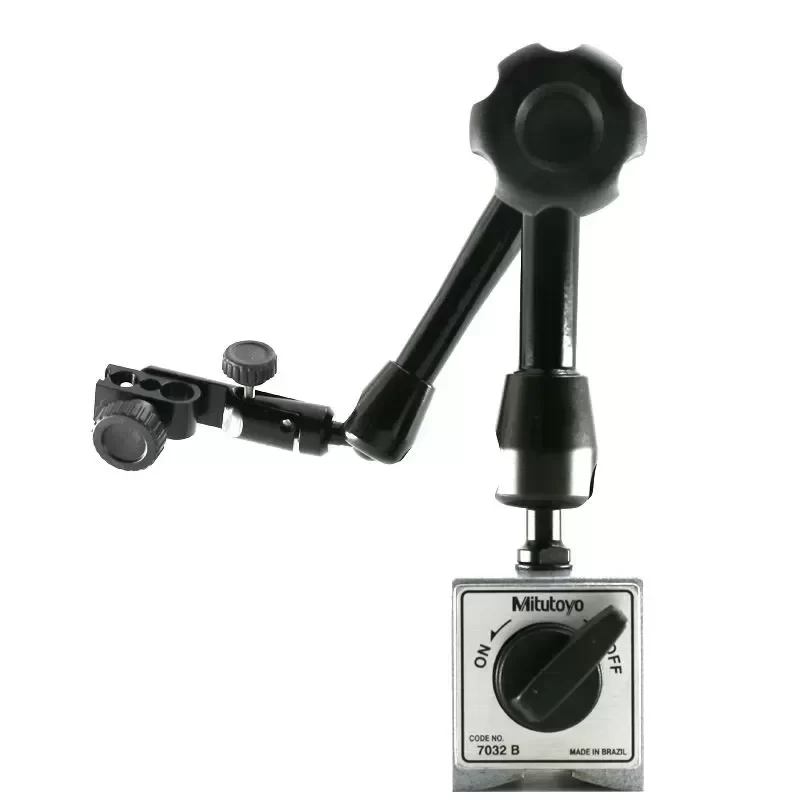

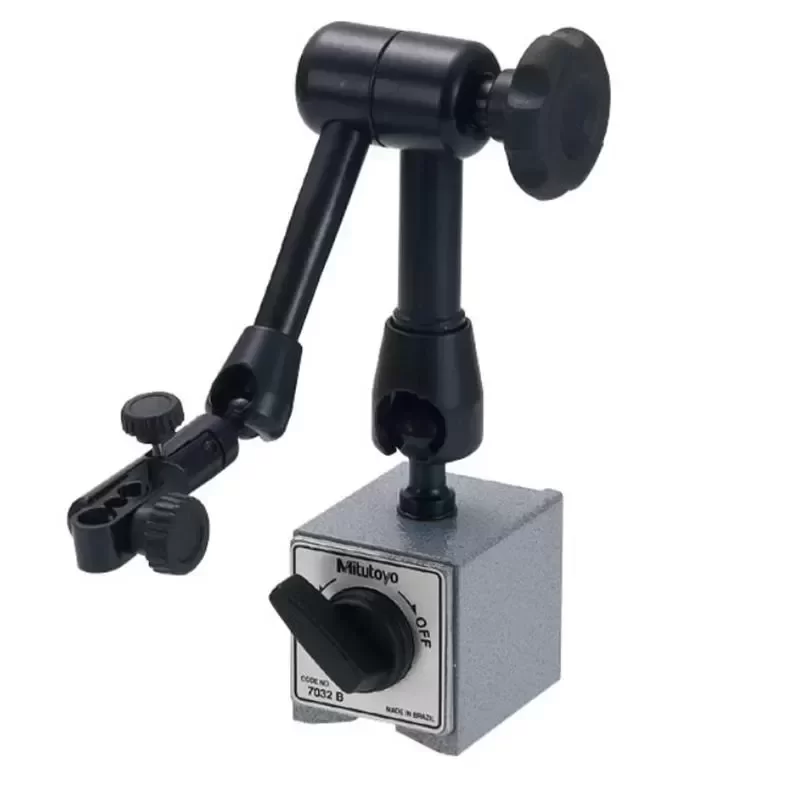

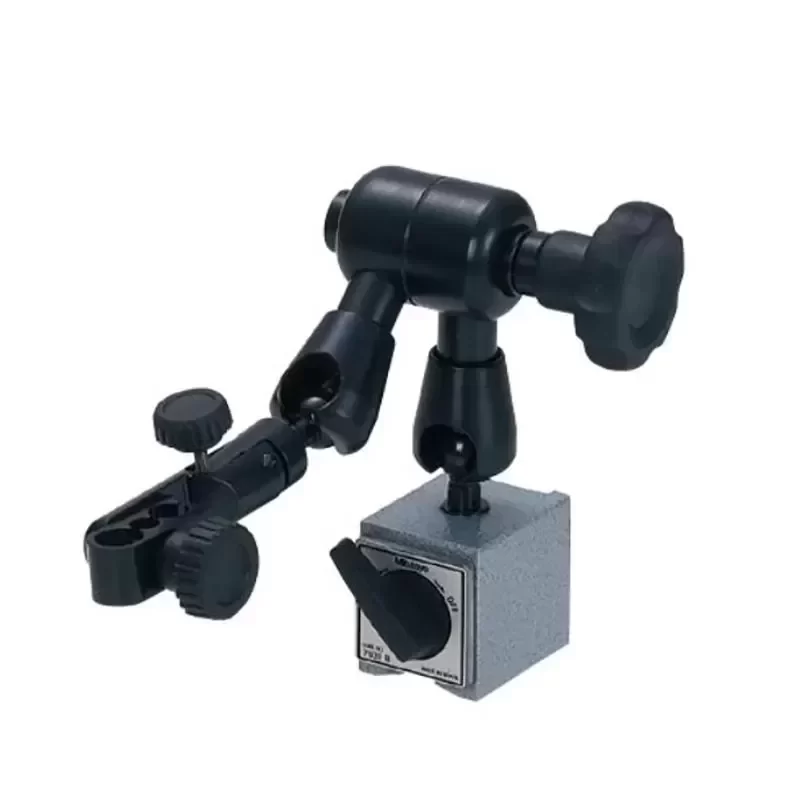

The Mitutoyo 7033-10 is an industrial-grade universal magnetic stand engineered for rigid positioning of dial indicators, test indicators, and metrology probes in precision inspection environments. Featuring a high-stability magnetic base with V-groove architecture and a mechanical articulated arm, the unit incorporates a single-action locking knob system that tensions all three pivoting joints simultaneously for rapid, non-deflecting setup.
TECHNICAL SPECIFICATIONS:
Brand: Mitutoyo
Model: 7033-10
Series: Series 7 Universal Magnetic Stand
Magnetic Clamping Force: 600 N (approx. 60 kgf / 132 lbf)
Base Dimensions (W x D x H): 50 mm x 58 mm x 55 mm
Total Extended Height: 350 mm
Arm Reach Radius: 320 mm
Mounting Stem Compatibility: Ø6 mm, Ø8 mm, Ø9.53 mm (3/8 in), with integrated dovetail clamp
Thread Size Base Mount: M8 x 1.25
Magnetic Base Configuration: V-grooved bottom surface for cylindrical stock and flat plane surfaces
Magnetic Actuation: Mechanical ON/OFF rotary toggle switch
Locking Mechanism: Single-point central mechanical locking knob for simultaneous 3-joint fixation
Fine Adjustment: Integrated precision collar adjustment at the clamp head
Weight: 1.75 kg
Operating Temperature Range: 0 °C to 40 °C
MECHANICAL ARCHITECTURE & INTEGRATION:
The 7033-10 utilizes a centralized mechanical tensioning assembly that applies uniform clamping pressure across spherical elbow and shoulder ball joints. This eliminates cantilever droop and backlash during micro-positioning. The base housing contains a permanent ferrite/alnico magnet assembly controlled via an ON/OFF rotary switch, isolating magnetic field interference when disengaged for effortless repositioning without surface marring.
INDUSTRIAL APPLICATION SCENARIO:
Designed for high-tolerance runout verification, surface flatness inspection, and lathe/milling machine setup. The 320 mm articulated reach allows metrology technicians to route dial indicators around bulky tooling fixtures, machine arbors, and complex engine block castings to record radial and axial runout within ±0.001 mm accuracy without mechanical harmonic distortion.
COMMERCIAL & METROLOGY ASSURANCE:
This unit is manufactured under Mitutoyo Original Engineering standards, guaranteeing structural rigidity and repeatable clamping performance under shop-floor vibration. Full Technical Compatibility is maintained across standard metric and imperial stem dial indicators, bore gages, and test indicators. Contact our commercial desk for current inventory availability, calibration certificates, and regional Lead Time delivery schedules.
Key Attributes
Place of origin: China
Model number: 7032-10
Brand name: Mitutoyo
Customized support: OEM, ODM
Warranty: 1 years
Product name: Mitutoyo
Model: 7032-10
Clamping device: Magnetic
Clamping force (vertical): 600 N
Base size (LxWxH): 59 x 50 x 55 mm
Total height: 425 mm
Fine adjustment: With fine feed wheel +-4°
Working radius: 346 mm

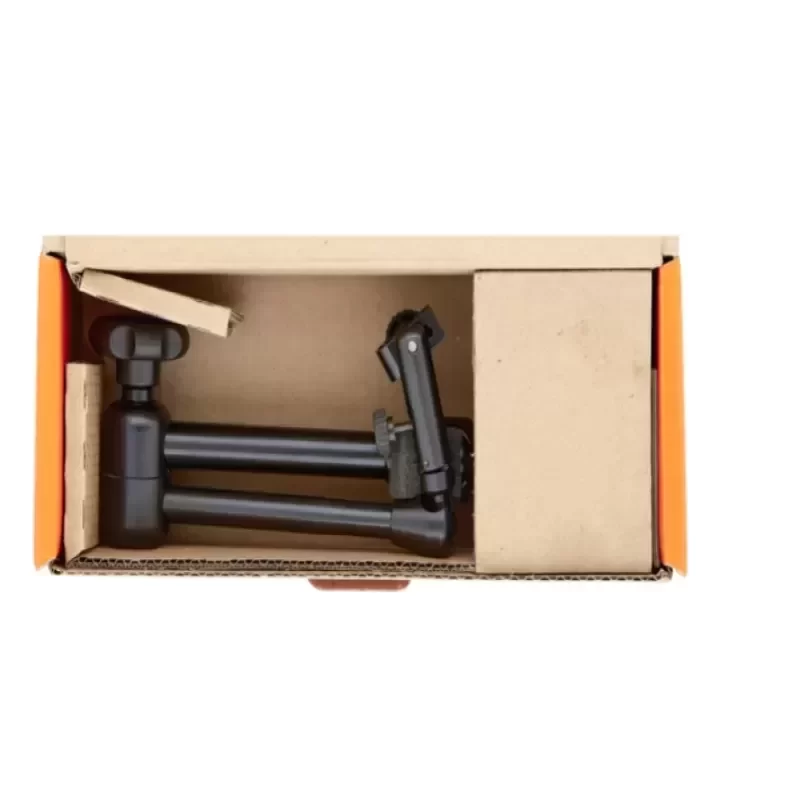

Packaging and Delivery
Selling Units: Single item
Single package size: 28X20X16 cm
Single gross weight: 2.000 kg
