Elcometer 456 Model B Ferrous Integral Coating Thickness Gauge A456CFBI1 Testing Equipment

Description

The Elcometer 456 Model B Ferrous Integral Coating Thickness Gauge (A456CFBI1) is a high-precision non-destructive testing (NDT) instrument designed for measuring dry film thickness on ferrous metal substrates. This Model B variant provides a cost-effective solution for basic coating inspections while maintaining the industry-leading accuracy and durability associated with the Elcometer 456 series.

Technical Specifications:
Manufacturer: Elcometer
Model Number: A456CFBI1
Series: 456 Model B
Substrate Type: Ferrous (F)
Probe Configuration: Integral (Fixed)
Measurement Range: 0-1500μm (0-60mils)
Accuracy: ±1-3% or ±2.5μm (±0.1mil)
Resolution: 0.1μm: 0-100μm; 1μm: 100-1500μm (0.01mil: 0-5mils; 0.1mil: 5-60mils)
Operating Temperature: -10 to 50°C (14 to 122°F)

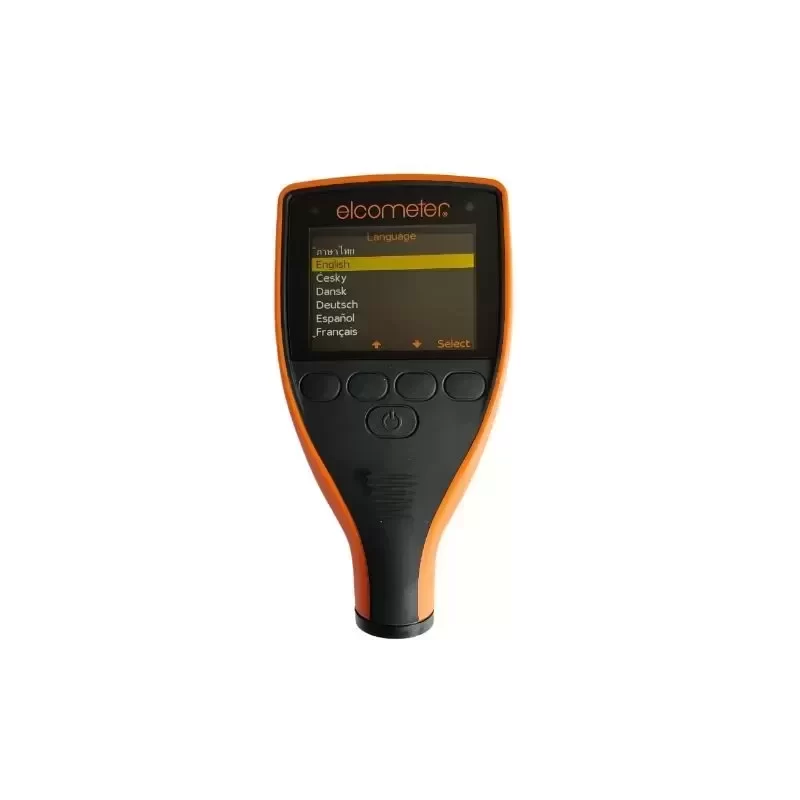

Display: 2.4 inch (6cm) QVGA color TFT display
Power Supply: 2 x AA batteries (up to 60 hours of continuous use)
Dimensions: 141 x 73 x 37mm (5.55 x 2.87 x 1.46 inches)
Weight: 161g (5.68oz) including batteries
Protection Rating: IP64 (Dust and water resistant)
Certifications: AS 3894.3, AS/NZS 1580.108.1, ASTM B 499, ASTM D 1186-B, ASTM D 7091, ASTM E 376, ASTM G 12, BS 3900-C5-6B, BS 5411-11, BS EN ISO 1461, DIN 50981, ISO 2178, ISO 2808-6A, ISO 2808-6B, ISO 2808-7C, ISO 2808-7D, ISO 2808-12, JIS K 5600-1-7, NF T30-124

Operational Logic and Engineering:
The A456CFBI1 utilizes electromagnetic induction principles to determine the distance between the probe tip and the base ferrous metal. The integral probe design features a sapphire-tipped wear-resistant probe, ensuring long-term calibration stability and Technical Compatibility with harsh industrial environments. The Model B interface is optimized for rapid data acquisition, providing more than 70 readings per minute.

Industrial Application:
This equipment is essential for quality control in automotive manufacturing, structural steel fabrication, and powder coating facilities. It solves the critical problem of ensuring protective coatings meet specified thickness requirements to prevent premature corrosion and structural failure. The integral probe allows for stable, one-handed operation on flat or curved surfaces, making it ideal for high-volume inspection lines.

Logistics and Procurement:
Condition: Original Engineering New
Lead Time: Typically available for immediate dispatch

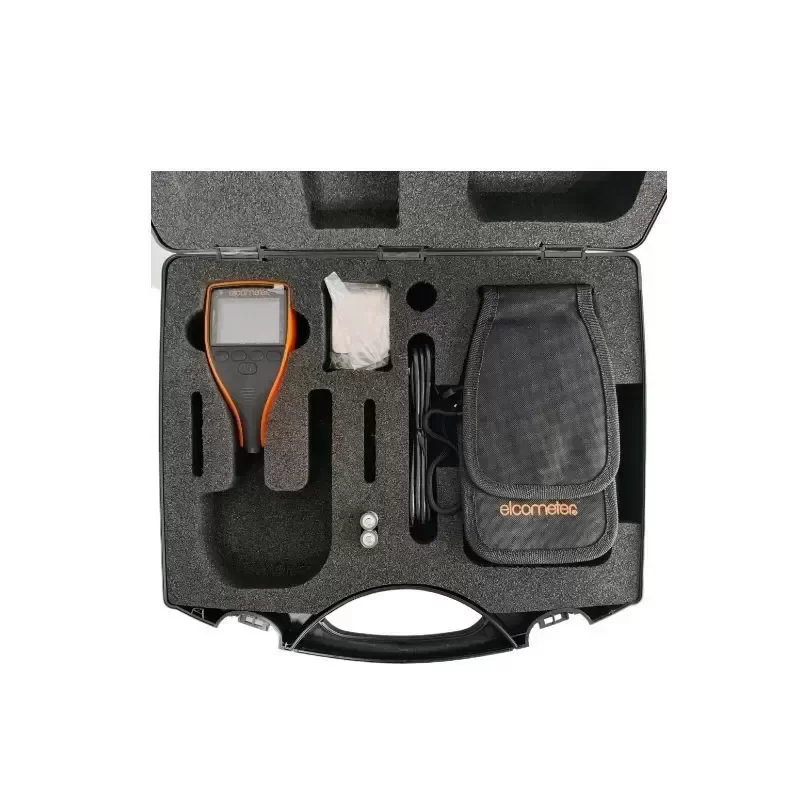

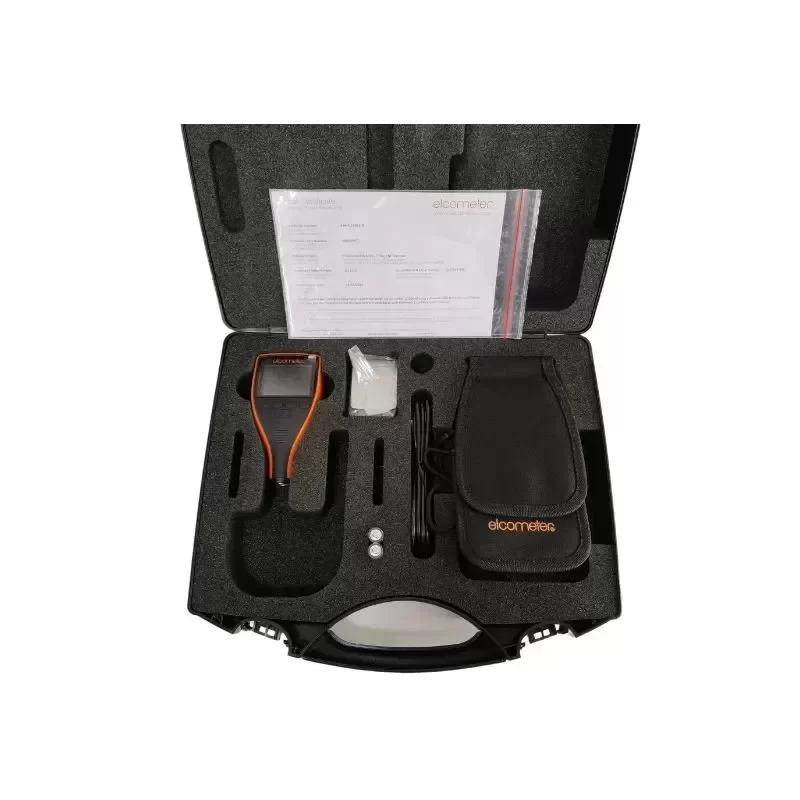

Package Includes: Elcometer 456 gauge, calibration foils, wrist strap, protective case, and user manual.

Key Attributes
Type: Coating Thickness Gauge
Accuracy: 1%
Place of origin: U.K.
Customized support: OEM, ODM
Power: 5000
Protection Class: IP65
Voltage: Other
Brand name: Elcometer
Warranty: 1 years
Display: 320 x 240 pixels
Battery Type: 2 x AA batteries
Gauge Dimensions: 14.1 x 7.30 x 3.70cm
Operating Temperature: -10 to 50°C (14 to 122°F)

Packaging and Delivery
Selling Units: Single item
Single package size: 36X31X16 cm
Single gross weight: 1.000 kg
