Description
The Leica DISTO D2 is a compact, high-precision laser distance meter engineered for professional surveying, facility management, and industrial layout verification. Built in accordance with ISO 16331-1 standards, this instrument guarantees measurement accuracy and range under standard operating conditions. Equipped with Bluetooth Smart connectivity, the unit pairs directly with mobile devices and drafting software to automate field data acquisition, eliminating transcription errors and accelerating drafting cycles.
Technical Specifications:
Manufacturer: Leica Geosystems
Model: DISTO D2
Range: 0.05 m to 100 m
Typ. Measuring Accuracy: ± 1.5 mm
Laser Specification: 635 nm, < 1 mW, Class 2
Ingress Protection: IP54 (Dust and Splash Resistant)
Data Interface: Bluetooth Smart (v4.0)
Measurement Modes: Single Distance, Continuous Tracking (Min/Max), Area, Volume, Painter Function, Pythagoras 2-Point and 3-Point, Stake-Out
Memory: Last 10 Displayed Values
Reference Base: Front edge, Rear edge, Multifunctional End-Piece with Automatic Orientation Sensor
Display: 3-Line Illuminated LCD
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -25 °C to +70 °C
Power Supply: 2 x 1.5 V AAA Batteries
Battery Service Life: Up to 10,000 individual measurements
Dimensions: 116 x 44 x 26 mm
Weight: 100 g (with batteries)
Standard Compliance: ISO 16331-1 certified precision
Application and Integration:

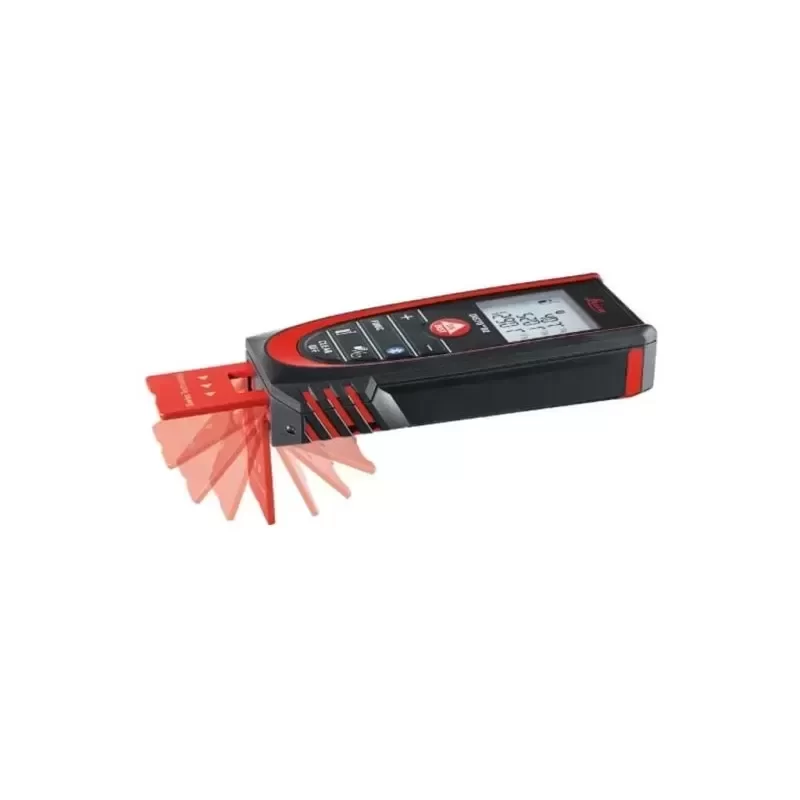

The Leica DISTO D2 addresses spatial verification challenges in complex interior infrastructure, MEP (Mechanical, Electrical, Plumbing) installations, and factory layout planning. Its folding multifunctional end-piece eliminates diagonal indexing errors in tight corners and recesses by automatically shifting the reference plane. The hardware reflects Original Engineering standards for durability and sensor consistency in demanding field conditions. For multi-site engineering deployments, Technical Compatibility with the Leica DISTO Plan app and CAD systems facilitates streamlined digital processing, supported by standard Lead Time fulfillment for equipment maintenance and procurement.
Key Attributes
Place of origin: China
Material: Plastics
Size: 116 x 44 x 26 mm
Weight: 0.5kg
Model number: DISTO D2
Brand name: Leica
Customized support: OEM, ODM
Warranty: 1 years
Product name: Leica
Model: DISTO D2
Measure distance: 100m
X-Range Power Technology: Yes
Protection class: IP54
Battery Life: Up to 10000 measurements
Color: Reed
Packaging and Delivery
Selling Units: Single item
Single package size: 28X16X12 cm
Single gross weight: 1.500 kg
