Description
The FLIR T530 is an industrial-grade infrared thermography camera designed for condition monitoring, electrical distribution diagnostics, and high-precision mechanical asset inspection. Utilizing an uncooled microbolometer detector paired with an interchangeable 24-degree AutoCal optical assembly, this platform records radiometric temperature measurements across a native 320 x 240 infrared resolution matrix (expandable to 307,200 measurement points via UltraMax signal processing). The system is engineered around a 180-degree rotating optical block and a 4-inch optically bonded LCD touchscreen, enabling field technicians to maintain a direct viewing angle when targeting overhead busways, lower cabinet terminations, and obstructed motor assemblies. Built with Original Engineering tolerances, the FLIR T530 delivers thermal precision for high-density preventative maintenance workflows.
DETAILED TECHNICAL SPECIFICATIONS:
Manufacturer: Teledyne FLIR
Model: T530 (24° Configuration)
Part Number Logic: 79302-0101 / 79304-0101 Series
Thermal Detector: Uncooled Microbolometer
IR Native Resolution: 320 x 240 pixels (76,800 active pixels)
UltraMax Super-Resolution: 307,200 effective measurement points
Pixel Pitch: 17 µm
Thermal Sensitivity (NETD): < 30 mK (< 0.030 °C) at 30 °C with 24° Lens
Spectral Band: 7.5 to 14.0 µm
Image Frame Rate: 30 Hz
Field of View (FOV): 24° x 18°
Focal Length: 17 mm
Spatial Resolution (IFOV): 1.31 mrad/pixel
Minimum Focus Distance: 0.15 m (0.49 ft)
Lens Identification: Automatic AutoCal optical pairing
Optical Block Articulation: 180° continuous rotation
Display: 4.0-inch IPS LCD, 640 x 480 pixels, auto-rotational orientation
Focus Modes: Continuous Laser Distance Meter (LDM), One-shot LDM, One-shot Contrast, Manual
Object Temperature Range 1: -20 °C to 120 °C (-4 °F to 248 °F)
Object Temperature Range 2: 0 °C to 650 °C (32 °F to 1202 °F)
Measurement Accuracy: ±2 °C (±3.6 °F) or ±2% of reading (ambient 15 °C to 35 °C)
Digital Zoom: 1x to 4x continuous electronic zoom
Radiometric File Format: JPEG with embedded 14-bit measurement data
Integrated Visual Camera: 5 MP resolution with integrated LED torch/flash
Image Modes: Infrared, Visual, MSX (Multi-Spectral Dynamic Imaging), Picture-in-Picture
Spotmeters: 3 discrete measurement points
Area Measurement: 3 user-defined boxes with Min/Max/Average auto-tracking
Laser Pointer: Class 2 semiconductor diode laser with on-screen position indicator
Laser Distance Measurement: Built-in distance sensor with automatic focus drive
Interface: USB Type-C (USB 2.0 and DisplayPort video stream)
Wireless Connectivity: Wi-Fi (Infrastructure and Peer-to-Peer modes), Bluetooth BLE
Peripheral Protocol: METERLiNK connectivity for test and measurement sensors
Data Storage: Removable SD memory card (Class 10 minimum)
Battery Architecture: Rechargeable Li-ion 3.7 V, 20 Wh
Continuous Battery Runtime: Approx. 4 hours at 25 °C nominal operation
Charging System: In-camera charging or dual-bay external charging dock
Ingress Protection: IP54 (IEC 60529)
Mechanical Shock: 25 g (IEC 60068-2-27)
Vibration Resistance: 2 g (IEC 60068-2-6)
Drop Resistance: Engineered for 1.3 m (4.3 ft) drop compliance
Operating Temperature Range: -15 °C to 50 °C (5 °F to 122 °F)
Storage Temperature Range: -40 °C to 70 °C (-40 °F to 158 °F)
Dimensions: 140 mm x 201 mm x 84 mm (optical block in nominal position)
Weight: 1.30 kg (with battery and 24° lens)
SYSTEM INTEGRATION AND TECHNICAL COMPATIBILITY:
The T530 features complete Technical Compatibility with FLIR Thermal Studio Suite software for advanced batch processing, trending analysis, and customizable thermographic reporting. Interchangeable AutoCal lenses allow optics (14°, 24°, 42°) to be swapped without requiring field recalibration units or factory service returns. The camera communicates directly via METERLiNK with current clamps and environmental meters, embedding electrical load data directly into radiometric metadata headers.
CRITICAL INDUSTRIAL APPLICATIONS:
High-Voltage Electrical Transmission and Distribution: Identifies high-resistance micro-faults, phase imbalances, and failing switchgear contacts before catastrophic thermal runaway occurs, utilizing 30 mK sensitivity to resolve minute delta-T signatures under light electrical loading.
Rotating Industrial Machinery: Detects mechanical friction, improper shaft alignment, and bearing race defects on continuous-duty motor-pump couplings and rolling mill drivetrains.
Refractory and Process Pipe Diagnostics: Accurately isolates refractory insulation breakdown and inner-wall scaling in industrial kilns, cracking units, and steam delivery lines up to 650 °C.
PROCUREMENT, CALIBRATION AND LOGISTICS:

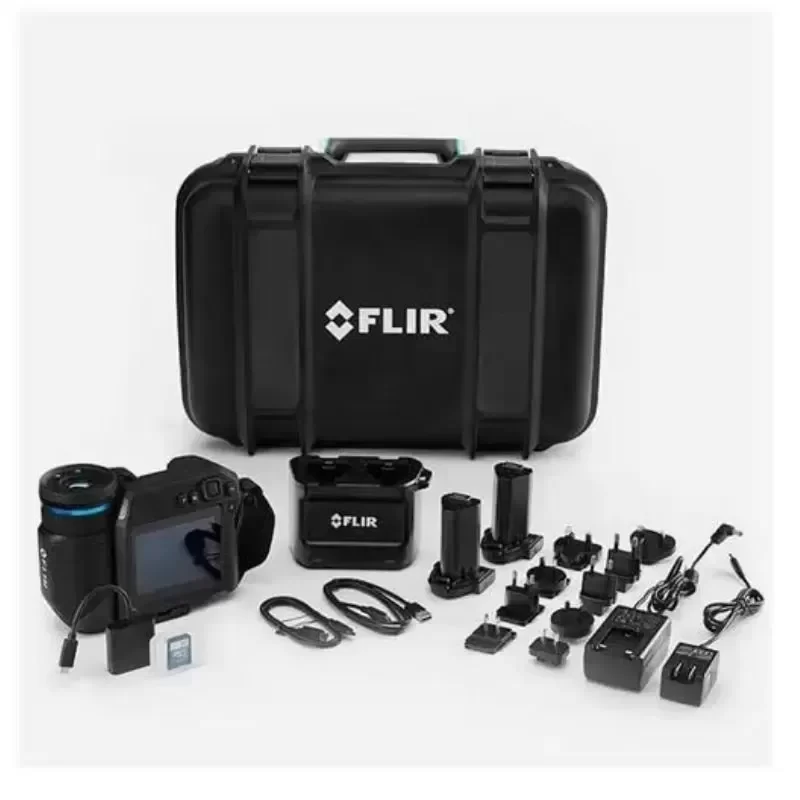

Standard system kit includes FLIR T530 thermal imager with 24° lens, two lithium-ion batteries, dual-bay battery charger, USB-C communication cables, hard transport case, and manufacturer calibration certificate. Lead Time is subject to regional calibration requirements and batch allocations. Contact industrial sales channels for operational dispatch schedules.
Key Attributes
Thermal color palettes: 5 Color Palettes
Thermal Image Pixel: 76,800 pixels
Thermal Sensitivity: 30 mK
Place of Origin: Estonia
Display resolution: 320 x 240
Field of View: 25° x 19°
Image Frequency: 30 Hz
Model Number: T530 24
Brand Name: FLIR
IR Resolution: 320 x 240 (76,800 pixels)
Digital Zoom: 1-4x continuous
Detector Type and Pitch: Uncooled microbolometer, 17 um
Image Frequency: 30 Hz
Object Temperature Range: 300°C to 1200°C (572°F to 2192°F)
Digital Camera: 5 MP, with built-in LED photo/video lamp
Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Image Modes: Infrared, visual, MSX, Picture-in-Picture
Packaging and Delivery
Selling Units: Single item
Single package size: 45X35X26 cm
Single gross weight: 6.000 kg
