$6.00

SKU: 1601636545921 Brand:

Description

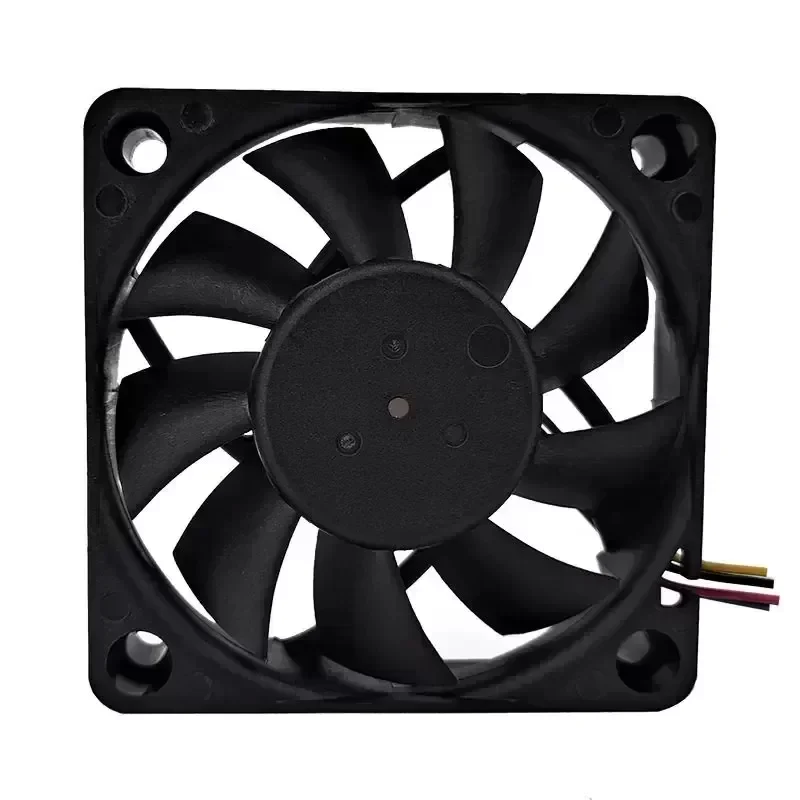

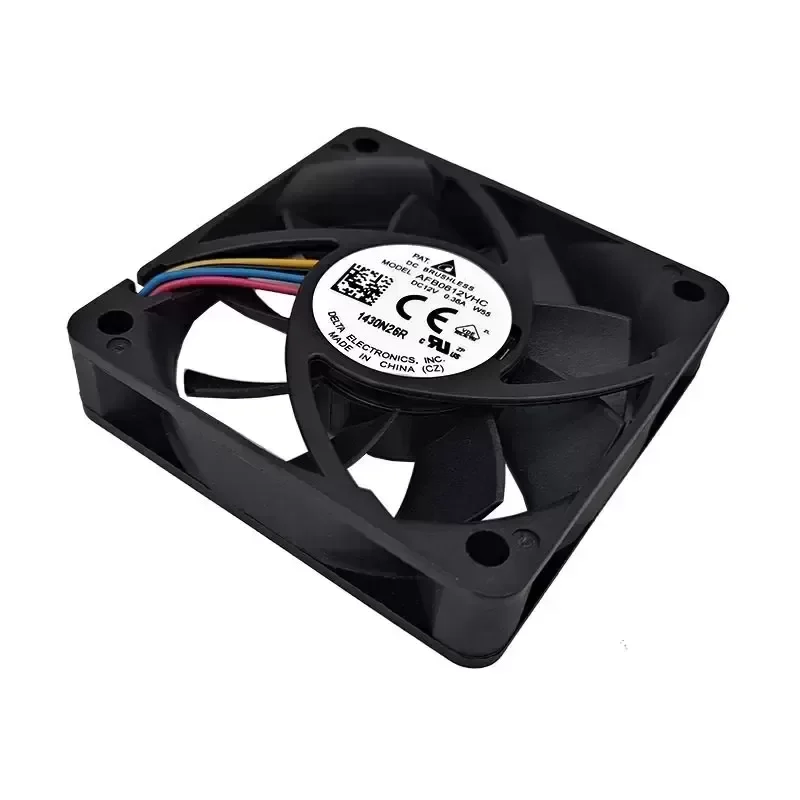

The Delta AFB0612VHCW55 is a high-performance 60mm brushless DC axial fan engineered for critical thermal extraction in space-constrained industrial electronics, telecommunications hardware, and power conversion systems. Utilizing precision dual ball bearings and Delta proprietary motor winding architecture, this unit delivers high static pressure and continuous volumetric airflow under high operating impedance.

Technical Specifications:
Manufacturer: Delta Electronics
Model: AFB0612VHCW55
Series: AFB Series
Frame Dimensions: 60 mm x 60 mm x 25.4 mm
Nominal Voltage: 12 VDC
Operating Voltage Range: 7.0 VDC to 13.8 VDC
Rated Current: 0.36 A
Input Power: 4.32 W
Rated Speed: 5400 RPM

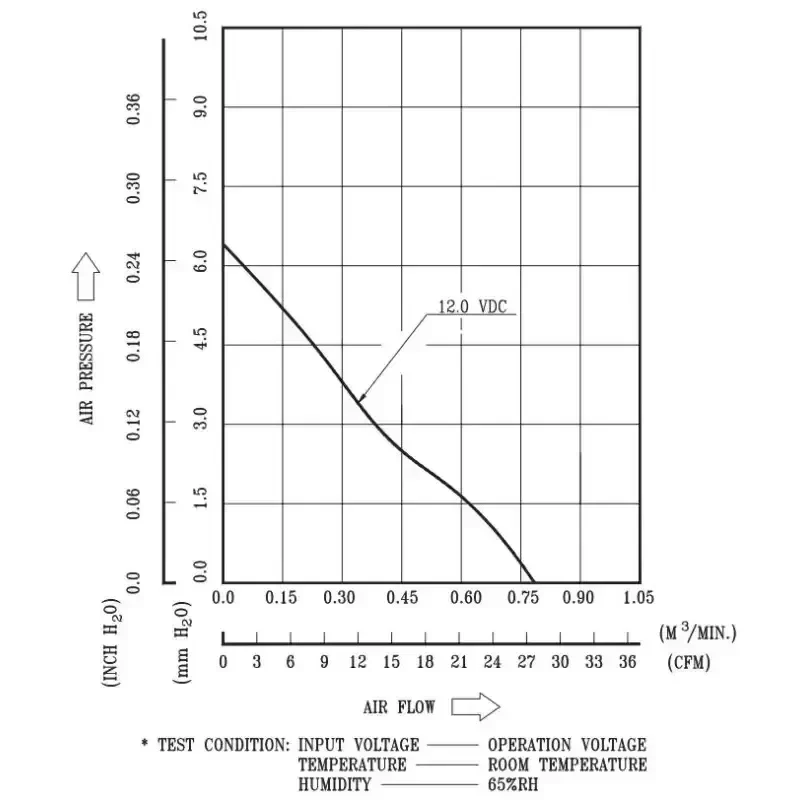

Maximum Airflow: 27.9 CFM (0.79 m³/min)
Maximum Static Pressure: 7.6 mmH2O (0.30 inH2O / 74.5 Pa)
Acoustic Noise Level: 38.0 dBA
Bearing Architecture: Dual Ball Bearing
Frame Material: Glass-reinforced PBT Plastic (UL 94V-0)
Impeller Material: Glass-reinforced PBT Plastic (UL 94V-0)
Direction of Rotation: Counter-clockwise viewed from front of impeller
Motor Protection: Electronically commutated, Locked Rotor Protection, Reverse Polarity Protection
Dielectric Strength: 500 VAC for 1 minute between frame and terminal
Insulation Resistance: 10 Mega Ohm minimum at 500 VDC
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Life Expectancy (L10): 70,000 Hours at 40°C ambient

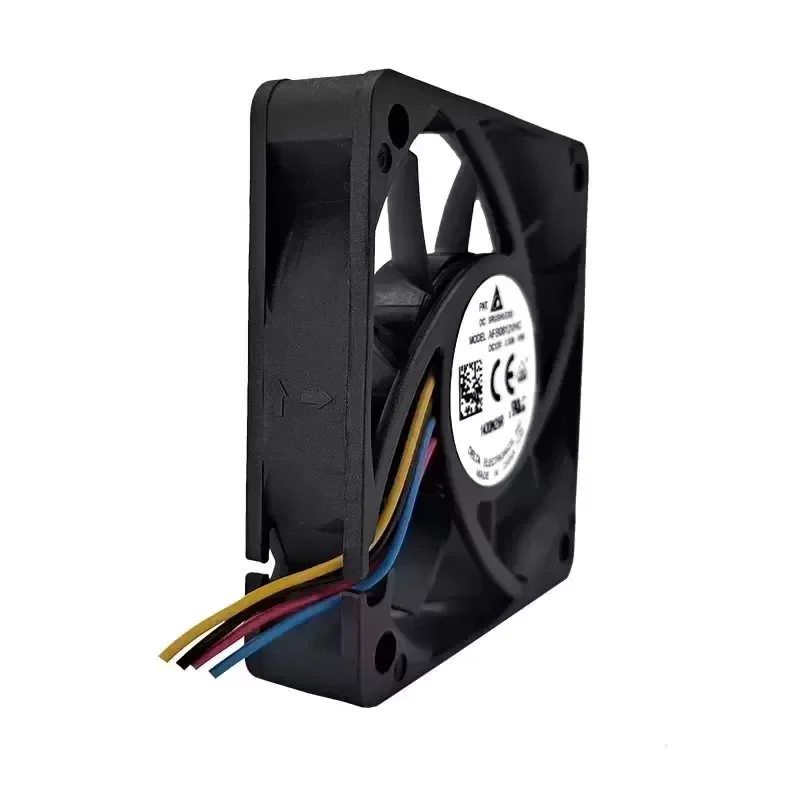

Termination: Lead Wires (UL 1007 AWG #26/24)
Weight: 80 g
Certifications: UL, cUL, TUV, CE, RoHS Compliant

Technical Compatibility and System Integration:

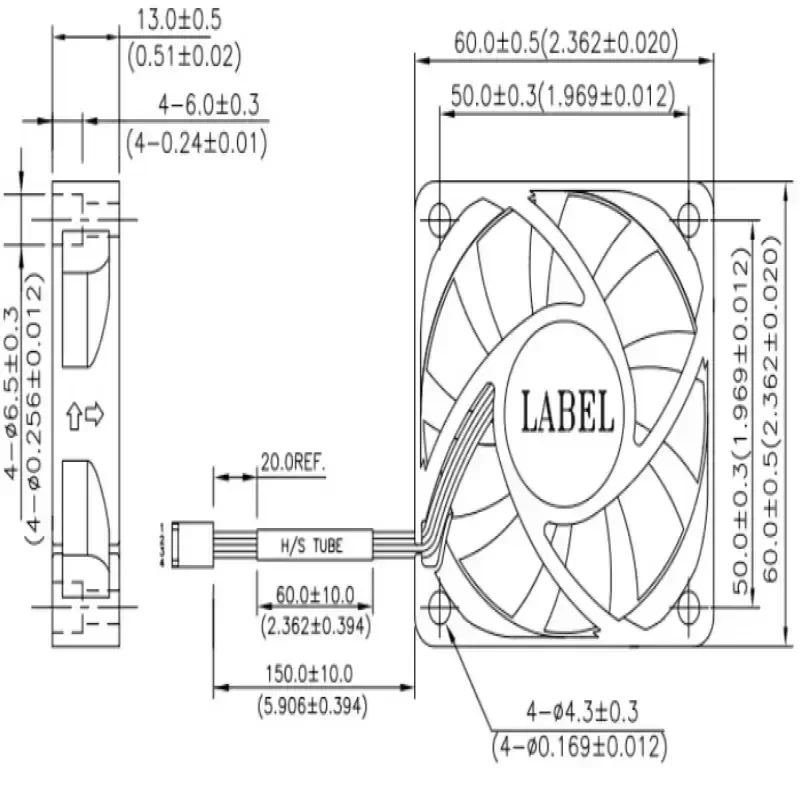

The AFB0612VHCW55 is designed for direct integration into standard 60mm chassis mounts with standard mounting hole spacing of 50.0 ± 0.3 mm (mounting hole diameter Ø 4.5 mm). The factory lead configuration ensures exact Technical Compatibility with OEM industrial control boards, networking switches, inverter drives, and 1U/2U server enclosures. Original Engineering standards from Delta guarantee precise electrical impedance matching and structural fit without mechanical modification.

Industrial Application Scenarios:
This fan is specified for applications where dense component placement generates high thermal resistance. It is widely deployed in uninterruptible power supplies (UPS), frequency converters, automated test equipment, and embedded computing systems requiring reliable continuous 24/7 exhaust ventilation in demanding thermal environments.

Procurement Details:
Authenticity: 100% Original Engineering
Lead Time: In-stock standard configurations ship within 24-48 hours; project-scale allocations available upon request.

Key Attributes
Voltage: 12 V
Material: Plastic
Speed: 5400rpm
Mounting type: Free Standing
Type: Fan
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: ODM
After-sales service provided: Online support
Place of origin: Guangdong, China
Brand name: Delta
Model number: AFB0612VHCW55

Packaging and Delivery
Selling Units: Single item

Delta AFB0612VHCW55 60mm DC Cooling Fan 12V 0.36A

Delta AFB0612VHCW55 60mm DC Cooling Fan 12V 0.36A

Delta AFB0612VHCW55 60mm DC Cooling Fan 12V 0.36A

Delta AFB0612VHCW55 60mm DC Cooling Fan 12V 0.36A

Delta AFB0612VHCW55 60mm DC Cooling Fan 12V 0.36A

Delta AFB0612VHCW55 60mm DC Cooling Fan 12V 0.36A

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
