Mitutoyo 7011S-10 Dial Indicator Stand Magnetic with Fine Adjustment

$66.00

SKU: 10000016886320 Brand:

Description

The Mitutoyo 7011S-10 is a high-rigidity magnetic stand designed for stable, vibration-resistant positioning of dial indicators, dial test indicators, and precision electronic probes. Manufactured under strict Original Engineering protocols, this metrology-grade fixture combines a high-retention permanent magnetic base with a mechanical fine-adjustment cross-clamp assembly, facilitating zero-deflection measurement setups across quality control labs and machine tool environments.

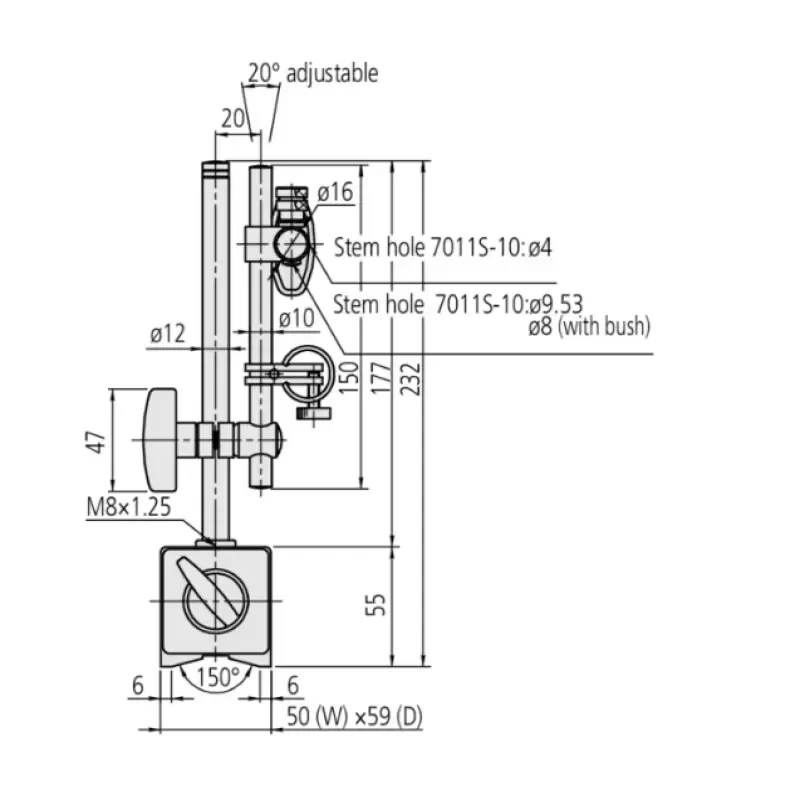

TECHNICAL SPECIFICATIONS:
Manufacturer: Mitutoyo
Model: 7011S-10
Product Type: Magnetic Dial Indicator Stand with Fine Adjustment
Magnetic Holding Force: 600 N (approx. 60 kgf / 132 lbf)
Base Dimensions (W x D x H): 50 mm x 60 mm x 55 mm
Base Configuration: V-groove bottom for flat and cylindrical mounting
Magnetic Control: Rotary ON/OFF mechanical switch
Main Column Dimensions: Ø12 mm x 176 mm

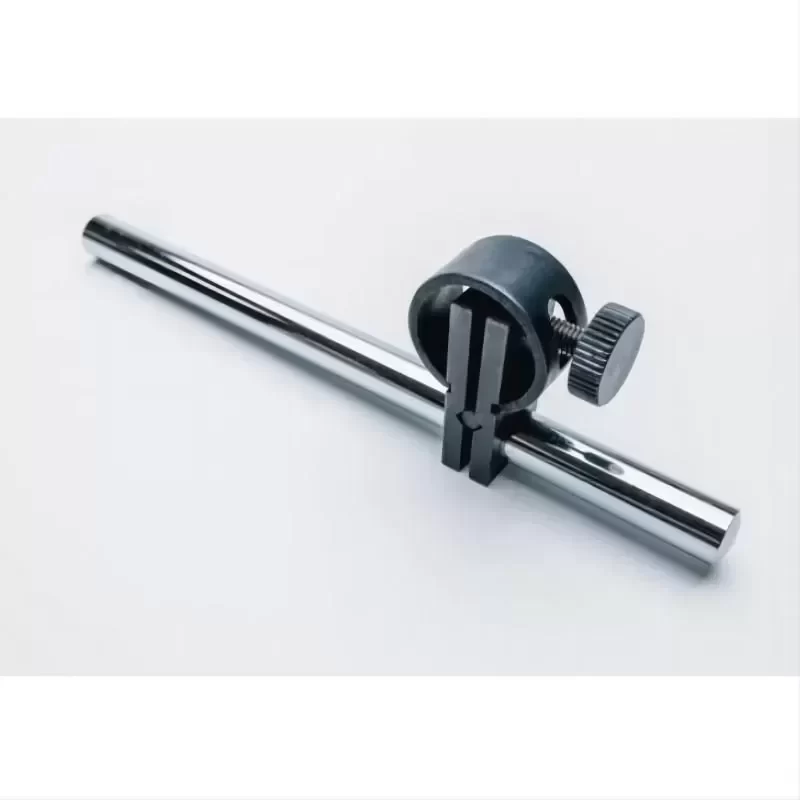

Cross Arm Dimensions: Ø10 mm x 150 mm
Stem Clamping Capacity: Ø8 mm, Ø9.53 mm (3/8 in)
Auxiliary Mounting: Integrated dovetail groove
Base Thread: M8 x 1.25
Total Height: 235 mm
Net Weight: 1.45 kg

DESIGN ARCHITECTURE & RIGIDITY:
The foundation consists of a dual-contact V-slotted base engineered to anchor firmly to convex ferrous surfaces, lathe spindles, cylindrical shafts, and flat granite/steel tables. The manual ON/OFF switch shifts internal magnetic alignment instantly, allowing rapid displacement and safeguarding surface finishes from scratch damage. The vertical steel column and cross arm are secured through precision-machined locking clamps that resist angular deflection under indicator contact force. The specialized fine-adjustment screw mechanism provides micro-positioning capabilities, eliminating overshoot during needle zeroing on high-resolution instruments.

TECHNICAL COMPATIBILITY & APPLICATIONS:
Broad Technical Compatibility allows direct integration with standard metric (Ø8 mm) and imperial (3/8 in) shanks, as well as dovetail-mount test indicators across all major instrumentation brands. This unit is primarily deployed for spindle runout verification, machine tool axis tramming, shaft concentricity inspection, and comparative height measurements on surface plates. Procurement lead time remains optimized through standard industrial distribution channels to support critical manufacturing operations.

Key Attributes
Accuracy: 0.1 mm
Material: Stainless Steel
Place of origin: China
Model number: 7011S-10
Brand name: Mitutoyo
Type: Dial Indicator Stand
Magnetic force: 600 N vertical retractile force
Clamping device: Magnetic
Clamping force (vertical): 600 N
Base size (LxWxH): 59 x 50 x 55 mm
Fine adjustment: With fine adjustment knop
Working radius: 150.0 mm
Thread Arm/Base: M8 x 1.25

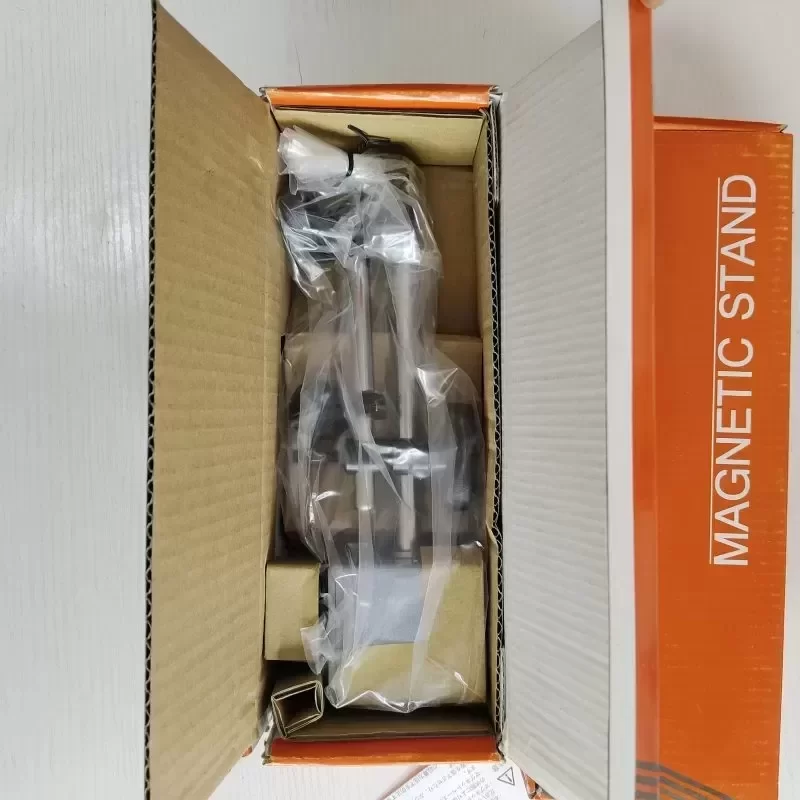

Packaging and Delivery
Selling Units: Single item
Single package size: 36X21X15 cm
Single gross weight: 3.500 kg

Mitutoyo 7011S-10 Dial Indicator Stand Magnetic with Fine Adjustment

Mitutoyo 7011S-10 Dial Indicator Stand Magnetic with Fine Adjustment

Mitutoyo 7011S-10 Dial Indicator Stand Magnetic with Fine Adjustment

Mitutoyo 7011S-10 Dial Indicator Stand Magnetic with Fine Adjustment
