Delta AFB1248GHE 120x120x38mm 48V DC 2W 12038 12cm 241.0 CFM 3-Lead Wires Axial Fan
Delta AFB1248GHE 120x120x38mm 48V DC 2W 12038 12cm 241.0 CFM 3-Lead Wires Axial Fan

Delta AFB1248GHE 120x120x38mm 48V DC 2W 12038 12cm 241.0 CFM 3-Lead Wires Axial Fan

$9.50

SKU: 10000006609055 Brand:

Description

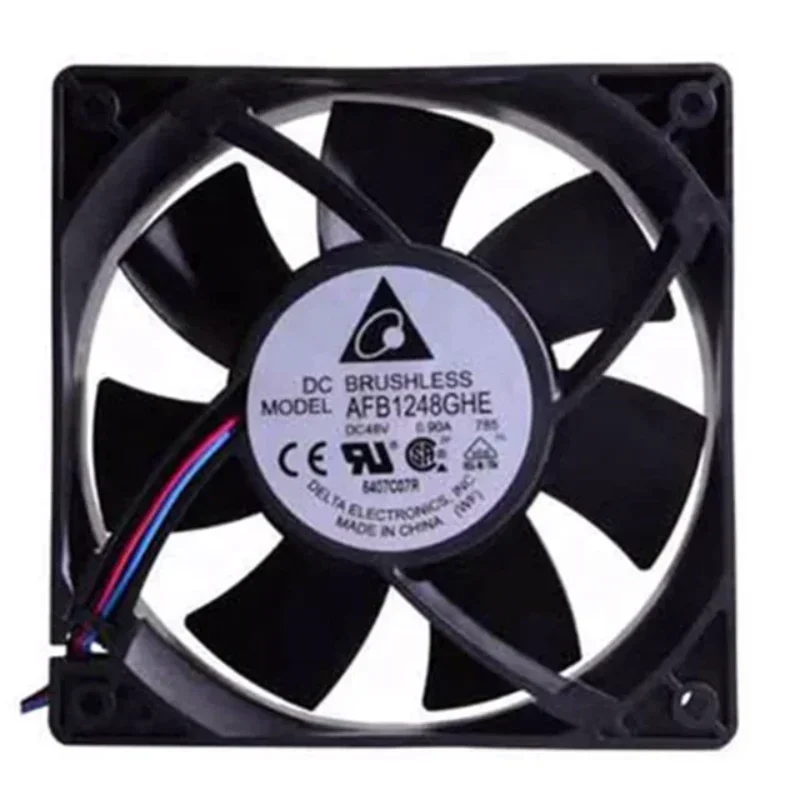

The Delta AFB1248GHE is an industrial-grade axial cooling fan engineered for high-density thermal management. Designed with a 120x120x38mm form factor, this DC brushless fan delivers exceptional aerodynamic performance, generating an extreme airflow of 241.0 CFM to effectively dissipate heat in demanding environments. Featuring a robust dual ball bearing system and a 3-lead wire configuration for precise RPM monitoring, it ensures continuous, reliable operation in critical infrastructure.

Technical Specifications
Manufacturer: Delta Electronics
Model Number: AFB1248GHE
Fan Type: Axial DC Brushless
Dimensions: 120 x 120 x 38 mm (12038)
Operating Voltage: 48V DC
Voltage Range: 36.0V to 56.0V DC
Airflow: 241.0 CFM (6.82 m³/min)
Nominal Speed: 5200 RPM ± 10%
Static Pressure: 27.48 mmH2O
Acoustic Noise: 62.0 dB(A)
Bearing System: Dual Ball Bearing
Termination: 3-Lead Wires (Power, Ground, Tachometer Sensor)
Weight: 330 g
Operating Temperature: -10°C to +60°C
Life Expectancy: 70,000 hours at 40°C

Material & Environmental Profile
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Motor Protection: Locked rotor and reverse polarity protection
Certifications: CE, CSA, UL, VDE, RoHS

Industrial Application & Technical Compatibility
The AFB1248GHE is specifically engineered for inverter cabinets, telecom enclosures, and high-performance server racks where extreme heat generation requires rapid thermal extraction. Its high static pressure capabilities make it ideal for pushing air through densely packed electronic components, heat sinks, and restrictive ventilation channels. The 3-lead wire setup allows system controllers to monitor fan speed in real-time, enabling predictive maintenance and preventing thermal throttling in mission-critical hardware.

Procurement Information
Our supply chain ensures Original Engineering integrity for all Delta thermal management solutions. We maintain optimized inventory levels to provide a competitive Lead Time for both single-unit replacements and bulk OEM integration. Verify Technical Compatibility with your existing 48V DC control systems prior to installation.

Key Attributes
Voltage: 48V
Electric current type: DC
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Plastic
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: Delta
Model number: AFB1248GHE
Size: 120x120x38mm
Voltage: 48V
Bearing Type: Ball Bearing
Air flow: 241.0 CFM
Termination: 3-Lead Wires
Power: 2W
Current: 0.9A
Type: Axial Flow Fan

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X11 cm
Single gross weight: 0.500 kg

Delta AFB1248GHE 120x120x38mm 48V DC 2W 12038 12cm 241.0 CFM 3-Lead Wires Axial Fan

Delta AFB1248GHE 120x120x38mm 48V DC 2W 12038 12cm 241.0 CFM 3-Lead Wires Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
