$2.86

SKU: 771508329634 Brand:

Description

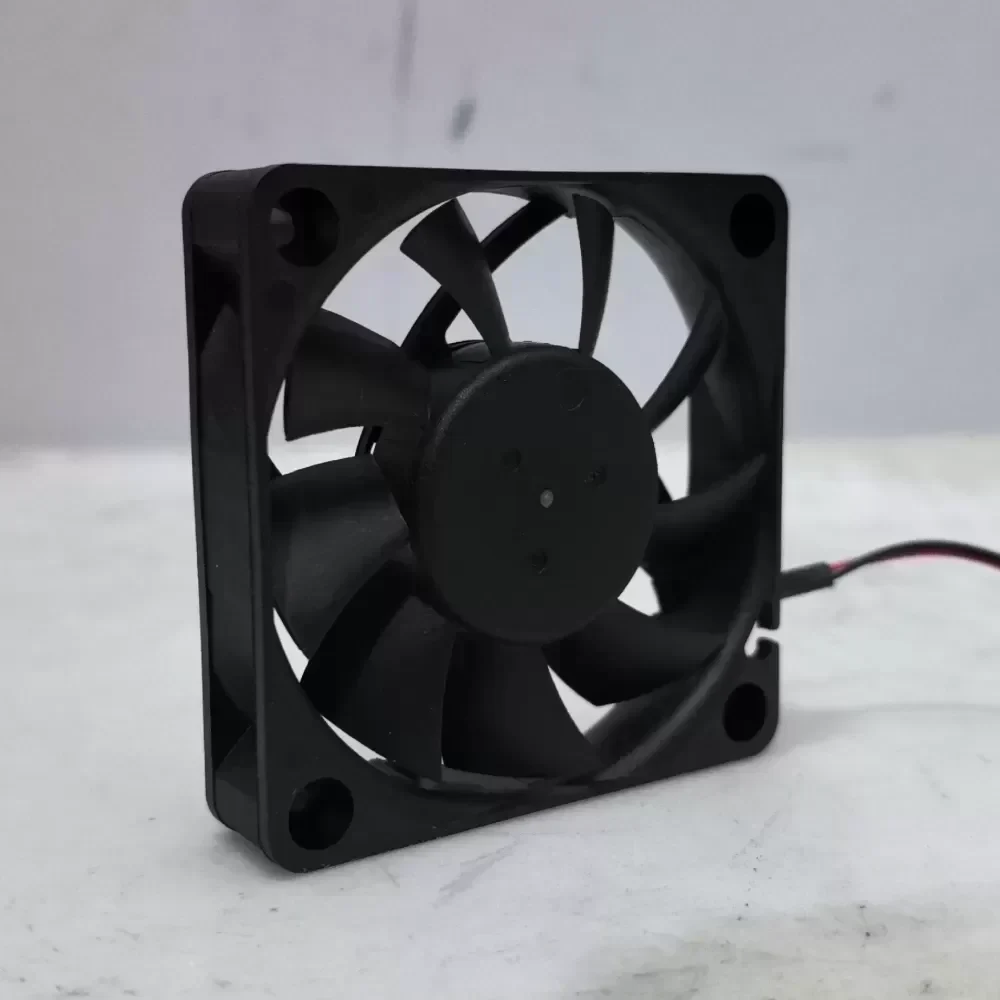

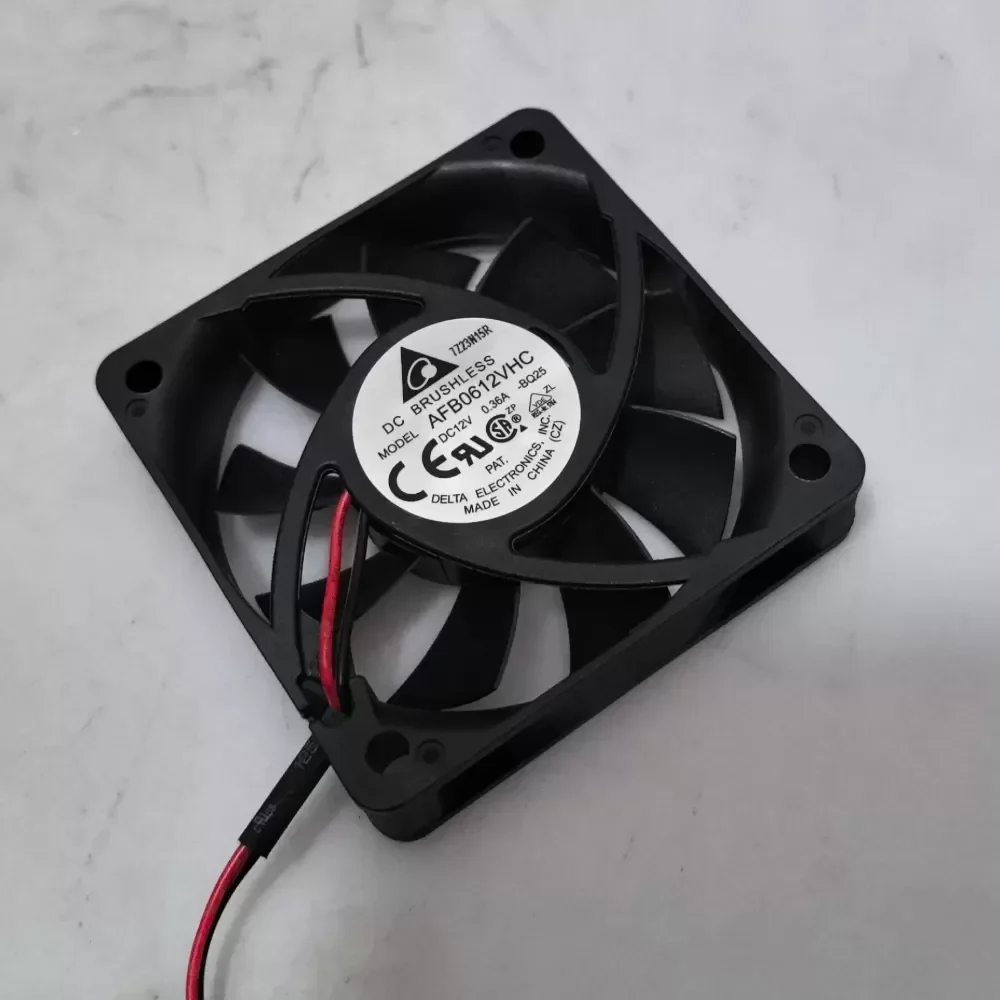

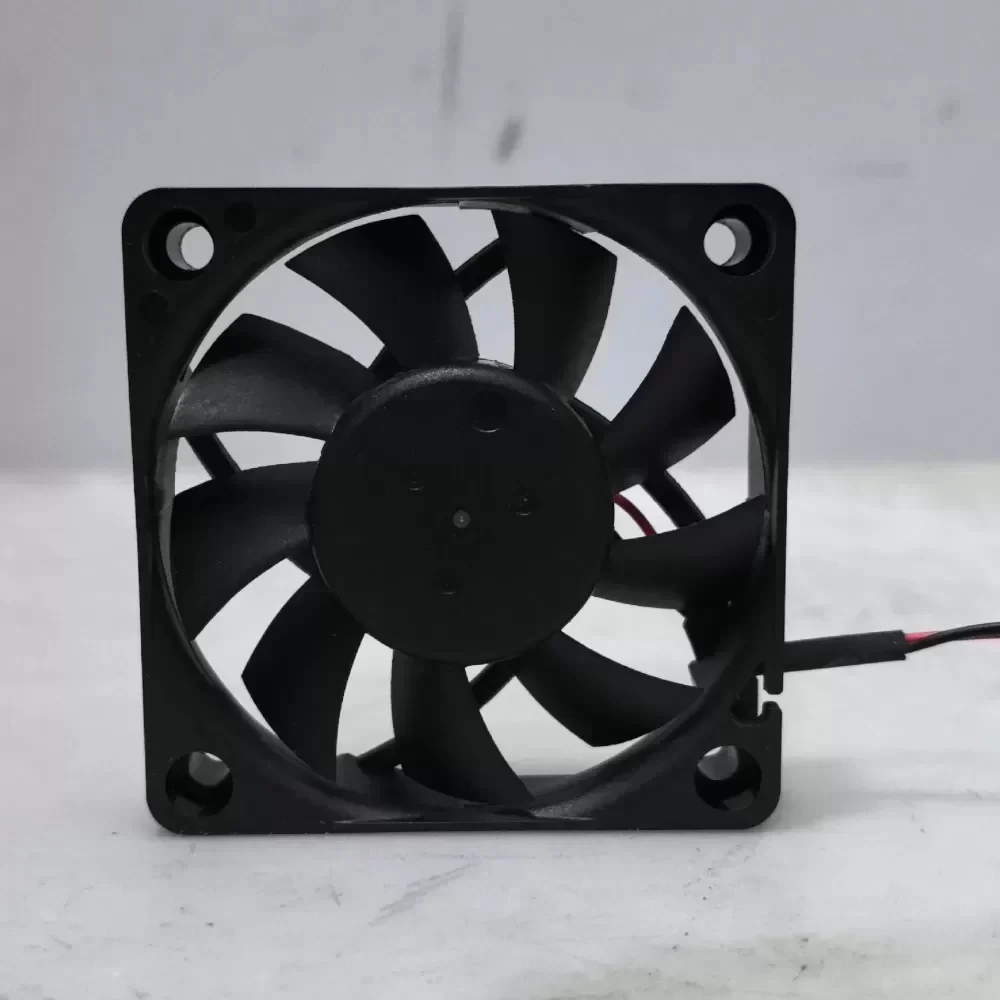

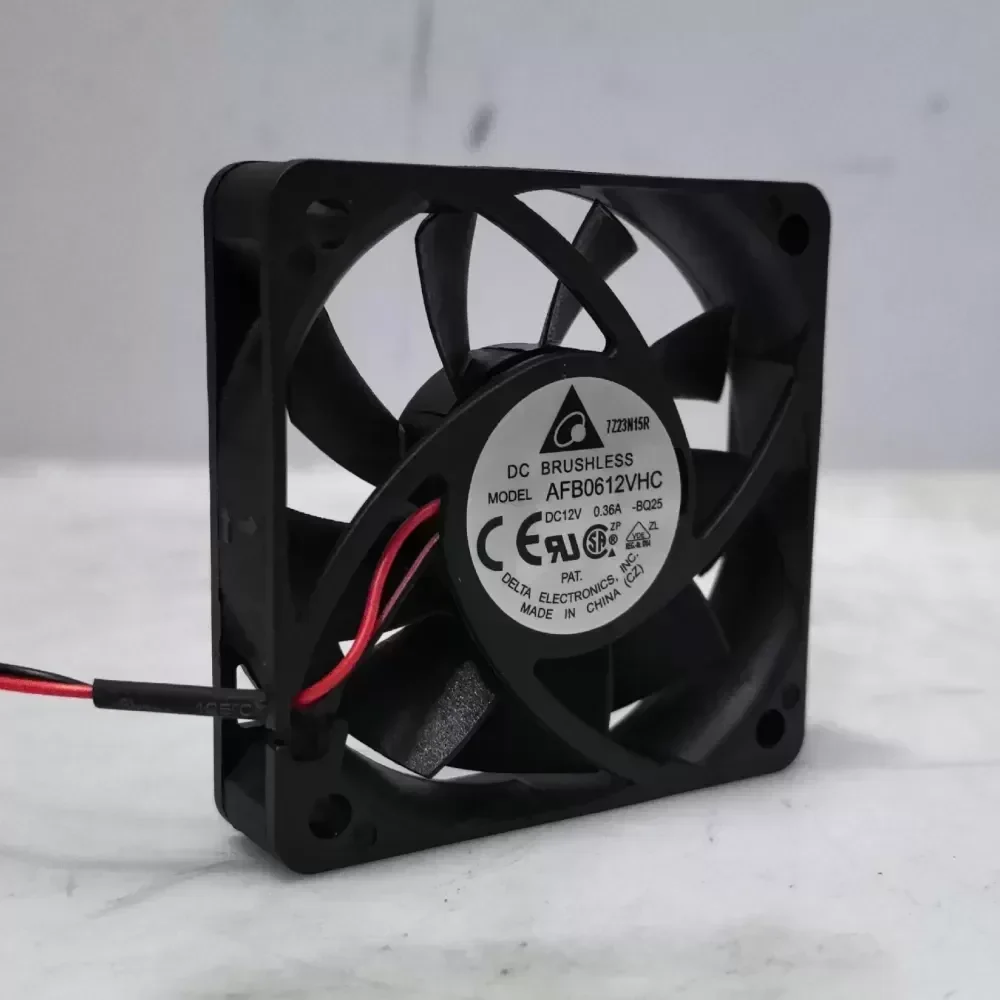

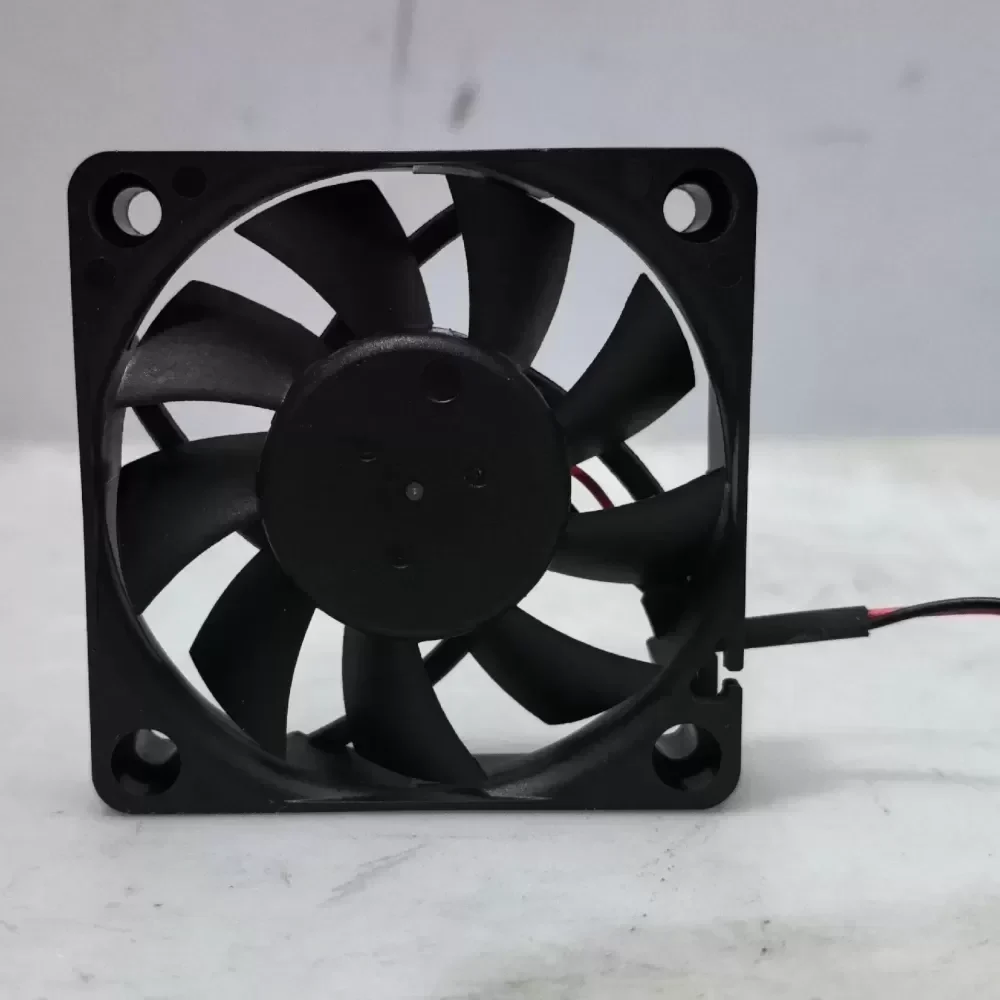

The Delta Electronics AFB0612VHC is a high-performance DC axial cooling fan engineered for demanding thermal management applications. Designed with Original Engineering standards, this 60mm component delivers exceptional airflow density within a compact form factor, ensuring optimal heat dissipation for mission-critical industrial electronics.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB0612VHC
Frame Dimensions: 60mm x 60mm x 13mm
Nominal Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Input Current: 0.16A
Input Power: 1.92W
Rated Speed: 5400 RPM ± 10%
Maximum Airflow: 0.78 m³/min (27.72 CFM)
Maximum Static Pressure: 5.30 mmH2O
Acoustic Noise: 38.0 dB(A)
Bearing Type: Dual Ball Bearing
Material (Frame and Impeller): UL94V-0 Plastic
Weight: 33.5 g
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 hours at 40°C

Industrial Application and Technical Compatibility:
The AFB0612VHC is specifically deployed in high-density server racks, variable frequency drives (VFDs), and telecommunications switching equipment where space constraints demand a low-profile (13mm thickness) yet high-volume cooling solution. The dual ball bearing architecture ensures continuous operation in environments susceptible to vibration and elevated ambient temperatures. Its precise Technical Compatibility allows for seamless integration into existing OEM power supply units and automated control cabinets, preventing thermal throttling in critical microprocessors.

Procurement and Lifecycle Value:
Sourcing this component guarantees adherence to factory-certified thermal parameters. We maintain optimized inventory protocols to ensure minimal Lead Time for bulk industrial replacements, safeguarding your facility against unplanned downtime and extending the operational lifespan of your core machinery.

Delta fan AFB0612VHC 6013/12V fan

Delta fan AFB0612VHC 6013/12V fan

Delta fan AFB0612VHC 6013/12V fan

Delta fan AFB0612VHC 6013/12V fan

Delta fan AFB0612VHC 6013/12V fan

Delta fan AFB0612VHC 6013/12V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
