Description

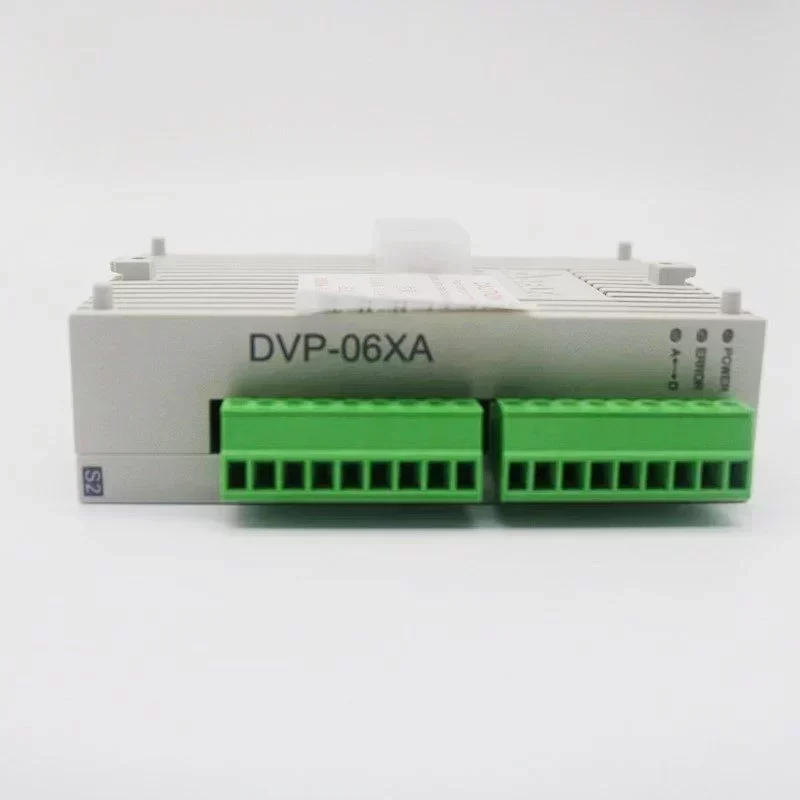

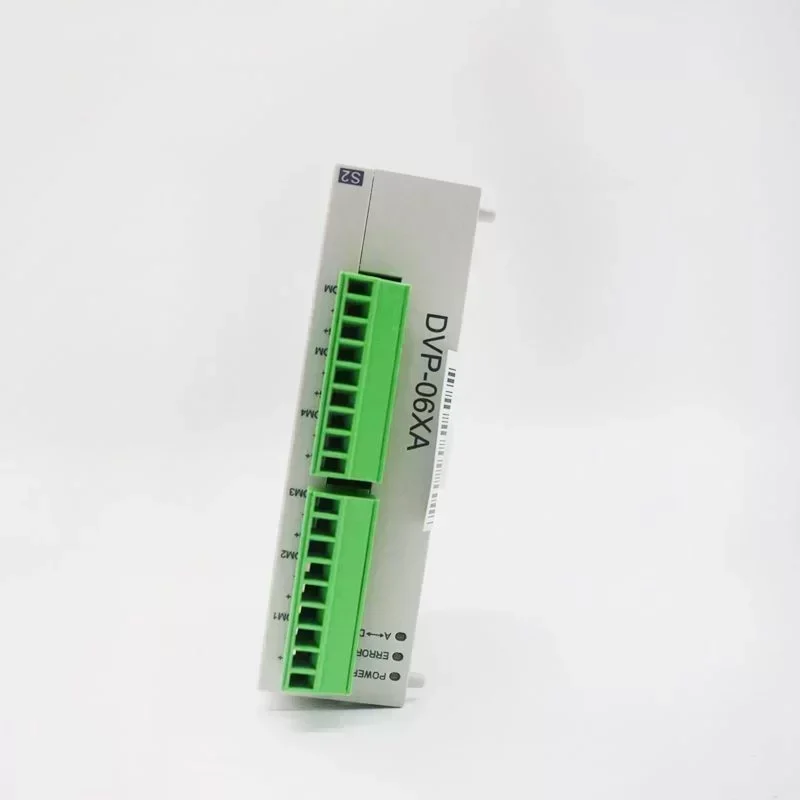

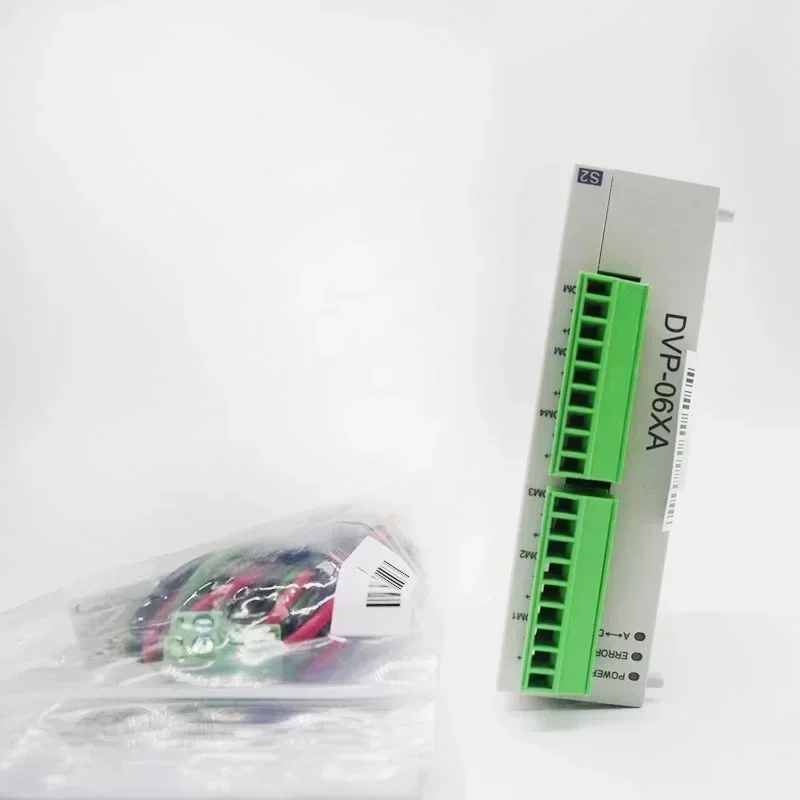

The Delta DVP06XA-S2 is a high-performance mixed analog input and output expansion module designed for seamless integration with Delta DVP-S series Programmable Logic Controllers (PLC). Engineered for precision control in complex automation architectures, this module expands system capabilities by providing 4 analog input channels and 2 analog output channels. Maintaining Original Engineering standards, the DVP06XA-S2 ensures high-fidelity signal conversion and robust noise immunity for industrial environments. With optimized Lead Time and guaranteed Technical Compatibility across SS2, SA2, SE, SX2, and SV2 host units, this module is a critical component for advanced PAC and dedicated controller networks.
Technical Specifications:
Manufacturer: Delta Electronics
Model Number: DVP06XA-S2
Product Type: Analog I/O Expansion Module
Total Channels: 6 (4 Inputs, 2 Outputs)
Analog Input Range (Voltage): -10V to +10V DC
Analog Input Range (Current): -20mA to +20mA DC
Analog Output Range (Voltage): 0V to +10V DC
Analog Output Range (Current): 0mA to +20mA DC
Resolution: 12-bit (Voltage: 5mV, Current: 10µA)
Conversion Time: 3ms per channel
Isolation: Optocoupler isolation between digital and analog circuits
Power Supply Voltage: 24V DC (-15% to +20%)
Power Consumption: 2W Max
Mounting Method: 35mm DIN Rail
Operating Temperature: 0°C to 55°C
Storage Temperature: -25°C to 70°C
Operating Humidity: 5% to 95% RH (Non-condensing)
Weight: 0.15 kg
Certifications: CE, UL, RoHS
Industrial Application:
The DVP06XA-S2 is specifically engineered for closed-loop proportional control systems, such as industrial HVAC variable frequency drive (VFD) synchronization and tension control in packaging machinery. In a continuous web converting application, the module’s 12-bit resolution analog inputs accurately read real-time tension sensor data (4-20mA), while the analog outputs instantly transmit precise 0-10V corrective signals to the braking mechanism or VFD. This ultra-fast 3ms conversion time prevents material web breakage, ensuring continuous production flow and minimizing scrap rates in high-speed manufacturing environments.
Key Attributes
Place of Origin: Taiwan, China
Brand Name: Delta
Communication Interface: Modubus
Condition: 100%new 100%Original

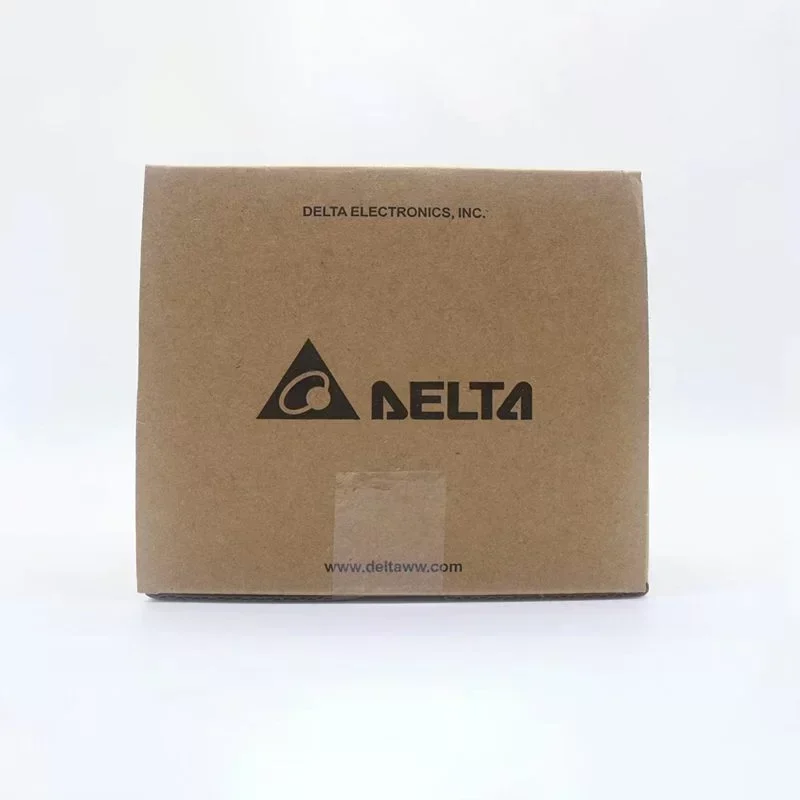

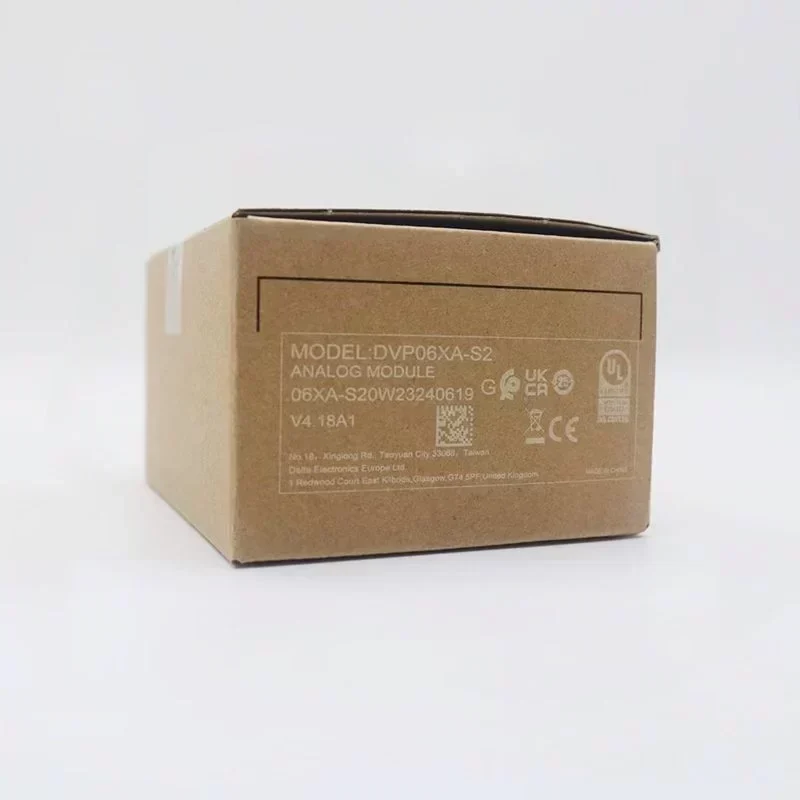

Package: Original Packaging
Series: DVP-S
MOQ: 1PCS
Quality: 100% Original 100% Brand
Delivery time: 3-7 Days
Application: Electronic Equipment
Warranty: 1year
Packaging and Delivery
Selling Units: Single item
