Description

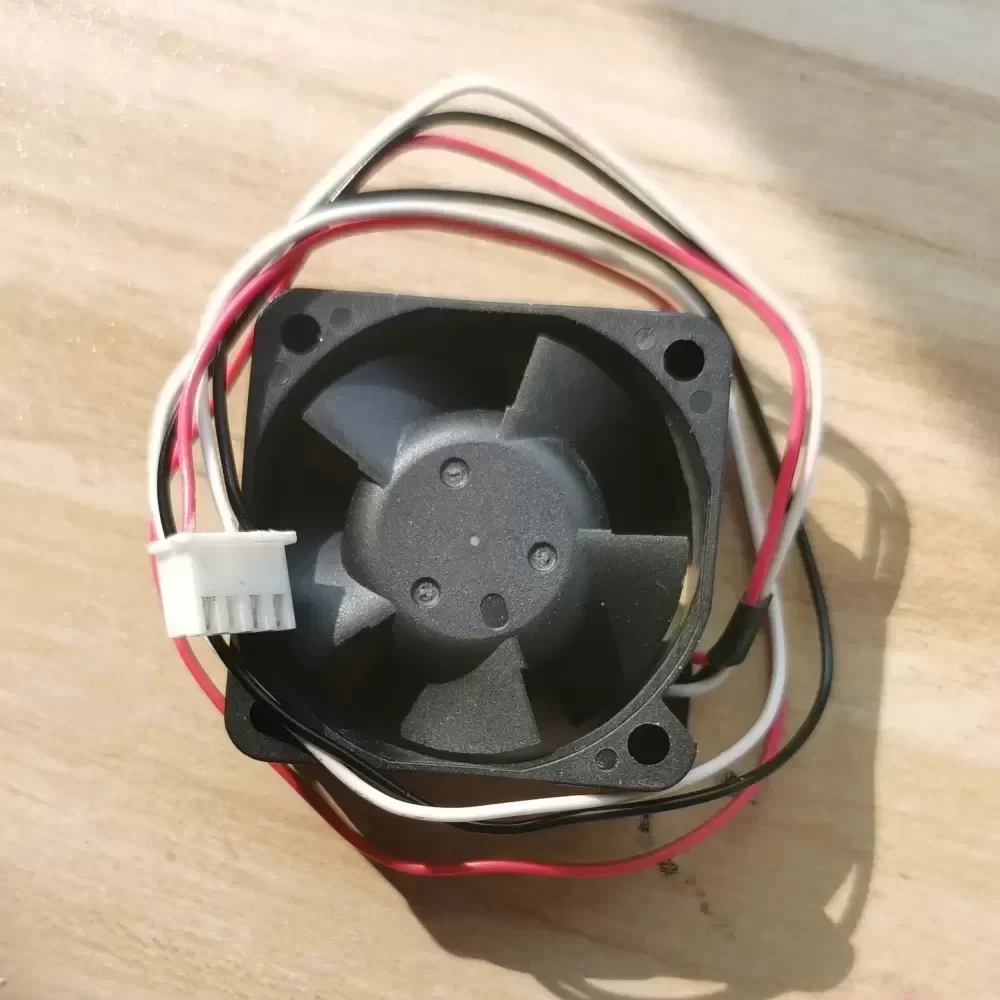

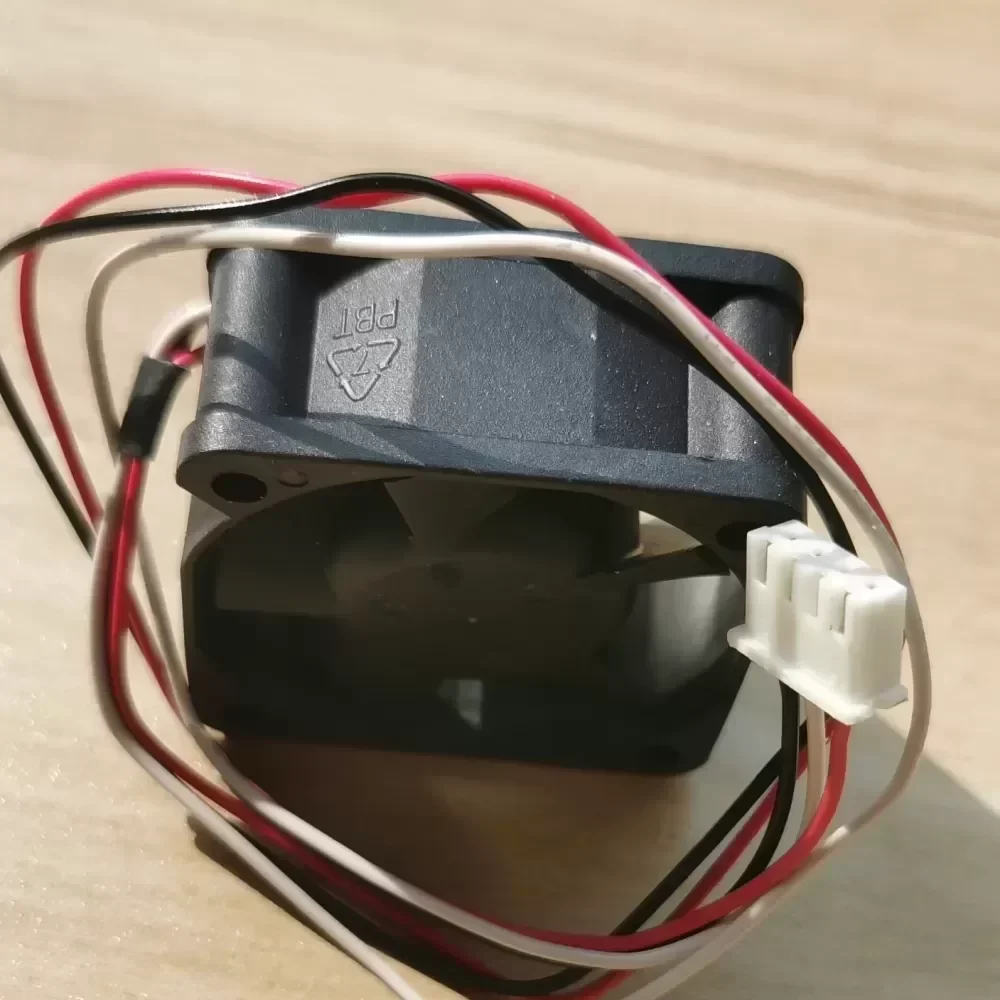

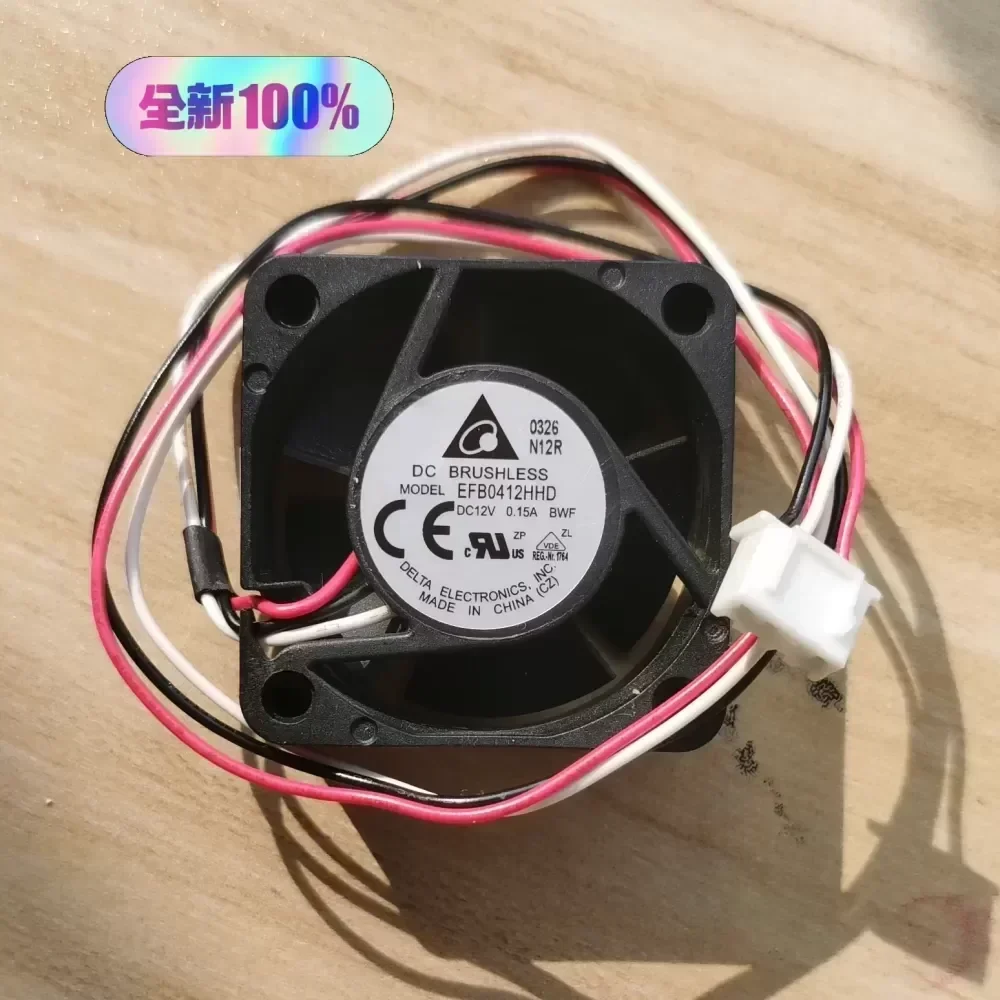

The Delta Electronics EFB0412HHD is a high-performance, compact DC axial cooling fan engineered for continuous operation in densely packed electronic enclosures. Utilizing a premium dual ball bearing system, this 40x40x20mm fan delivers exceptional thermal management with an optimized balance of airflow and acoustic efficiency, making it highly suitable for noise-sensitive industrial environments.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: EFB0412HHD
Dimensions: 40 x 40 x 20 mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Rated Current: 0.15 A
Input Power: 1.80 W
Nominal Speed: 8200 RPM ± 10%
Maximum Airflow: 9.43 CFM (0.267 m³/min)
Maximum Static Pressure: 6.35 mmH2O
Acoustic Noise Level: 30.5 dB(A)
Bearing Type: Dual Ball Bearing
Life Expectancy: 70,000 hours at 40°C
Weight: 33 g
Housing Material: UL 94V-0 Plastic
Impeller Material: UL 94V-0 Plastic
Termination: Wire Leads

Industrial Application:
This specific model is heavily utilized in enterprise-grade network switches, telecommunications hardware, and compact 1U rackmount servers. Its precise 4020 form factor and low acoustic profile solve the critical problem of thermal throttling in noise-restricted server rooms and broadcast environments, ensuring continuous heat dissipation without disrupting ambient operational noise limits.

Procurement and Integration:
Maintaining strict Technical Compatibility with a wide array of OEM networking equipment, the EFB0412HHD serves as a direct drop-in replacement for aging or failing switch fans. Our supply chain ensures optimal Lead Time for bulk industrial orders, guaranteeing that your facility receives components built to Original Engineering standards for maximum lifecycle value and system reliability.

Delta EFB0412HHD switch silent fan

Delta EFB0412HHD switch silent fan

Delta EFB0412HHD switch silent fan

Delta EFB0412HHD switch silent fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
