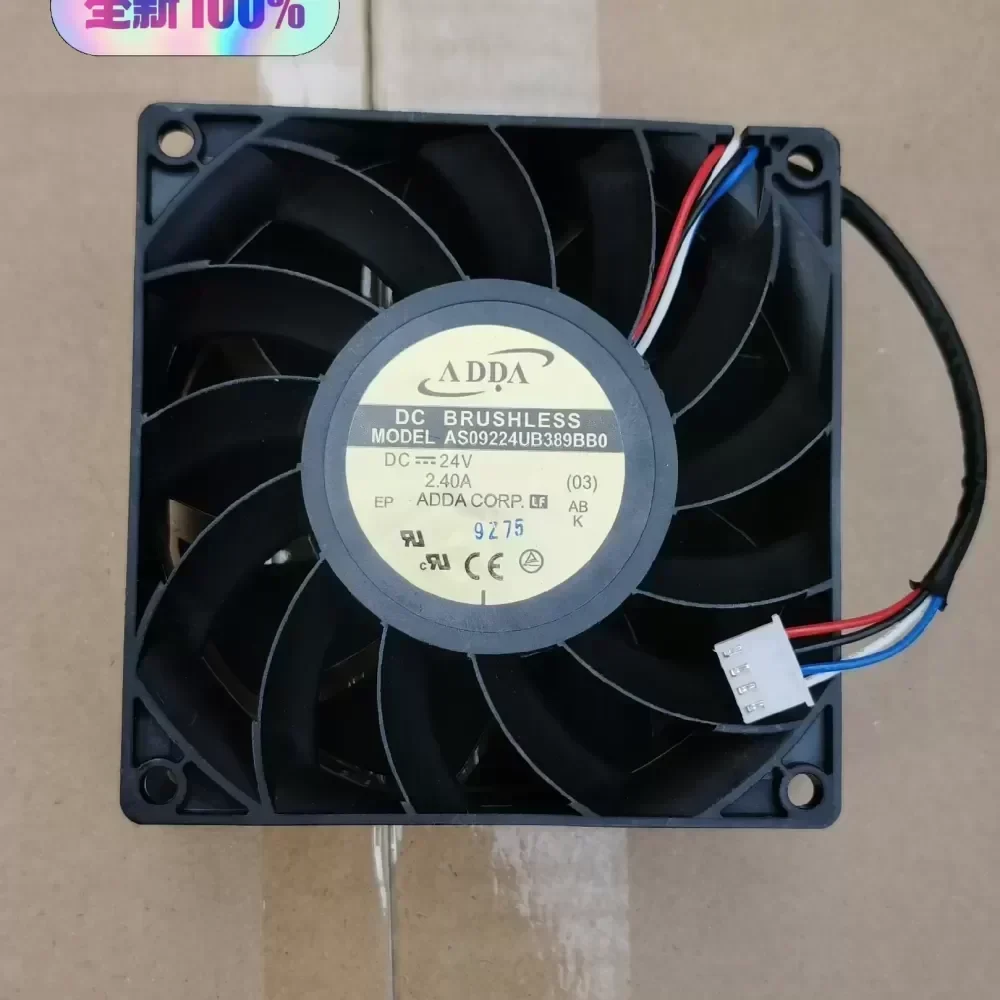

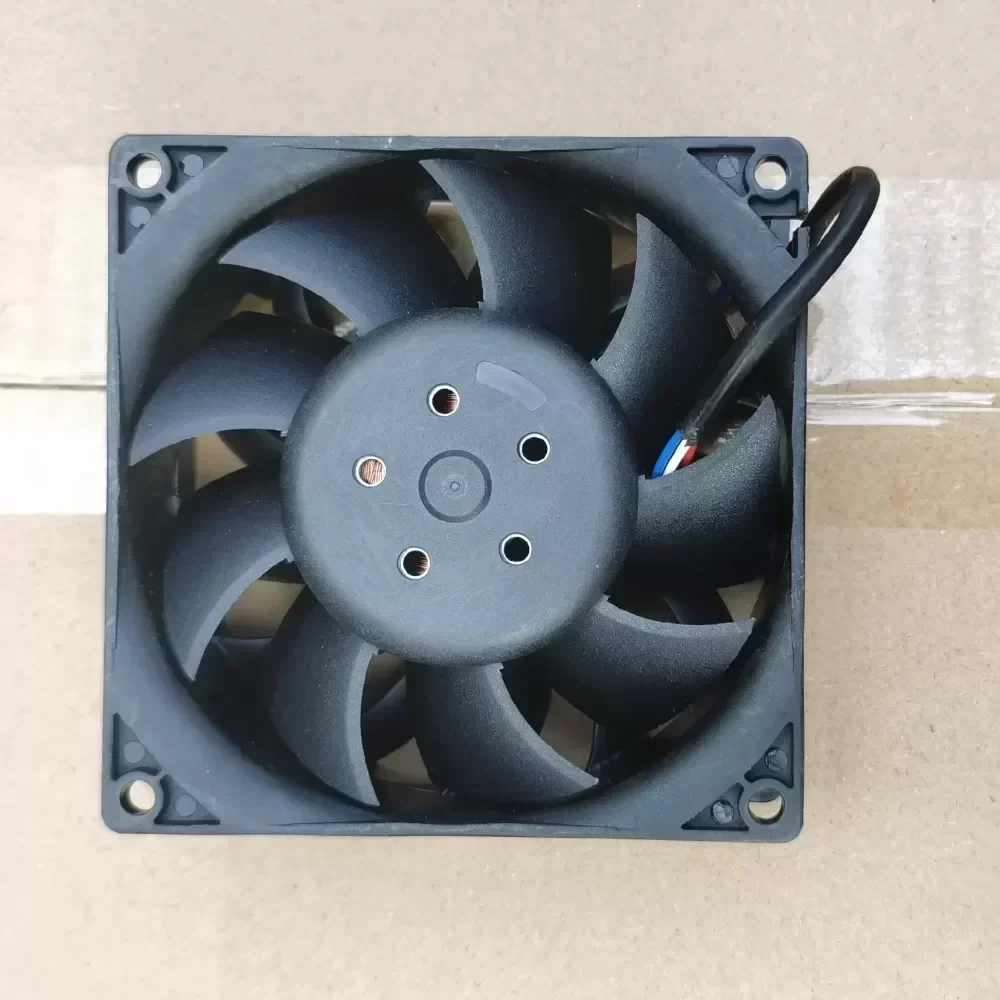

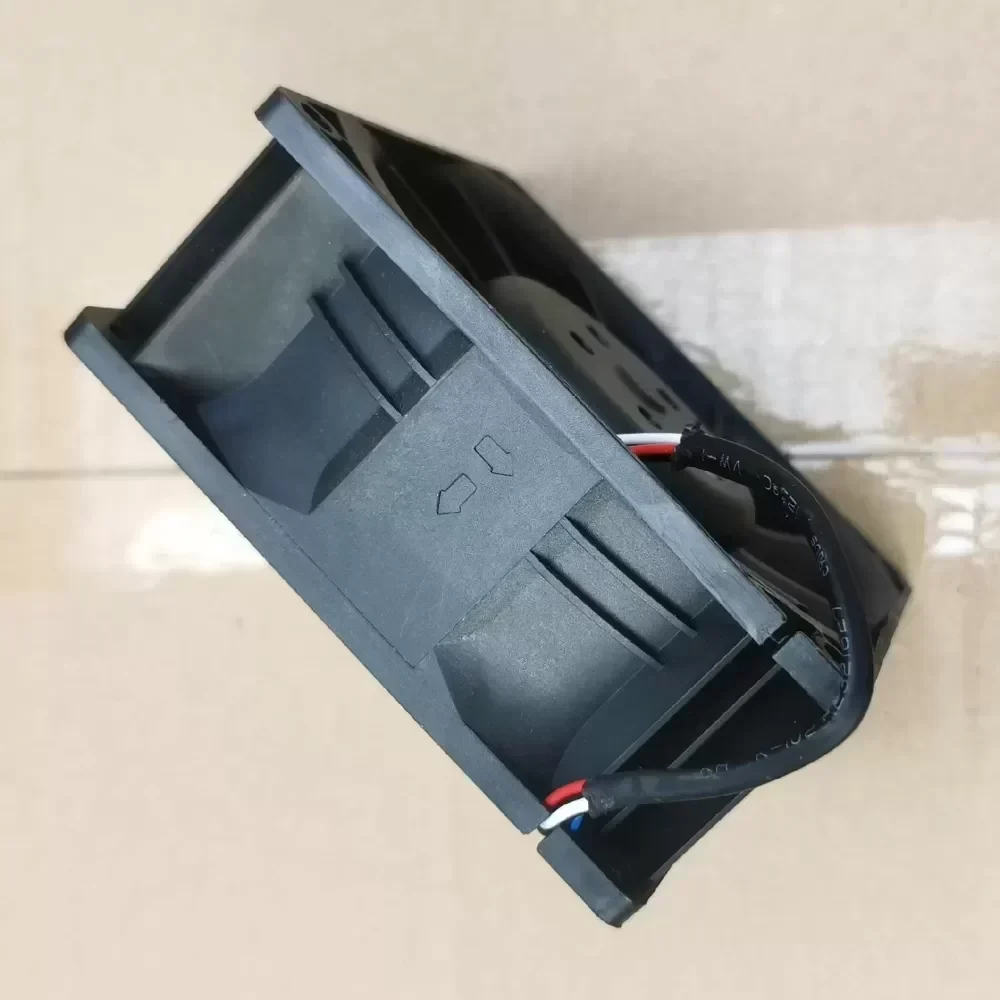

AS09224UB389BB0 ADDA 9238/24V fan
AS09224UB389BB0 ADDA 9238/24V fan
AS09224UB389BB0 ADDA 9238/24V fan
AS09224UB389BB0 ADDA 9238/24V fan

AS09224UB389BB0 ADDA 9238/24V fan

$6.43

SKU: 703166793776 Brand:

Description

The ADDA AS09224UB389BB0 is a high-performance, industrial-grade DC axial cooling fan engineered for demanding thermal management applications. Designed with Original Engineering standards, this 24V unit delivers exceptional airflow and static pressure, making it an essential component for variable frequency drives (VFDs), industrial inverters, and high-density power enclosures. The ultra-high-speed motor design ensures rapid heat dissipation in critical environments.

Technical Specifications:
Manufacturer: ADDA Corporation
Model Number: AS09224UB389BB0
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Bearing Type: Precision Dual Ball Bearing
Control Method: PWM (Pulse Width Modulation)
Termination: 4-Wire (VCC, GND, Tachometer Output, PWM Input)
Speed Regulation: Dynamic Speed Control
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 hours at 40°C
Weight: 190 g
Frame Material: Thermoplastic PBT UL94V-0
Impeller Material: Thermoplastic PBT UL94V-0
Certifications: CE, UL, TUV, RoHS

Application and Lifecycle Value:
Specifically developed for heavy-duty industrial environments, the AS09224UB389BB0 excels in inverter cooling, CNC machinery, and telecommunications equipment. The 4-wire PWM interface allows for precise thermal regulation, dynamically adjusting fan speed in response to system heat loads. This ensures optimal cooling efficiency while minimizing mechanical wear and acoustic noise during low-load periods. Its robust dual ball bearing architecture guarantees extended lifecycle value and seamless Technical Compatibility with major OEM inverter brands.

Procurement and Integration:
Sourcing this component ensures strict adherence to Original Engineering specifications. We provide optimized logistics to ensure a highly competitive Lead Time for this authentic ADDA cooling fan, minimizing downtime for your critical infrastructure. Verify your pinout and connector requirements to ensure full Technical Compatibility prior to installation.

AS09224UB389BB0 ADDA 9238/24V fan

AS09224UB389BB0 ADDA 9238/24V fan

AS09224UB389BB0 ADDA 9238/24V fan

AS09224UB389BB0 ADDA 9238/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
