$4.00

SKU: 684491413482 Brand:

Description

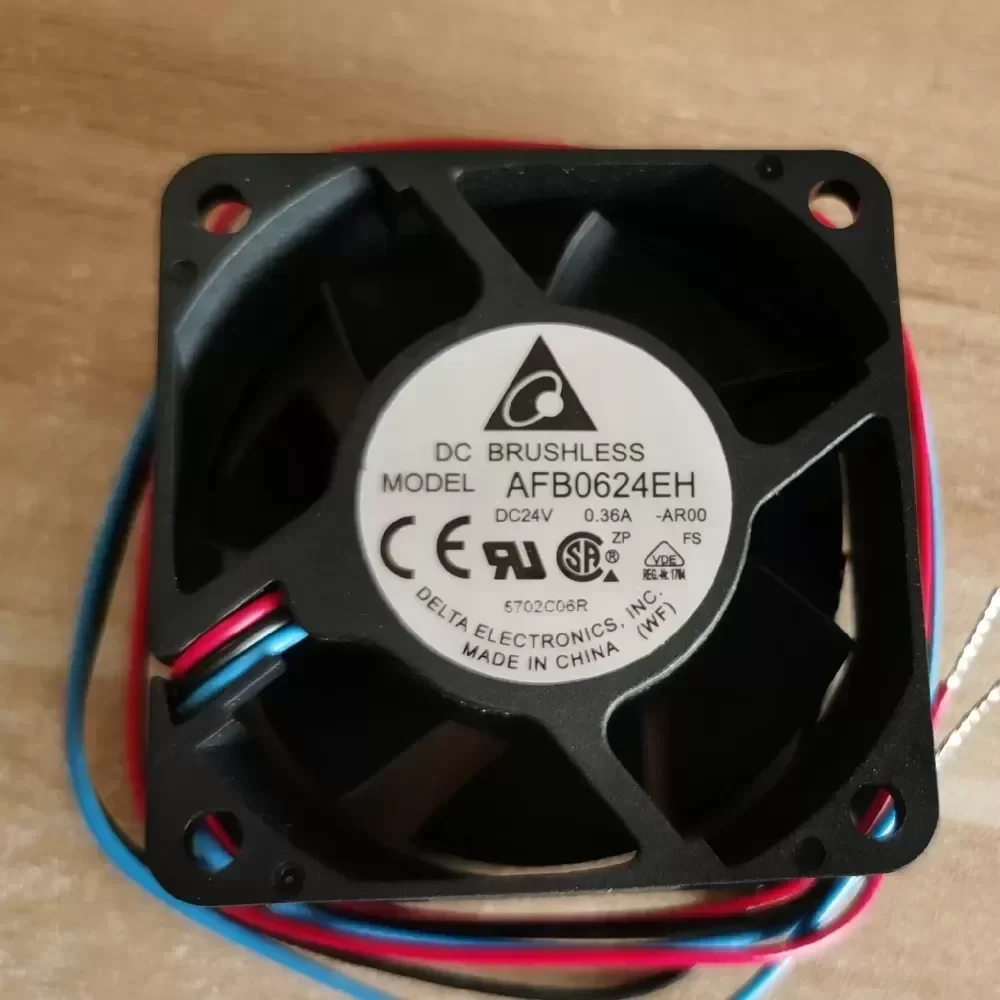

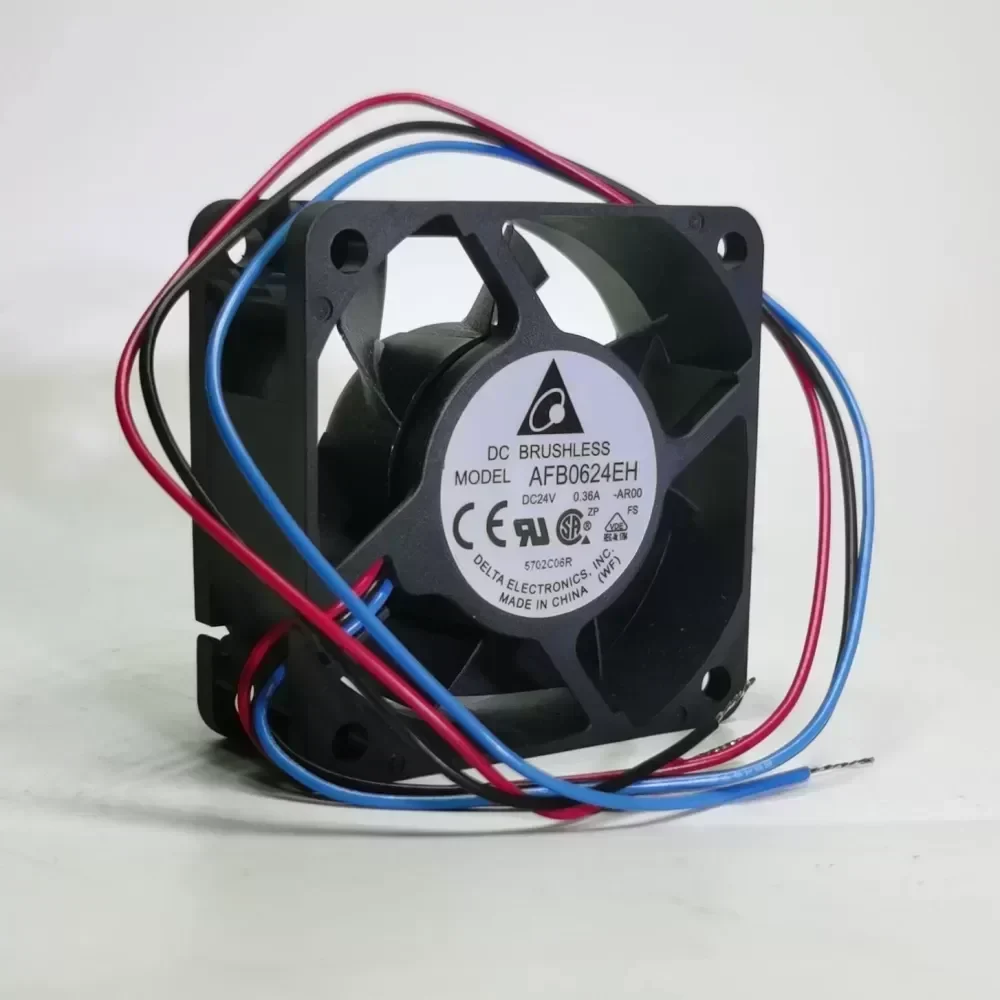

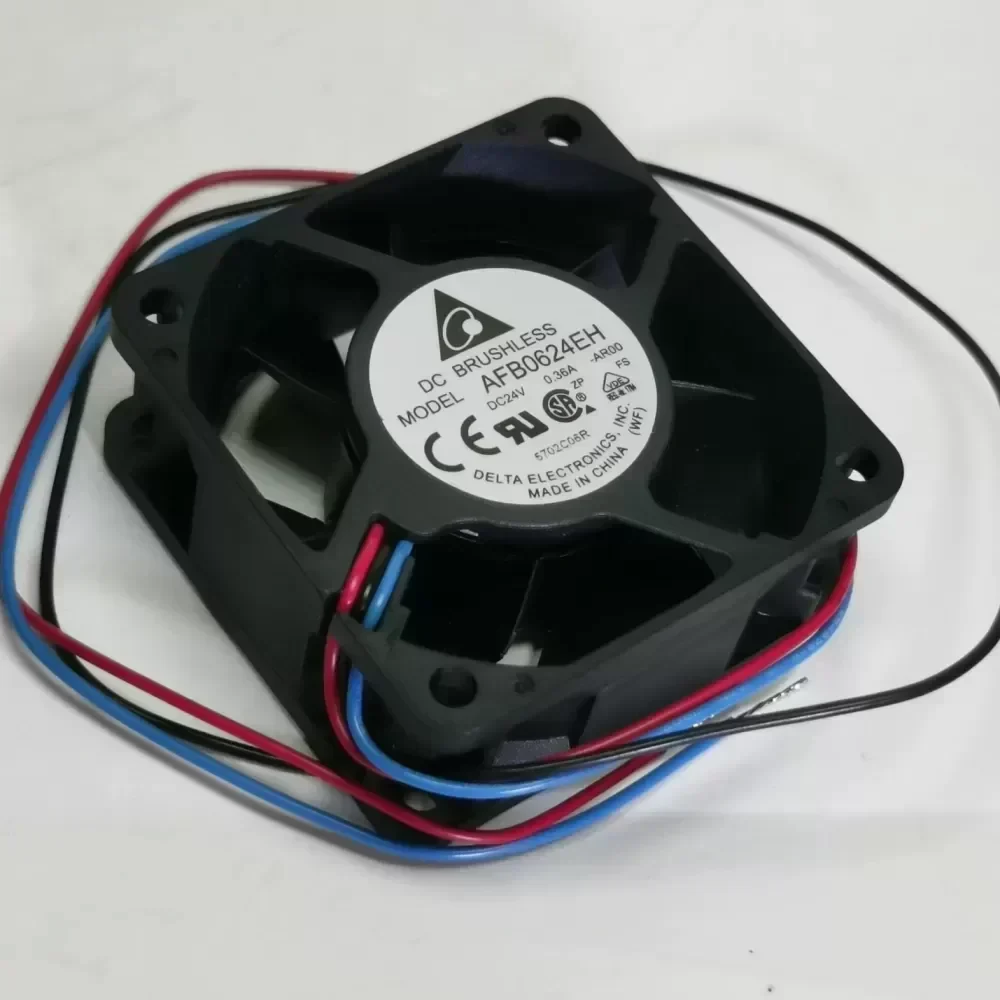

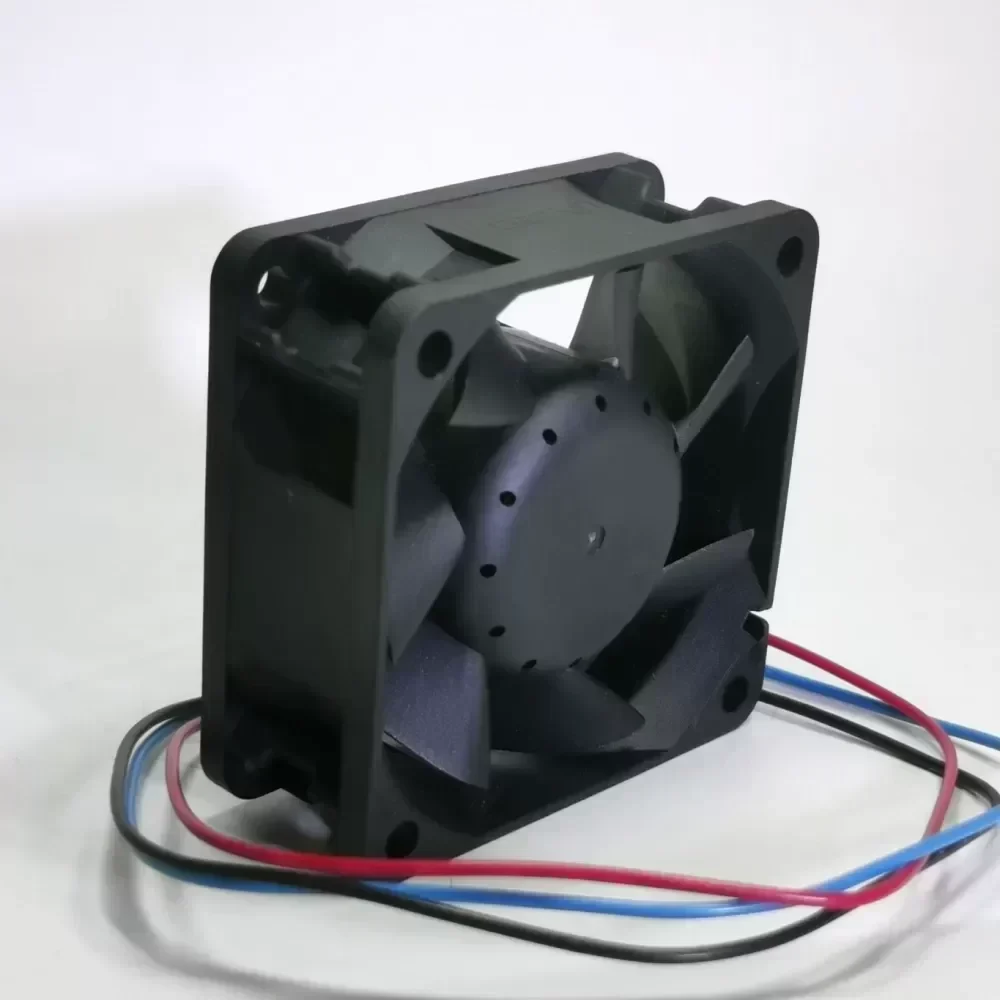

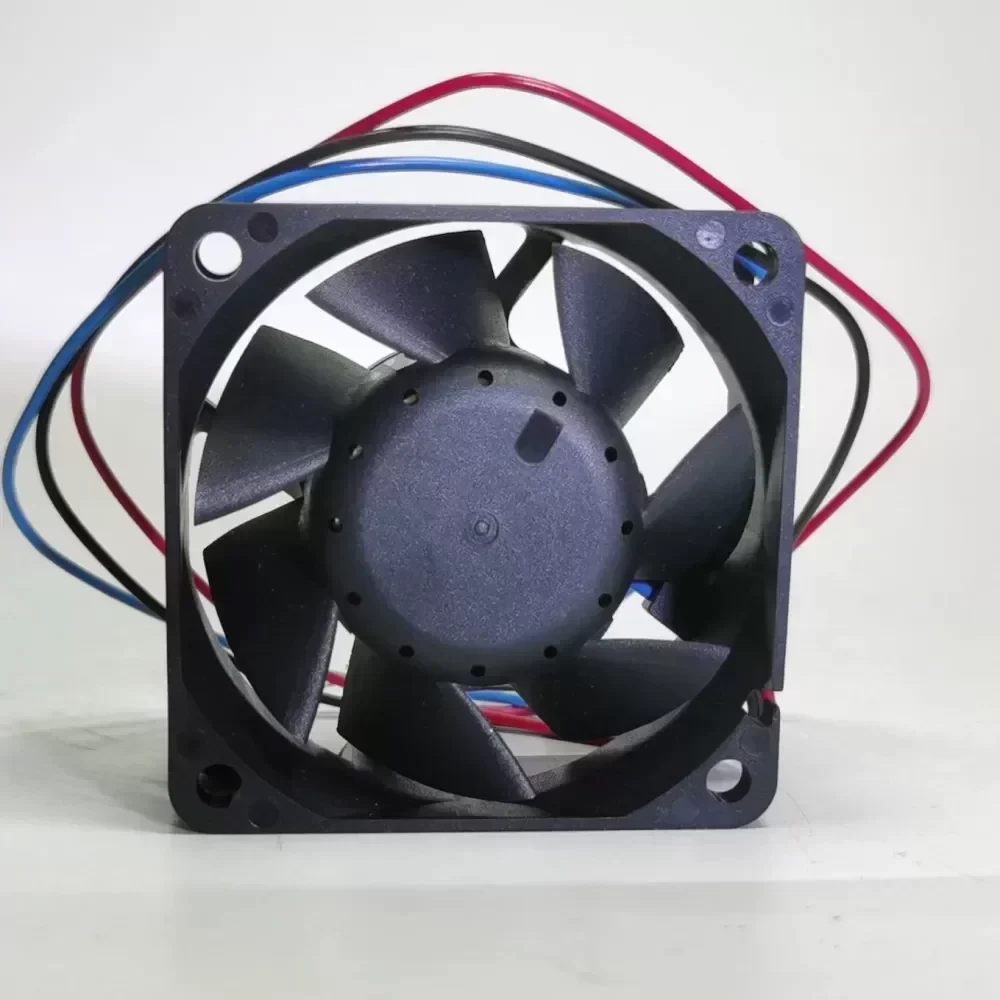

Delta AFB0624EH-AR00 High-Performance Industrial Axial Fan
Manufacturer: Delta Electronics
Model Series: AFB Series (High Airflow Logic)
Frame Size: 60 x 60 x 25.4 mm (6025)
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.36A (Maximum 0.48A)
Input Power: 8.64W
Rated Speed: 6800 RPM
Maximum Airflow: 38.35 CFM (1.086 m³/min)
Maximum Static Pressure: 13.81 mmH2O (0.544 inH2O)
Noise Level: 46.5 dB-A
Bearing Type: Dual Precision Ball Bearing System
Termination: 3-Wire Lead (Red: Positive, Black: Negative, Blue: Alarm Signal)
Signal Output: AR00 Locked Rotor Alarm (Sensor Logic)
Material Housing: Glass Fiber Reinforced Plastic (UL 94V-0)
Material Impeller: Glass Fiber Reinforced Plastic (UL 94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Expected Life (L10): 70,000 Hours at 40°C
Weight: 80g
Certifications: UL, CSA, VDE, CE Compliant
Technical Compatibility: This unit is specifically engineered for high-density thermal management in industrial frequency inverters, server racks, and telecommunication power supplies. The integrated AR00 locked rotor alarm provides a critical fail-safe by signaling the system controller immediately upon mechanical obstruction or rotation failure, preventing localized heat accumulation and protecting sensitive semiconductor components.
Original Engineering: This is a genuine Delta Electronics component, ensuring strict adherence to MTBF (Mean Time Between Failures) standards and precise electrical characteristic matching for OEM replacements in mission-critical hardware.
Lead Time: Standard stock item optimized for rapid procurement to minimize industrial downtime.

Delta AFB0624EH-AR00 6025/24V fan

Delta AFB0624EH-AR00 6025/24V fan

Delta AFB0624EH-AR00 6025/24V fan

Delta AFB0624EH-AR00 6025/24V fan

Delta AFB0624EH-AR00 6025/24V fan

Delta AFB0624EH-AR00 6025/24V fan

Delta AFB0624EH-AR00 6025/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
