Description

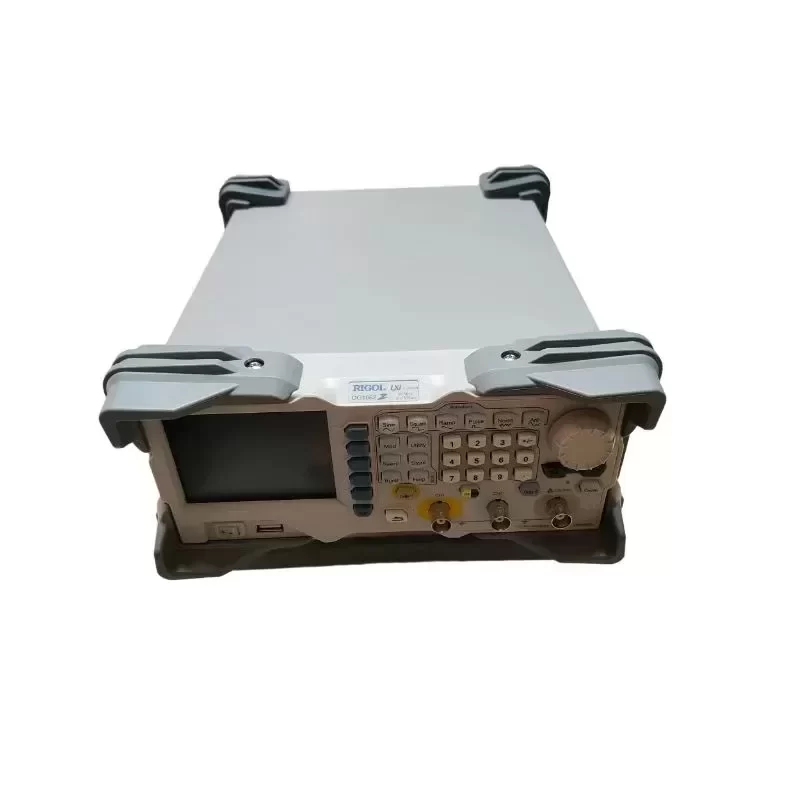

The Rigol DG1062Z is a professional-grade Dual-Channel Function and Arbitrary Waveform Generator engineered for high-fidelity signal emulation in complex industrial and laboratory environments. Utilizing advanced SiFi (Signal Fidelity) technology, this instrument generates arbitrary waveforms point-by-point without distorting the signal, ensuring precise recreation with exceptionally low jitter (±200 ps). Operating at a maximum frequency of 60 MHz, the DG1062Z is designed to meet rigorous testing requirements in electronic circuit design, sensor simulation, and automated production lines.
Technical Specifications:
Brand: Rigol
Model Number: DG1062Z
Maximum Output Frequency: 60 MHz
Number of Channels: 2 (Independent, Dual-Channel)
Sample Rate: 200 MSa/s
Vertical Resolution: 14 bits
Standard Memory Depth: 8 Mpts per channel
Frequency Accuracy: ±1 ppm
Built-in Waveforms: 160 standard and arbitrary waveforms
Modulation Types: AM, FM, PM, ASK, FSK, PSK, PWM
Display: 3.5-inch TFT Color LCD (320×240 resolution)

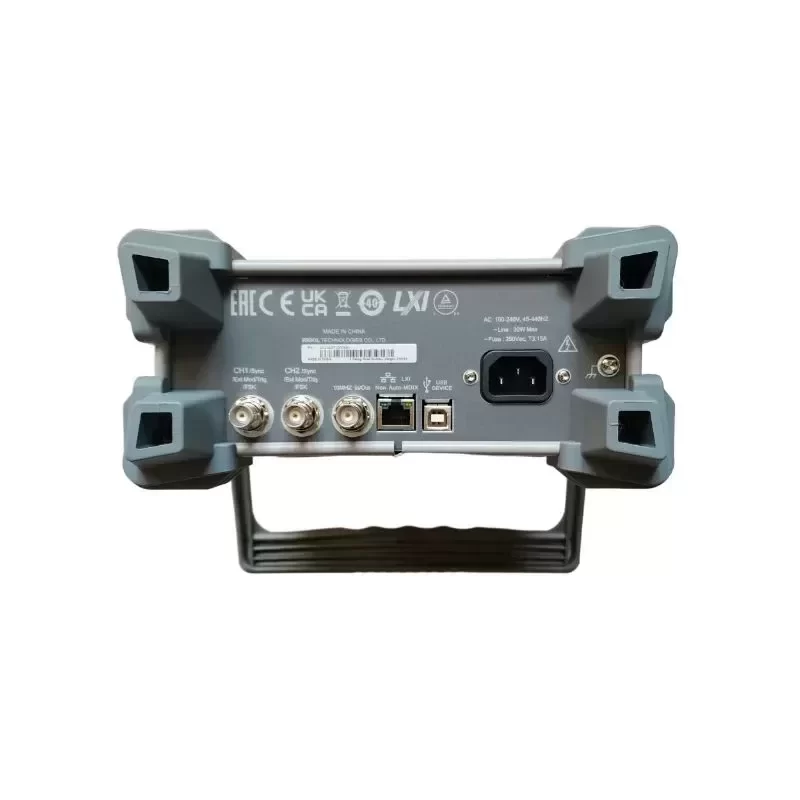

Communication Interfaces: USB Host, USB Device, LAN (LXI-C)
Operating Temperature: 0°C to 50°C
Dimensions: 261.5 mm x 112 mm x 318.4 mm
Weight: 3.2 kg
Power Supply: 100-240 VAC, 45-440 Hz
System Architecture and Integration:
The DG1062Z utilizes an innovative SiFi architecture that overcomes the traditional limitations of Direct Digital Synthesis (DDS). By generating signals point-by-point, it eliminates phase jitter and output distortion, making it highly suitable for sensitive analog and digital circuit testing. The dual-channel design features equivalent performance across both outputs, allowing for complex phase-locked loop (PLL) testing and differential signal generation. The inclusion of LAN (LXI Core 2011) and USB interfaces ensures seamless Technical Compatibility with automated test equipment (ATE) racks and SCPI-based control systems.
Industrial Application:
In automotive electronics manufacturing and aerospace sensor calibration, the Rigol DG1062Z solves the critical problem of simulating precise, low-noise environmental signals. Engineers utilize the 14-bit vertical resolution and 8 Mpts memory depth to replicate transient anomalies and sensor drift over extended periods. This capability is essential for validating Electronic Control Units (ECUs) and ensuring system resilience against power supply fluctuations and electromagnetic interference.
Procurement and Lifecycle Value:
Sourced through Original Engineering channels, the Rigol DG1062Z guarantees authentic performance and long-term reliability. Our streamlined supply chain ensures an optimized Lead Time for critical testing facility upgrades. The robust build quality and extensive built-in waveform library provide exceptional lifecycle value, reducing the need for multiple specialized signal generators on the test bench.
Key Attributes
Type: Waveform Generator
Accuracy: ±1 ppm
Place of origin: China
Customized support: Software Reengineering
Power: 60 MHz
Protection Class: IP65
Voltage: 100 to 240 V
Brand name: RIGOL
Application: Research and development
Warranty: 1 years
Maximum Frequency: 60 MHz
Channels: 2
Sample Rate: 200 MSa/s
Basic Waveforms: Sine, Square, Ramp, Pulse, Noise
Display: 3.5" TFT LCD
Packaging and Delivery
Selling Units: Single item
Single package size: 45X38X28 cm
Single gross weight: 3.300 kg
