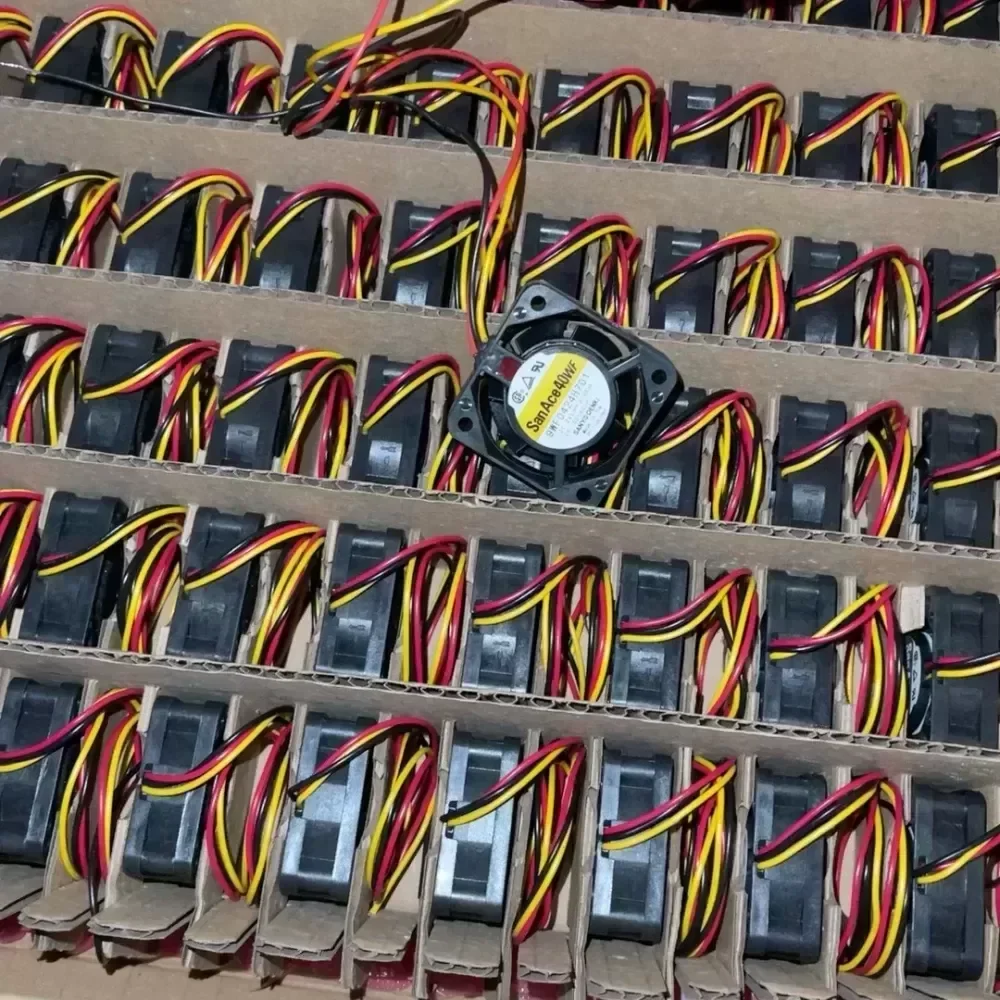

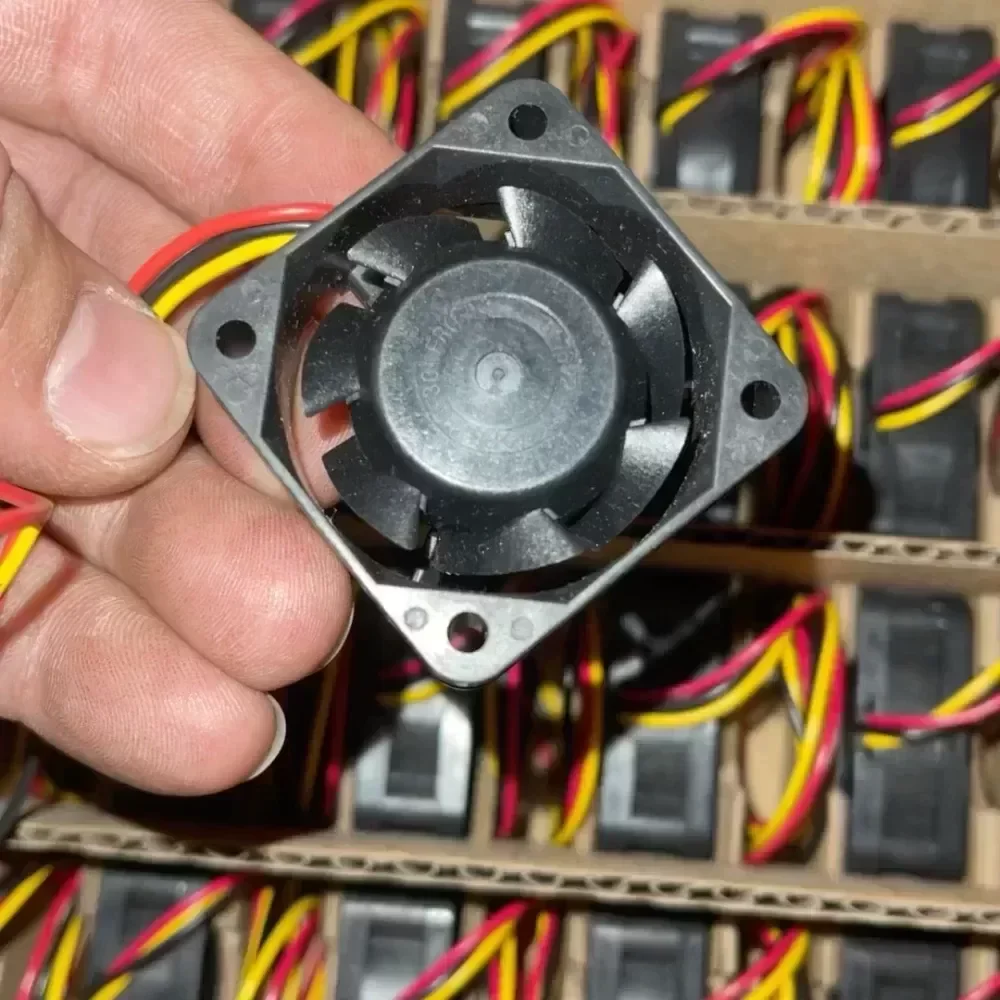

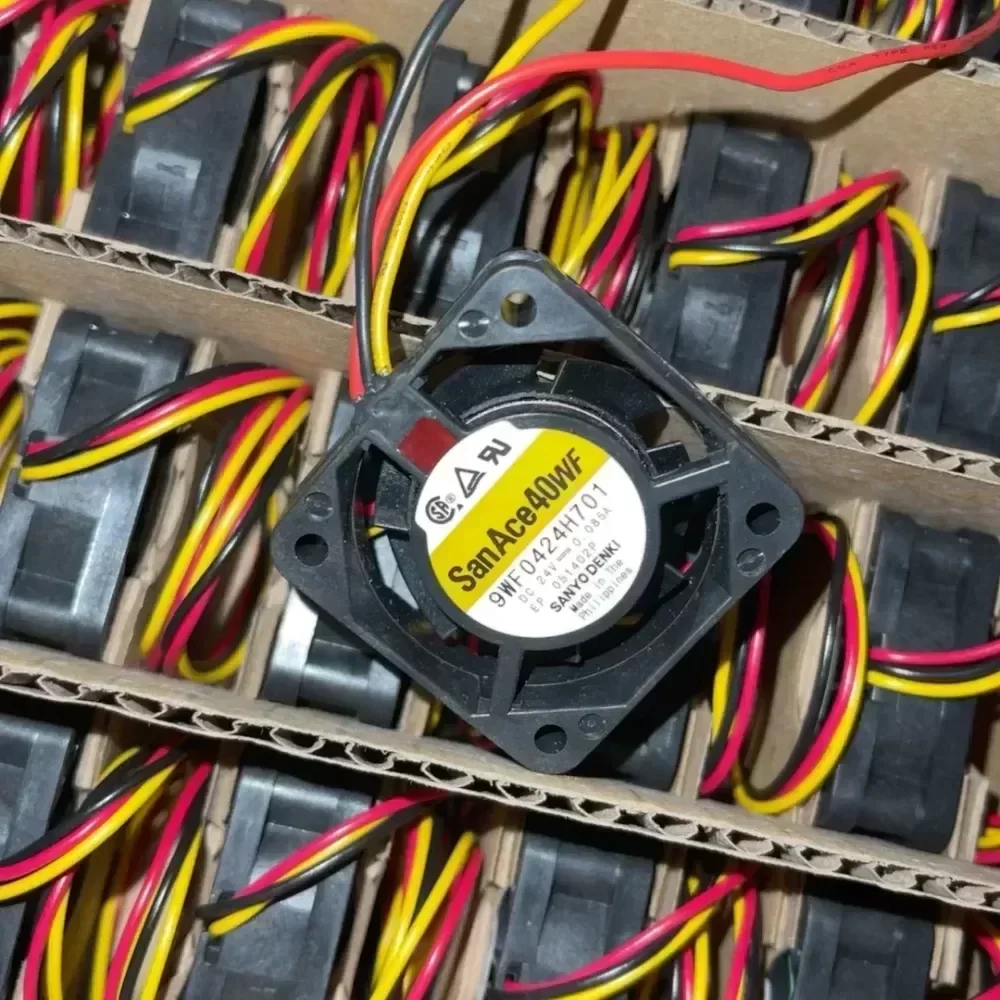

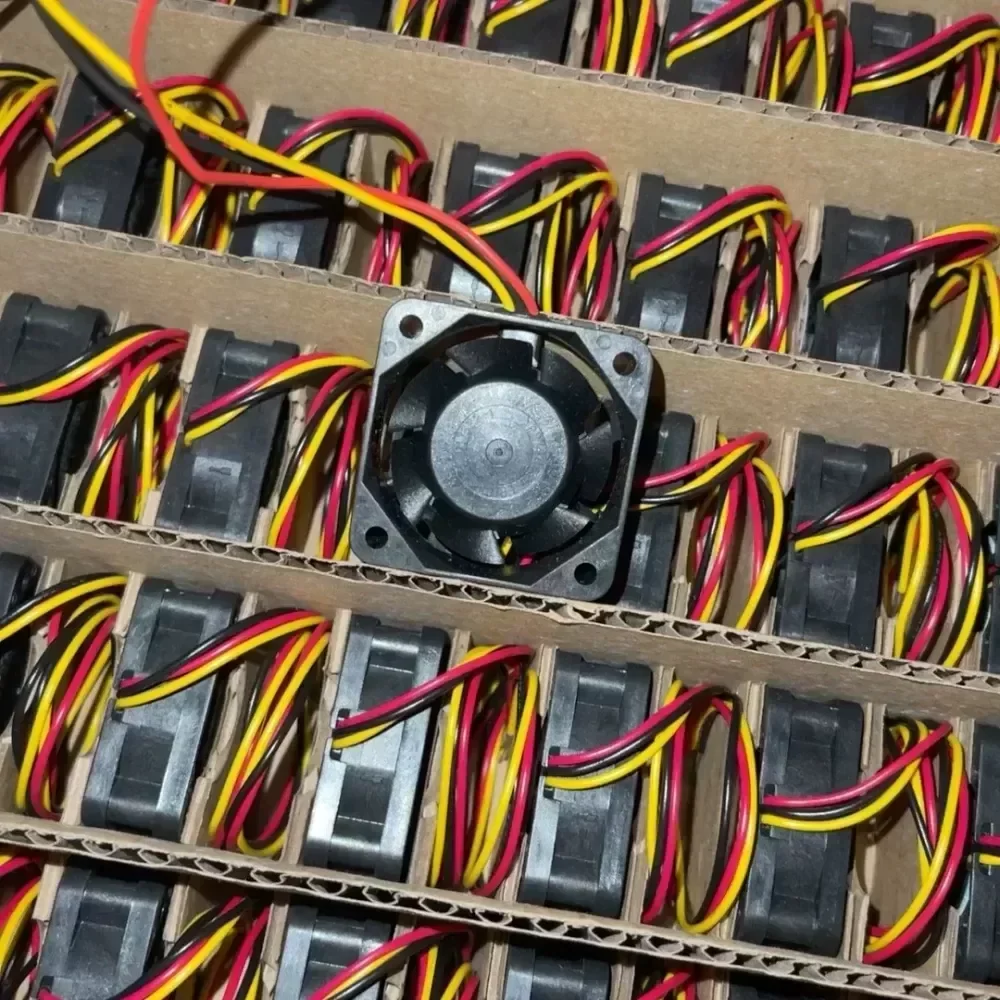

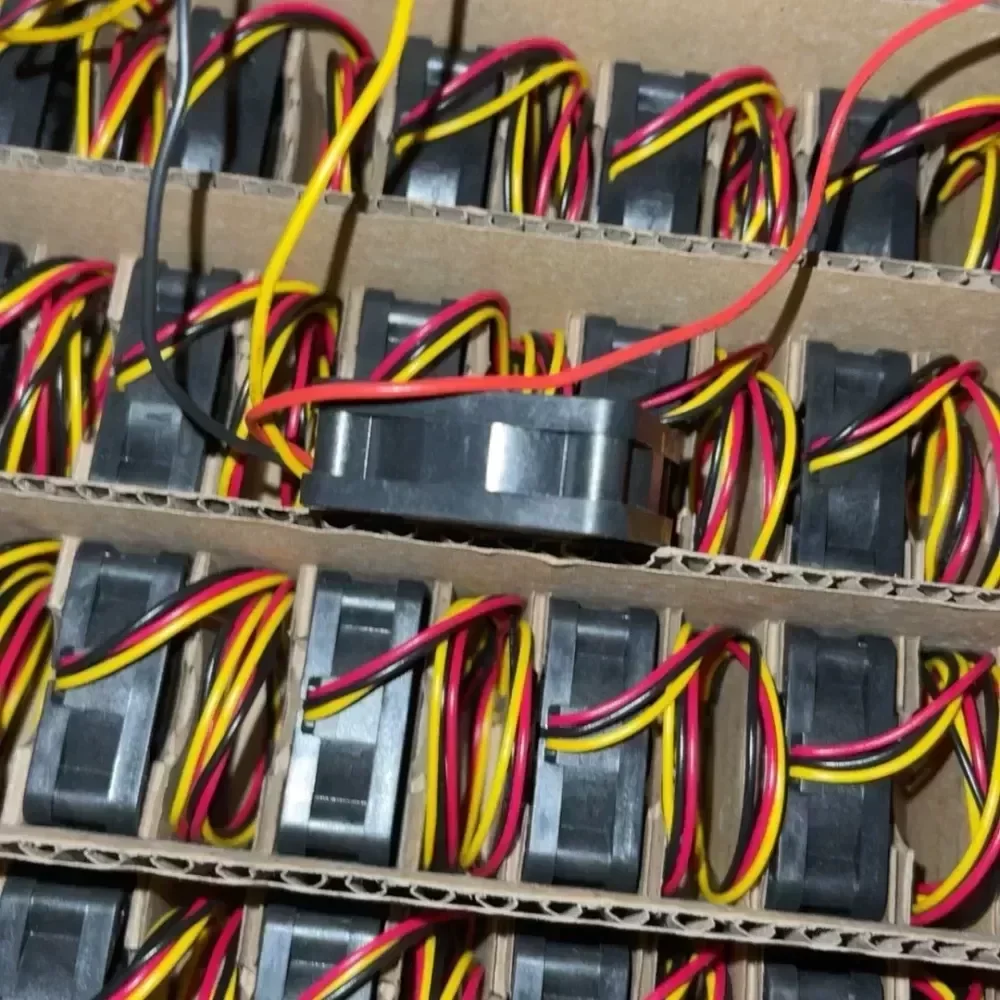

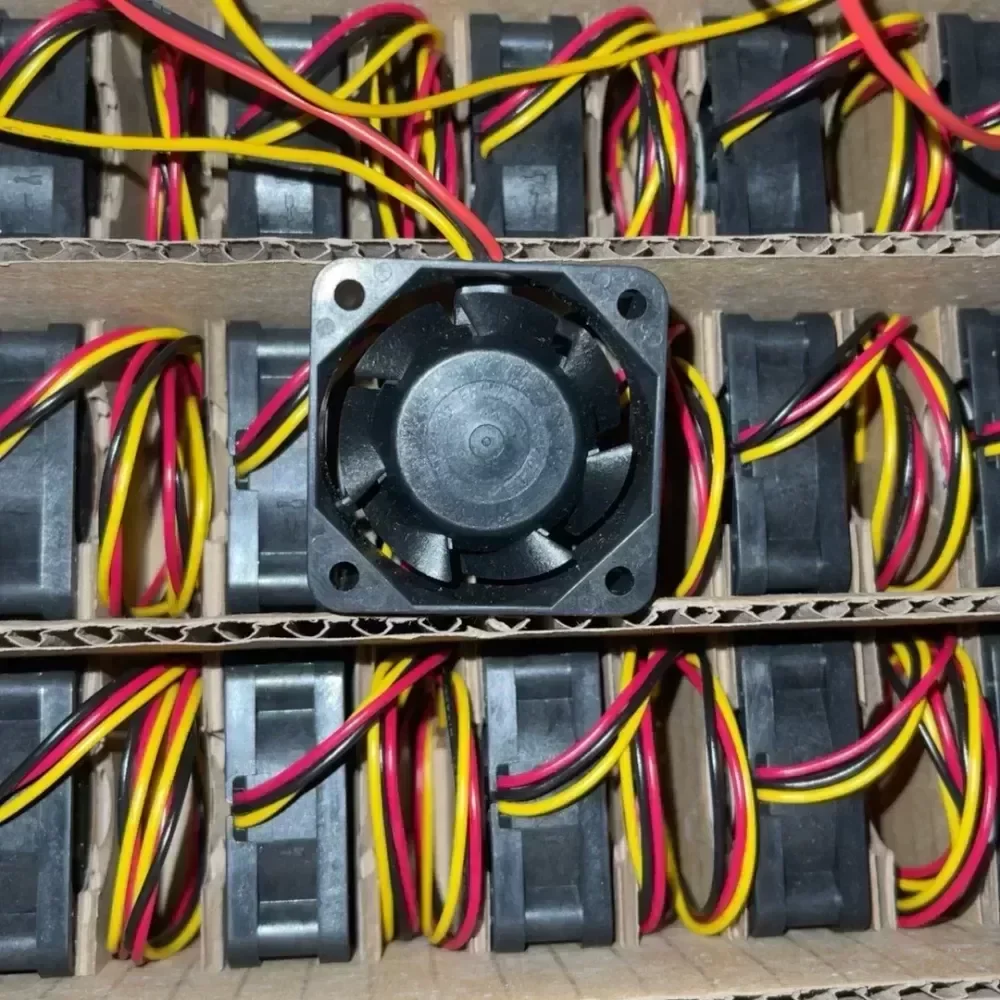

9WF0424H701 Sanyo SanAce40WF IP68 fan

$9.71

SKU: 897270985922 Brand:

Description

The Sanyo Denki San Ace 40WF series, model 9WF0424H701, is a high-reliability, industrial-grade 40mm axial cooling fan engineered for severe operating environments. Designed with fully encapsulated electronics and precision motor windings, this unit delivers standard-setting IP68 environmental protection against moisture ingress, direct water jet exposure, airborne particulate contamination, and ambient industrial oil mist. Built to Original Engineering specifications, it provides continuous thermal dissipation for high-density electronic modules and industrial control enclosures where conventional fans suffer premature bearing and winding breakdown.

TECHNICAL SPECIFICATIONS:
Manufacturer: Sanyo Denki
Series: San Ace 40WF (Splash Proof / Oil Proof)
Model Number: 9WF0424H701
Frame Dimensions: 40 mm x 40 mm
Frame Depth: 20 mm
Rated Voltage: 24 V DC
Operating Voltage Range: 20.4 V DC to 27.6 V DC
Rated Current: 0.08 A
Rated Input Power: 1.92 W
Rated Rotational Speed: 9500 RPM
Maximum Airflow: 0.27 m³/min (9.54 CFM)
Maximum Static Pressure: 130 Pa (0.522 inch H2O)
Sound Pressure Level: 39 dB(A)
Bearing Type: Dual Precision Ball Bearings
Ingress Protection Rating: IP68 (IEC 60529 standard, dust-tight, continuous water immersion, oil-mist resistant)
Frame Material: PBT Plastic (UL 94V-0 flame retardant)
Impeller Material: PBT Plastic (UL 94V-0 flame retardant)
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
Sensor / Control Interface: 3-wire configuration (Power, Ground, Pulse/Tachometer Sensor Output)
Lead Wire Spec: AWG 26, UL 1007 (Red: +24V, Black: GND, Yellow: Sensor)
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -30 °C to +70 °C
Expected Service Life: 180,000 Hours at 40 °C (Continuous Duty)
Weight: 50 g
Certifications: UL, CSA, TÜV, CE, RoHS Compliant

INDUSTRIAL APPLICATION SCENARIO:
The 9WF0424H701 fan is purpose-built for harsh deployment environments where cutting fluids, oil mist, and aerosolized lubricants are present. Typical applications include CNC machine tool internal electronics, outdoor telecom base station power rectifiers, oil-immersed machinery junction boxes, robotic controller drive enclosures, and sealed industrial servo drive cabinets. In these scenarios, volatile ambient aerosols degrade standard cooling fan motor windings; the IP68 oil-proof encapsulation of the 9WF0424H701 eliminates insulation degradation and ensures consistent thermal performance without risk of short-circuiting or bearing seizure.

PROCUREMENT, TECHNICAL COMPATIBILITY & LIFECYCLE VALUE:
Condition: Brand new, unused surplus inventory in factory condition with zero operating hours.
Technical Compatibility: Direct drop-in replacement for any 40x40x20mm 24V DC three-wire cooling assembly requiring IP68 or oil-proof ingress resistance.
Lead Time: Immediate dispatch available from stock, eliminating standard factory production lead time.

9WF0424H701 Sanyo SanAce40WF IP68 fan

9WF0424H701 Sanyo SanAce40WF IP68 fan

9WF0424H701 Sanyo SanAce40WF IP68 fan

9WF0424H701 Sanyo SanAce40WF IP68 fan

9WF0424H701 Sanyo SanAce40WF IP68 fan

9WF0424H701 Sanyo SanAce40WF IP68 fan

9WF0424H701 Sanyo SanAce40WF IP68 fan

9WF0424H701 Sanyo SanAce40WF IP68 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
