$5.00

SKU: 896550327032 Brand:

Description

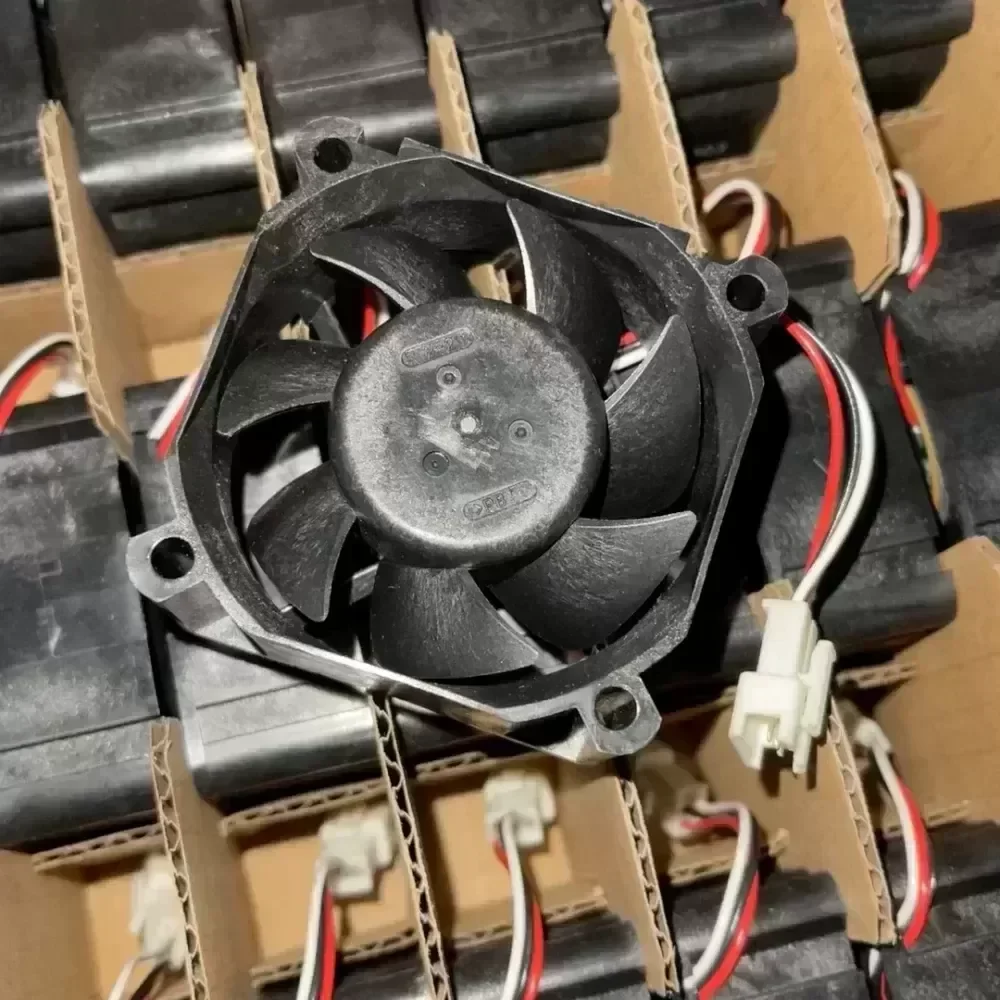

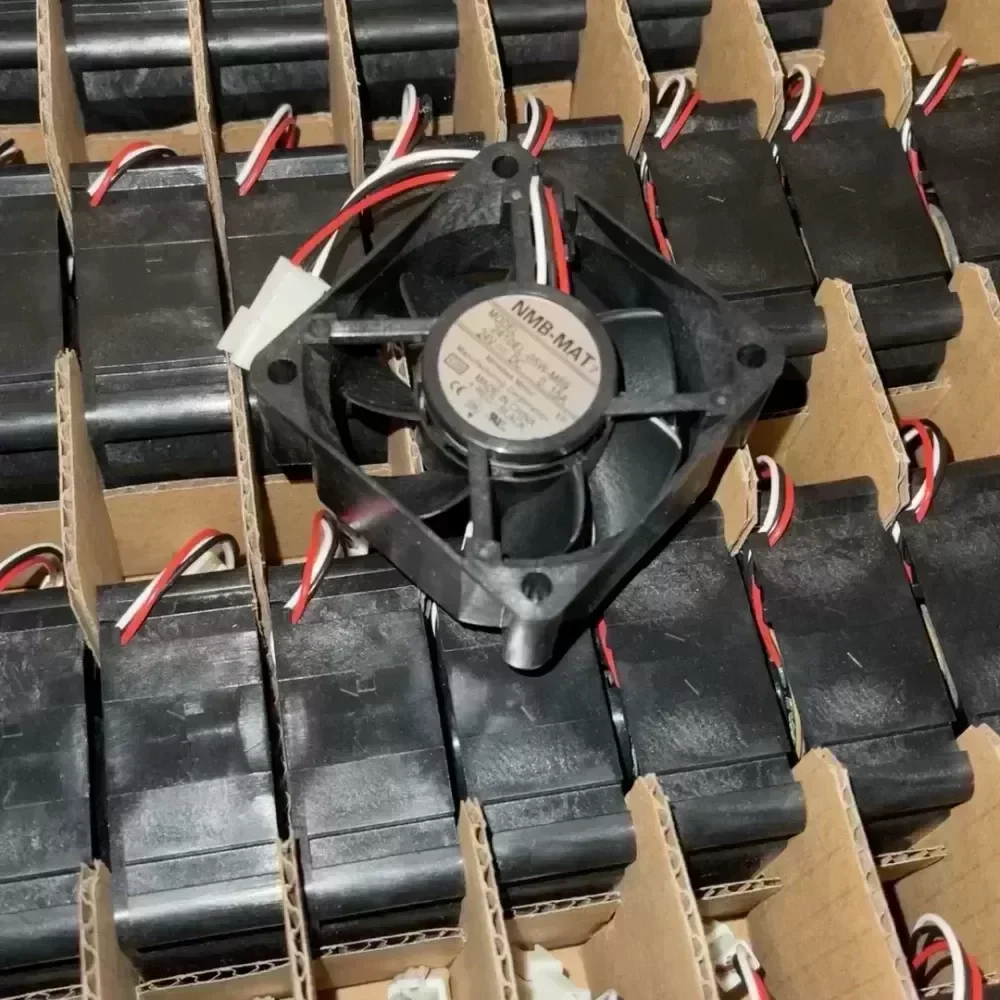

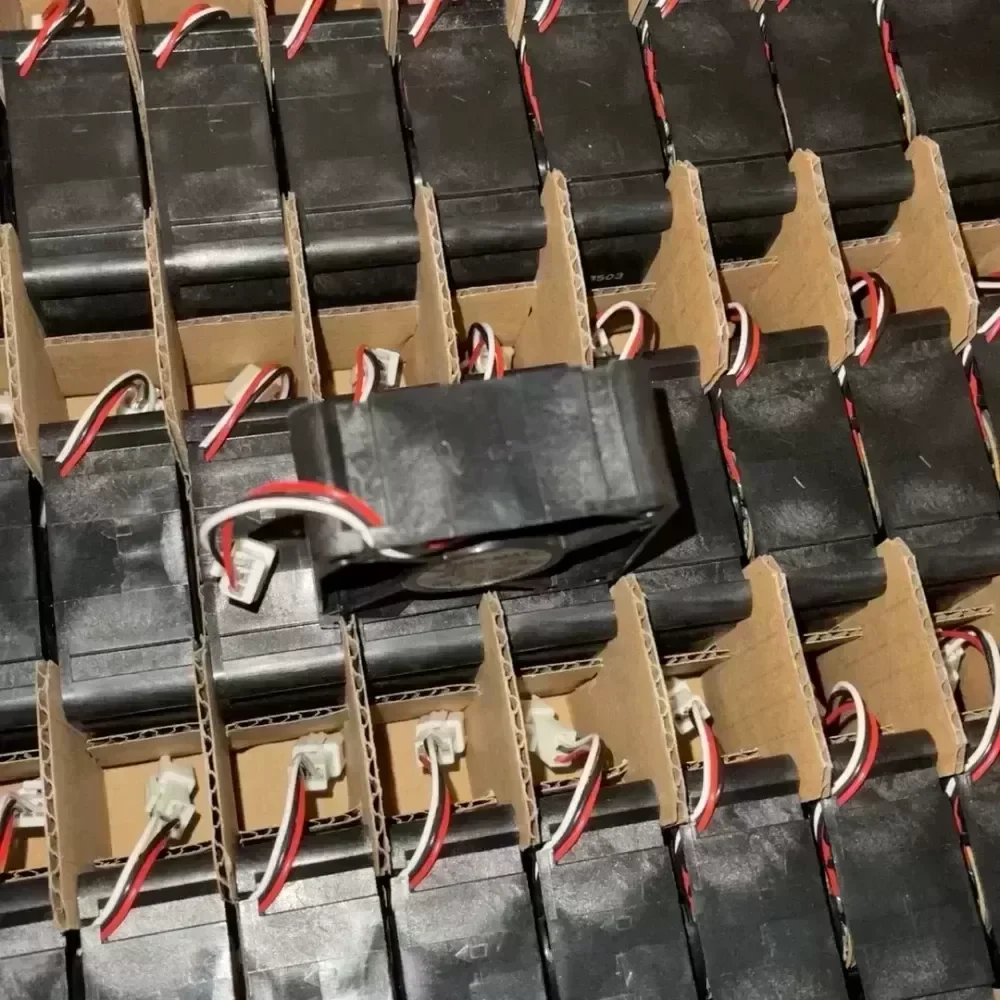

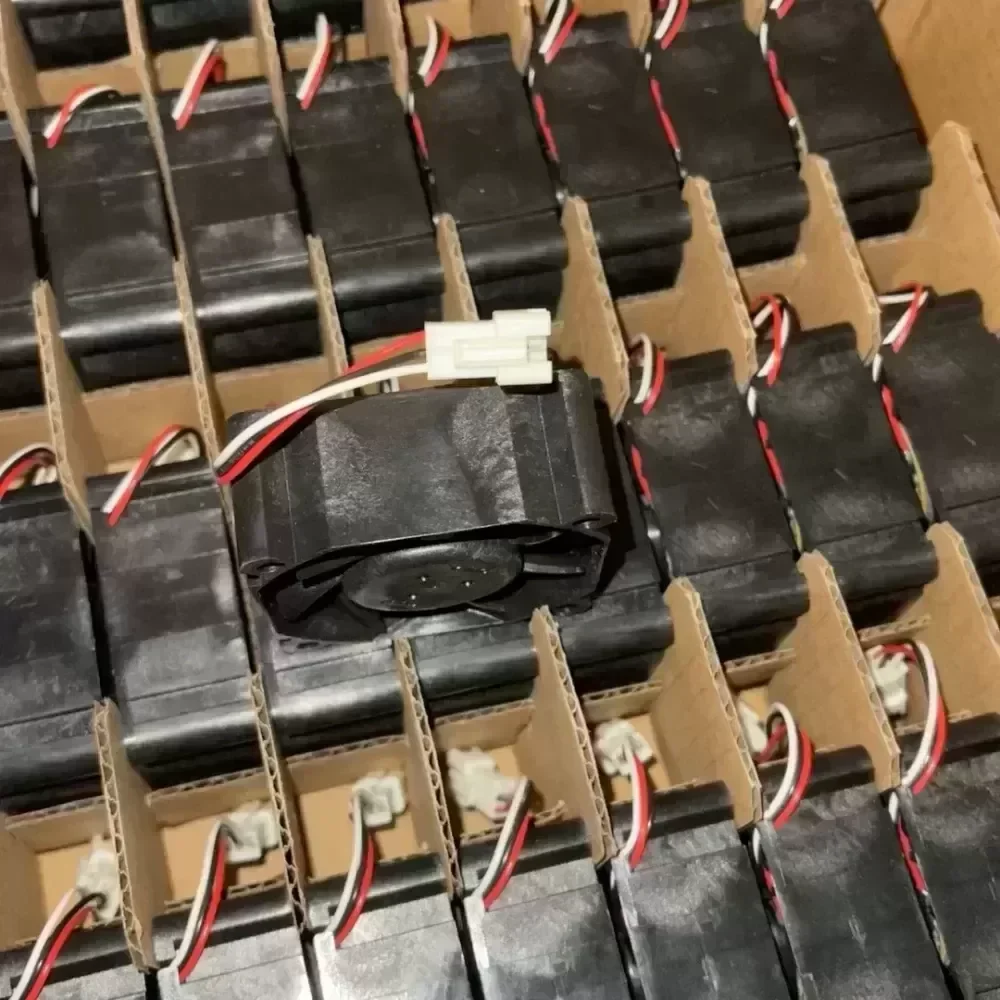

The NMB-MAT 2410EL-05W-M69 is a compact, high-reliability 60mm x 60mm x 25mm brushless DC cooling fan engineered by MinebeaMitsumi for demanding thermal management tasks. Built with Original Engineering standards, this unit integrates long-life dual ball bearing technology and high-grade aerodynamic impellers to deliver optimal airflow and static pressure in constrained industrial enclosures.

Technical Specifications:
Manufacturer: NMB-MAT / MinebeaMitsumi
Model Code: 2410EL-05W-M69
Frame Size: 60 mm x 60 mm
Frame Depth: 25 mm
Rated Voltage: 24 V DC
Operating Voltage Range: 14.0 V DC – 27.6 V DC
Rated Current: 0.18 A
Rated Input Power: 4.32 W
Bearing Type: Dual Precision Ball Bearings
Frame Material: Thermoplastic PBT (UL94V-0 rated, glass-fiber reinforced)
Impeller Material: Thermoplastic PBT (UL94V-0 rated, glass-fiber reinforced)
Lead Wire Configuration: AWG26 UL1007 (Positive, Negative, Sensor Output)
Motor Protection: Auto-restart / Reverse Polarity Protection
Insulation Resistance: 10 MΩ or minimum at 500 V DC
Dielectric Strength: 500 V AC for 1 minute
Operating Temperature Range: -10 °C to +70 °C
Storage Temperature Range: -40 °C to +70 °C
Life Expectancy (L10): 70,000 hours at 40 °C
Weight: 65 g

Technical Compatibility and System Integration:
The 2410EL-05W-M69 is designed for seamless technical compatibility with standard 24V DC logic rails, switch-mode power supplies (SMPS), telecommunication rack enclosures, and industrial automation equipment. The factory-integrated tachometer lead enables real-time RPM monitoring and alarm integration within central PLC and supervisory systems.

Industrial Application Scenarios:
This component is specifically deployed in high-density electronic assemblies, such as industrial variable frequency drives (VFDs), medical imaging electronics, 19-inch rackmount telecom equipment, and embedded computing chassis. In environments requiring non-stop 24/7 continuous operation, the dual ball bearing construction prevents early bearing wear-out from elevated ambient temperatures, ensuring uninterrupted cooling and preventing component failure due to localized thermal buildup.

Procurement and Supply:
Units are fully inspected and certified for original operational performance. Optimized inventory supports direct B2B deployment with reduced lead time for maintenance, repair, and ongoing OEM manufacturing integration.

2410EL-05W-M69 NMB-MAT fan

2410EL-05W-M69 NMB-MAT fan

2410EL-05W-M69 NMB-MAT fan

2410EL-05W-M69 NMB-MAT fan

2410EL-05W-M69 NMB-MAT fan

2410EL-05W-M69 NMB-MAT fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
