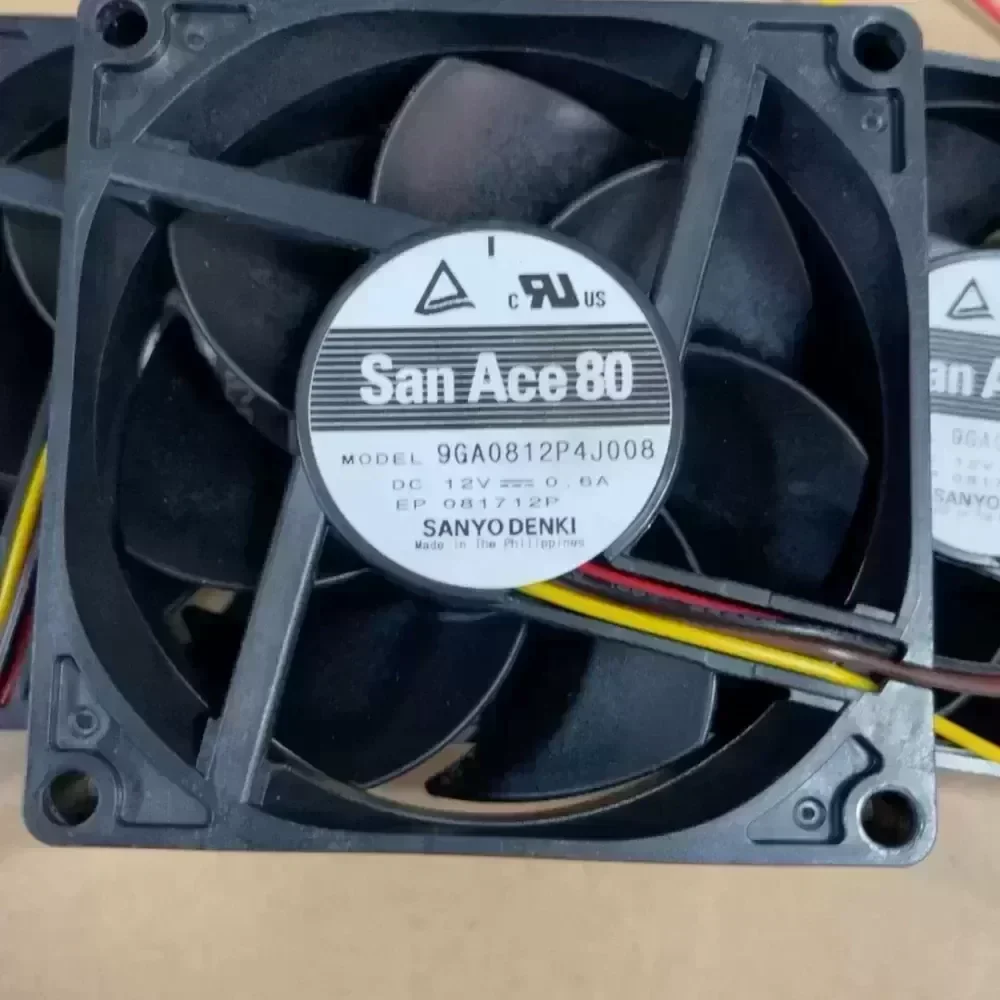

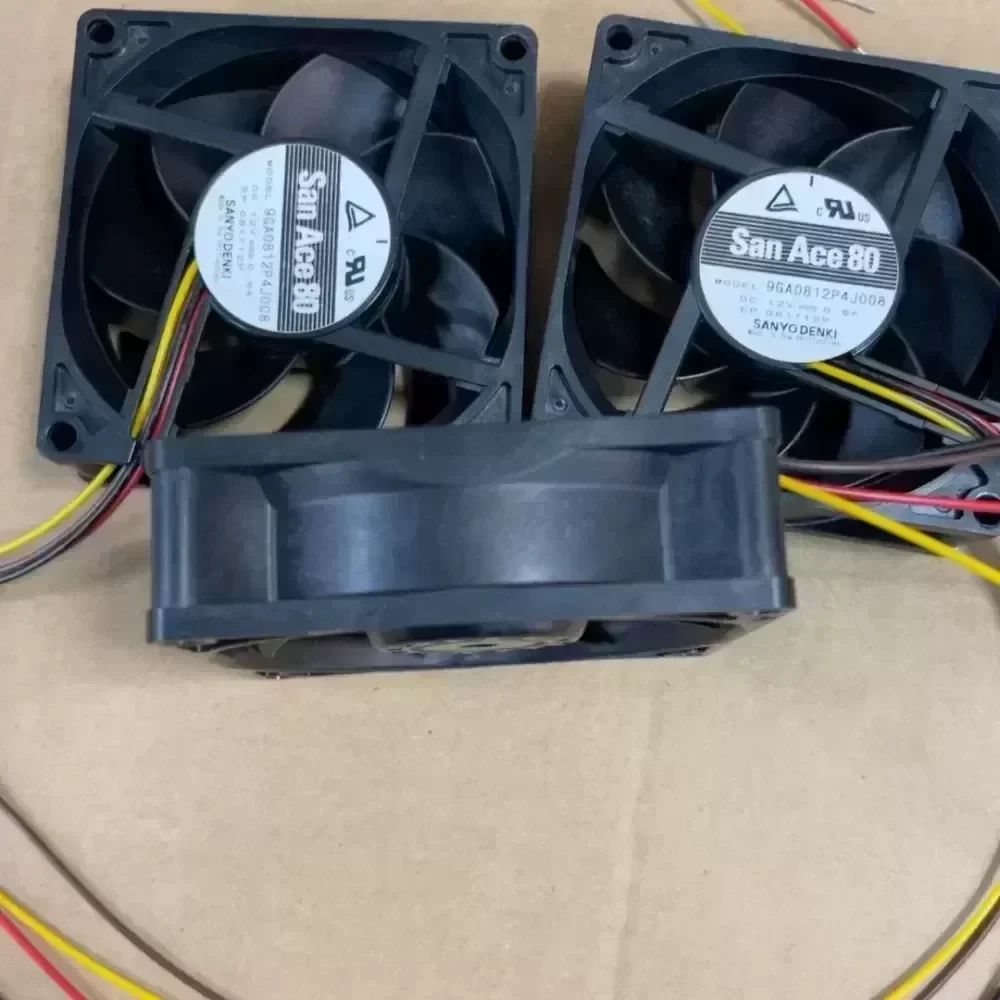

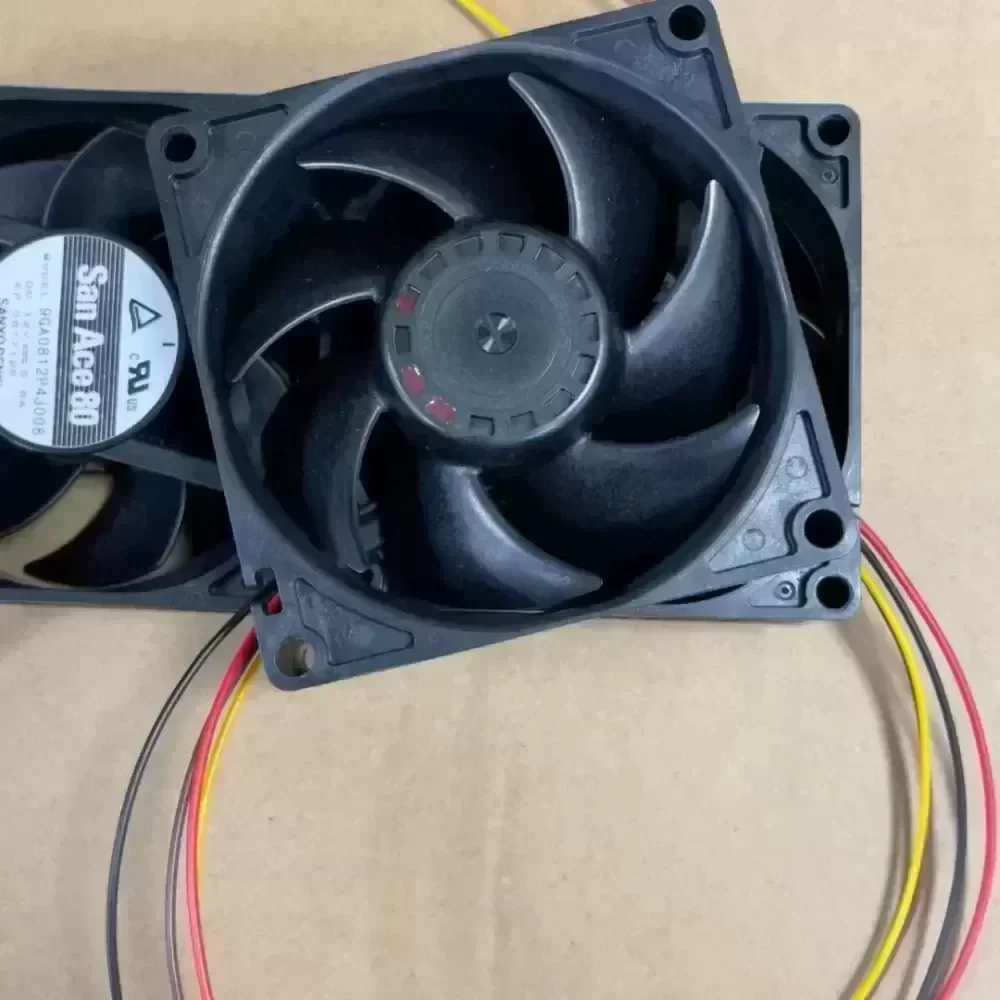

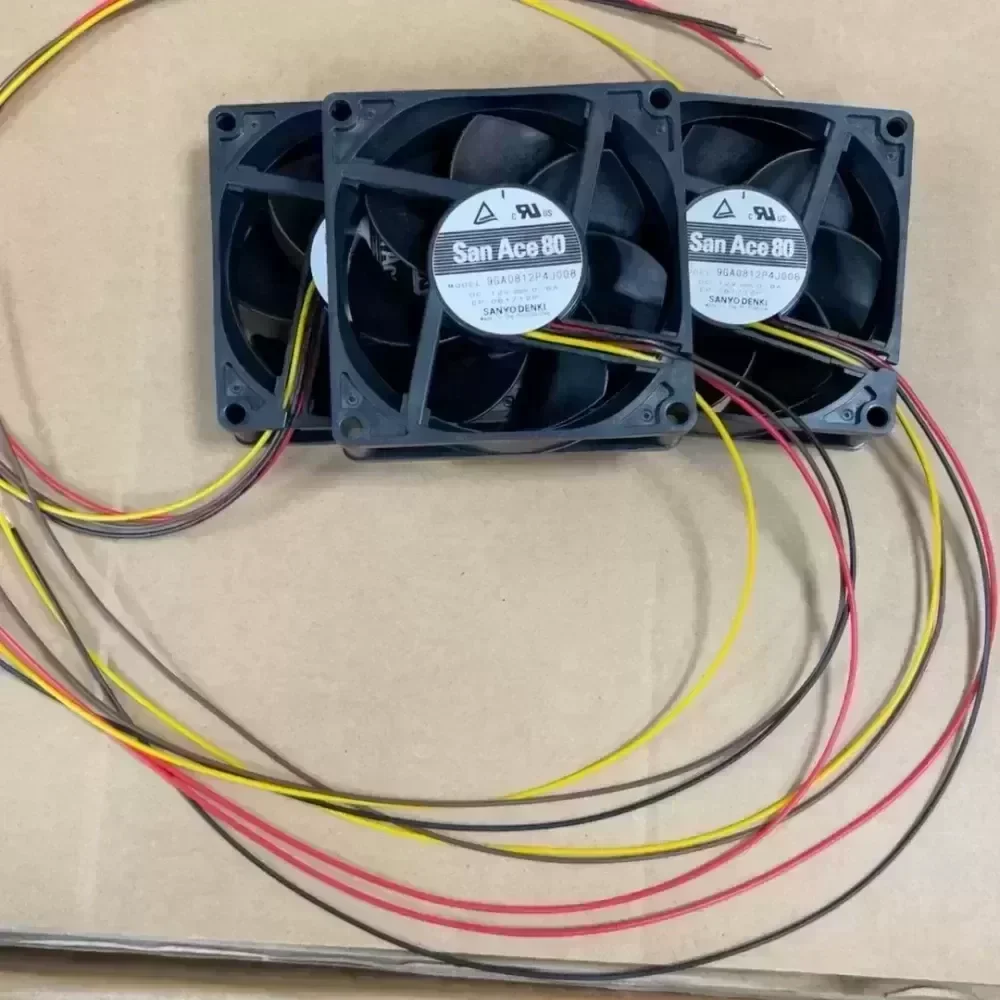

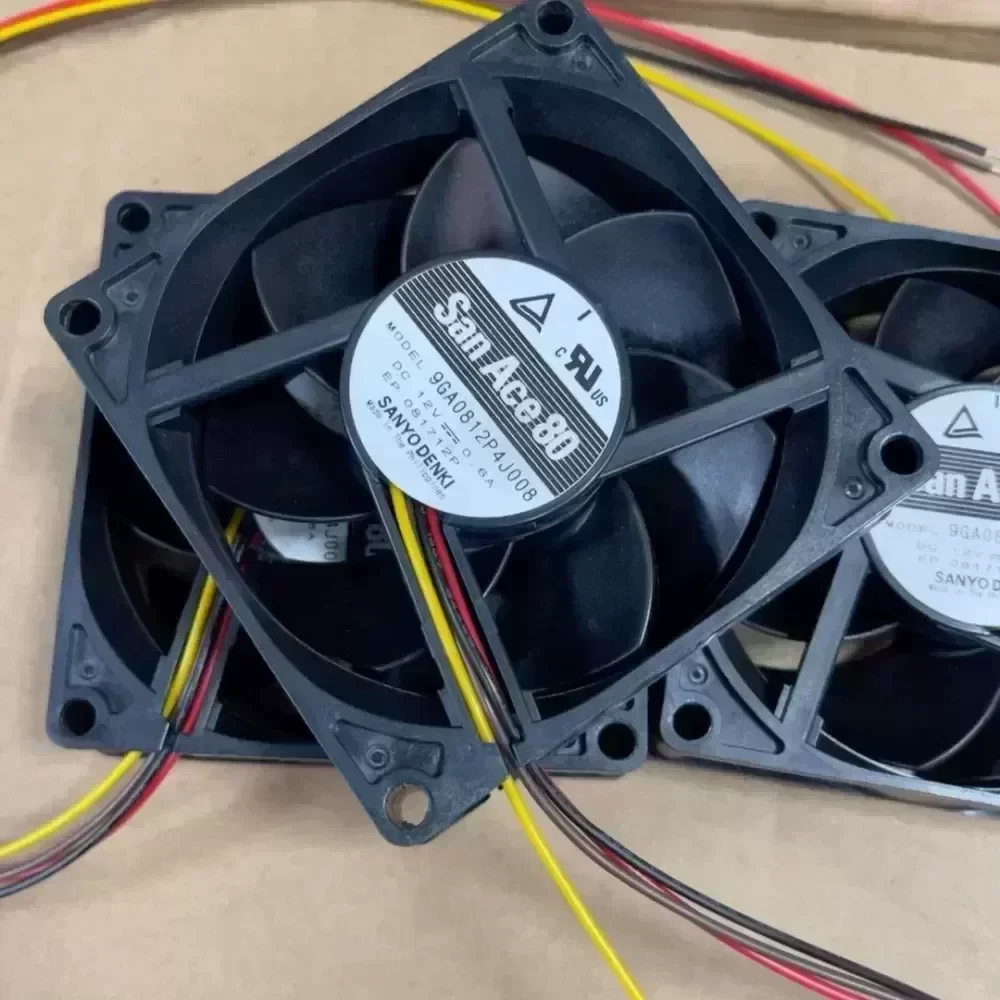

9GA0812P4J008 Sanyo SanAce80 fan

$3.86

SKU: 895458109022 Brand:

Description

The Sanyo Denki San Ace 80 (Series 9GA) represents precision-engineered thermal management designed for mission-critical industrial enclosures, high-density server racks, and automated control cabinets. Built with Original Engineering standards, the 9GA0812P4J008 combines high airflow performance with optimized power consumption and superior static pressure, overcoming dense component resistance where standard axial fans fail. The integrated 4-wire interface provides standard DC power, a tachometer pulse sensor, and precise pulse-width modulation (PWM) speed regulation, ensuring adaptive closed-loop cooling.

TECHNICAL SPECIFICATIONS
Manufacturer: Sanyo Denki Co., Ltd.
Product Series: San Ace 80 (9GA Type)
Part Number: 9GA0812P4J008
Nominal Voltage: 12 V DC
Operating Voltage Range: 10.8 V to 13.2 V DC
Rated Current: 0.60 A
Rated Input Power: 7.2 W
Nominal Speed: 7000 RPM
Maximum Airflow: 2.26 m³/min (80.0 CFM)
Maximum Static Pressure: 220 Pa (0.88 inch H2O)
Sound Pressure Level: 53 dB(A)
Bearing Architecture: Dual Precision Ball Bearings
Life Expectancy: 40,000 Hours at 60 °C (L10 Life)
Signal Interface: 4-Wire Leads (Power, Ground, Tachometer Output, PWM Control)
Frame Material: Flame-Retardant PBT Plastic (UL 94V-0)
Impeller Material: Flame-Retardant PBT Plastic (UL 94V-0)
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
Operating Temperature Range: -20 °C to +70 °C
Storage Temperature Range: -30 °C to +70 °C
Physical Dimensions: 80 mm x 80 mm x 25 mm
Weight: 110 g
Compliance: RoHS, REACH, UL Recognized, TÜV, CE

INDUSTRIAL APPLICATIONS & INTEGRATION
The 9GA0812P4J008 is purpose-engineered to mitigate thermal throttling in aerodynamically restricted environments. Standard applications include 1U/2U rackmount telecommunication chassis, edge computing hardware, industrial robotics controller boxes, and medical imaging systems. By maintaining continuous high static pressure at lower continuous power draw, this unit prevents localized hot spots within densely packed PCB arrays.

PROCUREMENT AND LIFECYCLE MANAGEMENT
Technical Compatibility: Direct drop-in replacement for standard 80x80x25mm 12V 4-wire industrial chassis fans utilizing standard Sanyo Denki pinout specifications.
Lead Time: Factory-new stock available for immediate industrial dispatch; scheduled global delivery and bulk allotment requests handled on standard commercial timelines.

9GA0812P4J008 Sanyo SanAce80 fan

9GA0812P4J008 Sanyo SanAce80 fan

9GA0812P4J008 Sanyo SanAce80 fan

9GA0812P4J008 Sanyo SanAce80 fan

9GA0812P4J008 Sanyo SanAce80 fan

9GA0812P4J008 Sanyo SanAce80 fan

9GA0812P4J008 Sanyo SanAce80 fan

9GA0812P4J008 Sanyo SanAce80 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
