Description

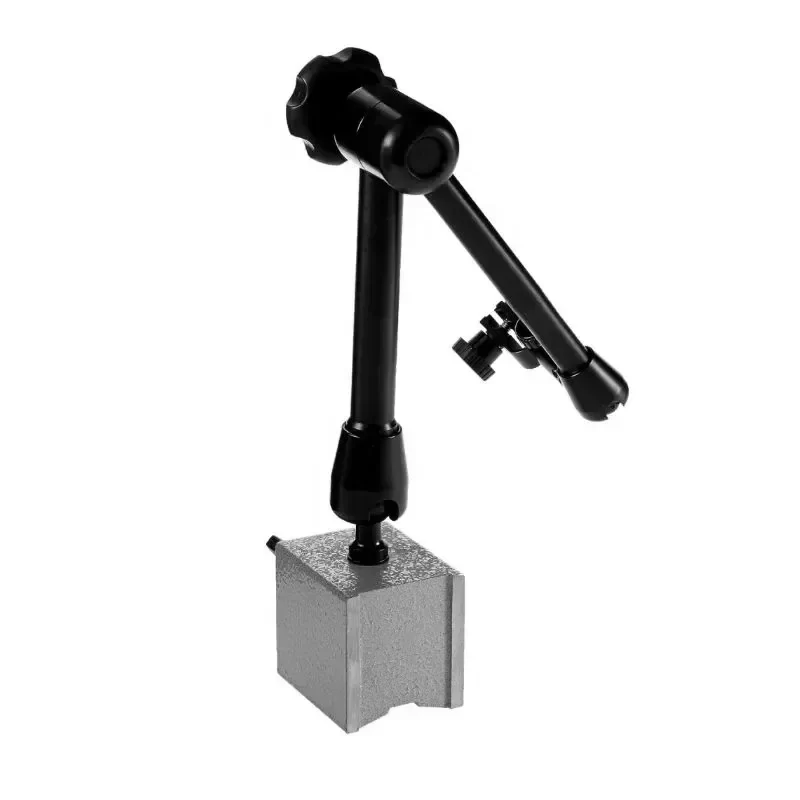

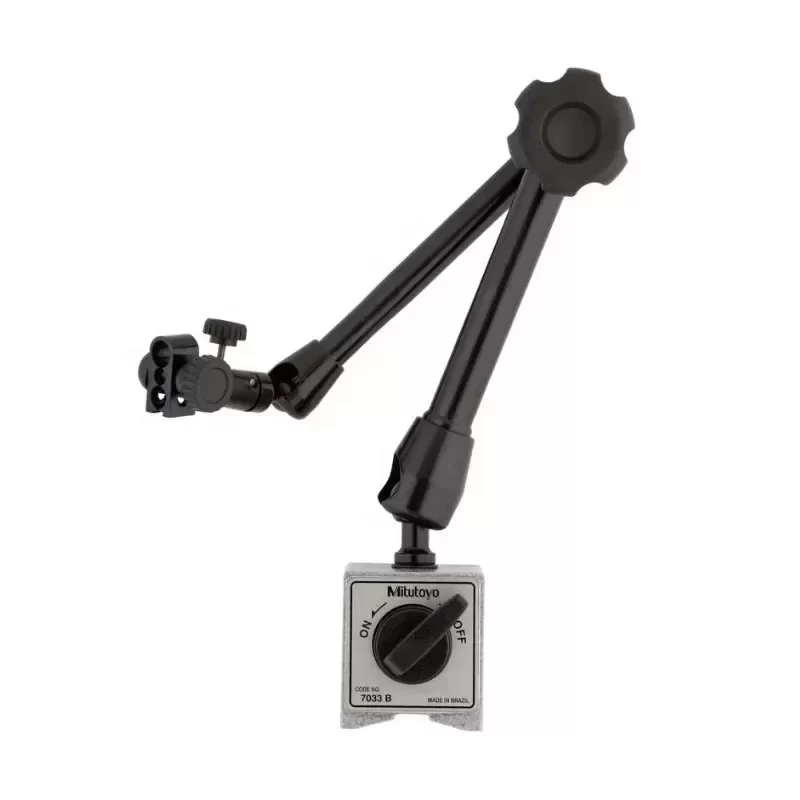

The Mitutoyo 7033-10 is an industrial-grade Universal Magnetic Stand engineered for precision metrology and rigorous machining environments. Designed with Original Engineering standards, this articulating stand provides rigid support for dial indicators, test indicators, and linear gages, ensuring absolute measurement stability.
Technical Specifications:
Manufacturer: Mitutoyo
Model Number: 7033-10
Equipment Type: Universal Magnetic Stand
Magnetic Clamping Force: 600N
Overall Height: 425mm
Base Dimensions: 50mm x 60mm x 55mm
Stem Acceptance: Ø8mm, Ø9.53mm, and Dovetail
Arm Configuration: Universal Articulating Arm
Locking Mechanism: Central Mechanical Lock
Fine Adjustment: Integrated at the indicator clamp
Base Type: V-groove bottom for cylindrical surfaces
Weight: 1.7 kg
Technical Compatibility: Compatible with standard dial indicators, dial test indicators, and Digimatic indicators
Application Scenario:
This magnetic stand is critical for precision alignment and runout inspection on CNC machining centers and lathes. The 600N V-groove magnetic base securely anchors to both flat machine tables and cylindrical spindles. The universal articulating arm allows operators to bypass complex tooling setups, positioning the indicator exactly where needed for concentricity checks or workpiece tramming.
Procuring this Original Engineering component guarantees measurement repeatability and minimizes setup times. We ensure optimized Lead Time for the Mitutoyo 7033-10, supporting uninterrupted quality control operations and maintaining strict calibration standards in your facility.
Key Attributes
Place of origin: Japan
Model number: 7033-10
Brand name: Mitutoyo
Customized support: OEM, ODM
Warranty: 1 years
Clamping device: Magnetic
Clamping force (vertical): 600 N
Ase size (LxWxH): 59 x 50 x 55 mm
Total height: 425 mm
Stem hole: 6 mm, 8 mm, 9.53 mm, dovetail
Packaging and Delivery
Selling Units: Single item
Single package size: 39X25X18 cm
Single gross weight: 2.500 kg
