Description

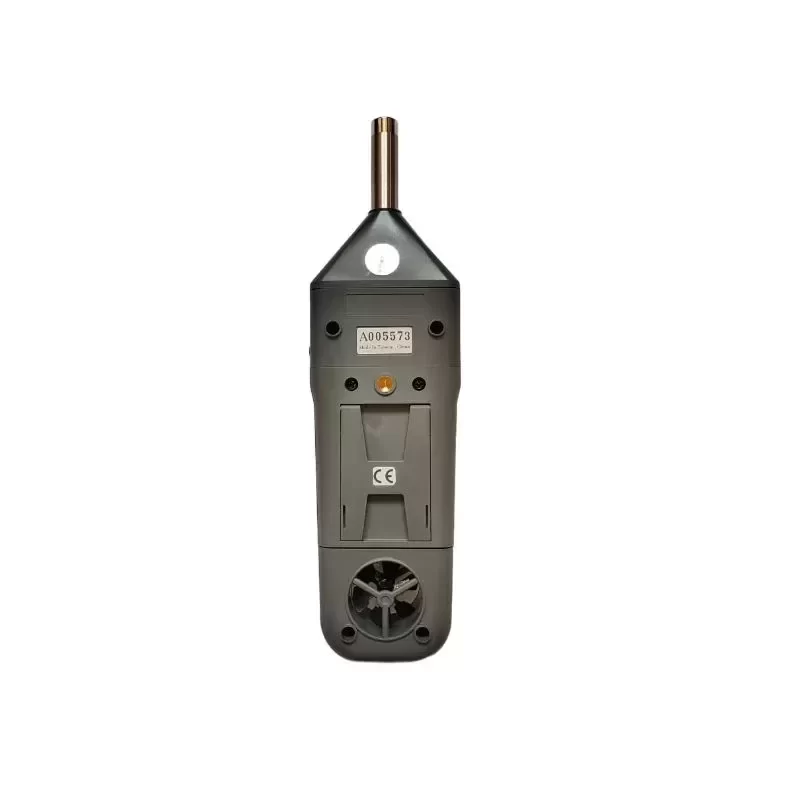

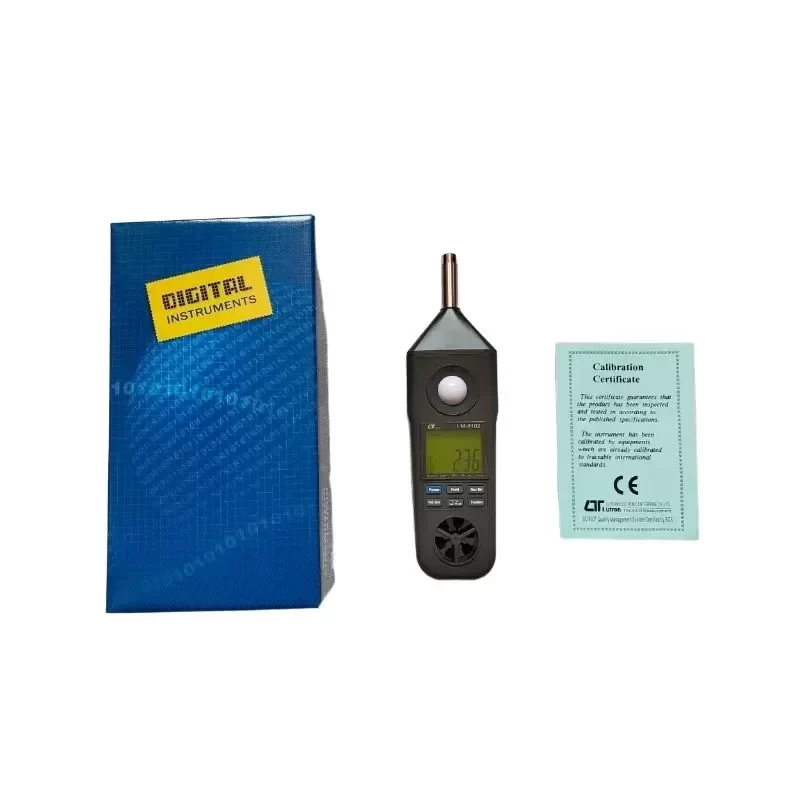

The Lutron LM-8102 is a professional-grade 5-in-1 multi-function environmental testing instrument engineered for precise measurement of air velocity, sound level, relative humidity, illuminance, and temperature. Designed with Original Engineering by Lutron, this compact diagnostic tool consolidates five critical environmental sensors into a single, microprocessor-driven unit, eliminating the need for multiple discrete meters in field service and industrial maintenance applications.
Technical Specifications:
Function: 5-in-1 Environmental Meter
Air Velocity Range: 0.4 to 30.0 m/s
Air Velocity Sensor: Low-friction ball bearing vane
Sound Level Range: 35 to 130 dB (A-weighting, IEC 61672 Class 2)
Humidity Range: 10% to 95% RH
Humidity Sensor: High-precision thin-film capacitance
Light Range: 0 to 20,000 Lux (Cosine corrected)
Temperature Range (Internal): 0 to 50 °C
Temperature Range (Type K): -100 to 1300 °C
Resolution: 0.1 m/s, 0.1 dB, 0.1% RH, 1 Lux, 0.1 °C
Accuracy: ± 2% reading (Air Velocity), ± 1.5 dB (Sound)
Display: High-contrast LCD with Data Hold and Max/Min recording
Data Output: RS232 / USB PC interface
Power Supply: 9V DC battery
Dimensions: 156 x 60 x 33 mm
Weight: 160 g
Industrial Application:
The LM-8102 provides critical diagnostic capabilities for HVAC system balancing, occupational health and safety (OHS) compliance auditing, and cleanroom environmental validation. By integrating a low-friction anemometer vane and a Class 2 sound level microphone, technicians can simultaneously verify airflow rates and measure acoustic emissions from industrial blowers or exhaust systems. Its broad Technical Compatibility with standard Type K thermocouples ensures seamless integration into existing thermal profiling workflows.
Procurement and lifecycle management are optimized through consolidated calibration requirements, reducing overall maintenance overhead. Please contact our technical sales team to confirm current Lead Time and calibration certificate availability.
Key Attributes
Type: Anemometer Humidity Meter
Place of Origin: China
Model Number: LM-8102
Brand Name: LUTRON
Power Supply: DC 1.5 V battery
Display: LCD display
Customized support: ODM
Material: Plastic
Protection grade: IP65
Operation humidity: Up To 80% RH
Operating Temperature: 0C to 50C (32F to 122F)
Warranty: 1 years
Size: 22 * 11 * 7cm
Packaging and Delivery
Selling Units: Single item
Single package size: 32X16X14 cm
Single gross weight: 1.000 kg
