Description

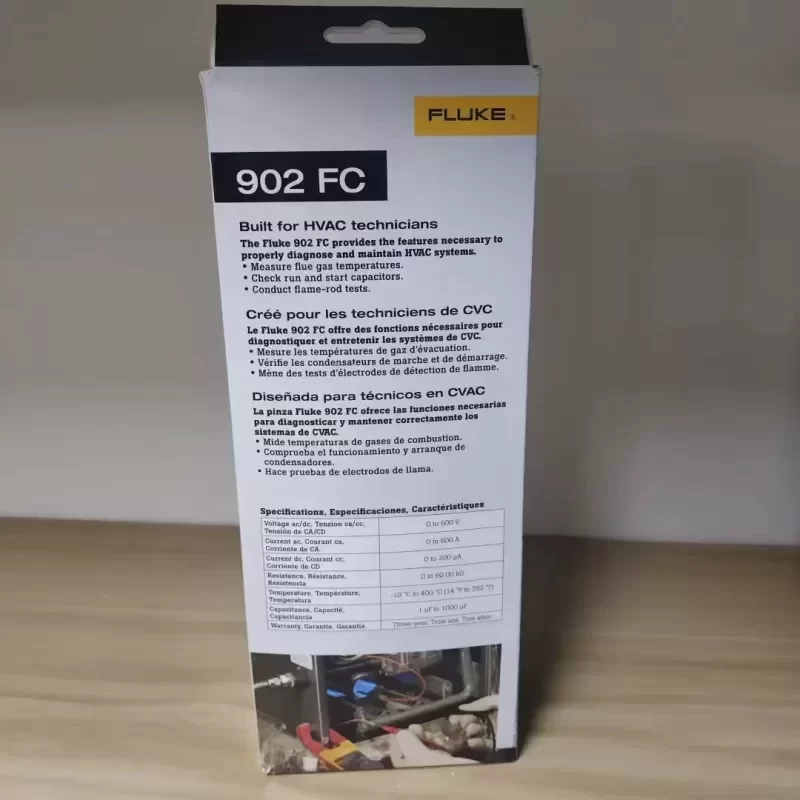

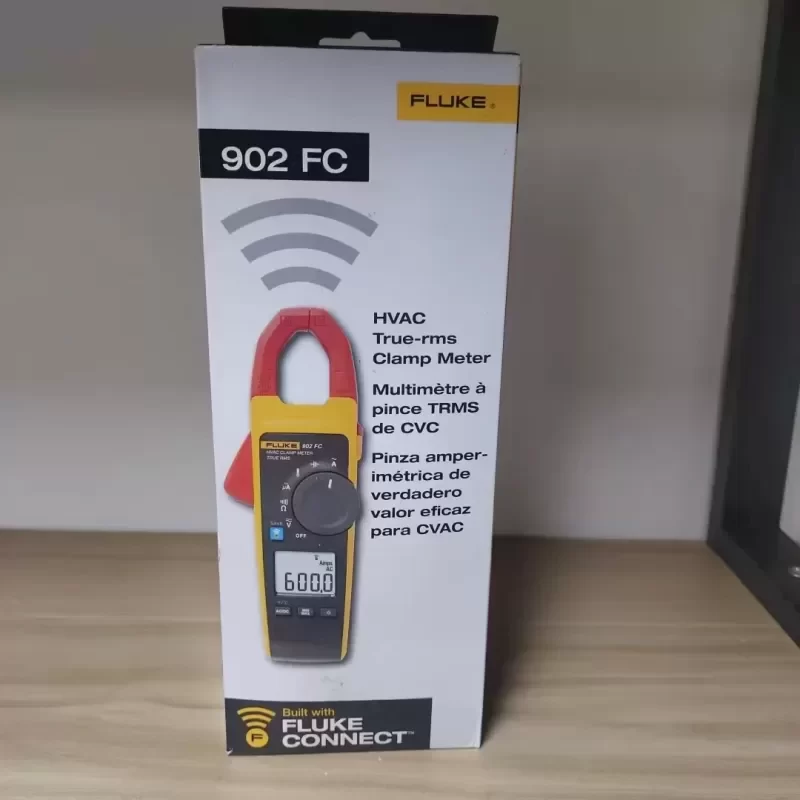

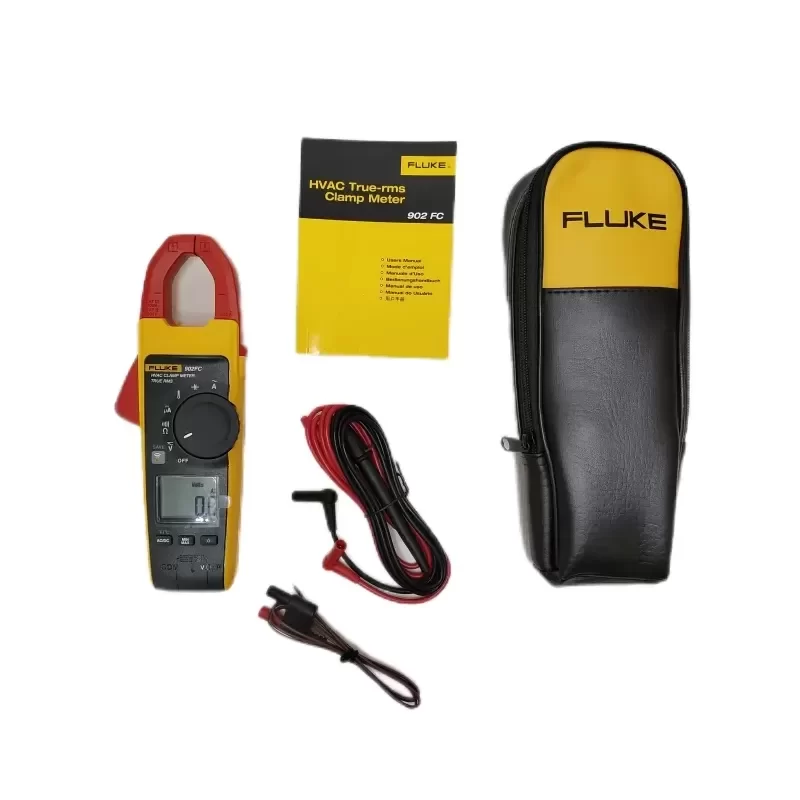

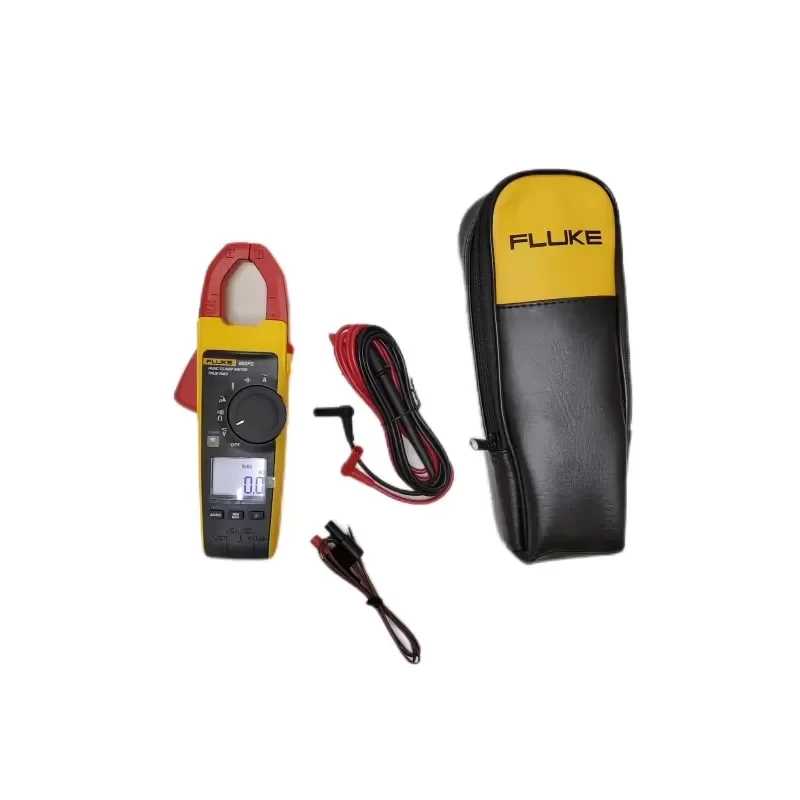

The Fluke 902FC is a premium-grade True-RMS Wireless HVAC Clamp Meter designed for advanced diagnostics in commercial and industrial heating, ventilation, air conditioning, and refrigeration (HVAC/R) systems. Built with Fluke’s Original Engineering standards, this instrument provides technicians with the capability to capture critical measurements safely outside the arc flash zone via Fluke Connect Bluetooth integration. We ensure immediate Lead Time for this in-stock asset, guaranteeing seamless Technical Compatibility with existing Fluke Connect ecosystems and industrial maintenance protocols.
Technical Specifications:
Brand: Fluke
Model: 902 FC
Equipment Type: True-RMS Wireless HVAC Clamp Meter
AC Current Range: 0 to 600.0 A (± 2.0% + 5 digits)
DC Microamps Range: 0 to 200.0 µA (± 1.0% + 5 digits)
AC/DC Voltage Range: 0 to 600.0 V (± 1.5% + 5 digits)
Temperature Range: -10 °C to 400 °C
Capacitance Range: 0 to 1000.0 µF
Resistance Range: 0 to 60.00 kΩ
Safety Rating: CAT III 600V / CAT IV 300V
Jaw Capacity: 30 mm (Ø)
Connectivity: Fluke Connect Bluetooth (2.4 GHz ISM Band)
Weight: 0.419 kg
Dimensions: 230 mm x 83.7 mm x 45.4 mm
Power Supply: 2 AA Alkaline Batteries
Operating Temperature: -10 °C to 50 °C
Ingress Protection: IP30
Industrial Application:
The Fluke 902FC is specifically engineered for high-demand HVAC/R environments. The dedicated 200.0 µA DC current measurement is critical for testing and diagnosing furnace flame sensors without requiring a separate multimeter. Its expanded capacitance range (up to 1000.0 µF) allows for precise evaluation of motor start and run capacitors in large-scale chiller units. By utilizing the Fluke Connect wireless architecture, technicians can trend measurements, create reports, and monitor live data from a safe distance, significantly reducing exposure to high-voltage panels while maintaining strict CAT III 600V / CAT IV 300V safety compliance.
Key Attributes
Max. Ac Current: 60/600A
Max. DC Current: 60/600A
Measuring Voltage Range: 600V
Place of Origin: China
Model Number: 902 FC
Brand Name: Fluke
Dimensions: 230 mm x 83.7 mm x 45.4 mm
Display Type: Digital Only
Max. Ac Voltage: 600V
Max. DC Voltage: 600V
Measuring Capacitance Range: 100.0/1000 uF
Measuring Current Range: 60/600A
Measuring Inductance Range: ,
Measuring Resistance Range: 600/6,000/60,000 Ω
Operating Temperature: -10 °C to +50 °C (14 °F to + 122 °F)
Parameters Measured: AC Voltage, DC Current
Weight: 419 g
A ac (via Jaw) Range: 60/600A
V ac/dc Range: 600V
Accuracy: 1% ±5 digits
Ohms Range: 600/6,000/60,000 Ω
Contact temperature Range: 14 to 752°F (10 to 400°C)
Packaging and Delivery
Selling Units: Single item
Single package size: 29X15X13 cm
Single gross weight: 1.037 kg
