Description
The HANNA Instruments HI2002-02 edge is an advanced, ultra-thin dedicated pH and ORP meter designed for precision analytical environments. Utilizing digital electrode technology, this instrument automatically recognizes sensor type, calibration data, and serial number upon connection. The HI2002-02 delivers laboratory-grade accuracy in a highly versatile form factor, capable of operating as a benchtop, wall-mounted, or portable unit.
TECHNICAL SPECIFICATIONS
Model: HI2002-02
Brand: HANNA Instruments
Parameter Focus: pH, ORP (Oxidation-Reduction Potential), Temperature
pH Range: -2.000 to 16.000 pH
pH Resolution: 0.001 pH / 0.01 pH
pH Accuracy: ±0.002 pH / ±0.01 pH
mV Range: ±1000.0 mV / ±2000.0 mV
mV Resolution: 0.1 mV
mV Accuracy: ±0.2 mV (±999.9 mV) / ±1 mV (±2000 mV)
Temperature Range: -20.0 to 120.0 °C
Temperature Accuracy: ±0.5 °C
Electrode Ø: 12 mm (Standard HI11310)
Calibration: Up to 5 points with 7 standard buffers
Data Logging: Up to 1000 records (log-on-demand, manual, interval)
Connectivity: 1 micro USB (PC connection/charging), 1 standard USB (flash drive)
Power Supply: 5 VDC power adapter (115/230 VAC)
Dimensions: 202 x 140 x 12.7 mm
Weight: 250 g
Operating Environment: 0 to 50 °C, RH max 95% non-condensing
SYSTEM ARCHITECTURE & INTEGRATION

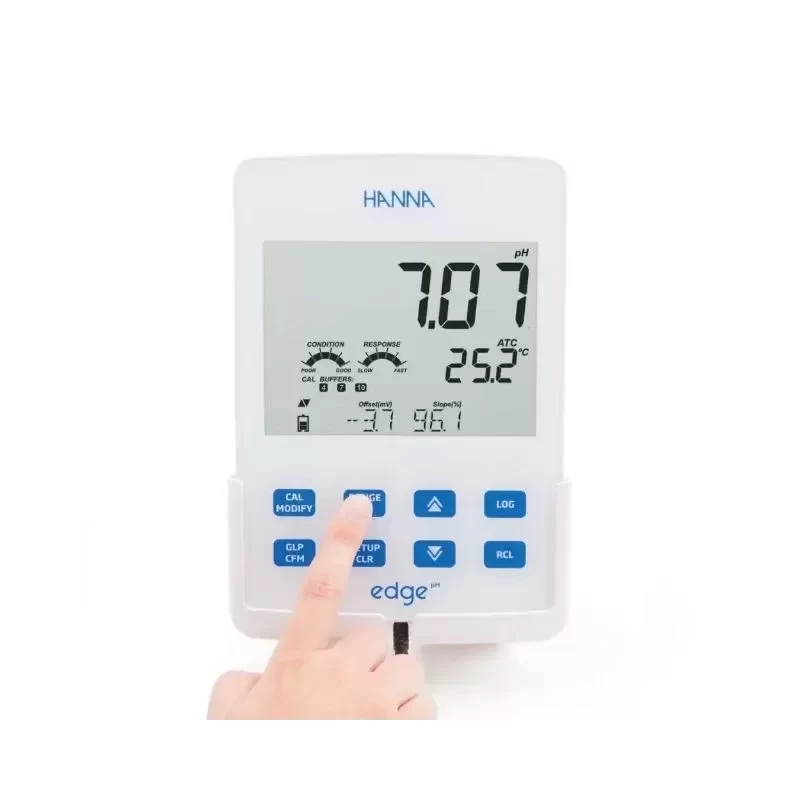

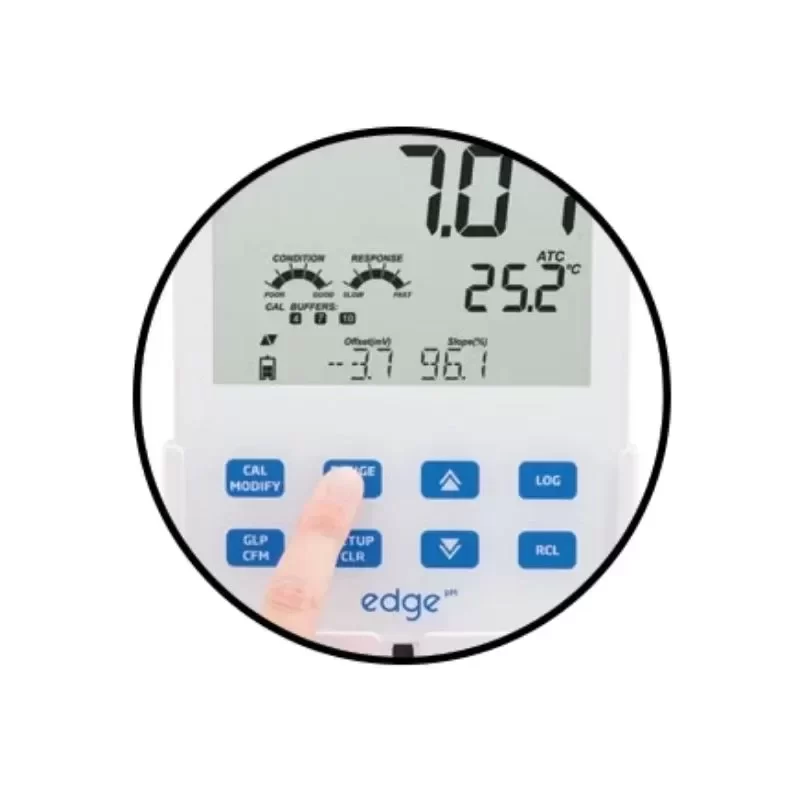

The HI2002-02 features a capacitive touch keypad and a 5.5-inch LCD with a 150-degree viewing angle. The core architecture relies on HANNA’s digital smart electrodes, which feature a built-in microchip that stores calibration data. This Original Engineering ensures that when electrodes are swapped, the meter seamlessly updates without requiring recalibration. The inclusion of GLP (Good Laboratory Practice) data tracking ensures compliance with stringent quality control standards.
INDUSTRIAL APPLICATION
This instrument is engineered for rigorous analytical applications including pharmaceutical manufacturing, municipal water treatment, and chemical processing. In high-purity water systems or aggressive chemical titration processes, the precise ±0.002 pH accuracy prevents batch contamination and ensures regulatory compliance. Its Technical Compatibility with a wide range of application-specific HANNA digital electrodes allows seamless adaptation to varying fluid viscosities and particulate levels.
PROCUREMENT & LIFECYCLE

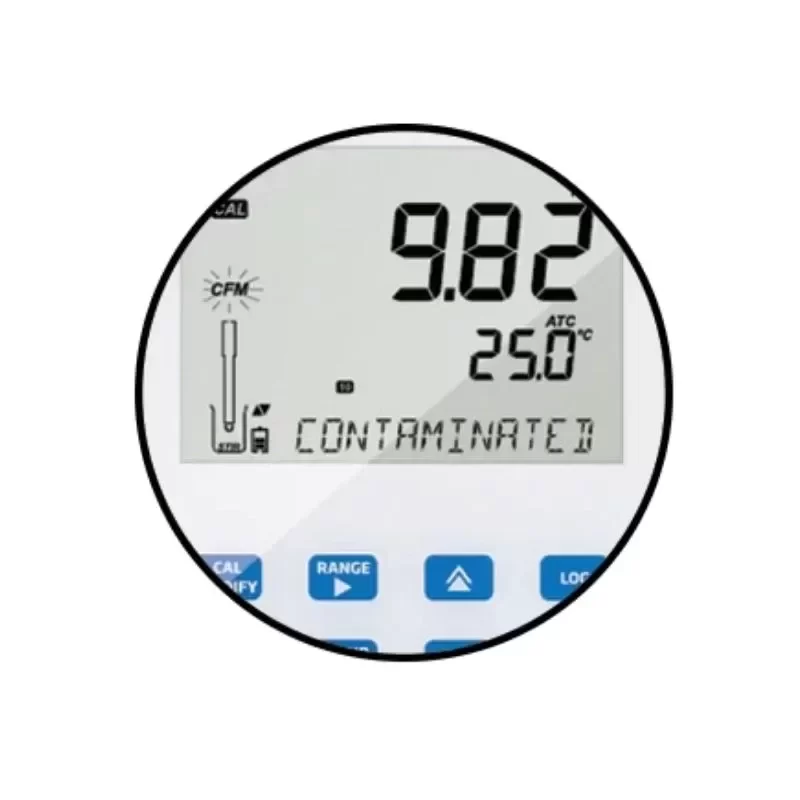

Designed for continuous operational reliability, the HI2002-02 minimizes downtime through predictive sensor diagnostics, including CAL Check technology which alerts users to potential electrode fouling or buffer contamination. Standard Lead Time for replacement digital probes and calibration buffers is optimized through global distribution networks, ensuring uninterrupted analytical capabilities.
Key Attributes
Type: PH meter
Place of origin: Italy
Customized support: OEM, ODM
Power: Electronic
Protection Class: Other
Voltage: Other
Brand name: HANNA
Application: Auto Testing
Warranty: 1 years
PH Range: -2.000 to 16.000 pH
PH Resolution: 0.001 pH, 0.01 pH
ORP Range: ±2000.0 mV
MV Range: ±1000.0 pH in mV
PH Electrode: HI11310 pH electrode (included)
Display: Segmented LCD
Environment: 0 to 50°C (32 to 122°F)
Packaging and Delivery
Selling Units: Single item
Single package size: 42X25X16 cm
Single gross weight: 3.000 kg
