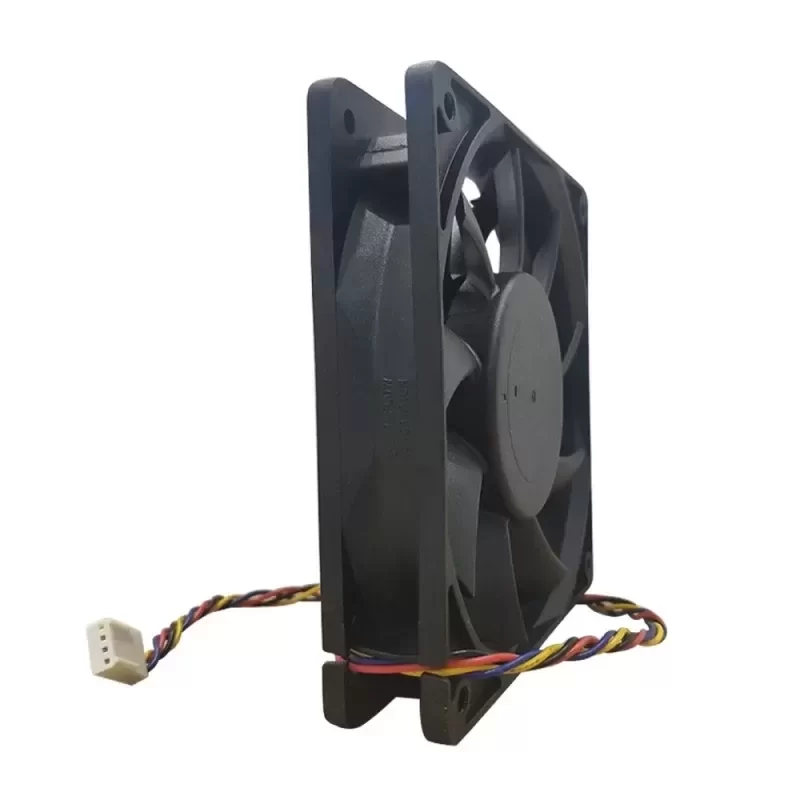

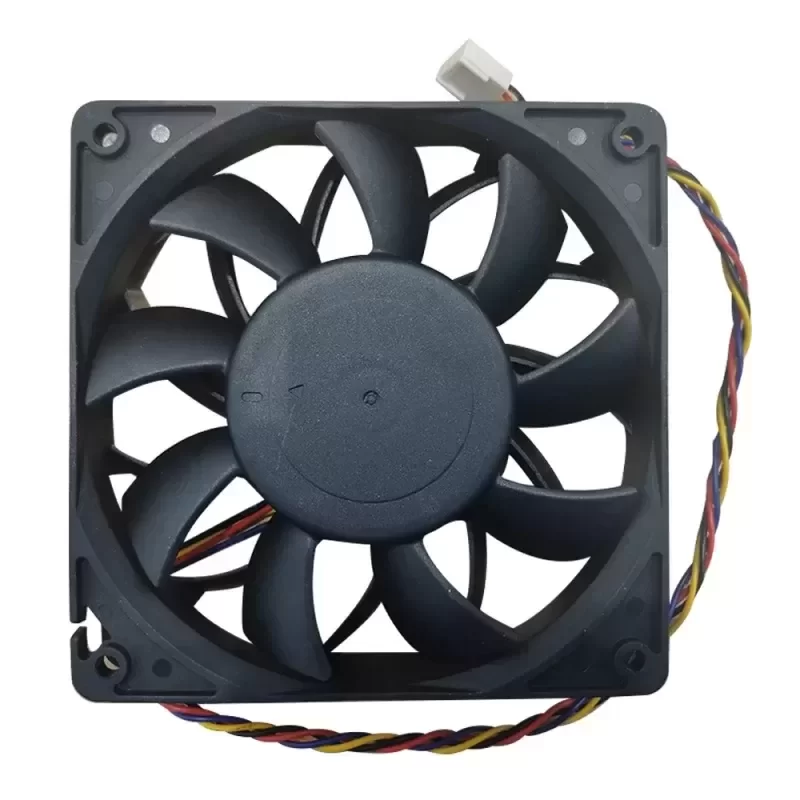

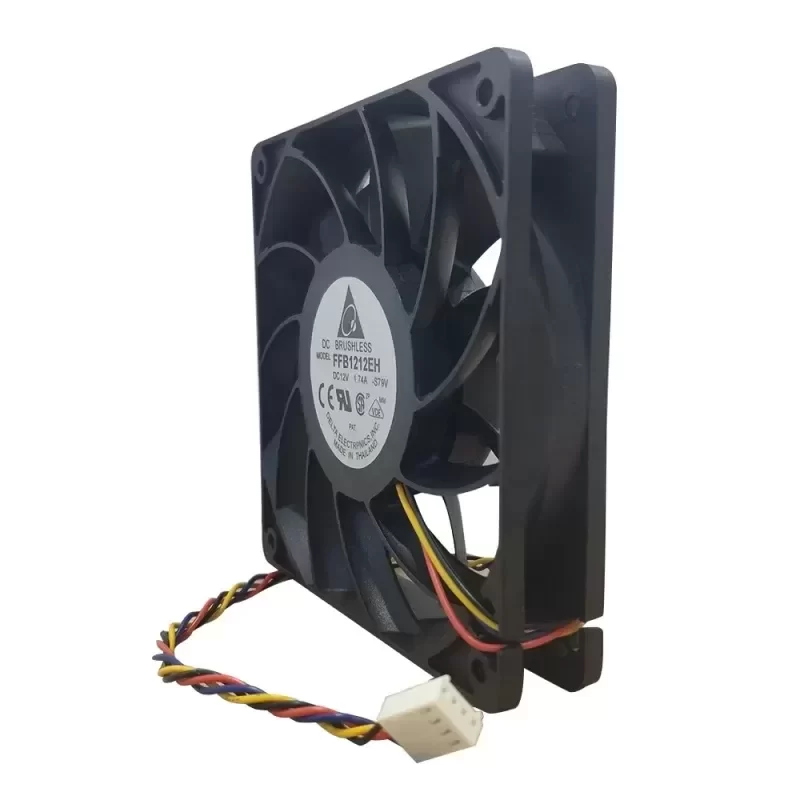

Delta FFB1212EH 12V 1.45A Axial Fan
Delta FFB1212EH 12V 1.45A Axial Fan
Delta FFB1212EH 12V 1.45A Axial Fan
Delta FFB1212EH 12V 1.45A Axial Fan
Delta FFB1212EH 12V 1.45A Axial Fan

Delta FFB1212EH 12V 1.45A Axial Fan

$6.90

SKU: 1601628727572 Brand:

Description

The Delta Electronics FFB1212EH is a high-performance DC axial cooling fan engineered for demanding thermal management applications. Designed with a robust dual ball bearing system, this 120x120x25.4mm fan delivers exceptional airflow and static pressure, making it a critical component for preventing thermal throttling in high-density electronic enclosures. Built to strict Original Engineering standards, the FFB series ensures extended lifecycle reliability in continuous-duty environments.

Technical Specifications:
Brand: Delta Electronics
Model Number: FFB1212EH
Fan Type: DC Axial Cooling Fan
Dimensions: 120 x 120 x 25.4 mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.2V DC
Rated Current: 1.45 A
Input Power: 17.4 W
Nominal Speed: 4000 RPM ± 10%
Maximum Airflow: 4.24 m³/min
Maximum Static Pressure: 12.2 mmH2O
Acoustic Noise: 56.4 dB(A)
Bearing System: Dual Ball Bearing
Housing Material: UL 94V-0 Plastic
Impeller Material: UL 94V-0 Plastic
Weight: 170 g
Operating Temperature: -10°C to +60°C
Life Expectancy: 70,000 hours at 40°C

Industrial Application:
The FFB1212EH is specifically designed for high-impedance systems requiring aggressive heat dissipation. Its high static pressure capability makes it ideal for densely packed server racks, telecommunications equipment, industrial automation control cabinets, and high-wattage power supply enclosures where airflow restriction is a significant challenge. The dual ball bearing architecture ensures stable operation across varying mounting orientations and harsh industrial conditions.

Procurement and Integration:
Ensuring Technical Compatibility with existing 12V DC cooling architectures, this fan provides a direct drop-in replacement for standard 120mm form factors. We maintain optimized Lead Time protocols to support urgent maintenance schedules and large-scale manufacturing requirements, delivering authentic components directly from the manufacturer supply chain.

Key Attributes
Voltage: 12 V
Speed: 4000RPM
Mounting type: Free Standing
Type: Dc cooling fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: Delta
Model number: FFB1212EH
Model number: FFB1212EH
Brand name: Delta
Voltage: 12V
Current: 1.45A
Power: 17.40W
Speed: 4000RPM
Size: 120x120x25.4mm
Type: Axial Fan
Bearing type: Ball Bearing
Weight: 0.205kg

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X11 cm
Single gross weight: 1.000 kg

Delta FFB1212EH 12V 1.45A Axial Fan

Delta FFB1212EH 12V 1.45A Axial Fan

Delta FFB1212EH 12V 1.45A Axial Fan

Delta FFB1212EH 12V 1.45A Axial Fan

Delta FFB1212EH 12V 1.45A Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
