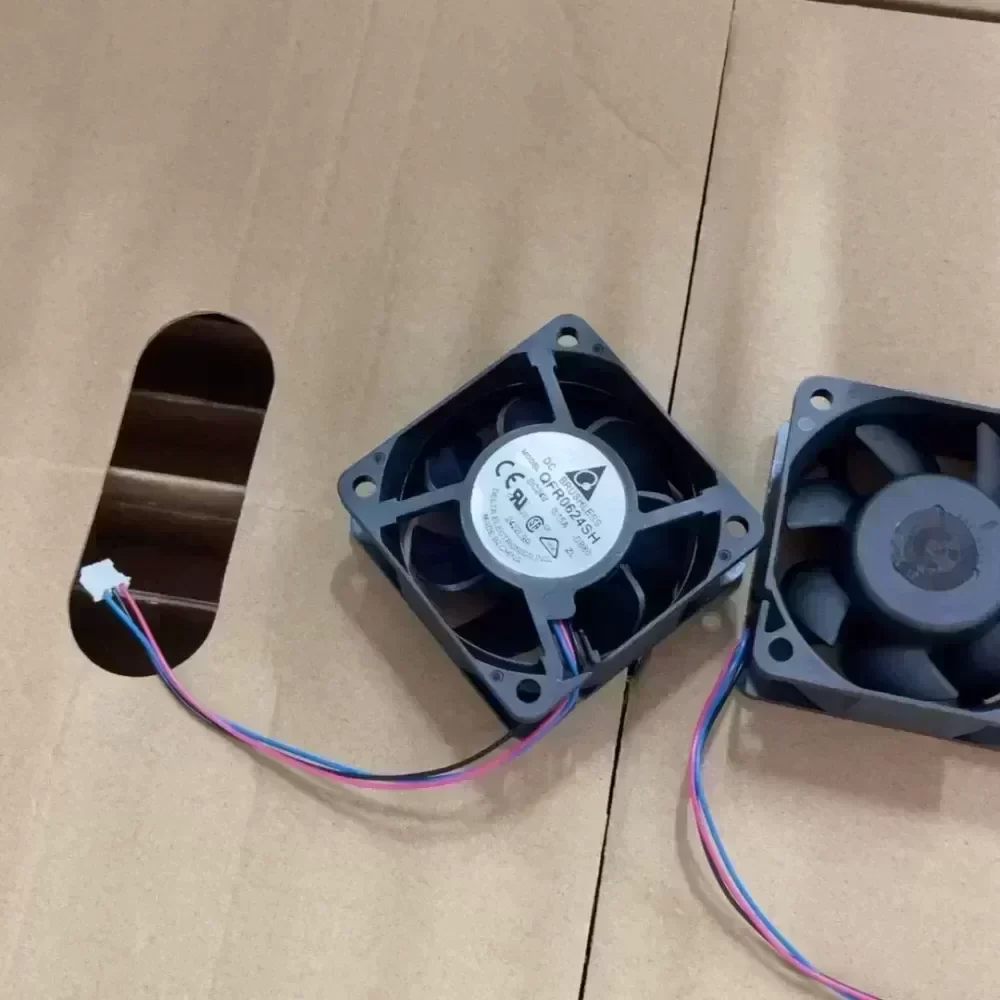

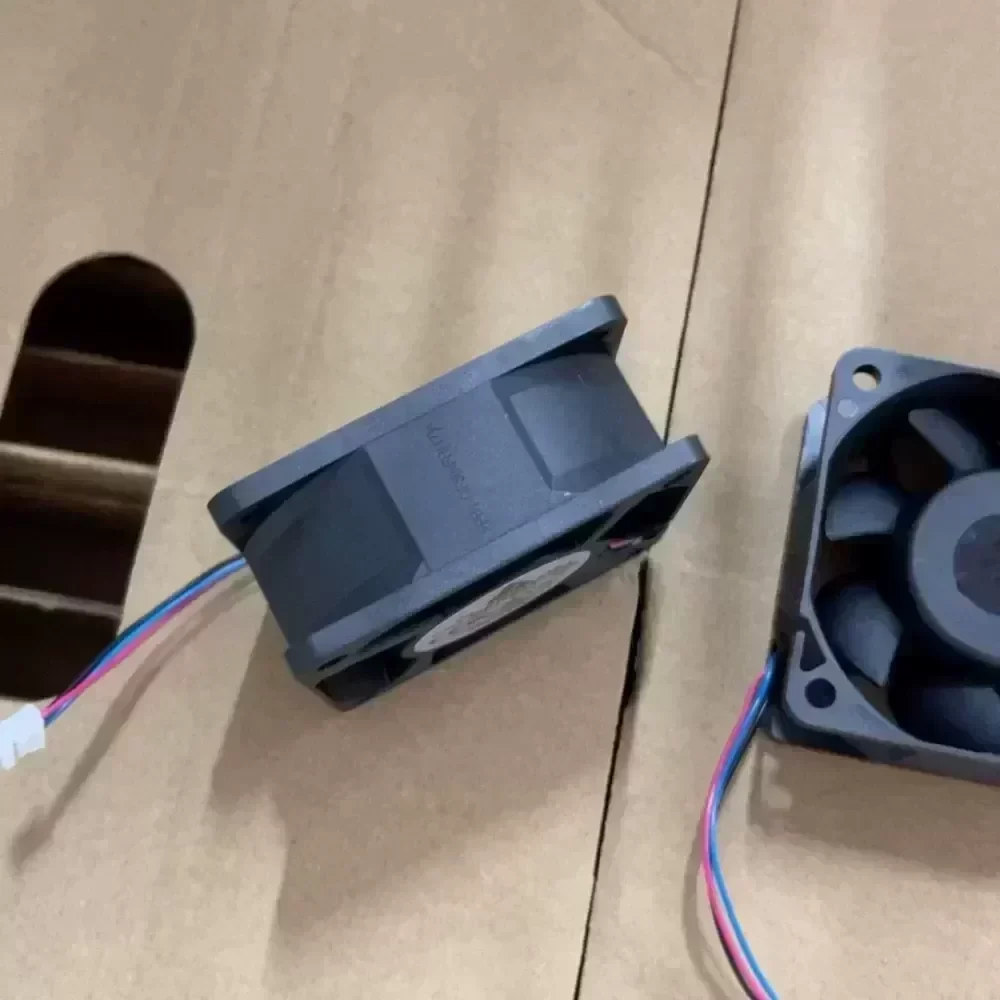

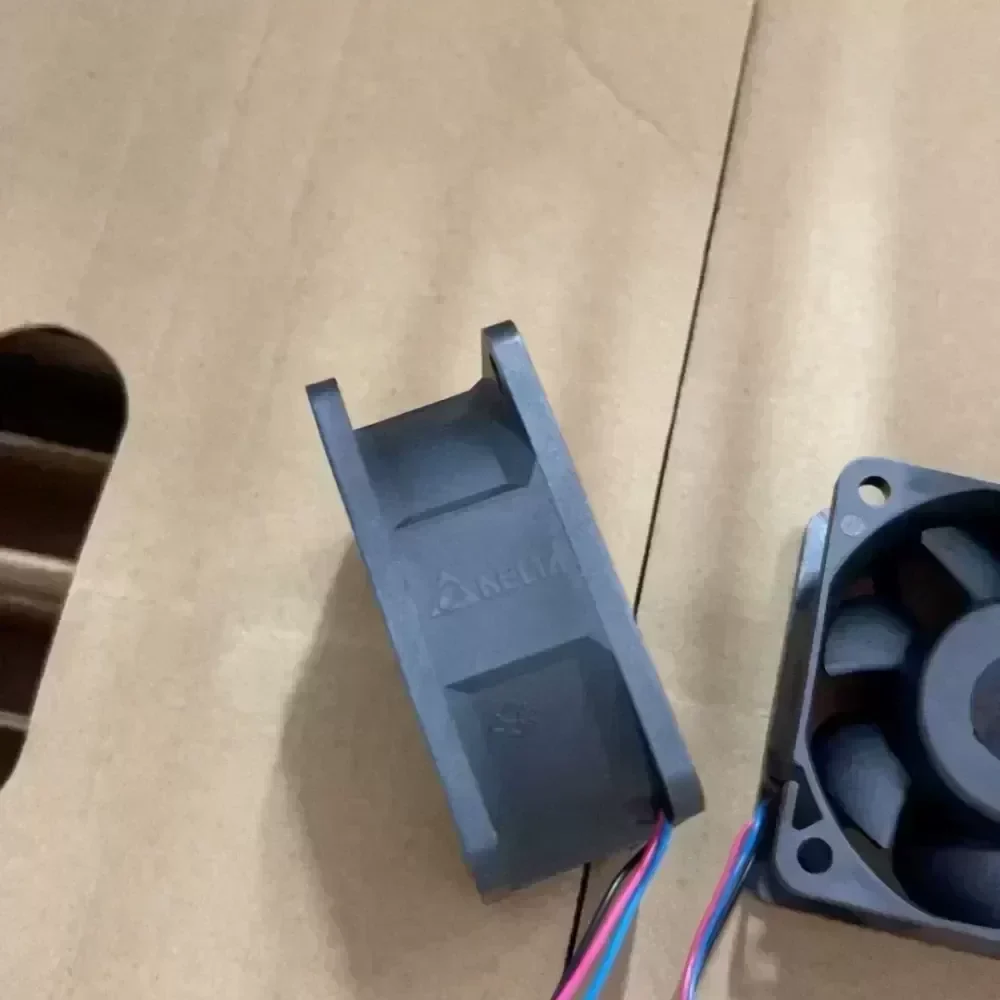

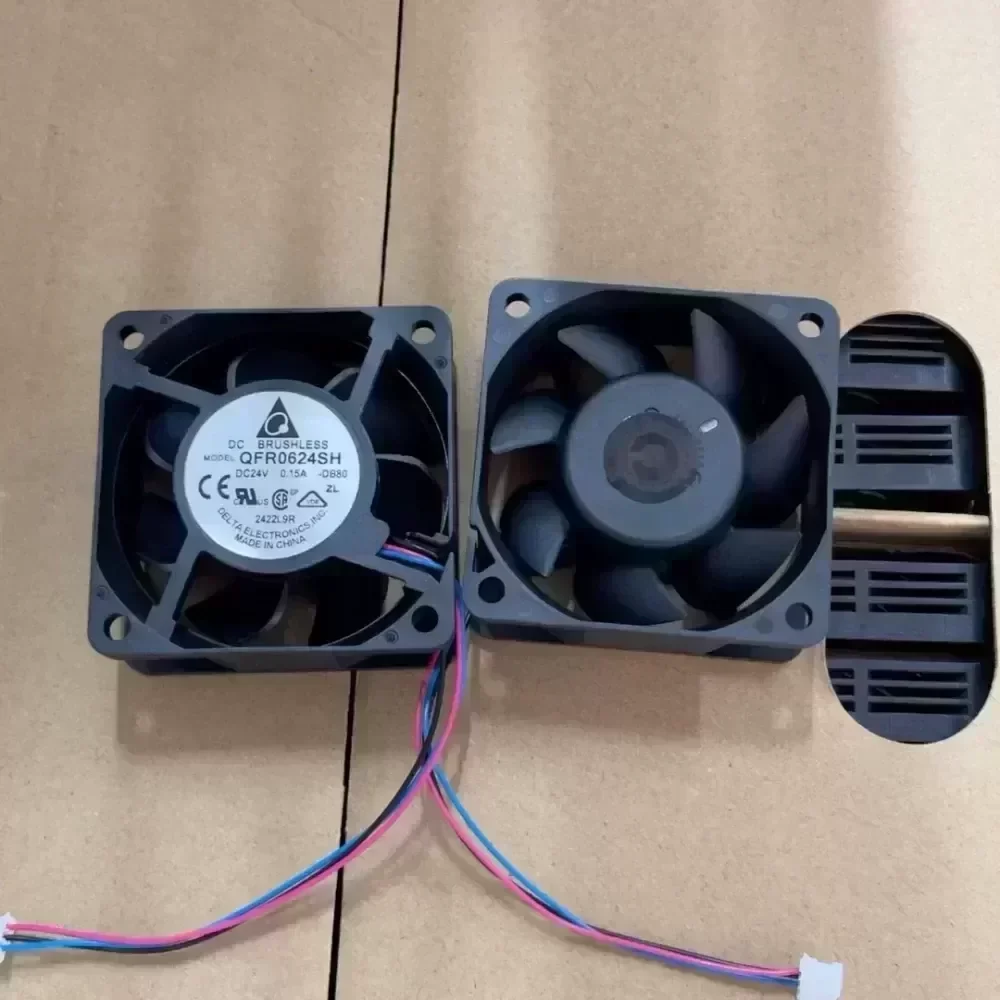

Delta QFR0624SH-DB80 6025 24V fan
Delta QFR0624SH-DB80 6025 24V fan
Delta QFR0624SH-DB80 6025 24V fan
Delta QFR0624SH-DB80 6025 24V fan
Delta QFR0624SH-DB80 6025 24V fan

Delta QFR0624SH-DB80 6025 24V fan

$7.86

SKU: 941102868604 Brand:

Description

The Delta QFR0624SH-DB80 is an industrial-grade DC axial cooling fan engineered specifically for thermal management in high-performance variable frequency drives and inverters. Manufactured by Delta Electronics, this 60x60x25mm component is an Original Engineering replacement part designed for seamless technical compatibility with Schneider Electric inverter systems. Utilizing an advanced aerodynamic impeller design, the QFR series delivers exceptional airflow while maintaining a low acoustic profile, ensuring optimal thermal dissipation for critical power electronics.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: QFR0624SH-DB80
OEM Compatibility: Schneider Electric Inverters
Frame Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 to 27.6 VDC
Rated Current: 0.15 A
Power Consumption: 3.60 W
Bearing Type: Precision Dual Ball Bearing
Interface: 3-Wire Configuration (Power, Ground, Tachometer Signal)
Control Logic: Supports intelligent temperature control and speed regulation
Housing Material: UL 94V-0 Flame Retardant Plastic
Impeller Material: UL 94V-0 Flame Retardant Plastic
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 hours at 40°C
Weight: 65 g

Application & Integration:
This cooling fan is critical for preventing thermal throttling and component degradation in industrial motor control systems. The three-wire interface provides real-time rotational speed feedback to the inverter diagnostic system, enabling intelligent temperature control and automated speed regulation based on thermal load. Its high static pressure and large air volume design are specifically calibrated to push air through the dense heatsink fins of Schneider inverters, making it an indispensable spare part for maintaining continuous manufacturing operations.

Procurement & Lifecycle Value:
Sourcing Original Engineering components ensures exact mechanical fit and electrical compliance, eliminating the risks associated with aftermarket alternatives. This new, unused Delta cooling fan guarantees extended lifecycle value and system reliability. Please contact our technical sales team to confirm current lead time and exact technical compatibility with your specific Schneider drive model.

Delta QFR0624SH-DB80 6025 24V fan

Delta QFR0624SH-DB80 6025 24V fan

Delta QFR0624SH-DB80 6025 24V fan

Delta QFR0624SH-DB80 6025 24V fan

Delta QFR0624SH-DB80 6025 24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
