$25.71

SKU: 941773456795 Brand:

Description

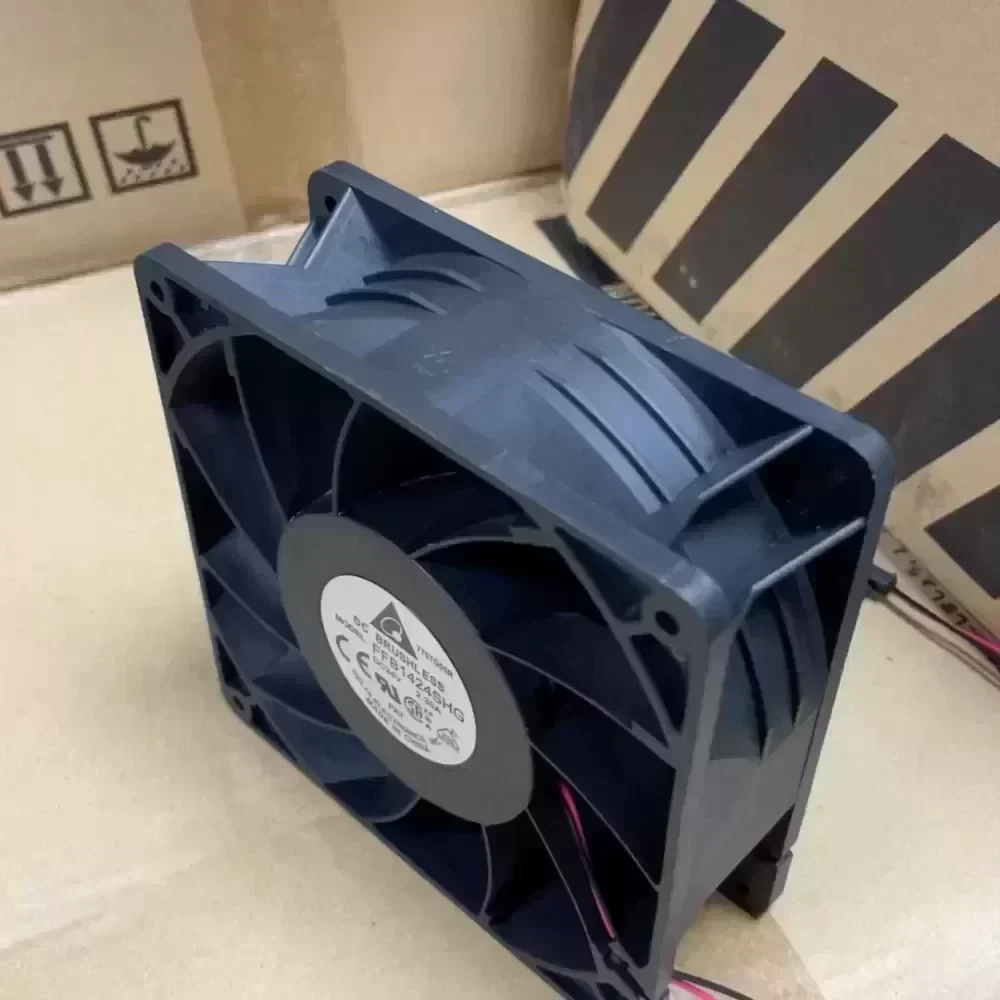

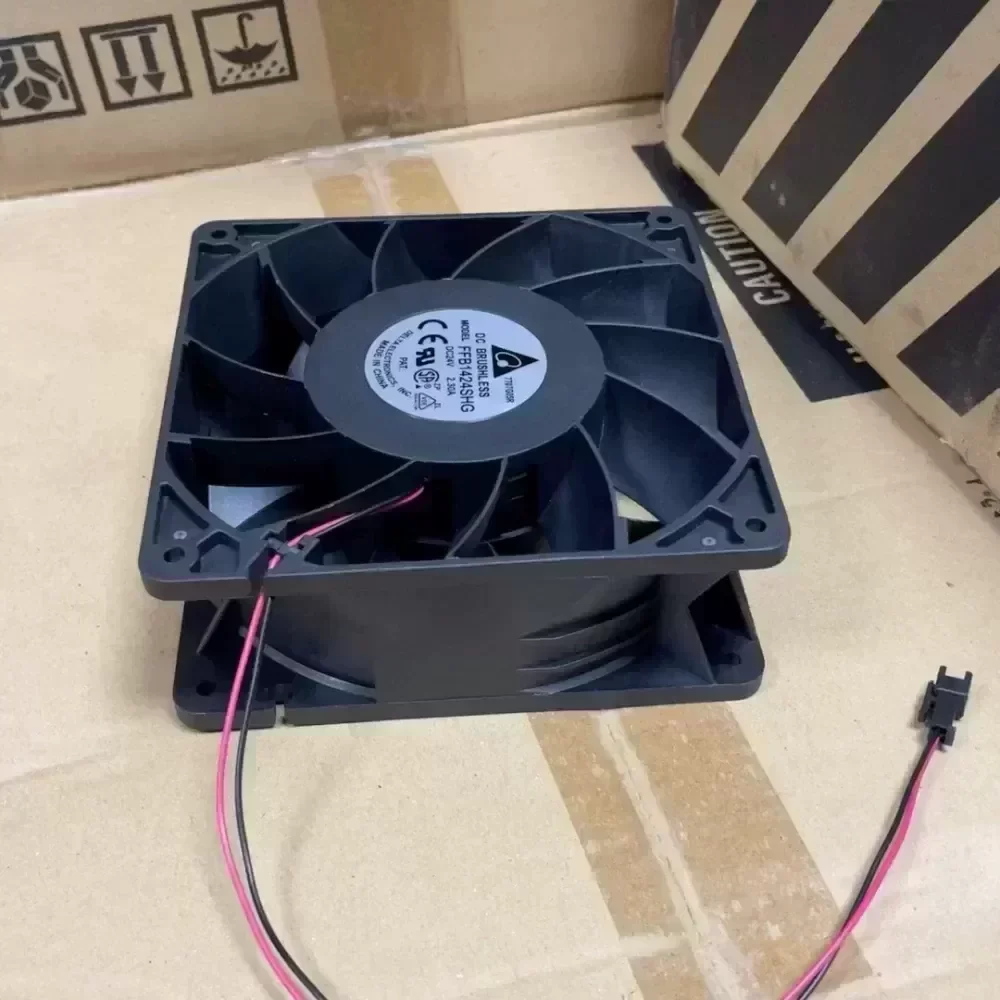

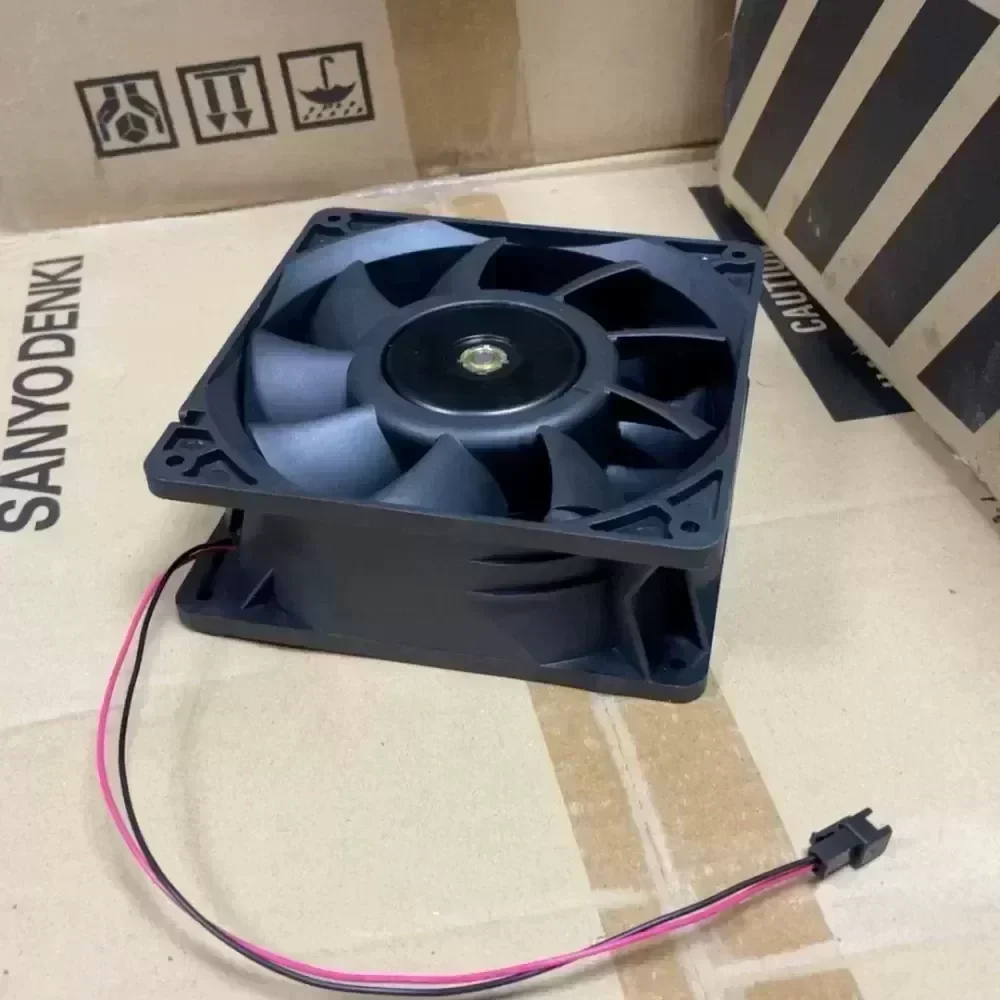

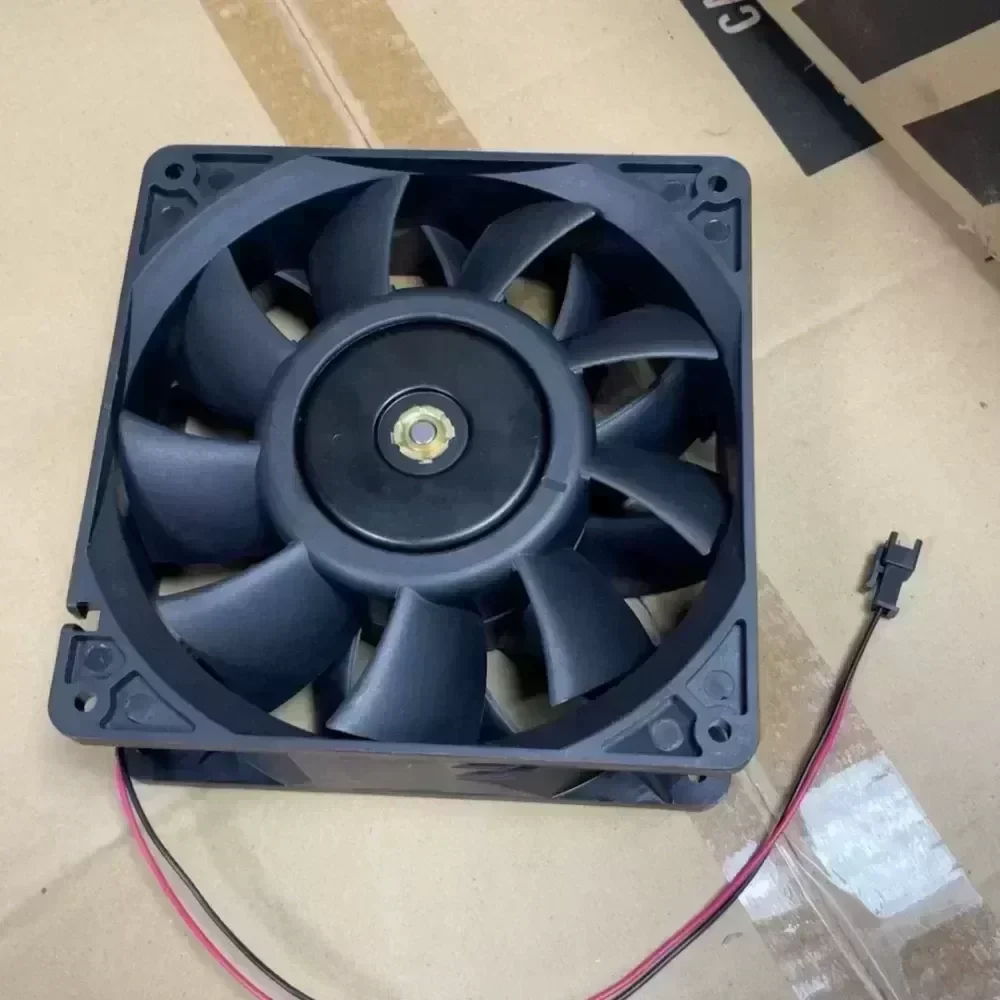

Delta FFB1424SHG Industrial DC Axial Cooling Fan,Original Engineering component designed for high-demand thermal dissipation in heavy-duty industrial automation, variable frequency drives (VFDs), and power conversion systems.

Model Architecture and Decoding:
Series Code: FFB Series (High Airflow and High Static Pressure DC Fan)
Frame Size: 140 mm x 140 mm
Depth: 38 mm
Rated Voltage: 24 VDC
Speed Classification: SH (Super High Speed)
Bearing Architecture: G (Precision Dual Ball Bearing System)

Technical Specifications:
Manufacturer: Delta Electronics
Part Number: FFB1424SHG
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 VDC to 26.4 VDC
Rated Current: 2.30 A
Input Power: 55.2 W
Nominal Speed: 4400 RPM (±10%)
Maximum Airflow: 269.5 CFM (7.63 m³/min)
Maximum Static Pressure: 28.5 mmH2O (279.5 Pa)
Acoustic Noise Level: 61.5 dBA
Bearing System: Dual Precision Ball Bearings
Frame Material: Reinforced PBT Plastic (UL 94V-0 Rated)
Impeller Material: Reinforced PBT Plastic (UL 94V-0 Rated)
Termination: UL 1007 AWG #24 Lead Wires
Rotation Direction: Counter-Clockwise viewing from front impeller
Motor Protection: Electronically Commutated, Locked Rotor Protection, Reverse Polarity Protection
Dielectric Strength: 500 VAC for 1 minute between frame and terminals
Insulation Resistance: 10 MΩ minimum at 500 VDC
Operating Temperature: -10 °C to +70 °C
Storage Temperature: -40 °C to +75 °C
Operating Humidity Range: 5% to 90% RH
Lifecycle Expectancy (L10): 70,000 Hours at 40 °C continuous operation
Weight: 470 g
Compliance: UL, cUL, TUV, CE, RoHS

Industrial Application and Failure Prevention:
High-power inverters and VFD enclosures generate intense thermal loads across IGBT switching modules and internal bridge rectifiers. Standard cooling units frequently fail under the high static backpressure created by densely packed filter banks and heatsinks. The Delta FFB1424SHG produces 28.5 mmH2O of static head pressure to push high-velocity laminar air directly through dense thermal fins. This continuous cooling performance prevents thermal throttling, catastrophic junction breakdown, and unplanned production line stoppages in harsh factory automation environments.

Integration and Supply Chain Details:
Technical Compatibility: Form, fit, and functional drop-in replacement for industrial inverters, servo drives, uninterruptible power supplies (UPS), and CNC control cabinets requiring a 140 x 140 x 38 mm 24V cooling array.
Original Engineering: Authentic manufacturer build ensures factory-calibrated dynamic balancing, reduced electromagnetic interference (EMI), and verified operating lifetime.
Lead Time: Stocked for global industrial distribution with expedited Lead Time options to support time-critical MRO requirements.

Delta FFB1424SHG 24V Fan

Delta FFB1424SHG 24V Fan

Delta FFB1424SHG 24V Fan

Delta FFB1424SHG 24V Fan

Delta FFB1424SHG 24V Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
