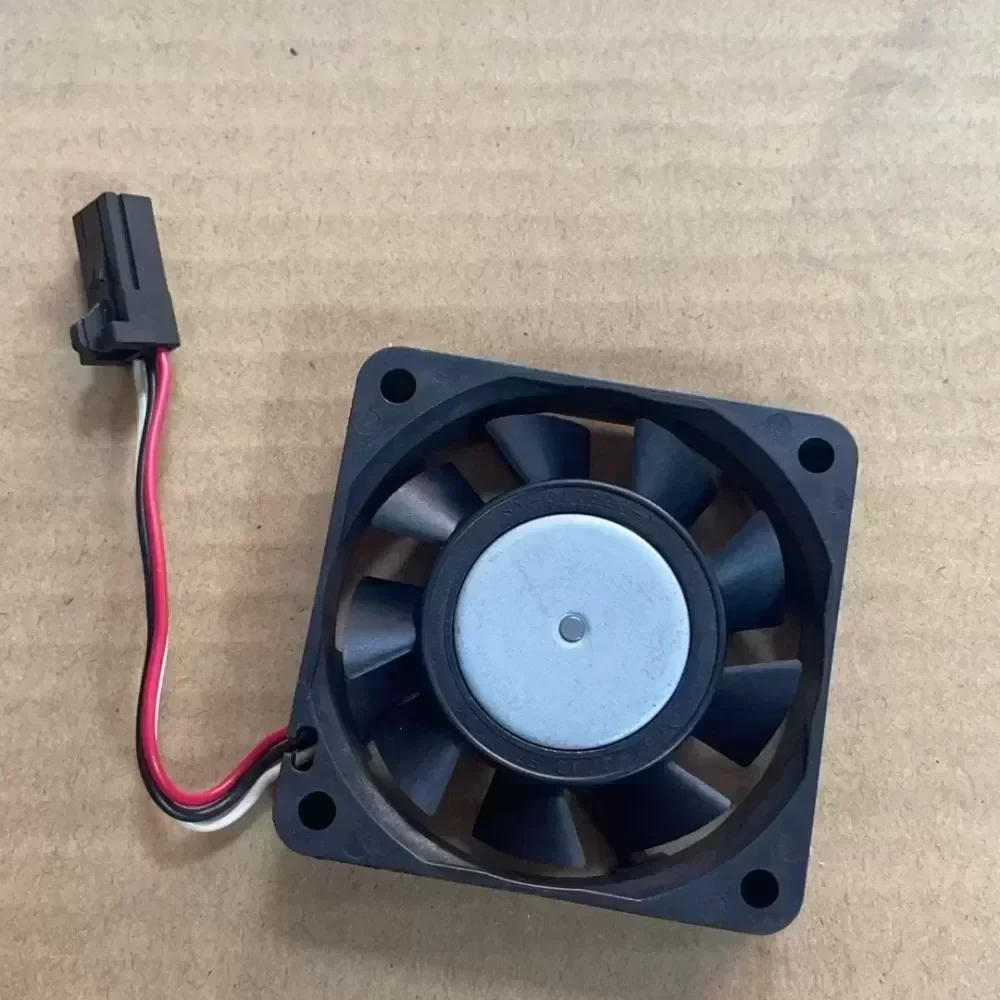

Fanuc 9WF0624H7D05 A90L-0001-0423#50 Sanyo fan
Fanuc 9WF0624H7D05 A90L-0001-0423#50 Sanyo fan

Fanuc 9WF0624H7D05 A90L-0001-0423#50 Sanyo fan

$13.57

SKU: 755663337984 Brand:

Description

This industrial-grade DC axial cooling fan is engineered specifically for thermal regulation in Fanuc multi-axis servo drives and CNC control systems. Built by Sanyo Denki under strict Fanuc quality standards, this unit features oil-proof and waterproof protection, making it highly resilient against the harsh cutting fluids, oil mist, and ambient dust common in CNC machining environments.

Technical Specifications:
Manufacturer: Sanyo Denki / Fanuc
OEM Part Number: A90L-0001-0423#50
Manufacturer Model: 9WF0624H7D05
Rated Voltage: 24V DC
Operating Voltage Range: 20.4V to 27.6V DC
Rated Current: 0.12A
Rated Input Power: 2.88W
Frame Size: 60mm x 60mm x 15mm
Bearing Type: Dual Precision Ball Bearing
Ingress Protection Rating: IP55 / Oil-Proof / Waterproof
Speed: 6500 RPM
Max Airflow: 0.64 m³/min (22.6 CFM)
Max Static Pressure: 78 Pa
Acoustic Noise: 41 dB(A)
Termination: 3-wire lead with Fanuc-compatible connector
Weight: 70g
Certifications: UL, CSA, TÜV, CE

Application and Technical Compatibility:
This cooling fan is vital for maintaining the thermal equilibrium of Fanuc Alpha i series servo amplifiers and four-axis drives. In high-duty CNC operations, heat buildup in the drive modules can cause thermal tripping or permanent component degradation. The A90L-0001-0423#50 ensures continuous heat dissipation directly from the drive’s internal heatsink. Its oil-proof design prevents ingress-related bearing failures, which are the leading cause of standard fan failures in machine tool environments.

Commercial and Lifecycle Value:
By utilizing Original Engineering components, operators ensure seamless physical and electrical integration without modifying the drive housing or wiring harness. Replacing worn fans proactively minimizes unplanned machine downtime.
Lead Time: In stock and ready for immediate dispatch.
Condition: Brand new, 100% authentic OEM component.

Fanuc 9WF0624H7D05 A90L-0001-0423#50 Sanyo fan

Fanuc 9WF0624H7D05 A90L-0001-0423#50 Sanyo fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
