Description

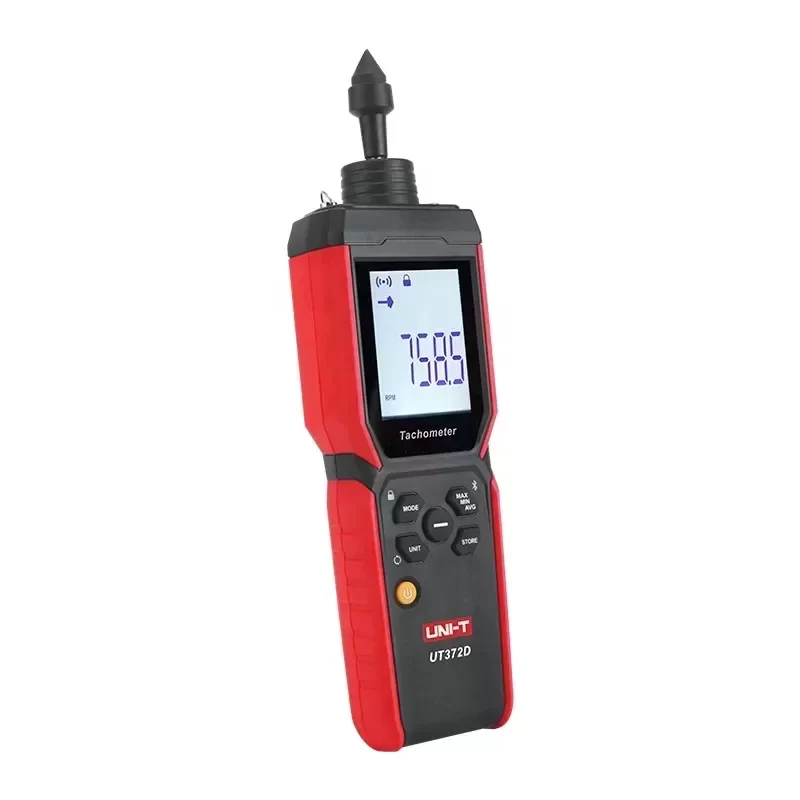

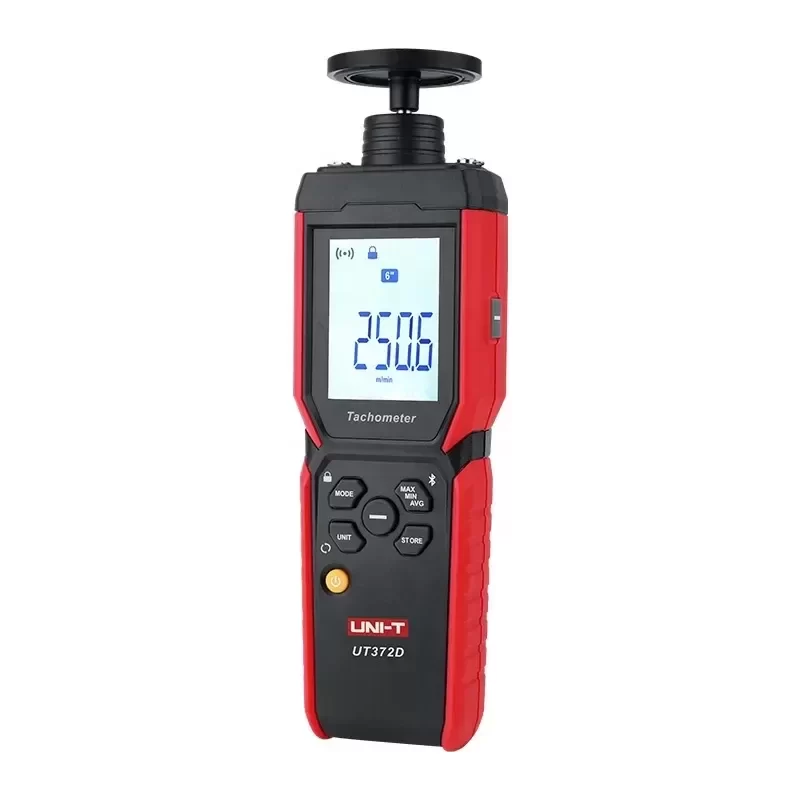

The UNI-T UT372D is a high-precision 2-in-1 digital tachometer engineered for rigorous industrial condition monitoring. By integrating both photoelectric (non-contact) and mechanical (contact) measurement modalities, this instrument delivers highly accurate rotational and linear surface speed data. Manufactured to Original Engineering standards, the device ensures reliable diagnostic data acquisition for predictive maintenance and quality control protocols.
Technical Specifications:
Brand: UNI-T
Model: UT372D
Measurement Modality: Photoelectric (Non-Contact) and Mechanical (Contact)
Non-Contact Measurement Range: 1 to 99,999 RPM
Contact Measurement Range: 1 to 19,999 RPM
Surface Speed Range: 0.1 to 1,999.9 m/min
Base Accuracy: ±(0.04% + 2 digits)
Optical Measuring Distance: 50mm to 500mm
Resolution (Below 1000 RPM): 0.1 RPM
Resolution (Above 1000 RPM): 1 RPM
Display Type: LCD with Dual-Line Readout and Backlight
Data Transmission: Bluetooth for Smart App Integration
Data Functions: MAX, MIN, AVG, HOLD
Power Supply: 3 x 1.5V AAA Batteries
Dimensions: 176mm x 63mm x 38mm
Weight: 181g
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Certifications: CE, UKCA, RoHS
Industrial Application:

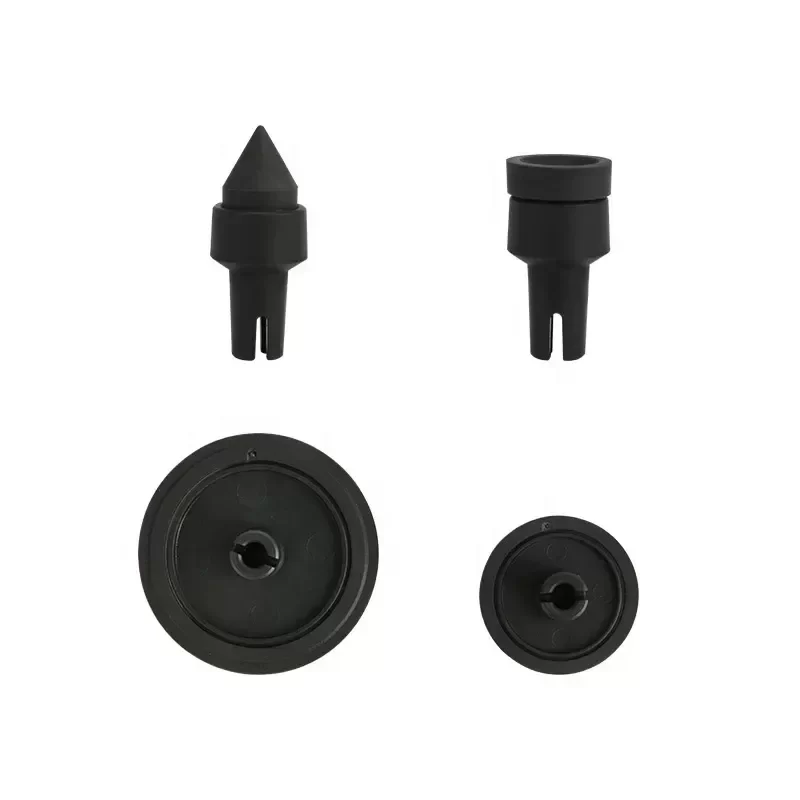

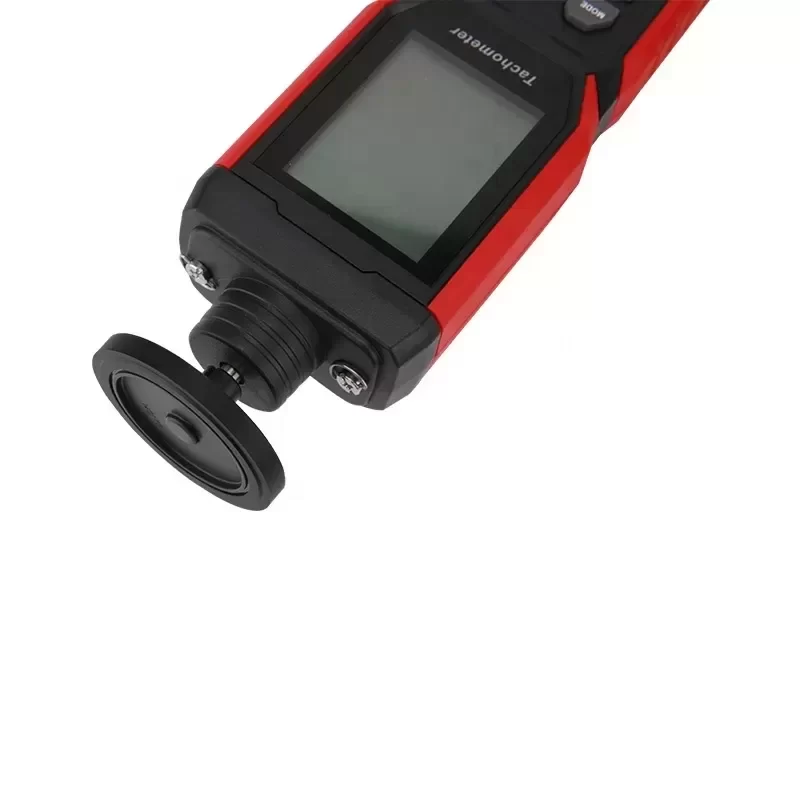

This instrument is specifically designed for the condition monitoring of heavy-duty HVAC blowers, CNC spindle calibration, and conveyor belt velocity verification. In non-contact mode, the UT372D safely evaluates high-speed turbine shafts up to 99,999 RPM from a secure 500mm standoff distance. The contact mode utilizes interchangeable mechanical probes, including a Ø 0.1m surface wheel, to provide direct linear speed measurements for extrusion lines, paper mills, and web handling systems.
Procurement and Integration:
Engineered for broad Technical Compatibility with standard industrial maintenance toolkits, this tachometer supports immediate deployment across manufacturing facilities. Please consult our technical sales team for current Lead Time, calibration certificates, and volume procurement options.
Key Attributes
Type: Digital tachometer
Place of origin: Guangdong, China
Model number: UT372D
Brand name: UNIT
Customized support: OEM, ODM
Material: Plastics
Size: 176 x 63 x 38mm
Warranty: 1 years
Rotational velocity (RPM) Range: 1-99,999
Frequency (HZ): 1-1,666
Count(REV): 1-99,999
Target distance: 50~500mm
Length: 0-99999(m/ft/in)
Accuracy: ±0.02% ±1 digit
Battery type: AAA 1.5V x 3
Battery: AAA 1.5V x 3
Packaging and Delivery
Selling Units: Single item
Single package size: 31X25X16 cm
Single gross weight: 2.000 kg
