$17.86

SKU: 943028124598 Brand:

Description

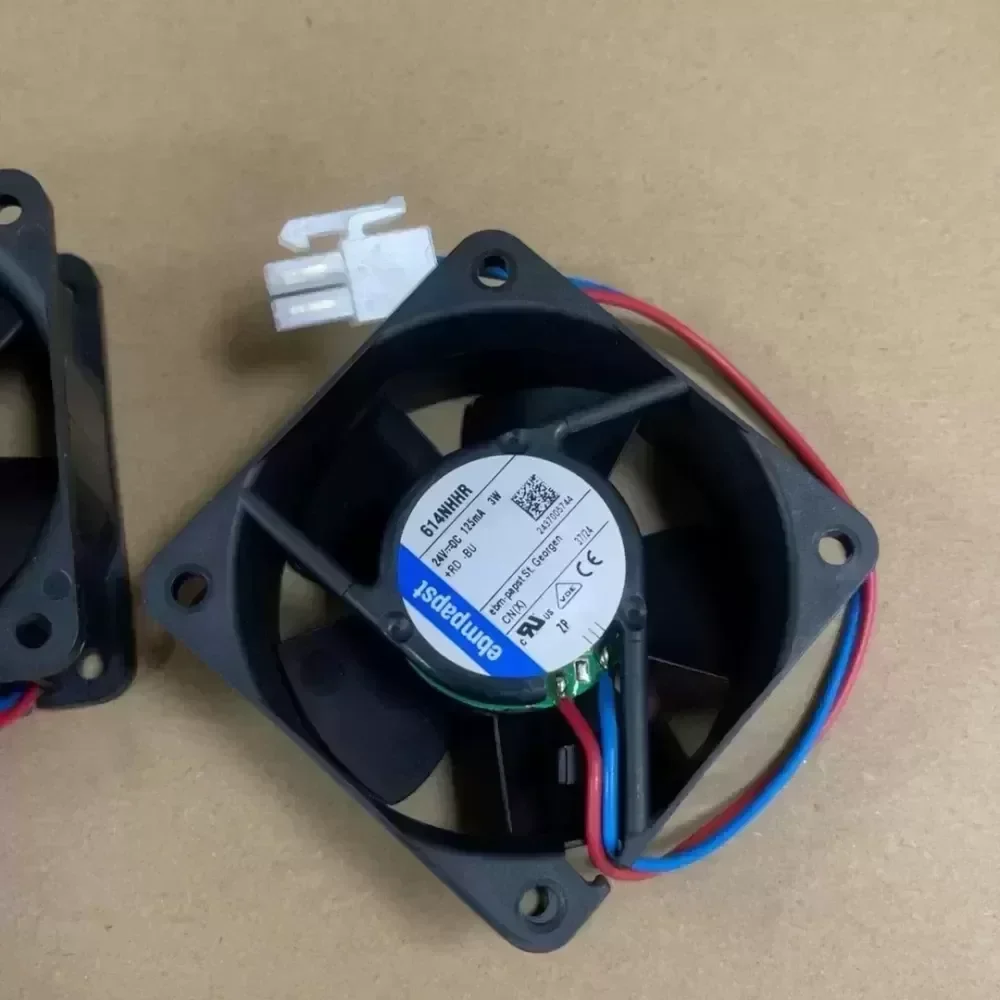

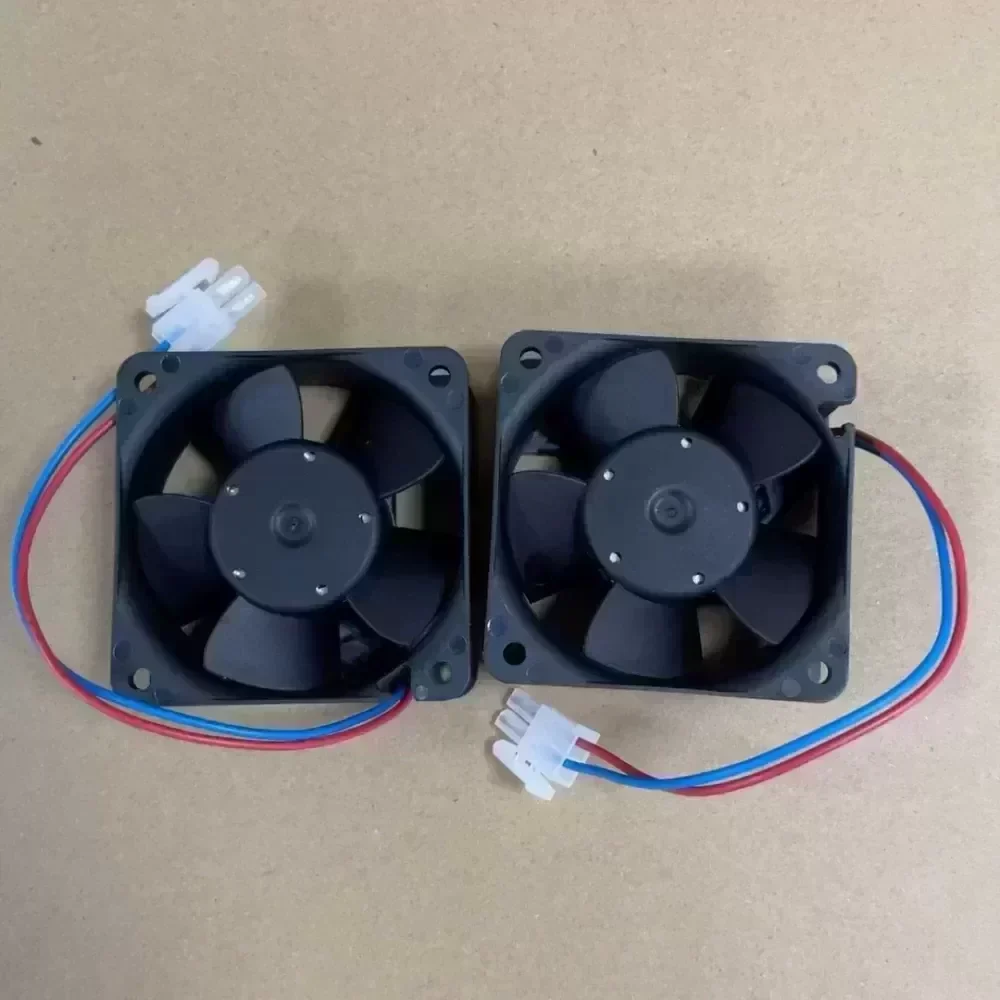

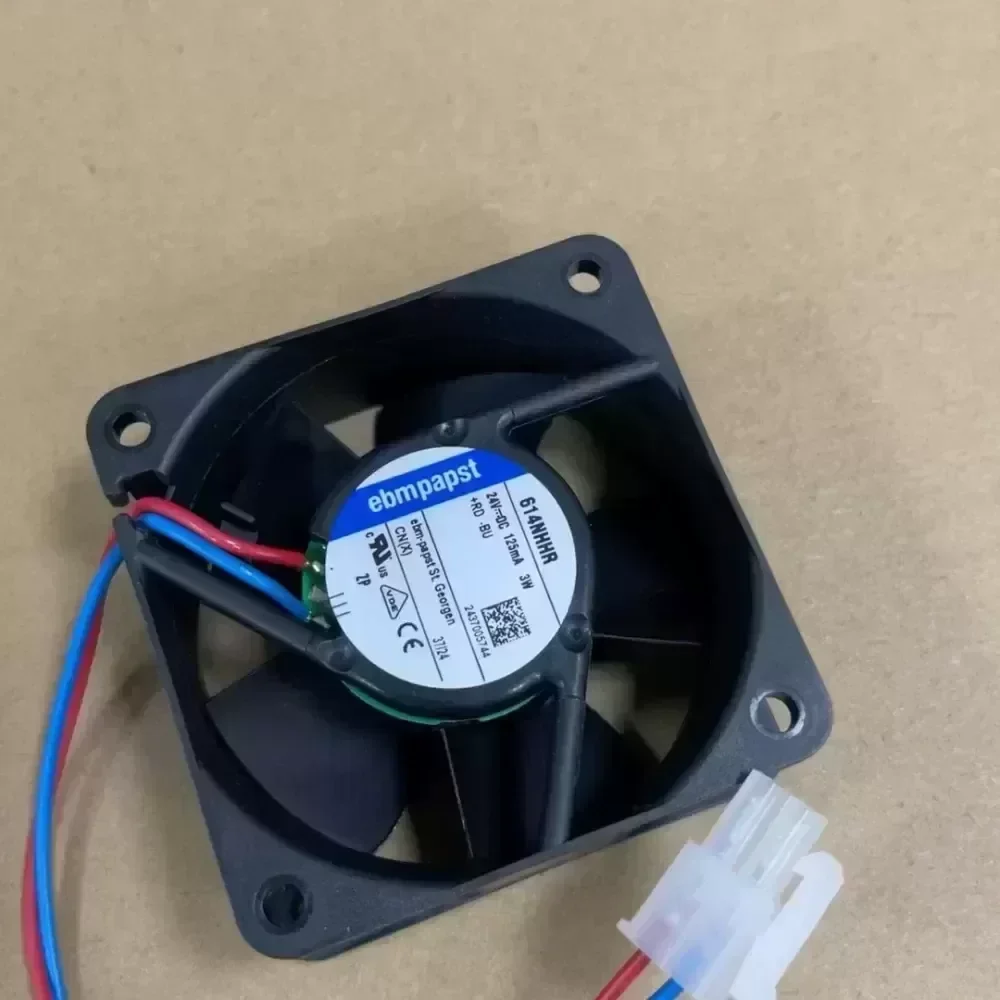

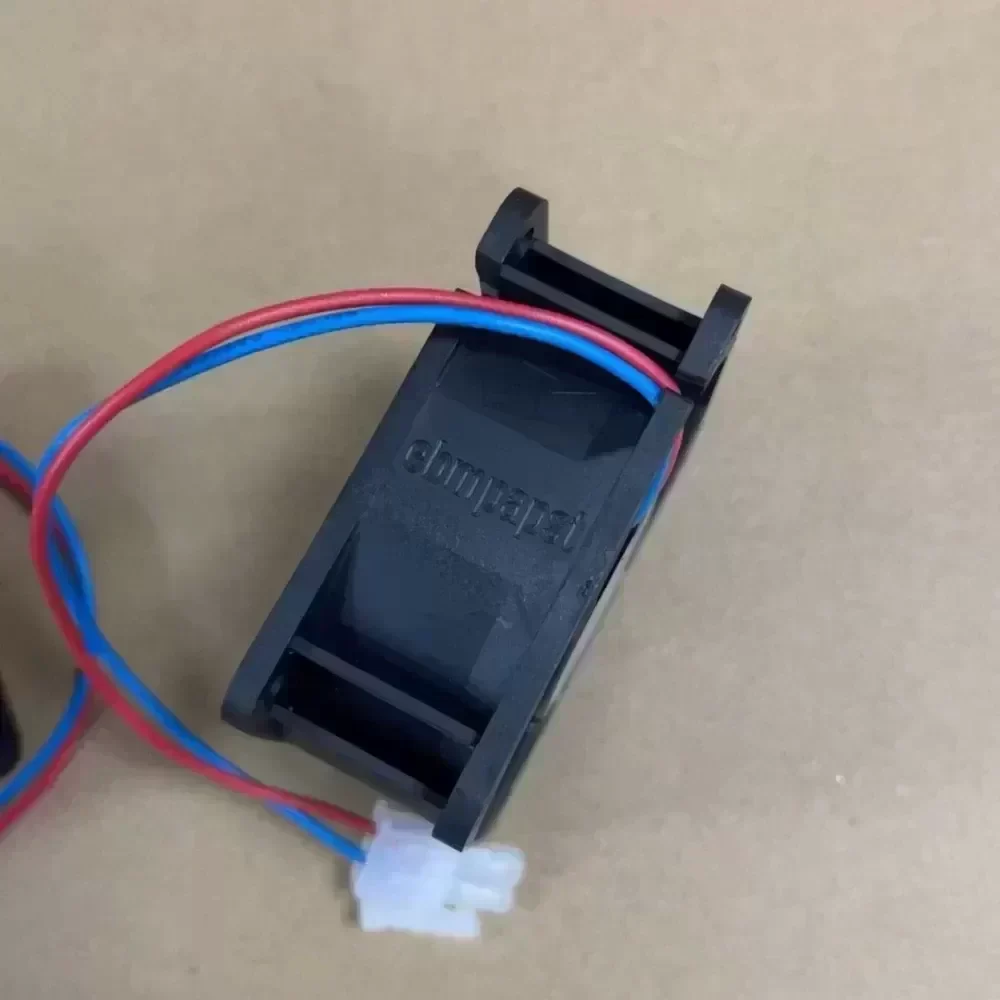

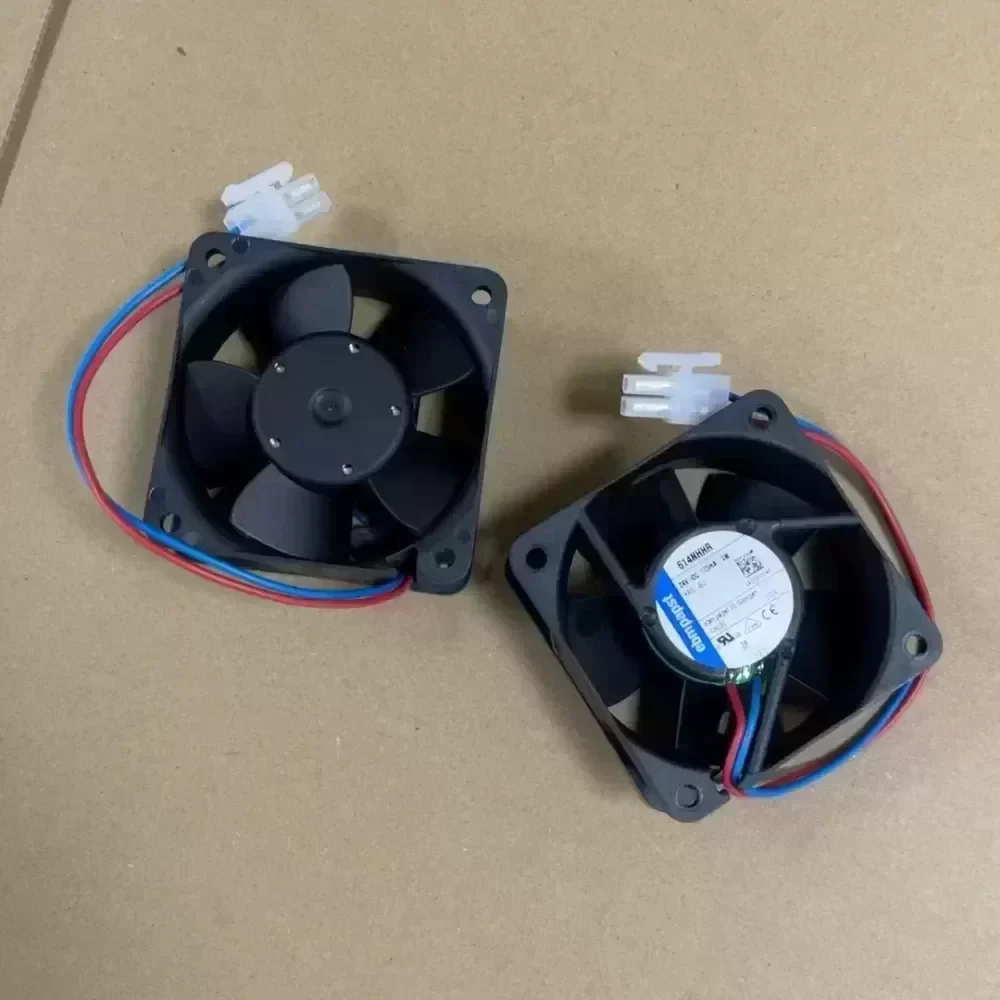

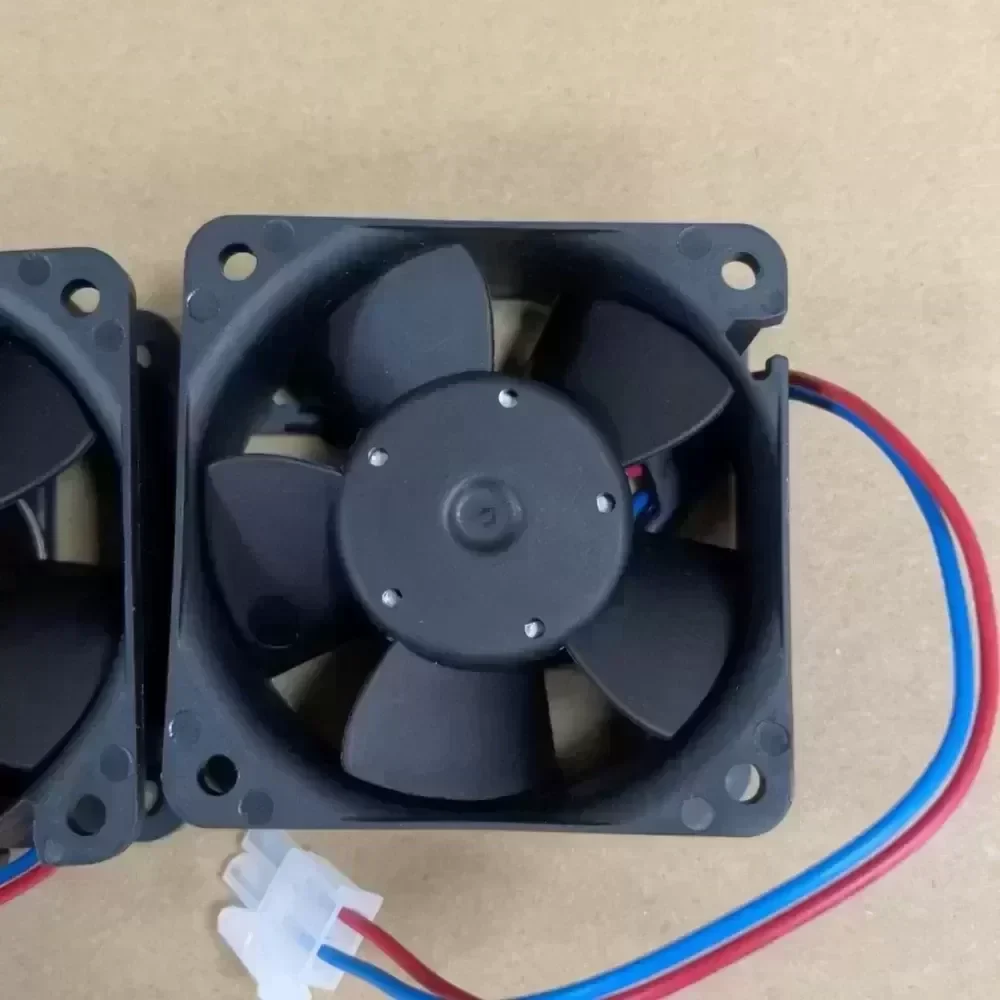

The ebm-papst 614NHHR is a high-performance, industrial-grade 24 VDC axial compact fan engineered for critical thermal management in automated systems and power electronics. Utilizing double ball bearing construction and fiberglass-reinforced housing, this unit delivers high static pressure and reliable volumetric airflow in space-constrained environments.

Technical Specifications:
Brand: ebm-papst
Model Number: 614NHHR
Product Type: DC Axial Compact Fan
Nominal Voltage: 24 VDC
Voltage Range: 18 VDC to 28 VDC
Nominal Current: 125 mA
Power Consumption: 3.0 W
Nominal Speed: 6850 RPM
Maximum Airflow: 56 m³/h
Noise Level: 41 dB(A)
Bearing System: Double Ball Bearings
Service Life L10 at 40 °C: 70000 hours
Service Life L10 at maximum temperature: 35000 hours
Direction of Rotation: Clockwise, looking at rotor
Direction of Airflow: Exhaust over struts
Housing Material: Fiberglass-reinforced plastic (PBT)
Impeller Material: Fiberglass-reinforced plastic (PA)
Electrical Connection: 2 single strands AWG 22, TR 64 (Red: positive, Blue: negative)
Dimensions: 60 x 60 x 25 mm
Weight: 0.066 kg
IP Rating: IP20
Certifications: VDE, CSA, UL, CE

Industrial Application and Technical Compatibility:
The 614NHHR is optimized for integration into variable frequency drives (VFDs), industrial inverters, and high-density control cabinets. In these environments, localized heat buildup can cause component degradation and unscheduled downtime. The high-speed profile of this fan provides the necessary static pressure to overcome flow resistance from dense internal components, ensuring continuous heat dissipation. Its precise electrical characteristics guarantee seamless Technical Compatibility with standard 24V industrial control circuits without causing electromagnetic interference.

Procurement and Lifecycle Value:
Specifying Original Engineering components like the ebm-papst 614NHHR ensures adherence to strict manufacturer tolerances, maintaining system integrity and preventing premature failure.
Lead Time: Immediate dispatch for standard inventory orders, minimizing operational downtime during maintenance cycles.

614NHHR ebmpapst 24V 125mA fan

614NHHR ebmpapst 24V 125mA fan

614NHHR ebmpapst 24V 125mA fan

614NHHR ebmpapst 24V 125mA fan

614NHHR ebmpapst 24V 125mA fan

614NHHR ebmpapst 24V 125mA fan

614NHHR ebmpapst 24V 125mA fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
