$15.71

SKU: 945301872441 Brand:

Description

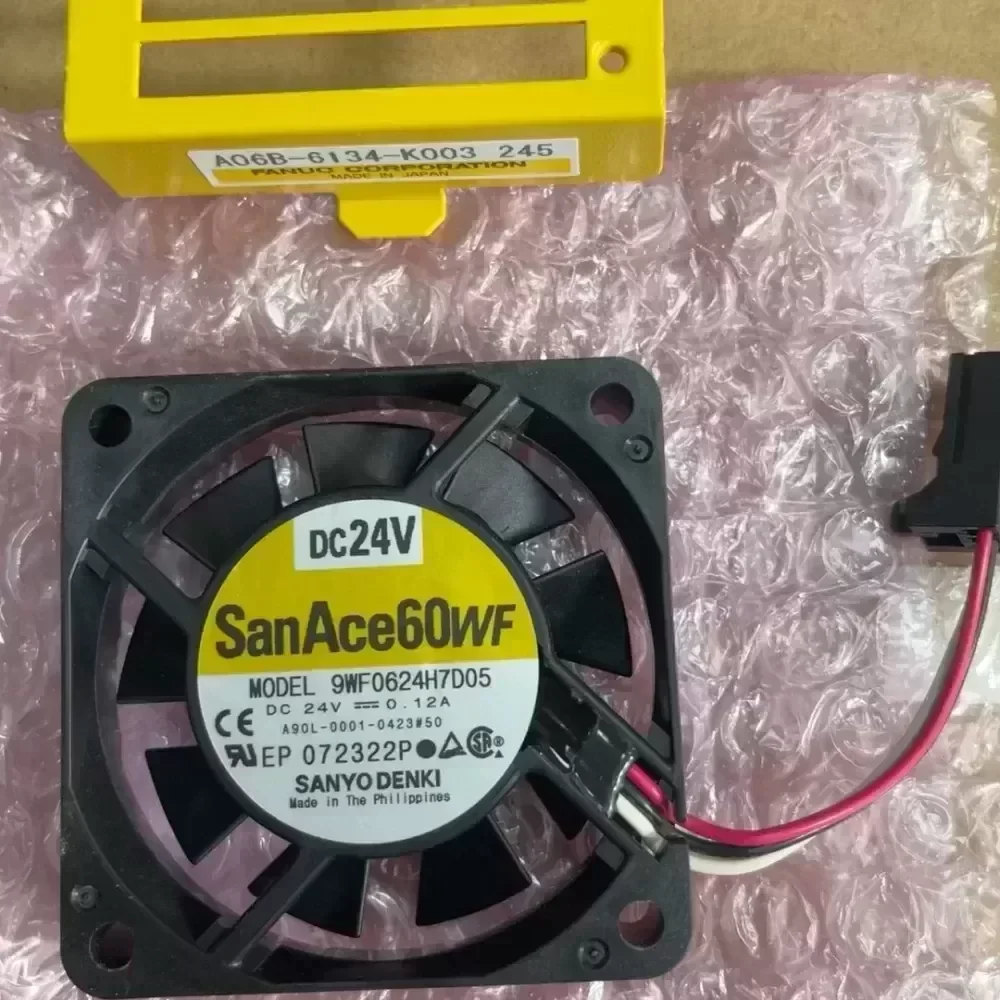

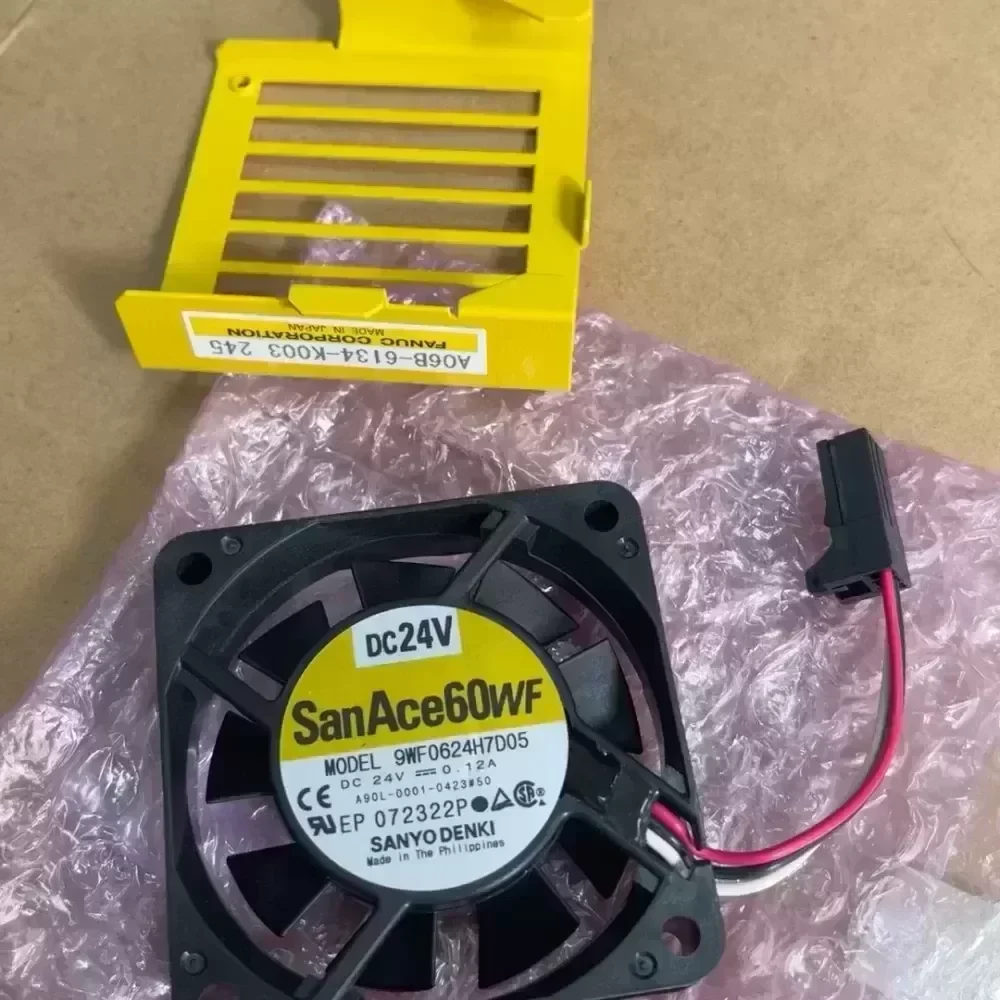

This high-performance industrial cooling fan is engineered for critical thermal management in CNC machine tool environments. Featuring an integrated yellow mounting bracket, it is designed for direct drop-in replacement in Fanuc drive systems, ensuring original engineering standards and exact technical compatibility. The unit features advanced ingress protection against water and cutting oils, making it highly reliable in harsh machining environments.

Technical Specifications:
Manufacturer: Sanyo Denki
Brand: San Ace 60WF
Model Code: 9WF0624H7D05
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4 VDC to 27.6 VDC
Rated Current: 0.12 A
Rated Input Power: 2.88 W

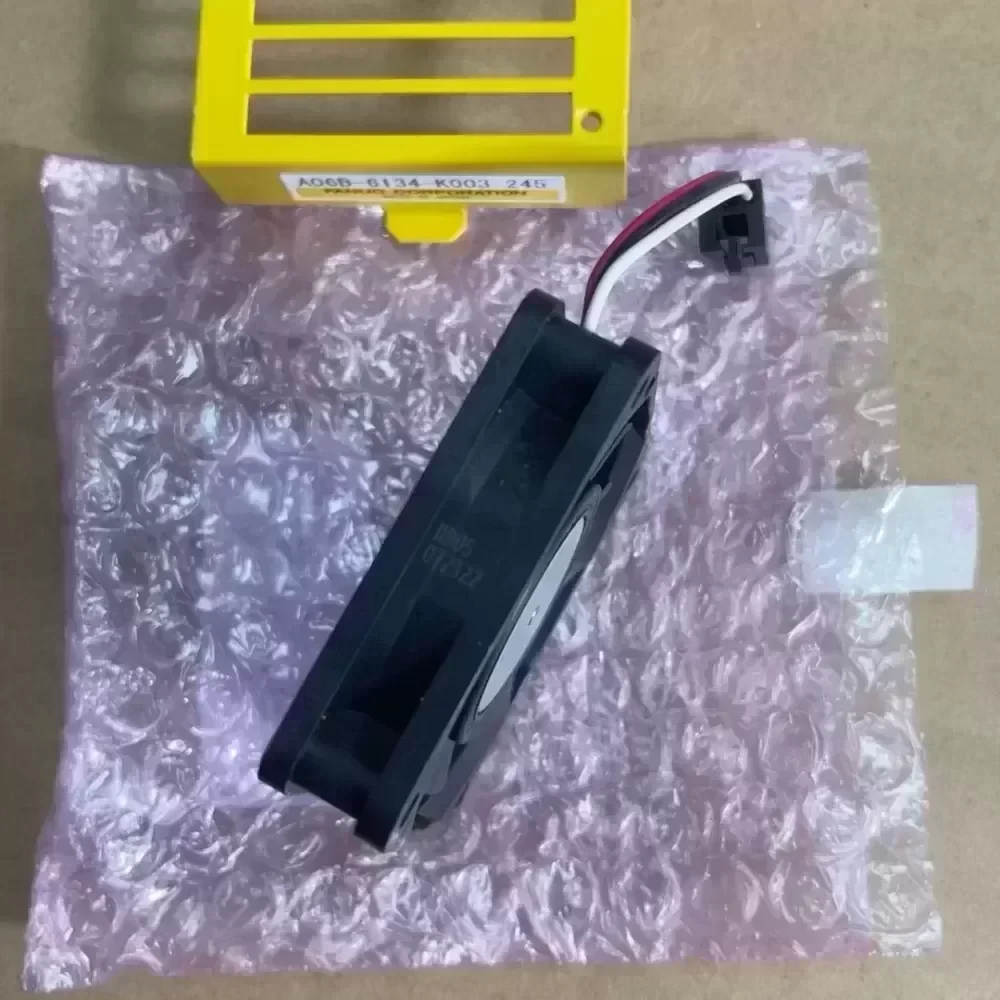

Frame Size: 60 mm x 60 mm x 20 mm
Bearing Type: Dual Precision Ball Bearing
Ingress Protection Rating: IP55 (Waterproof and Oil-Resistant)
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Sensor Type: Locked Rotor Sensor / Tachometer Output
Connector Type: Fanuc OEM 3-Pin Dedicated Connector

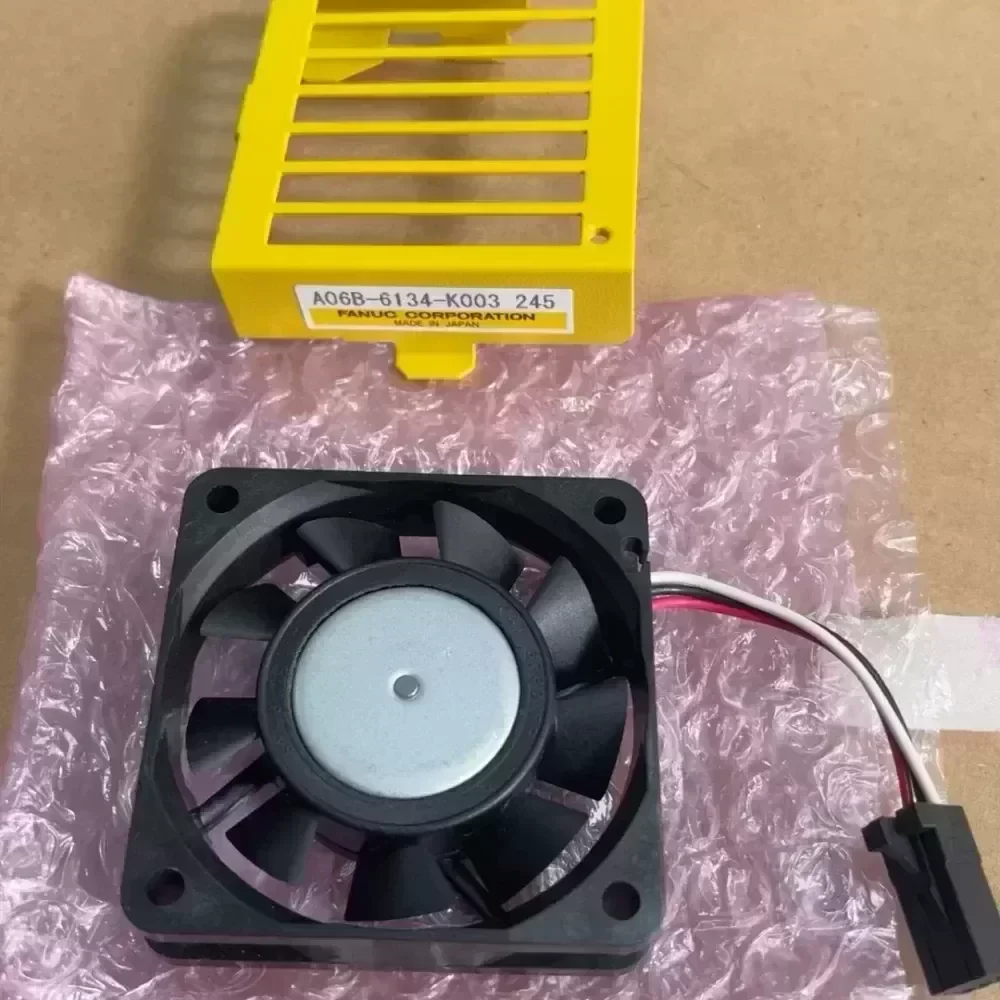

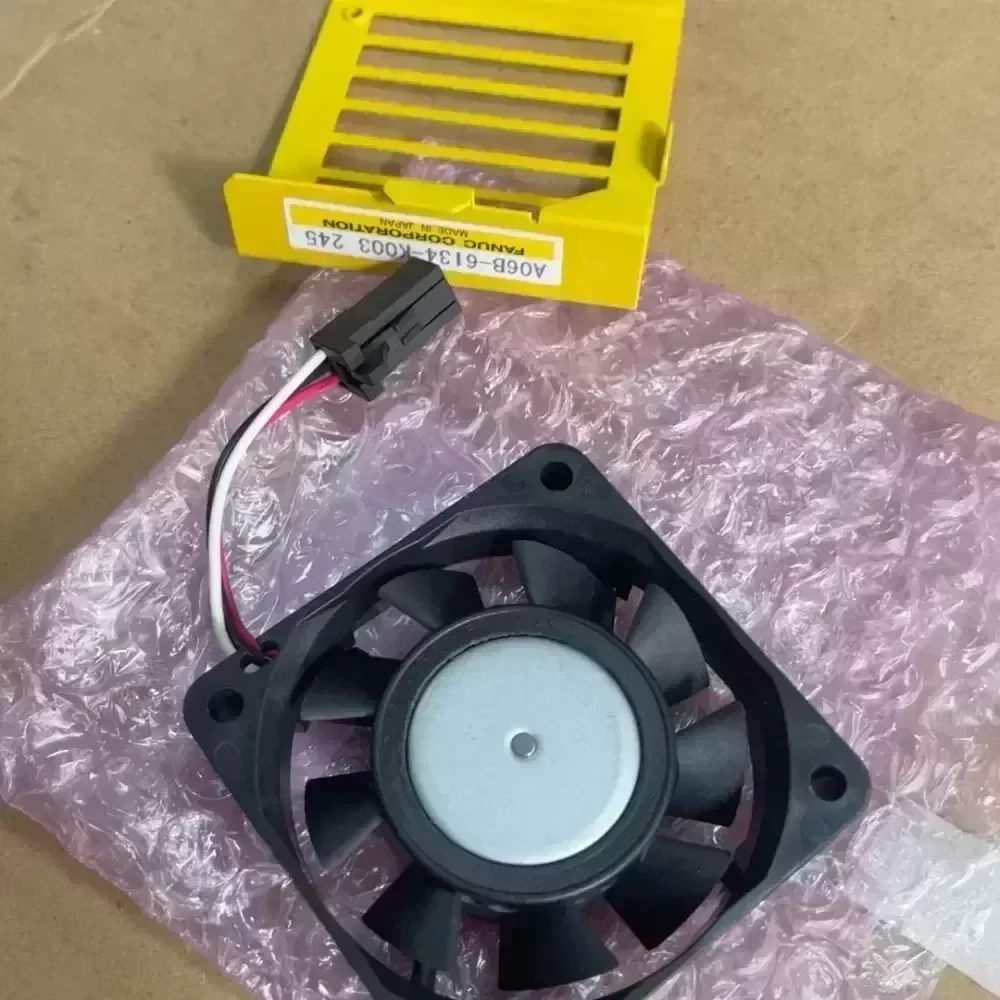

Mounting Hardware: Integrated Yellow Fanuc-Compatible Snap-in Bracket
Operating Temperature Range: -20 °C to +70 °C
Expected Lifetime: 40,000 Hours at 60 °C
Weight: 110 g

System Integration & Technical Compatibility:
This cooling fan is specifically configured for Fanuc Alpha i series servo amplifiers, spindle drives, and power supply modules. The integrated yellow bracket allows for rapid, tool-less installation directly onto the drive heatsink assembly. The custom 3-pin connector interfaces seamlessly with the Fanuc control board, preventing fan-alarm faults by providing precise speed monitoring feedback to the CNC controller.

Industrial Application Scenario:
In high-throughput CNC milling and turning centers, spindle drives and servo amplifiers generate significant thermal loads. Standard cooling fans fail prematurely when exposed to airborne cutting fluid mist and fine metal particulates. The 9WF0624H7D05 solves this critical failure point through its oil-proof and waterproof winding encapsulation. By maintaining continuous heat dissipation under constant exposure to coolant spray, it prevents thermal shutdown of the Fanuc drive system, eliminating unplanned production downtime and protecting expensive drive electronics from catastrophic thermal failure.

Commercial Terms:
Condition: Brand New, Original Packaging
Availability: Limited stock (80 units remaining)
Lead Time: Immediate dispatch available

Sanyo SanAce60WF 9WF0624H7D05 Fan

Sanyo SanAce60WF 9WF0624H7D05 Fan

Sanyo SanAce60WF 9WF0624H7D05 Fan

Sanyo SanAce60WF 9WF0624H7D05 Fan

Sanyo SanAce60WF 9WF0624H7D05 Fan

Sanyo SanAce60WF 9WF0624H7D05 Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
