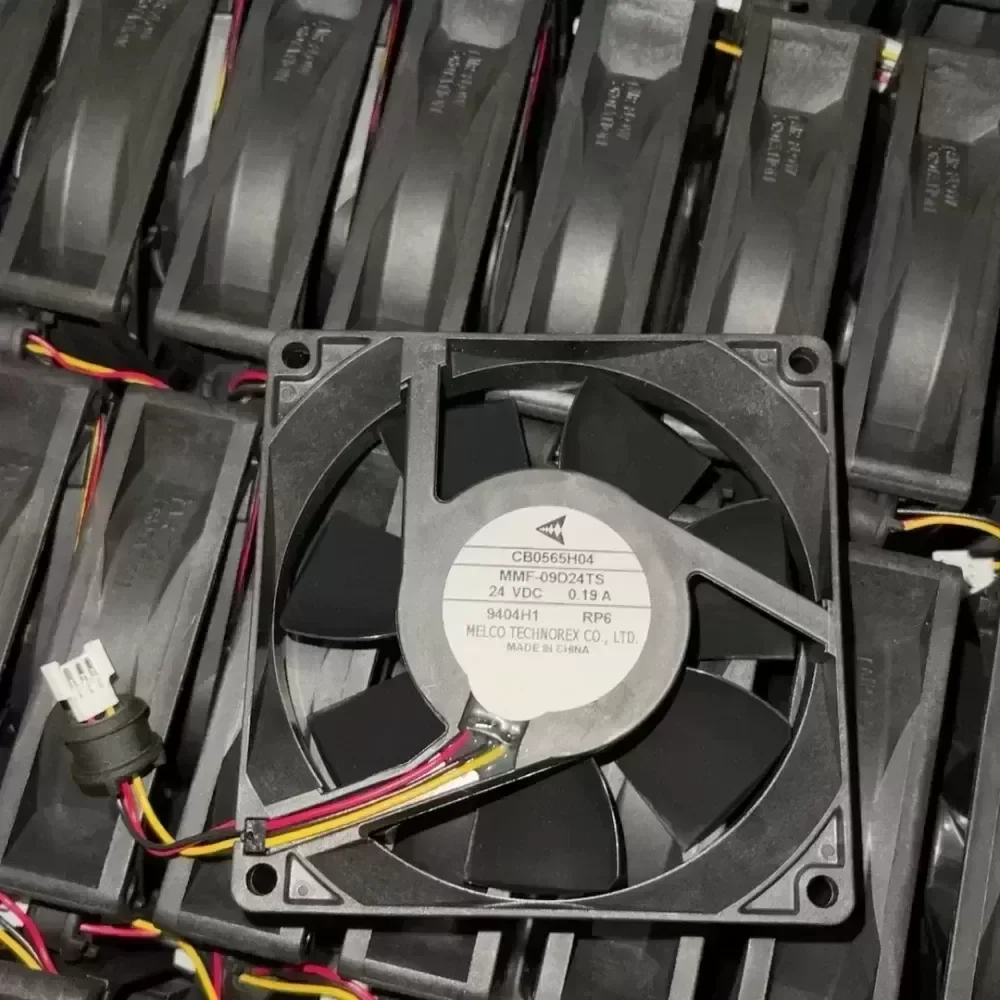

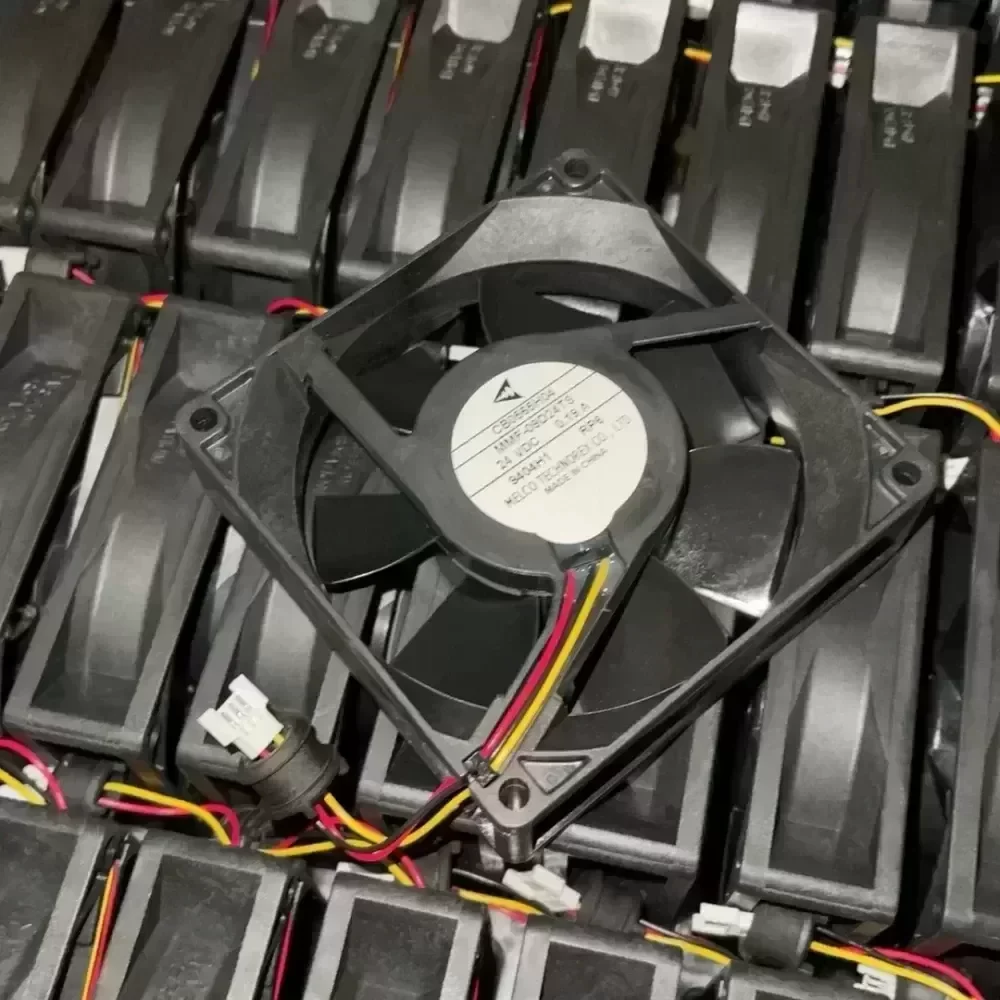

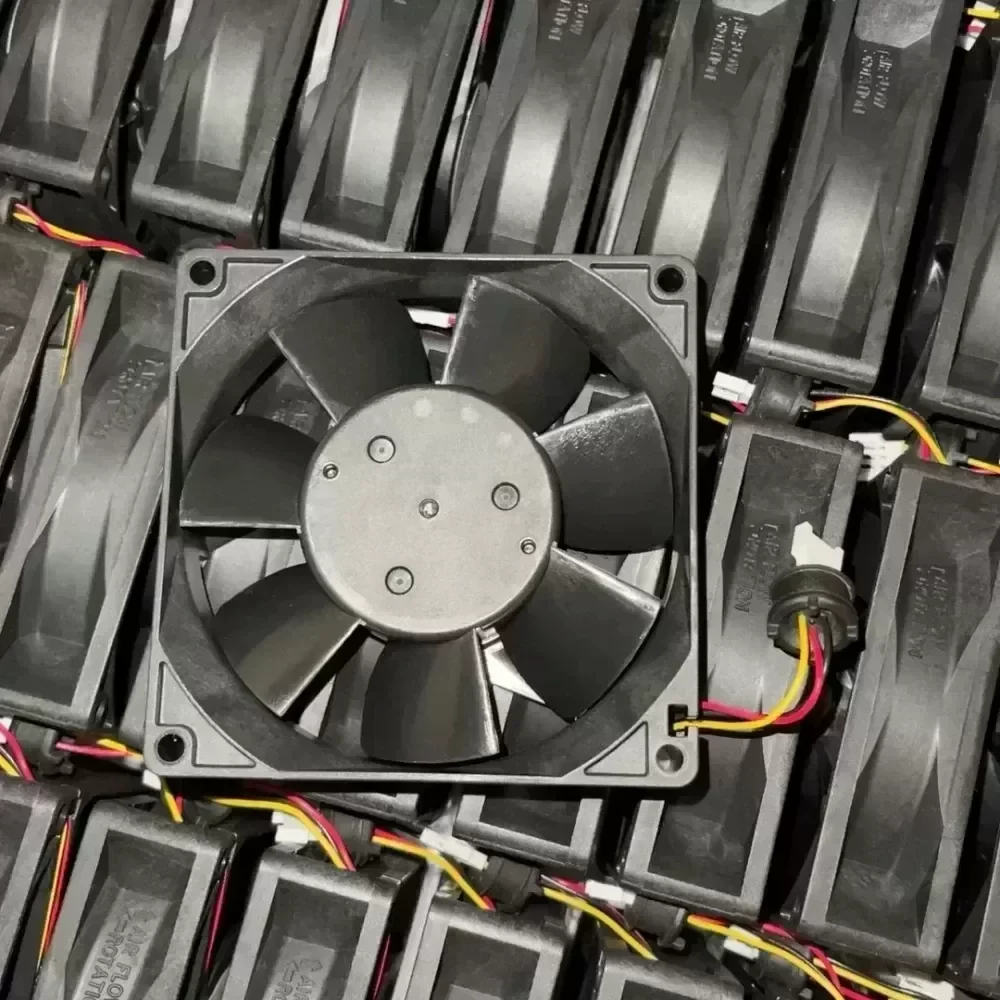

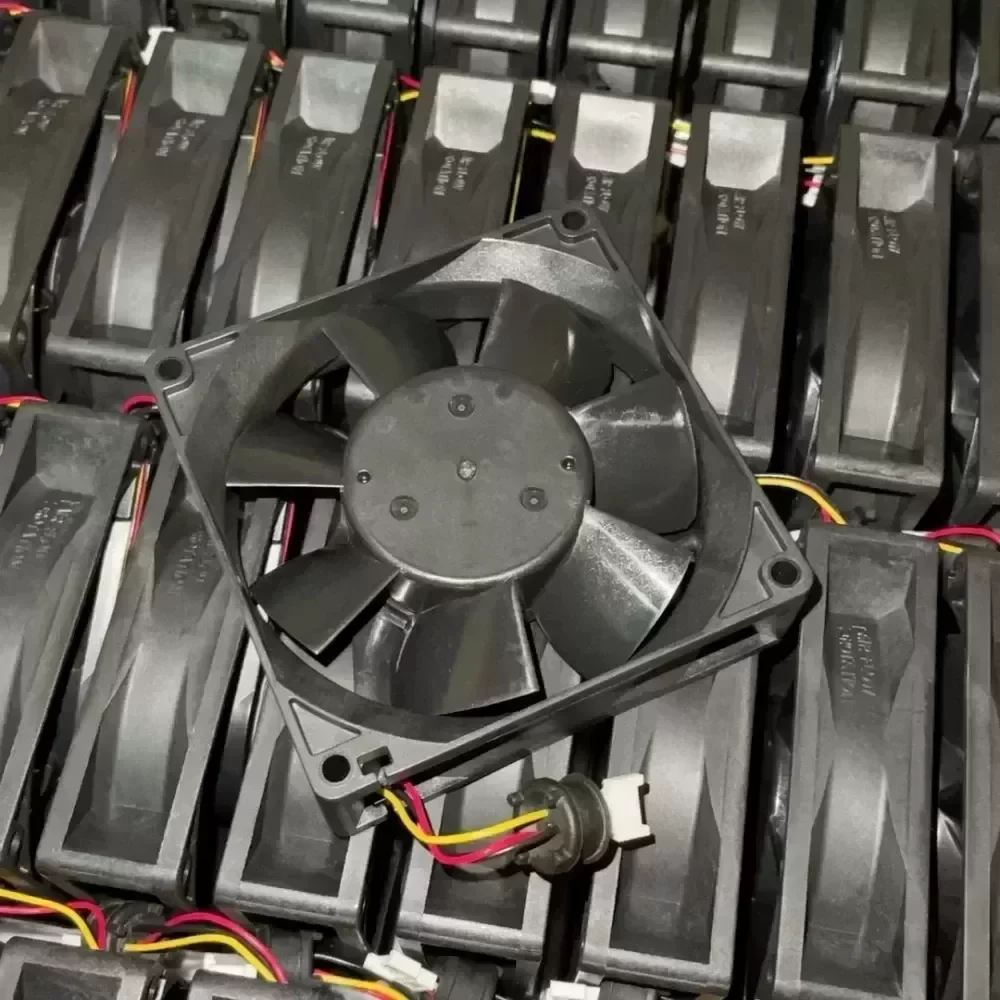

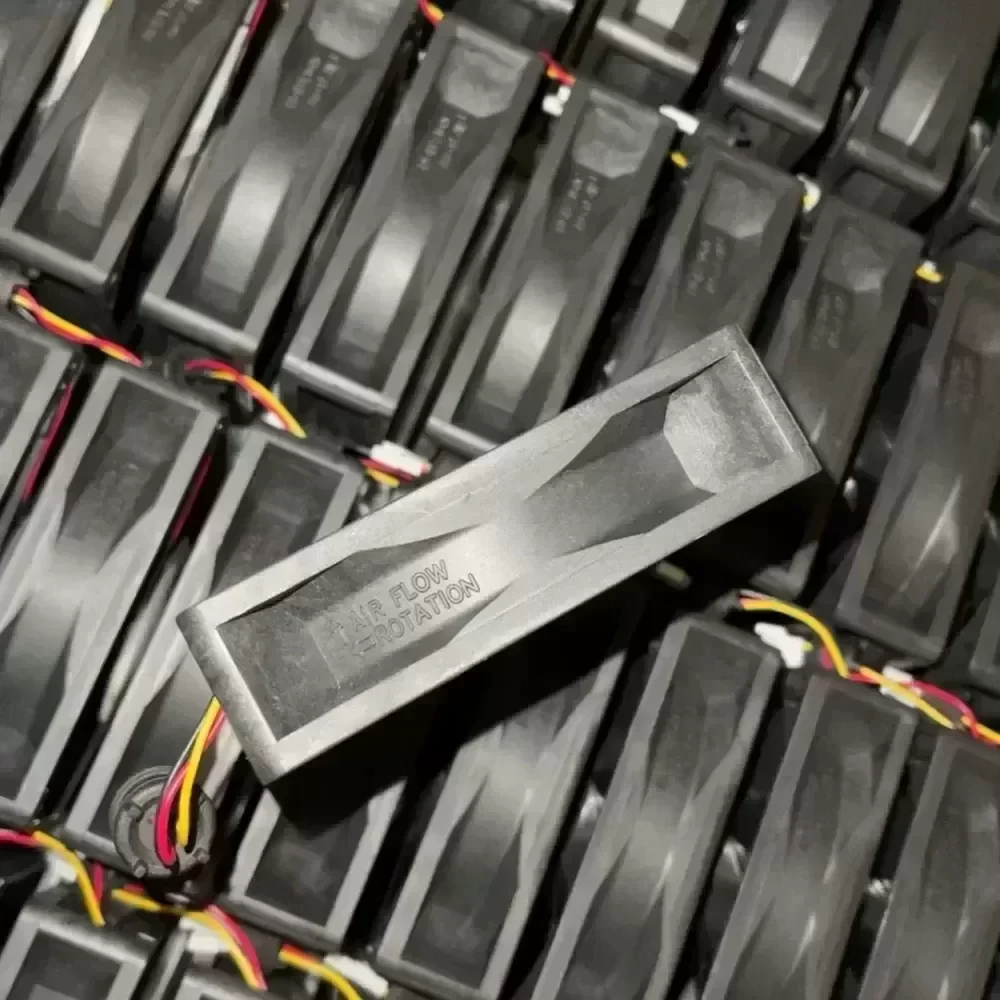

MMF-09D24TS-RP6 Mitsubishi fan
MMF-09D24TS-RP6 Mitsubishi fan
MMF-09D24TS-RP6 Mitsubishi fan
MMF-09D24TS-RP6 Mitsubishi fan
MMF-09D24TS-RP6 Mitsubishi fan
MMF-09D24TS-RP6 Mitsubishi fan

MMF-09D24TS-RP6 Mitsubishi fan

$10.00

SKU: 928940611048 Brand:

Description

The Mitsubishi MMF-09D24TS-RP6 is a high-performance, industrial-grade axial cooling fan developed specifically for thermal regulation in variable frequency drives (VFDs). Built with Original Engineering standards, this component ensures precise airflow delivery to prevent thermal degradation of critical power electronics.

TECHNICAL SPECIFICATIONS
Manufacturer: Mitsubishi Electric
Model Number: MMF-09D24TS-RP6
Component Type: Axial Cooling Fan
Frame Dimensions: 90 mm x 90 mm x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4 VDC to 27.6 VDC
Rated Current: 0.19 A
Input Power: 4.56 W
Bearing Type: Dual Precision Ball Bearing
Termination: 3-Wire Lead with Connector
Signal Output: Speed Sensor / Alarm
Housing Material: Thermoplastic PBT (UL94V-0 Rated)
Impeller Material: Thermoplastic PBT (UL94V-0 Rated)
Expected Lifespan: 50,000 Hours at 40 °C
Operating Temperature Range: -10 °C to +70 °C
Weight: 120 g
Certifications: CE, UL, RoHS Compliant

INDUSTRIAL APPLICATION & TECHNICAL COMPATIBILITY
This cooling fan features direct Technical Compatibility with Mitsubishi FR-A700, FR-F700, and FR-E700 series frequency converters. In high-duty industrial automation environments, VFDs generate substantial heat during continuous motor control operations. If the internal cooling fan fails, the drive quickly reaches critical thermal thresholds, triggering automatic shutdown faults to protect the IGBT modules. Replacing worn fans with the MMF-09D24TS-RP6 restores optimal heat dissipation, preventing unscheduled downtime and maintaining system integrity in manufacturing, HVAC, and water treatment facilities.

COMMERCIAL & LOGISTICS INFORMATION
Stock Status: In Stock / Ready to Ship
Lead Time: 1 to 3 business days for standard dispatch
Shipping Policy: Free shipping applies to orders of 5 items or more
Contract Terms: Volume discounts and price negotiations are available upon direct inquiry

MMF-09D24TS-RP6 Mitsubishi fan

MMF-09D24TS-RP6 Mitsubishi fan

MMF-09D24TS-RP6 Mitsubishi fan

MMF-09D24TS-RP6 Mitsubishi fan

MMF-09D24TS-RP6 Mitsubishi fan

MMF-09D24TS-RP6 Mitsubishi fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
