$4.00

SKU: 692899235545 Brand:

Description

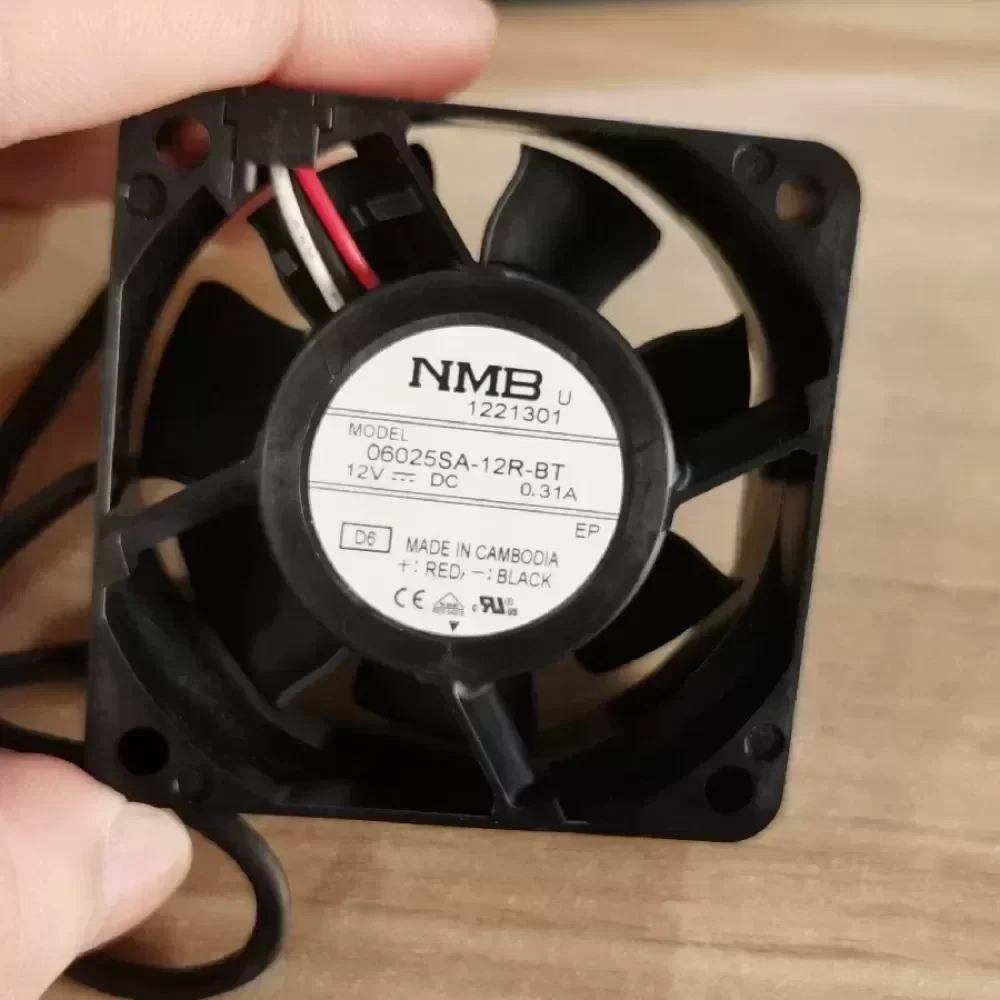

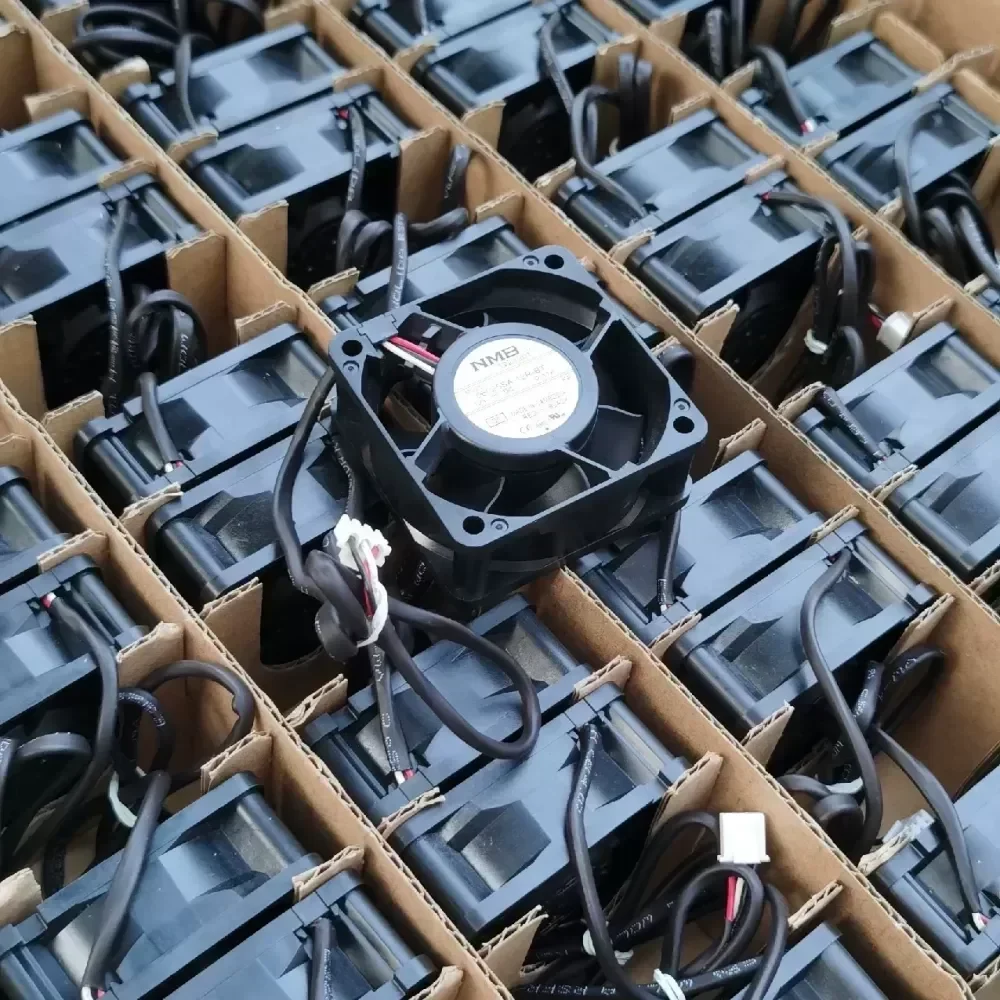

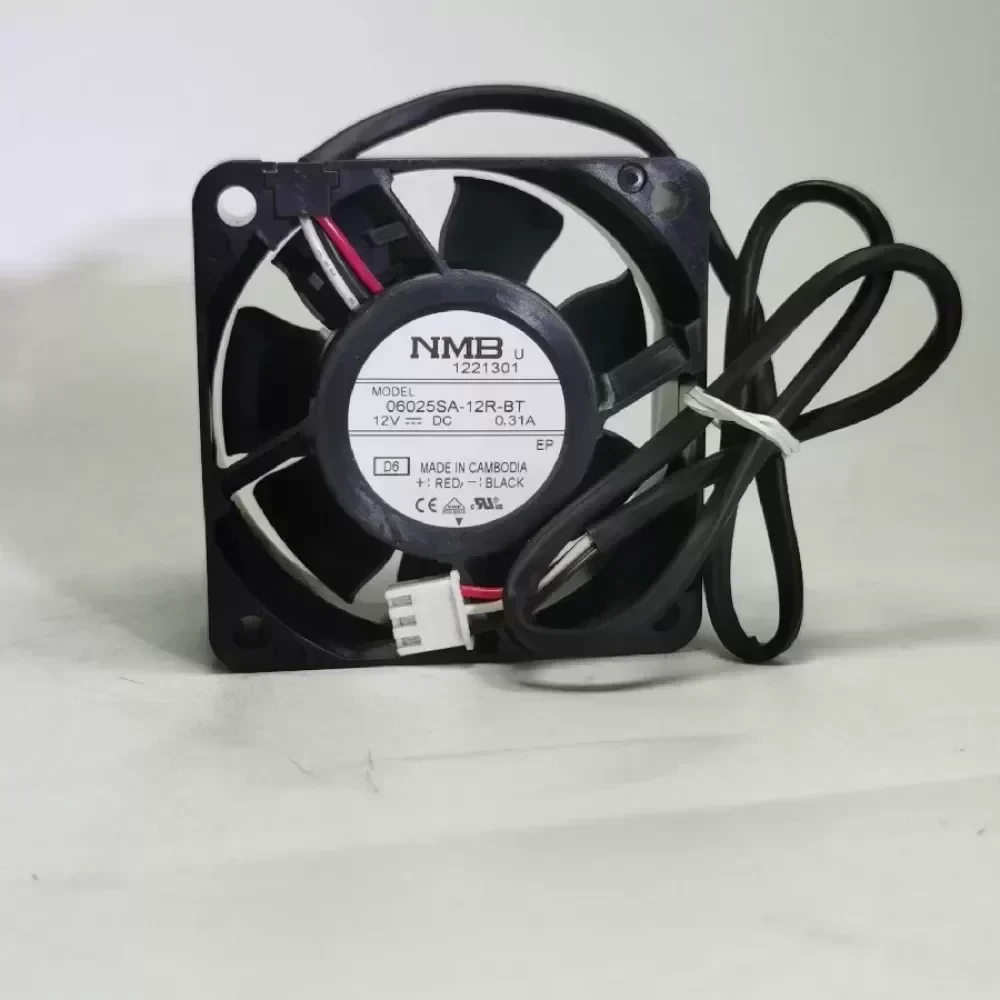

The NMB MinebeaMitsumi 06025SA-12R-BT is a high-performance DC axial cooling fan engineered for critical thermal management applications. Manufactured to Original Engineering standards, this 60x60x25mm fan delivers exceptional airflow reliability for industrial enclosures, telecommunications equipment, and automated control systems.

Technical Specifications

Brand: NMB Technologies (MinebeaMitsumi)
Model Number: 06025SA-12R-BT
Fan Type: DC Axial Flow Cooling Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.8V DC
Bearing System: Dual Ball Bearing
Wiring Configuration: 3-Wire
Sensor Type: Alarm Detection (Locked Rotor / Tachometer Output)
Rated Speed: 4500 RPM ± 10%
Maximum Airflow: 0.65 m³/min
Static Pressure: 45.0 Pa
Noise Level: 33.0 dB(A)
Housing Material: Polybutylene Terephthalate (PBT) UL94V-0
Impeller Material: Polybutylene Terephthalate (PBT) UL94V-0
Operating Temperature: -10°C to +70°C
Weight: 65 g
Certifications: UL, CSA, VDE, CE, RoHS Compliant

Industrial Application and Technical Compatibility

The 06025SA-12R-BT is specifically designed for environments requiring continuous, uninterrupted cooling. The integrated three-wire alarm detection system provides real-time feedback to host controllers, immediately signaling rotor lock or RPM drops. This feature is critical for preventing thermal throttling or hardware failure in high-density server racks, CNC machine control cabinets, and medical diagnostic equipment. Its dual ball bearing architecture ensures an extended operational lifespan even in elevated temperature environments up to +70°C.

Procurement and Lead Time

As a brand new, original component, this fan guarantees seamless Technical Compatibility with existing 12V DC thermal management architectures. Contact our supply chain team for current Lead Time and bulk procurement availability.

new original NMB 06025SA-12R-BT

new original NMB 06025SA-12R-BT

new original NMB 06025SA-12R-BT

new original NMB 06025SA-12R-BT

new original NMB 06025SA-12R-BT

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
