$7.86

SKU: 689887044781 Brand:

Description

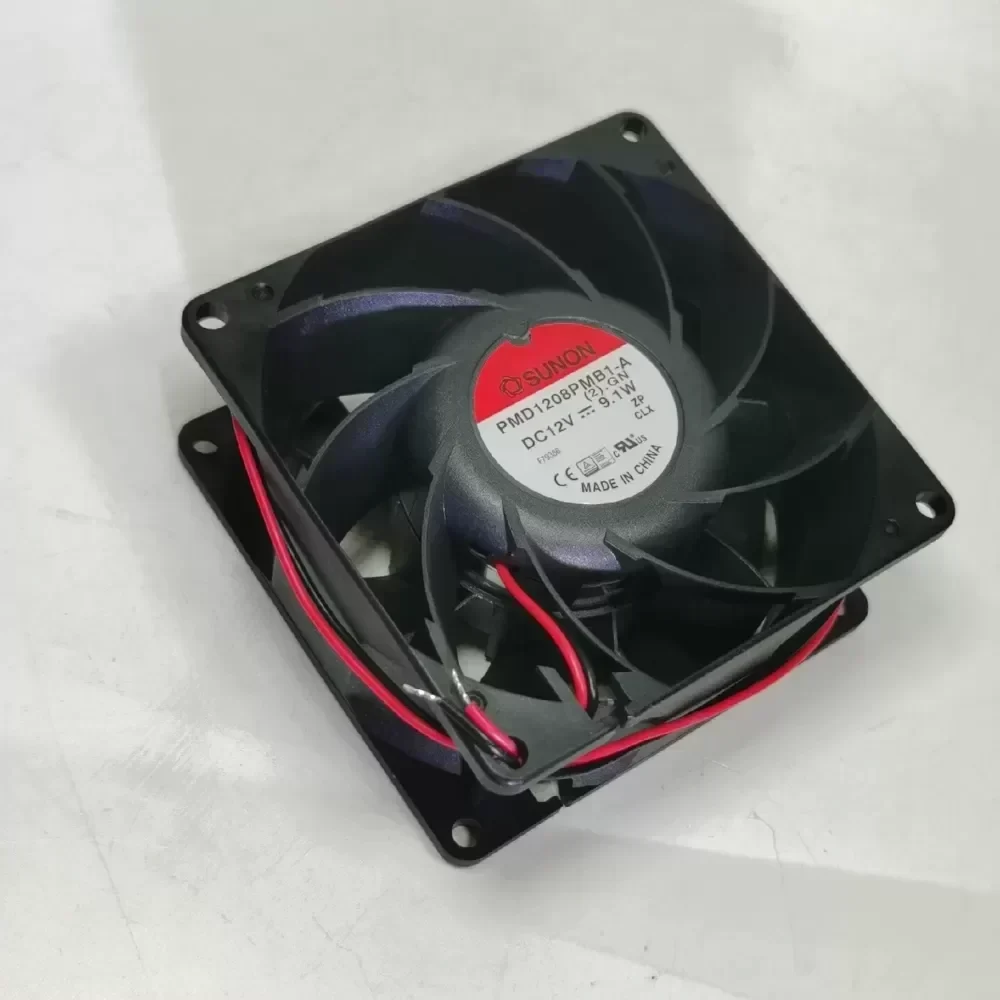

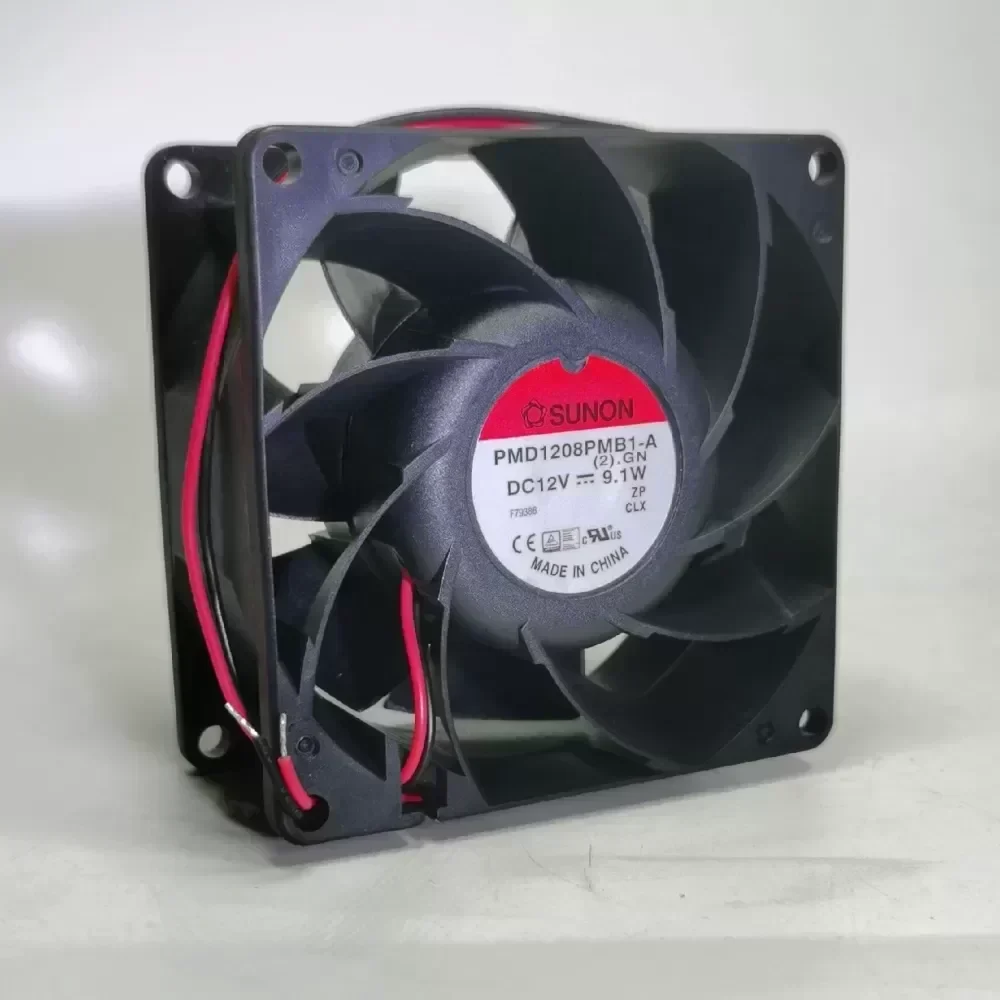

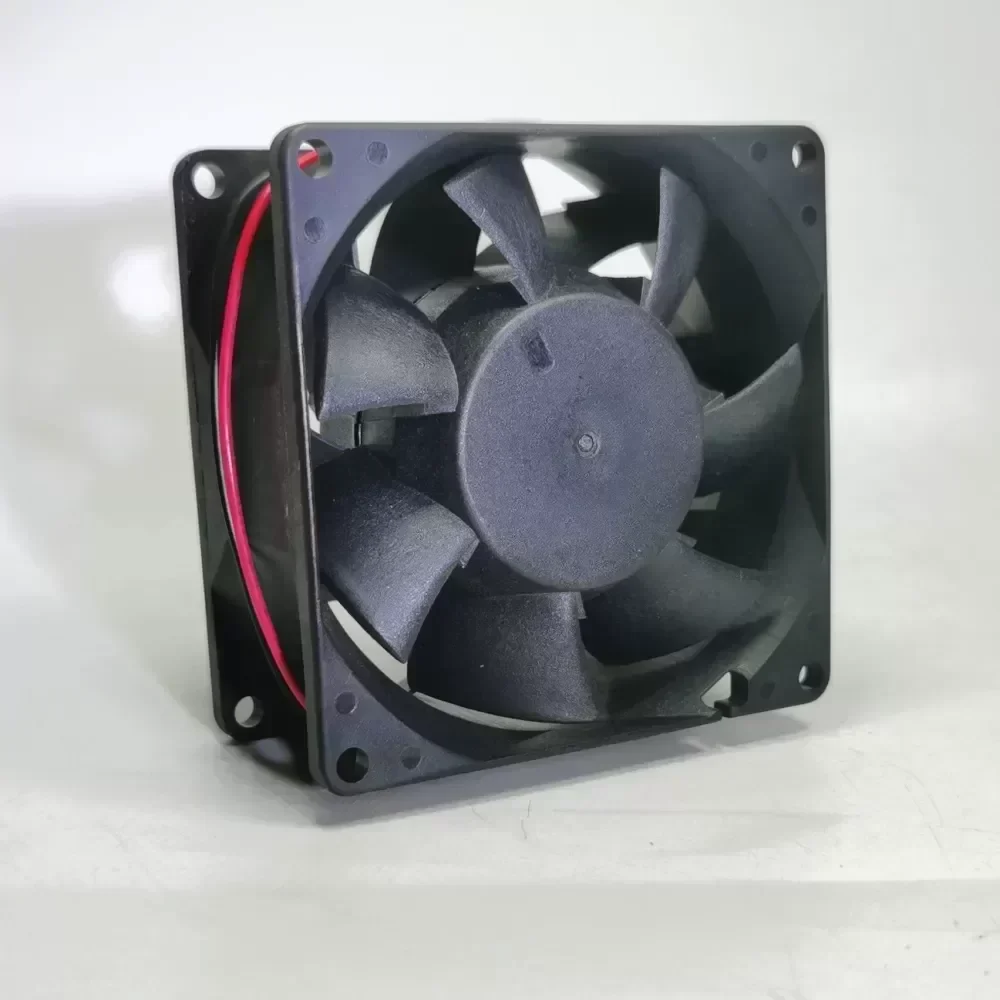

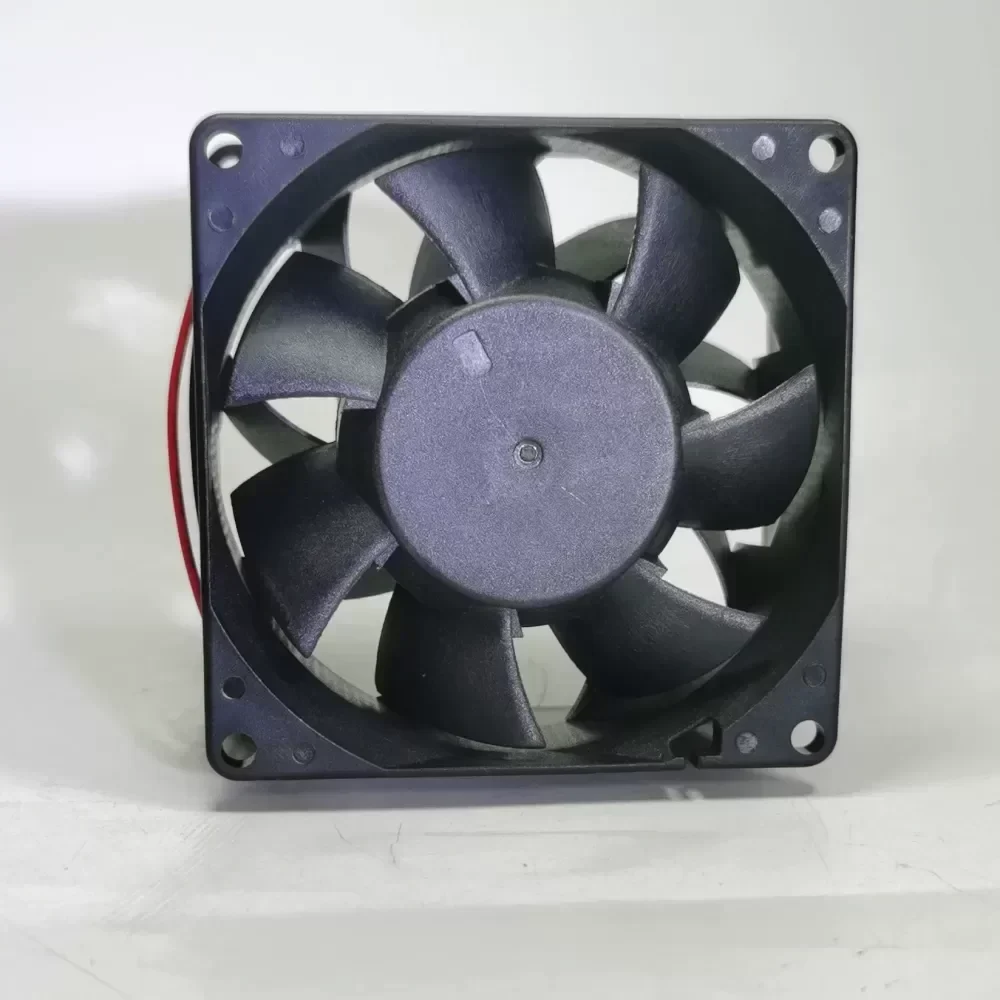

The SUNON PMD1208PMB1-A is a high-performance DC axial cooling fan engineered for demanding thermal management applications. Designed specifically for chassis and cabinet cooling, this 80x80x38mm component delivers exceptional airflow and static pressure, ensuring optimal operating temperatures for mission-critical electronic systems.

Technical Specifications:
Brand: SUNON
Model Number: PMD1208PMB1-A
Dimensions: 80 x 80 x 38 mm
Rated Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.8V DC
Rated Current: 0.76 A
Power Consumption: 9.1 W
Rated Speed: 5700 RPM ± 10%
Maximum Airflow: 84.1 CFM
Static Pressure: 0.74 inch-H2O
Acoustic Noise: 55.2 dB(A)
Bearing System: Precision Dual Ball Bearing
Weight: 175 g
Life Expectancy: 70,000 hours at 40°C

Engineering and Material Composition:
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Motor Protection: Auto Restart / Polarity Protection
Termination: Wire Leads (AWG 24)
Operating Temperature: -10°C to +70°C

Industrial Application:
This high-velocity cooling fan is specifically deployed in densely packed server chassis, industrial control cabinets, and telecommunication enclosures. The PMD series motor provides the necessary static pressure to force air through restrictive heat sinks and crowded PCB layouts, preventing thermal throttling in environments with high ambient temperatures.

Procurement and Lifecycle Value:
Original Engineering: 100% authentic SUNON manufacturing ensuring exact thermal performance.
Technical Compatibility: Direct drop-in replacement for 8038 form factor 12V DC fans in standard industrial racks.
Lead Time: Available for immediate dispatch to minimize system downtime.

Newly built PMD1208PMB1-A 8038/12V SU

Newly built PMD1208PMB1-A 8038/12V SU

Newly built PMD1208PMB1-A 8038/12V SU

Newly built PMD1208PMB1-A 8038/12V SU

Newly built PMD1208PMB1-A 8038/12V SU

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
