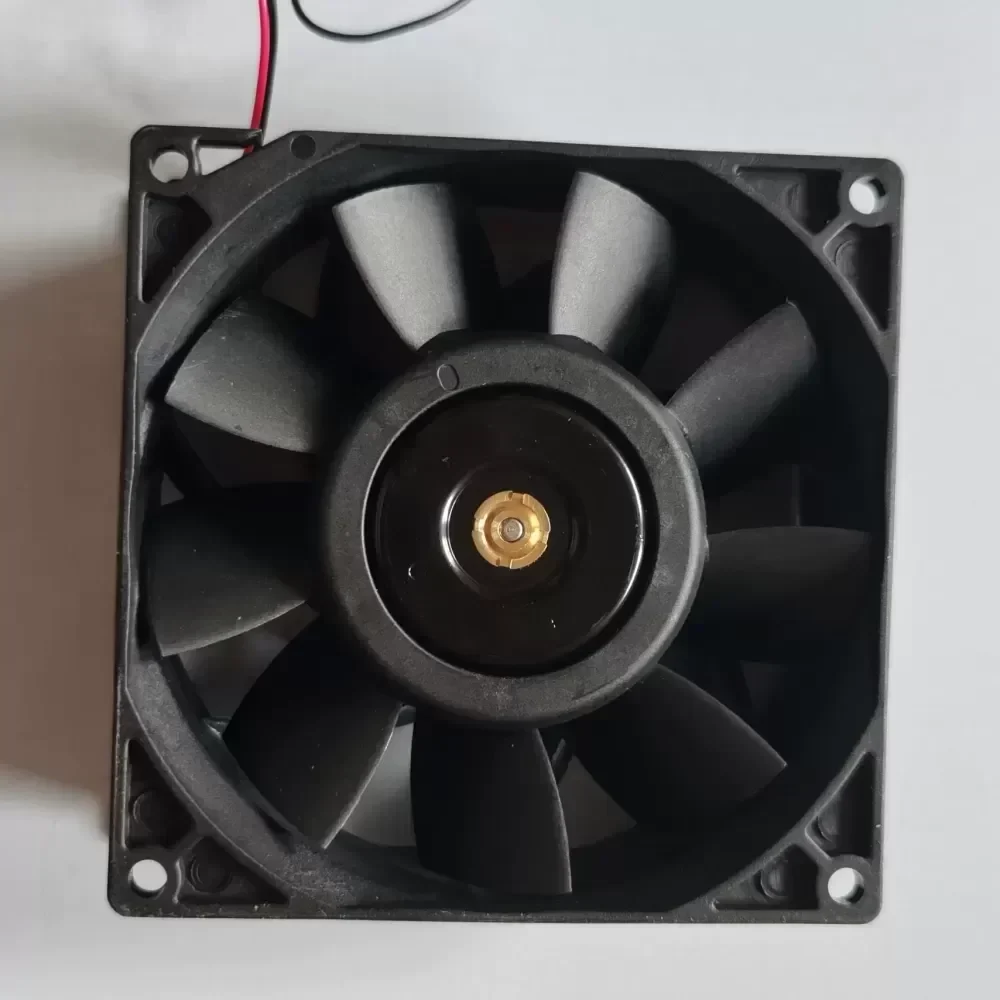

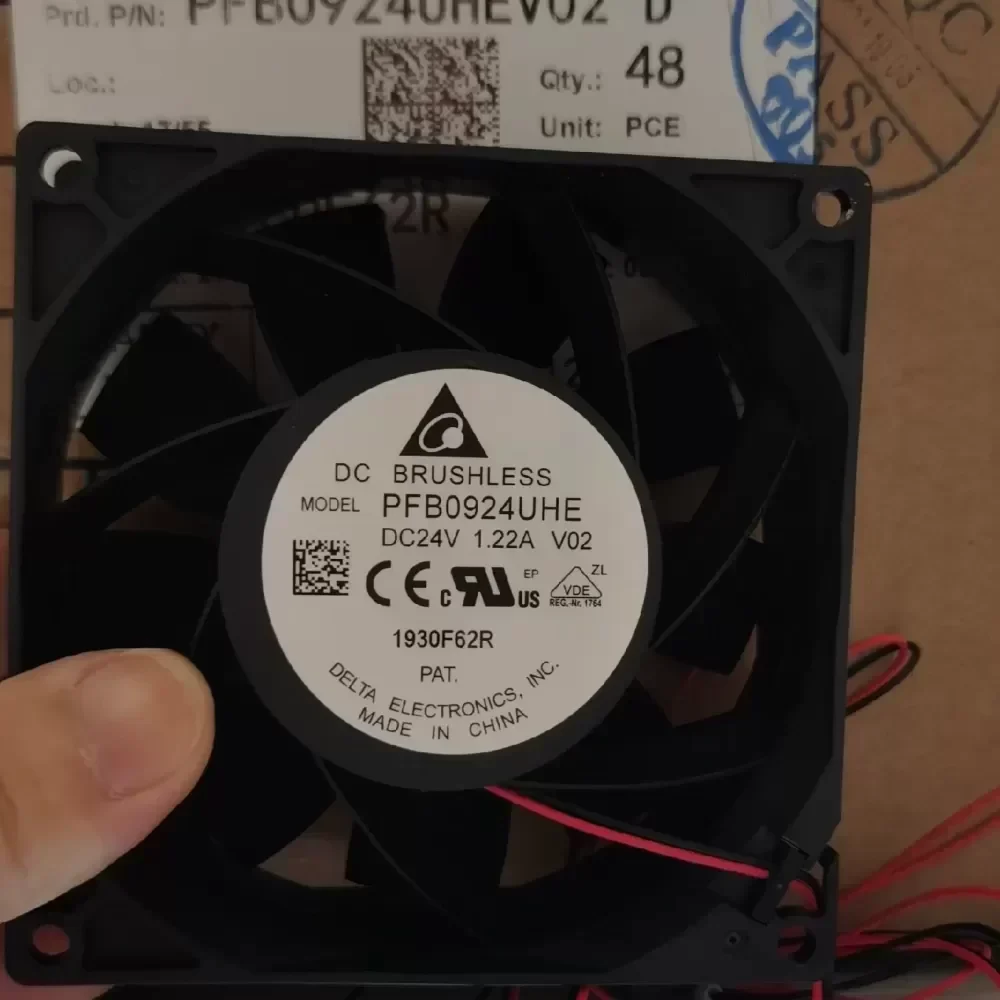

PFB0924UHE New Delta 9238/24V fan
PFB0924UHE New Delta 9238/24V fan
PFB0924UHE New Delta 9238/24V fan

PFB0924UHE New Delta 9238/24V fan

$12.86

SKU: 682514521105 Brand:

Description

Delta Electronics PFB0924UHE is an industrial-grade, ultra-high-speed DC axial cooling fan designed for mission-critical thermal management. Engineered for extreme airflow and high static pressure, this 92x92x38mm component ensures optimal heat dissipation in densely packed electronic enclosures.

Technical Specifications
Manufacturer: Delta Electronics
Model Number: PFB0924UHE
Fan Type: DC Axial Flow
Dimensions: 92mm x 92mm x 38mm
Operating Voltage: 24V DC
Voltage Range: 14.0V to 27.6V DC
Nominal Current: 1.22A
Power Consumption: 29.28W
Bearing System: High-Precision Dual Ball Bearing
Maximum Airflow: 175.03 CFM (4.95 m³/min)
Static Pressure: 356.1 Pa (1.430 inH2O)
Acoustic Noise: 68.5 dB(A)
Speed: 8000 RPM ± 10%
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Weight: 250g
Operating Temperature: -10°C to +60°C
Life Expectancy: 50,000 hours at 40°C
Certifications: UL, CE, CSA, RoHS, TÜV

Industrial Application & Compatibility
This high-performance cooling fan is specifically deployed in high-frequency industrial inverters, telecom base stations, and server racks where severe thermal loads demand rapid heat extraction. The high static pressure overcomes airflow resistance in densely populated chassis, preventing thermal throttling of critical IGBT modules and power supplies.

Procurement & Lifecycle Value
Sourced through Original Engineering channels, this authentic Delta product guarantees exact Technical Compatibility with existing 24V inverter architectures. Our optimized supply chain ensures minimal Lead Time for both single-unit replacements and bulk OEM integration, providing a reliable safeguard against counterfeit-induced system failures.

PFB0924UHE New Delta 9238/24V fan

PFB0924UHE New Delta 9238/24V fan

PFB0924UHE New Delta 9238/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
