Description

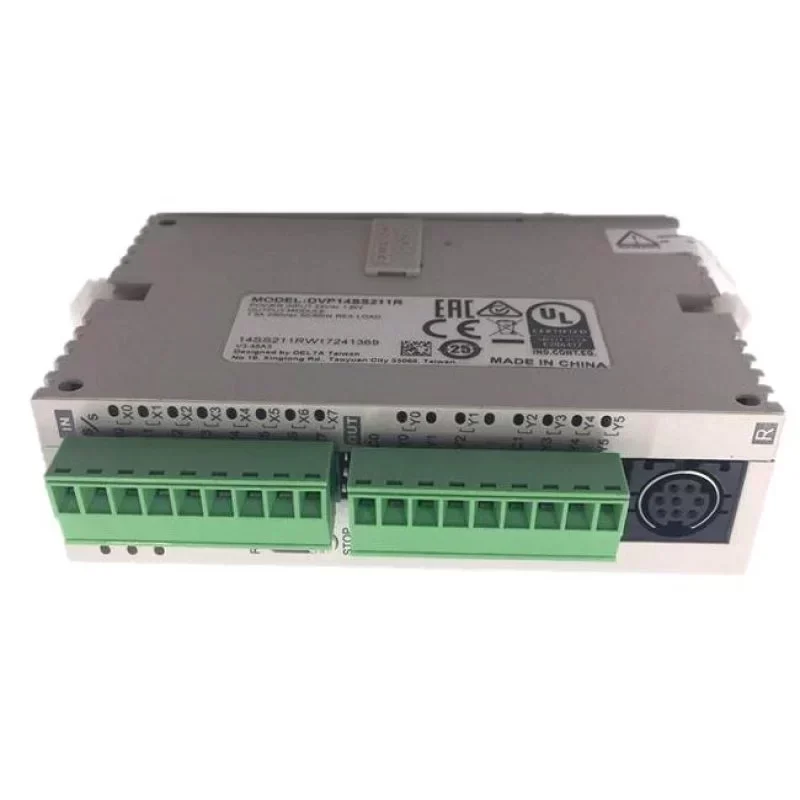

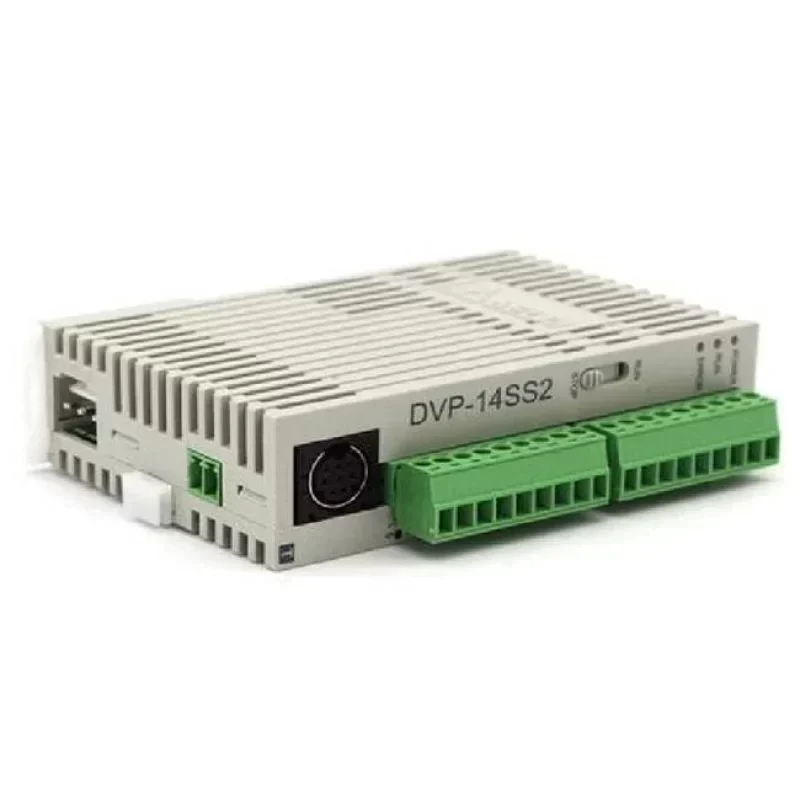

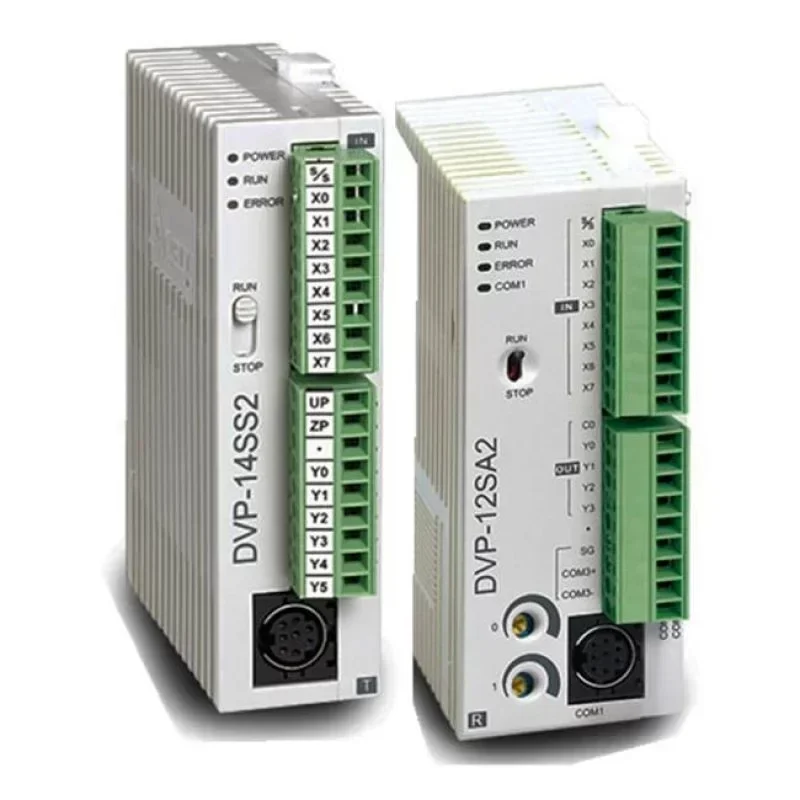

Delta DVP-14SS2 is a second-generation standard slim programmable logic controller (PLC) main processing unit, engineered for highly efficient sequential control and basic automation tasks. As a cornerstone of the DVP-SS2 series, this controller delivers upgraded execution speeds and expanded memory capacity while maintaining a compact footprint for space-constrained control panels.
Technical Specifications:
Manufacturer: Delta Electronics
Series: DVP-SS2
Model Number: DVP-14SS2
Input Power: 24 VDC (-15% to +20%)
Digital Inputs: 8 Points (24 VDC, Sink/Source)
Digital Outputs: 6 Points (Relay or Transistor options)
Program Capacity: 8k Steps
Data Register: 5k Words
Execution Speed: 0.38 us (Basic Instructions)
Communication Ports: Built-in RS-232 and RS-485
Protocol: Modbus ASCII/RTU (Master/Slave)
High-Speed Counters: 4 x 10kHz, 4 x 5kHz
Pulse Output (Transistor Type): 2 x 10kHz
Operating Temperature: 0°C to 55°C
Mounting: 35mm DIN Rail
Weight: 0.14 kg
System Architecture and Integration:
The DVP-14SS2 features built-in PID auto-tuning functionality, allowing it to automatically calculate and save parameters upon completion of temperature control cycles. The dual communication ports enable simultaneous connection to HMI interfaces and variable frequency drives without requiring additional communication modules. Its modular architecture supports seamless Technical Compatibility with all DVP-S series digital and analog extension modules, allowing system integrators to scale up to 480 I/O points.
Application Scenario:
This controller is specifically optimized for applications requiring precise sequential logic and basic motion control. In automated packaging machinery and textile spinning equipment, the DVP-14SS2 utilizes its 10kHz high-speed counters and pulse outputs to synchronize conveyor speeds and control stepper motors with absolute precision. The robust 24 VDC architecture ensures stable operation in environments with high electrical noise.
Procurement and Lifecycle Value:
Sourced through Original Engineering channels, this PLC guarantees authentic Delta firmware and hardware integrity. We maintain an optimized Lead Time for both single-unit replacements and bulk OEM integration, ensuring minimal downtime for critical manufacturing lines.
Key Attributes
Model Number: DVP-14SS2
Type: PLC
Place of Origin: Taiwan, China
Brand Name: Delta
I/O Processing Method: Batch I/O (refresh)
Execution Speed: Basic command (several μs)
Program Language: Instructions + Ladder Diagram + SFC
Program Capacity: 3792 Steps
Instructions: Basic commands: 32 (including the STL commands)
Timer Digital: 64 Points
Counter High-Speed: 13 Points 1-Phase 20KHz, 2-Phase 5KHz
Data Register General: 408 Points
Control Method: Stored program, cyclic scan system
Packaging and Delivery
Packaging Details: 15cm x 8cm x 7cm (5.91in x 3.15in x 2.76in) 1kg
Port of dispatch: Kaohsiung
Selling Units: Single item
