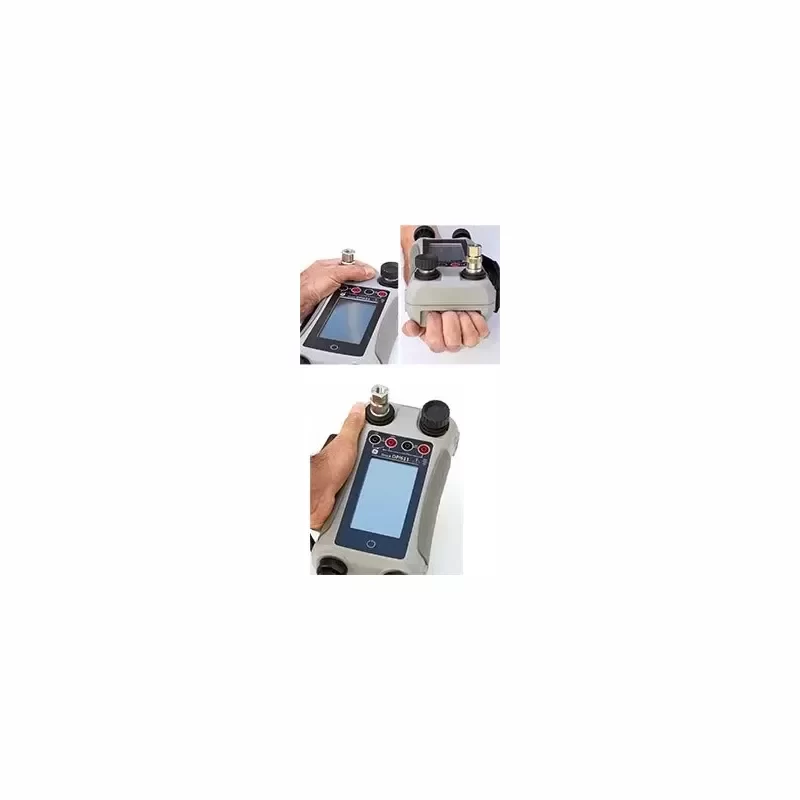

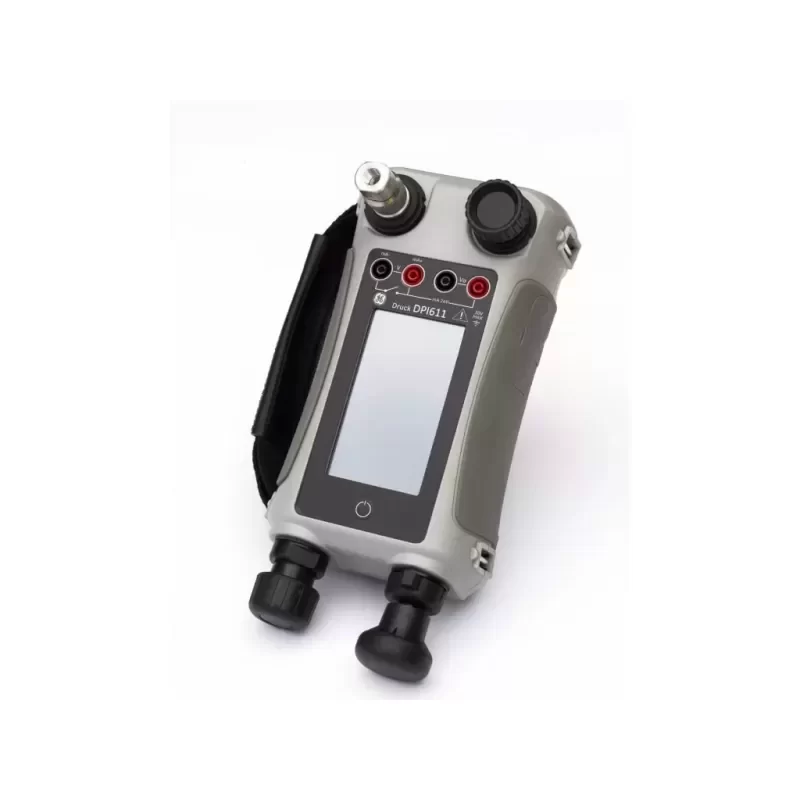

Druck DPI 611-10G Hand-Held Pressure Calibrator Measures Pressure From -14.5 to 100 PSI

Description

The Druck DPI 611-10G represents the sixth generation of the DPI 600 family, delivering a self-contained pressure test and calibration system that integrates pressure generation, signal measurement, and loop power. This precision instrument is designed for high-fidelity field calibration where Original Engineering standards are mandatory for process safety and regulatory compliance.

Technical Specifications:
Manufacturer: Druck (Baker Hughes)
Model Number: DPI 611-10G
Pressure Range: -14.5 to 100 PSI (-1 to 7 bar)
Pressure Type: Gauge
Total Uncertainty: 0.0185% FS (includes non-linearity, hysteresis, and repeatability)
Pressure Media: Non-corrosive gases
Integrated Pressure Generation: Manual hand pump for vacuum and pressure with volume adjuster and fine control
Maximum Working Pressure: 150% FS
Display: 4.3 inch LCD color touchscreen, 480 x 272 pixels
Electrical Measurement: 0 to 50 mA (0.015% RDG), 0 to 30 VDC (0.015% RDG)
Electrical Sourcing: 24 VDC Loop Power (maximum 25 mA)
Switch Test: Open/Closed state detection with automated capture
Interface: USB Type A (Flash drive), USB Type mini-B (PC connection)
Ingress Protection: IP54 (Dust and water splash resistant)
Operating Temperature: -10 to 50 °C
Storage Temperature: -20 to 70 °C
Humidity: 0 to 90% non-condensing
Shock and Vibration: MIL-PRF-28800F Class 2
Dimensions: 190 mm x 110 mm x 71 mm
Weight: 1.1 kg including batteries
Power Supply: 8 x AA Alkaline batteries or optional AC power adapter
Data Logging: Internal memory for 8 GB of data storage
Technical Compatibility: Fully compatible with Druck 4Sight2 Calibration Management Software

Industrial Application:
The Druck DPI 611-10G is specifically utilized in process industries for the verification and calibration of pressure transmitters, transducers, and gauges. Its integrated design solves the critical problem of equipment bulk during field inspections, allowing technicians to generate pressure and record electrical output simultaneously without external pumps or manifolds. The high-density touchscreen interface facilitates rapid ‘three-click’ setup for routine maintenance tasks. Lead Time for this unit is managed to support critical plant turnaround schedules and minimize downtime in oil and gas, pharmaceutical, and power generation sectors.

Key Attributes
Place of origin: China
Model number: DPI 611-10G
Brand name: Druck
Customized support: OEM, ODM
Warranty: 1 years
Product name: Druck
Model: DPI 611-10G
Pressure range: -14.5 to 100 PSI (-1 to 7 BAR)
Internal memory: 8 GB
Operating temperature: -10° to 50°C (14° to 122°F)
Approved: CE marked
Electrical safety: BS EN 61010-1:2010
Size: 270 x 130 x 120mm
Connectivity: USB type A, USB type mini B

Packaging and Delivery
Selling Units: Single item
