Description

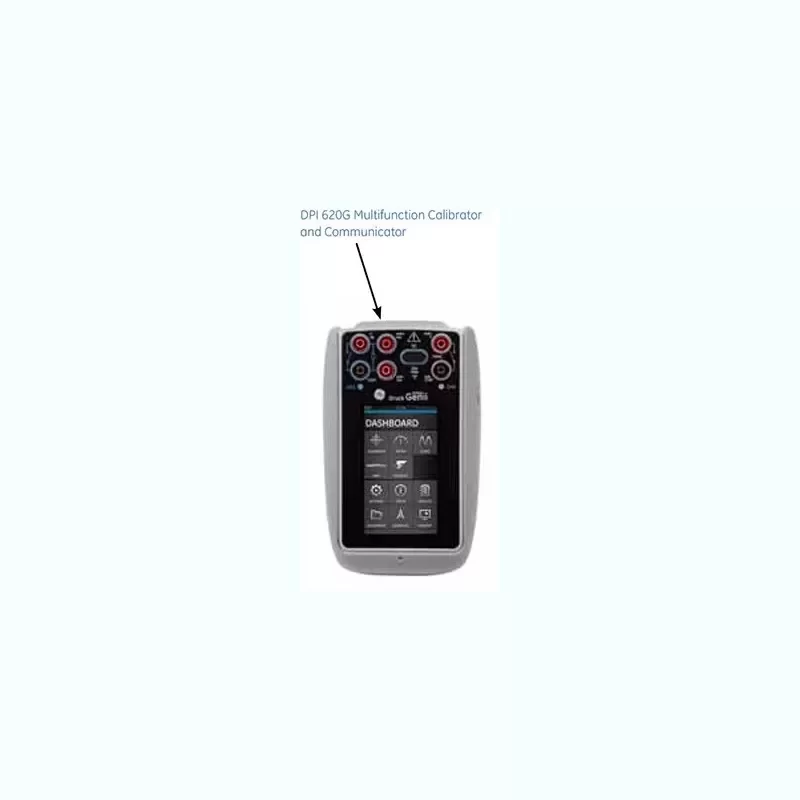

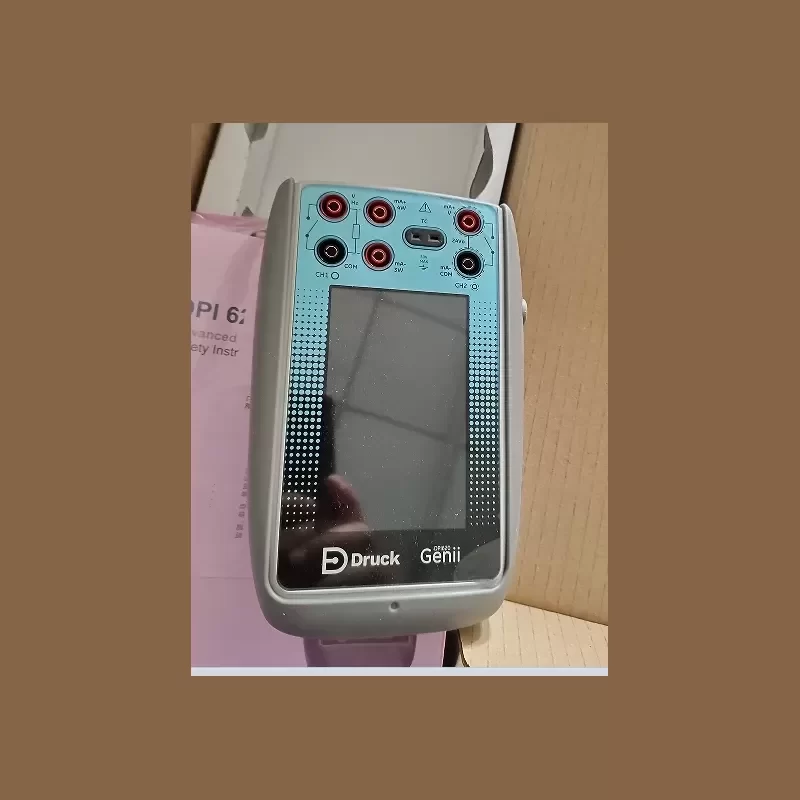

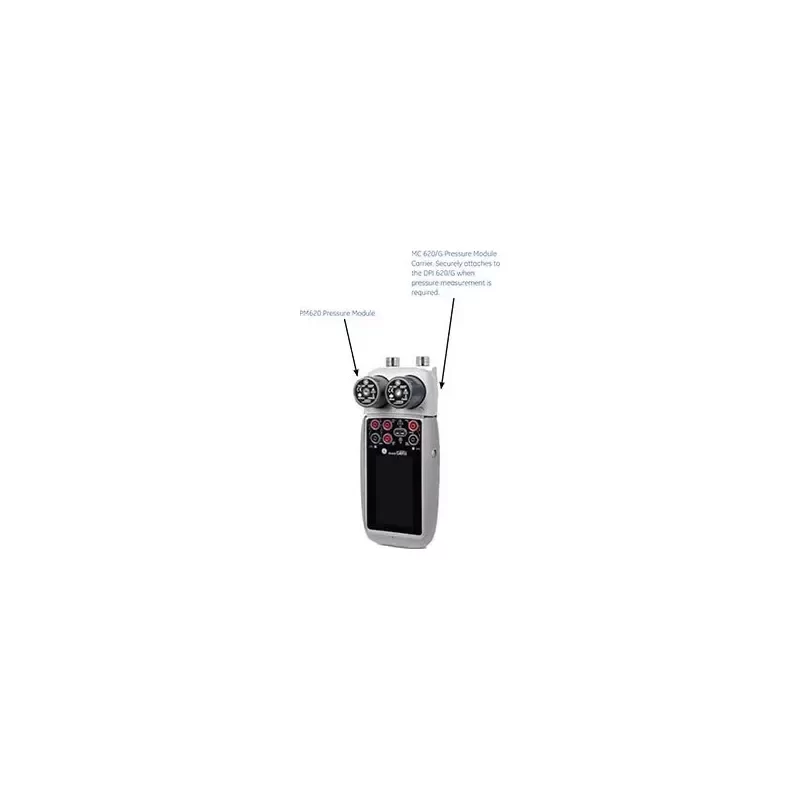

The Druck DPI 620G Genii represents the pinnacle of Original Engineering in the field of portable calibration. This Advanced Modular Calibrator functions as a high-precision multifunction instrument, combining electrical, frequency, and temperature calibration with full HART, Foundation Fieldbus, and Profibus communication capabilities. Its modular design ensures Technical Compatibility with the PM 620 pressure modules and MC 620 pressure carriers, allowing for a seamless transition between pressure ranges without the need for multiple standalone units. This system is engineered for high-density data logging and automated calibration procedures in demanding industrial environments.
Technical Specifications:
Manufacturer: Druck
Series: DPI 620 Genii
Model Number: DPI 620G
Display Type: 110 mm Color Touchscreen
Resolution: 480 x 272 pixels
Ingress Protection: IP54
Operating Temperature: -10 °C to 50 °C
Storage Temperature: -20 °C to 70 °C
Humidity: 0 to 90% non-condensing
DC Voltage Measurement: 0 to 30 V
DC Voltage Sourcing: 0 to 24 V
Current Measurement: 0 to 55 mA
Current Sourcing: 0 to 24 mA
Resistance Measurement: 0 to 4000 Ohms
Resistance Sourcing: 0 to 4000 Ohms
Frequency Range: 0 to 50,000 Hz
RTD Types: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120
Thermocouple Types: K, J, T, N, R, S, B, E, L, U
Digital Communication: HART, Foundation Fieldbus, Profibus PA
Internal Memory: 8 GB User Flash
Interface: USB-A, USB-Mini B
Battery Type: Lithium Polymer
Battery Capacity: 5040 mAh
Dimensions: 183 mm x 114 mm x 42 mm
Weight: 575 g
Application Scenario:
The DPI 620G Genii is critical for the commissioning and maintenance of complex process control loops in the petrochemical and pharmaceutical sectors. In scenarios where a technician must verify a smart pressure transmitter output while simultaneously reconfiguring HART parameters and documenting the calibration for regulatory compliance, this unit eliminates the need for carrying separate communicators and calibrators. Its high-precision electrical sourcing and measurement capabilities solve the problem of signal drift in aging infrastructure, ensuring process safety and optimizing Lead Time for plant shutdowns.
Key Attributes
Place of origin: China
Customized support: OEM, ODM
Brand name: Druck
Warranty: 1 years
Model number: DPI 620G
Product name: Druck pressure calibrator
Model: DPI 620G
Processor: 800 MHz ARM Cortex - A8 Processor
Display LCD: Colour display with touch-screen
Operating temperature: -10° to 50°C (14° to 122°F)
Ingress Protection: IP55
Humidity: 0 to 90% RH Non condensing
Connectivity: USB Type A, USB Type Mini B
Display: 480 x 800 pixels
Power: Electronic
Packaging and Delivery
Selling Units: Single item
Single package size: 48X32X15 cm
Single gross weight: 3.200 kg
