Description
The Druck DPI 880 is a highly versatile, ultra-compact multifunction calibrator designed for testing, configuring, and calibrating process control loops and instrumentation. Engineered for rigorous field environments, this device provides simultaneous dual readings and sources/measures electrical, frequency, temperature, and pressure parameters. Utilizing Original Engineering from Baker Hughes, the DPI 880 ensures uncompromised precision and Technical Compatibility across a vast array of industrial sensors, transmitters, and switches.
Technical Specifications
Brand: Druck
Model: DPI 880
Device Type: Multifunction Calibrator
Measurement Capabilities: mA, mV, V, Ohms, Frequency, RTDs, Thermocouples, Pressure (via IDOS)
Voltage Measurement Range: 0 to 30 V DC (±0.01% reading + 2 counts)
Voltage Source Range: 0 to 12 V DC, 24 V DC loop power
Current Measurement/Source Range: 0 to 24 mA DC (±0.01% reading + 2 counts)
Resistance Measurement Range: 0 to 4000 Ohms
Frequency Range: 0 to 50 kHz
Thermocouple Compatibility: Types K, J, T, B, R, S, E, N, L, U, C, D
RTD Compatibility: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120
Pressure Expansion: Plug-and-play compatible with Universal IDOS pressure modules
Display: Graphic LCD with backlight
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 70°C
Ingress Protection: IP54
Dimensions: 214 mm x 106 mm x 51 mm
Weight: 680 g
Power Supply: 3 x AA alkaline batteries
Battery Life: Up to 50 hours (measurement mode)
Industrial Application & Lifecycle
The DPI 880 is indispensable in petrochemical refineries, power generation plants, and pharmaceutical manufacturing facilities where process uptime is critical. By consolidating multiple single-function tools into one ruggedized unit, technicians can rapidly troubleshoot 4-20 mA loops, simulate RTD/thermocouple signals for DCS verification, and calibrate pressure transmitters on the factory floor. This consolidation significantly reduces maintenance Lead Time and minimizes the risk of process downtime. Its robust architecture and built-in HART loop resistor make it a foundational tool for the lifecycle management of critical plant infrastructure.
Key Attributes
Place of origin: United Kingdom
Customized support: OEM, ODM
Power: Electronic
Brand name: Druck
Warranty: 1 years
Model number: DPI 880
Product name: Druck Frequency Calibrators
Operating temperature: 14 to 122°F (-10 to 50°C)
Range (Measure): 0 to ±30 V
Accuracy: 0.02%
Loop power output: 24 V ± 10% (Maximum: 35 mA)
Size (L: W: H): 7.1 x 3.3 x 2.0 in (180 x 85 x 50 mm)
Weight: 15 oz (425 g)
Warranty: 1 Year
Packaging and Delivery

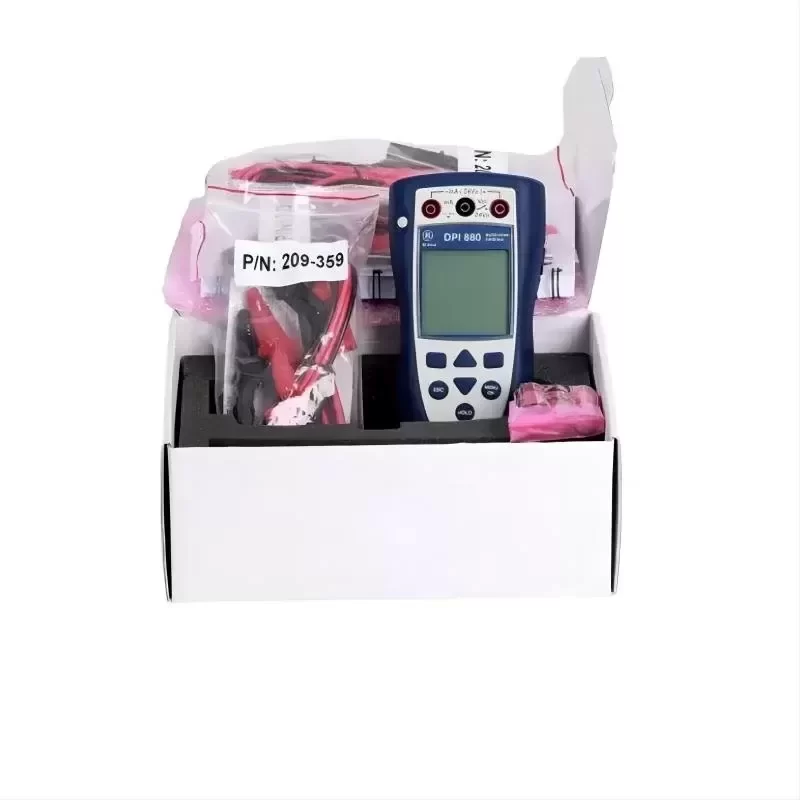

Packaging Details: Cardboard box
Port of dispatch: Shenzhen, China
Selling Units: Single item
