Description

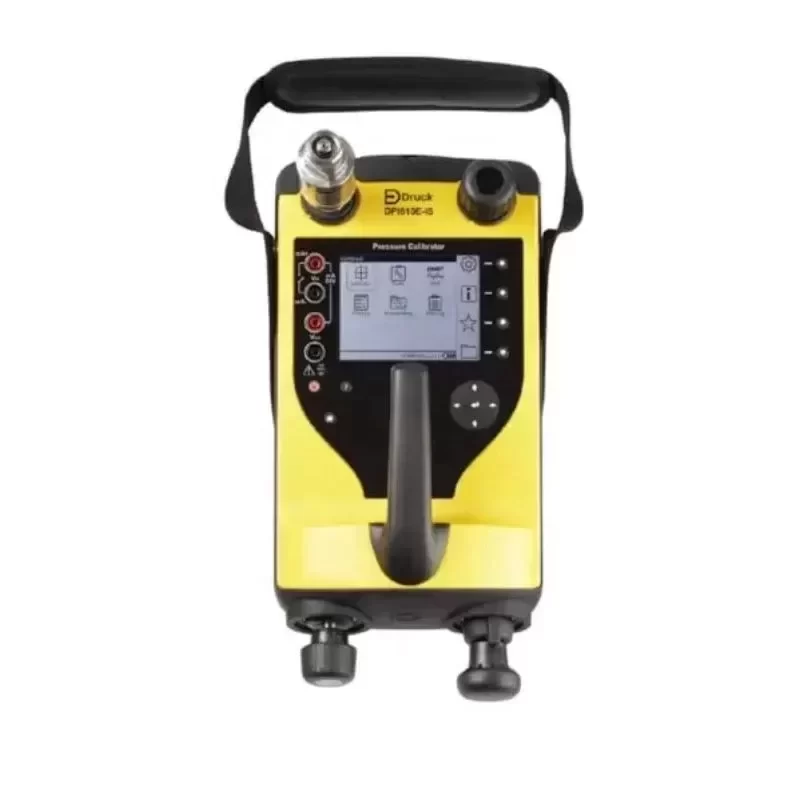

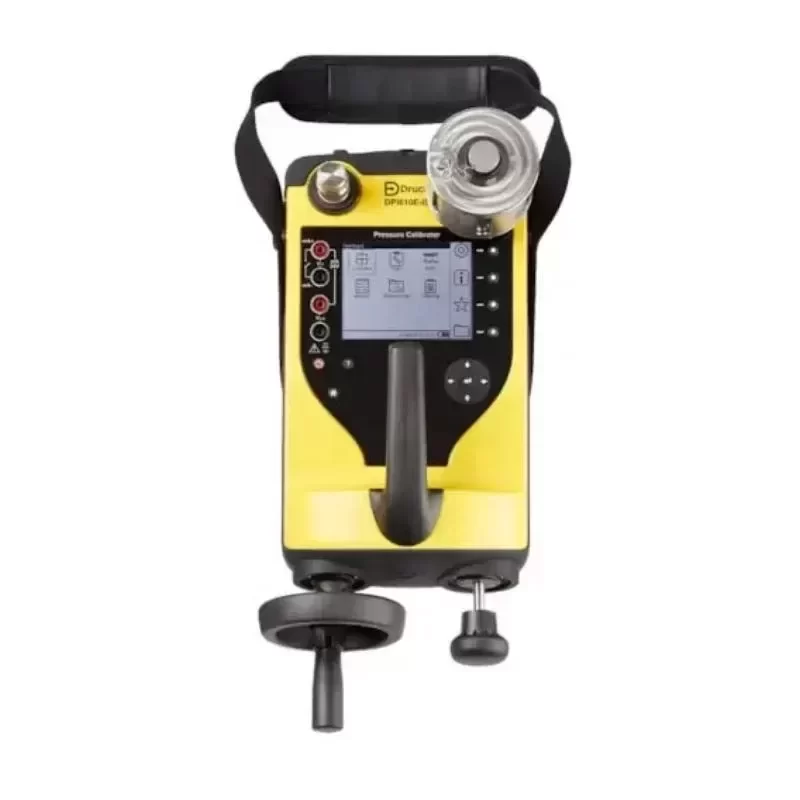

The Druck DPI610E-PC-11G-U0-B0-M represents the next generation of Original Engineering in portable pressure calibration. Designed for high-accuracy pneumatic pressure generation and electrical loop measurement, this unit integrates a highly efficient hand pump, precision volume adjuster, and a comprehensive HART communicator. It is engineered to replace legacy DPI 610/615 models while retaining Technical Compatibility with existing test procedures. The built-in HART configurator allows for direct digital communication, device setup, and trim adjustments in the field without requiring a secondary handheld communicator.
Technical Specifications
Model: DPI610E-PC-11G-U0-B0-M
Pressure Type: Pneumatic Gauge
Pressure Range: -1 to 20 bar (-14.5 to 300 psi)
Pressure Accuracy: ± 0.025% Full Scale
Pump Mechanism: Integrated pneumatic hand pump with volume adjuster and release valve
Electrical Measurement: 0 to 55 mA, 0 to 30 VDC, mV, Ohms, Hz
Electrical Source: 0 to 24 mA, 10 VDC, 24V Loop Power
Communication Protocol: Integrated HART Configurator (Full Device Description Library)
Display: High-resolution color touchscreen with tactile keypad
Battery Type: Rechargeable Lithium-Ion
Battery Life: Up to 90 hours continuous operation
Ingress Protection: IP54
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 70°C
Weight: 3.4 kg
Data Interface: USB, Internal Data Logging
Industrial Application
This calibrator is specifically designed for the commissioning, routine maintenance, and troubleshooting of smart pressure transmitters in petrochemical refineries, pharmaceutical plants, and power generation facilities. By combining pneumatic pressure generation up to 20 bar with full HART configuration capabilities, instrumentation technicians can perform closed-loop calibrations, adjust zero/span trims, and verify loop integrity at the process connection. This eliminates the need for multiple instruments, reducing downtime and optimizing Lead Time during critical plant turnarounds.
Key Attributes
Place of origin: China
Customized support: OEM, ODM
Brand name: Druck
Warranty: 1 years
Model number: DPI610E-PC-11G-U0-B0-M
Pressure Range: 10 bar/150 psi/1000 kPa gauge pressure
NLHR (24hr): 0.018%
Gauge -10 to 50 °C: 0.025%
Media compatibility: 316L Stainless Steel and Hastelloy C276
Operating temperature: -10° to 50°C (14° to 122°F)
Ingress protection: IP 54
Power: Electronic
Packaging and Delivery
Selling Units: Single item
Single package size: 46X30X26 cm
Single gross weight: 4.000 kg
