Description

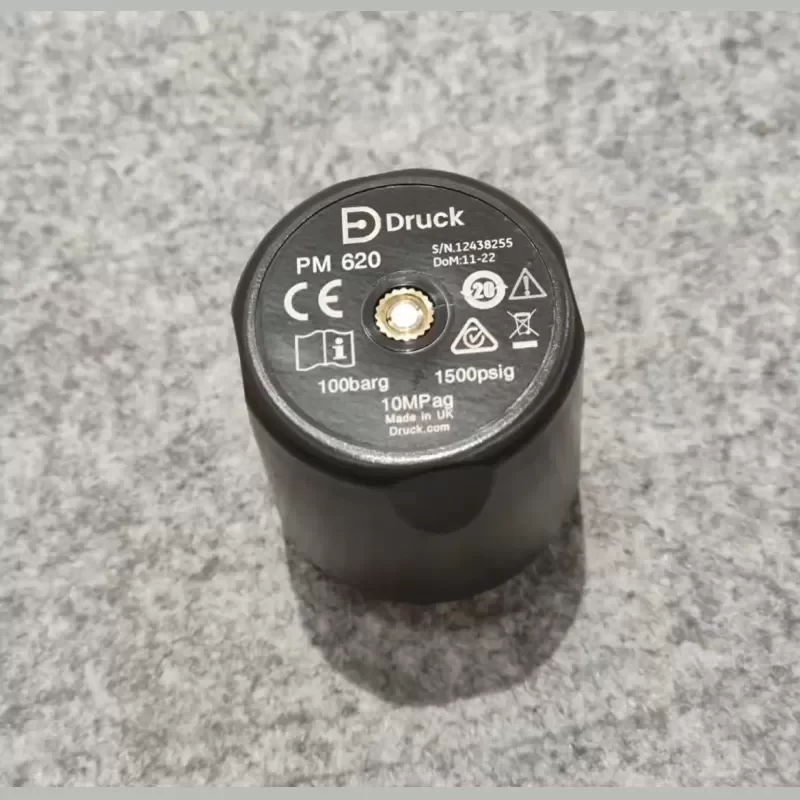

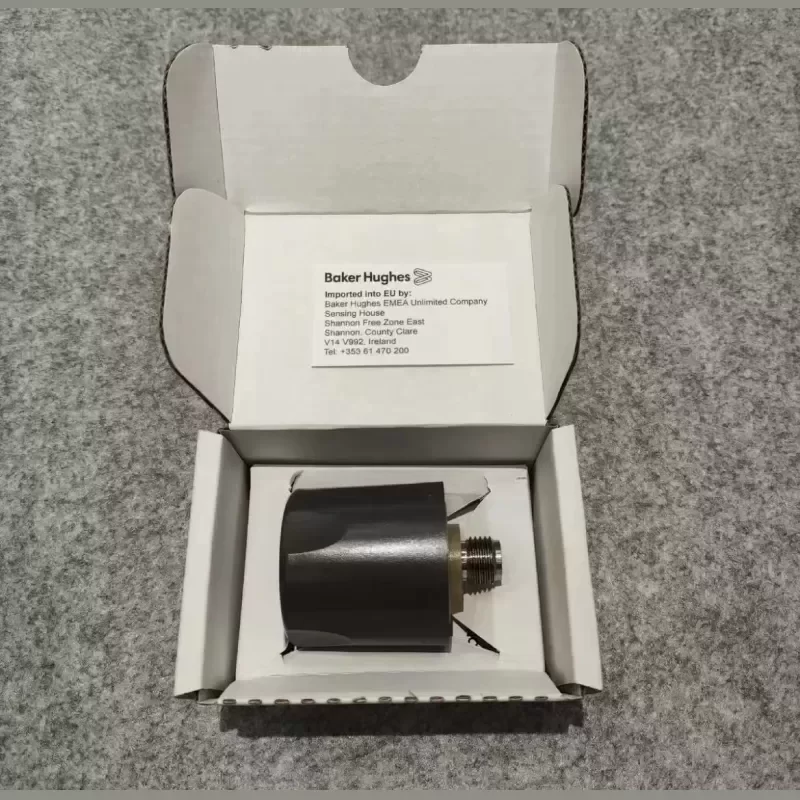

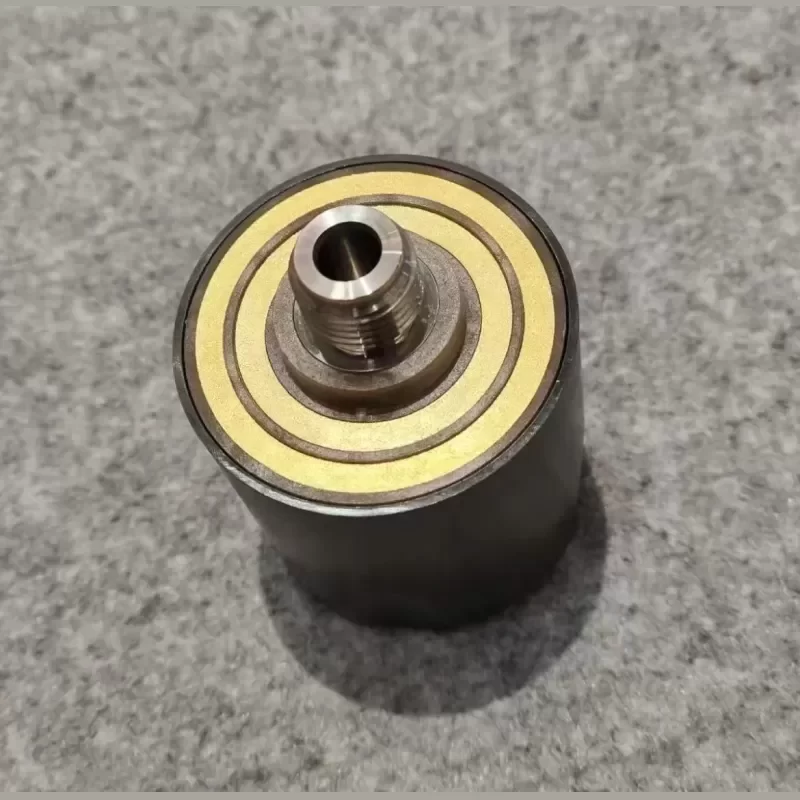

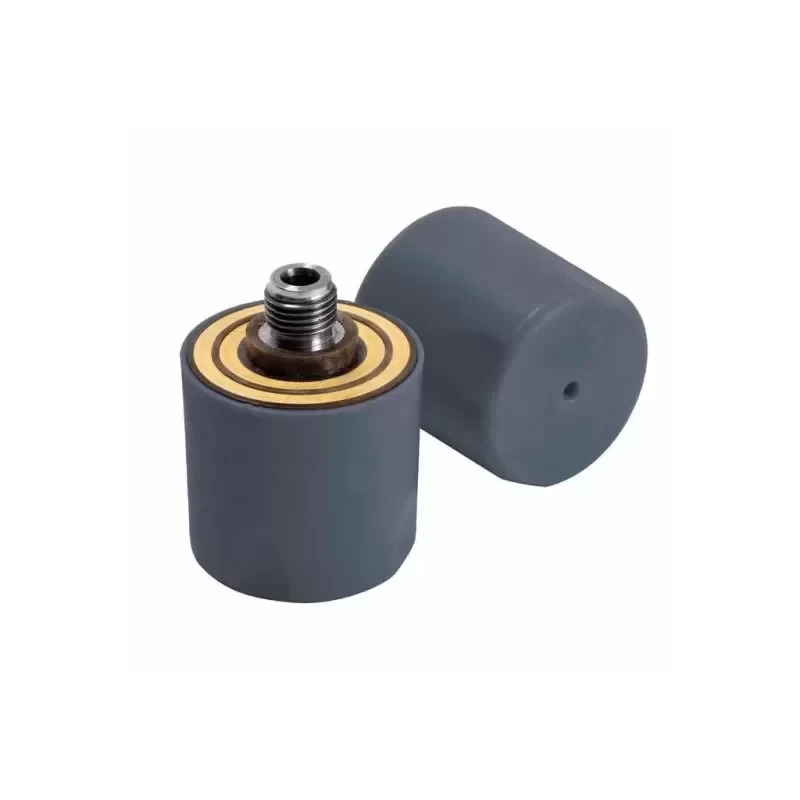

The Druck PM620-22A and PM620-165G are high-precision, interchangeable pressure modules engineered for the DPI 620 Genii advanced modular calibrator system. Designed for seamless field integration, these modules deliver fully isolated pressure measurement up to 700 bar (10000 PSIA). Utilizing advanced silicon sensor technology, they provide Original Engineering accuracy for critical calibration and diagnostic tasks without the need for tools or complex setup procedures.
Technical Specifications
Brand: Druck (Baker Hughes)
Model: PM620-22A / PM620-165G
Component Type: Interchangeable Pressure Calibrator Module
Pressure Range: 0 to 700 bar (0 to 10000 PSIA)
Pressure Reference: Absolute (22A) / Gauge (165G)
Accuracy: ± 0.025% Full Scale (FS)
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 70°C
Temperature Effects: ± 0.001% FS/°C
Ingress Protection: IP65
Pressure Connection: Tool-less quick fit connection
Media Compatibility: Fluids and gases compatible with 316L stainless steel
System Compatibility: DPI 620 Genii, DPI 612 series, AMC
Weight: 0.1 kg
Industrial Application
These modules are purpose-built for heavy industrial environments, petrochemical refineries, and power generation facilities where precise high-pressure calibration is mandatory. The plug-and-play architecture allows technicians to perform rapid pressure range changes directly in the field. This eliminates the need to carry multiple dedicated instruments, optimizing workflow and ensuring Technical Compatibility across various testing stations.
Procurement and Lifecycle
Maintaining calibration integrity requires genuine components. These modules ensure Original Engineering performance and long-term stability. Lead Time is optimized through global distribution networks, ensuring rapid deployment for critical maintenance schedules.
Key Attributes
Place of origin: U.K.
Model number: PM620-22A
Brand name: Druck
Customized support: OEM, ODM
Material: Plastic + iron
Warranty: 1 years
Product Name: Druck Pressure Module
Model: PM620-22A
Maximum Intermittent Pressure: 2 x FS
Maximum Working Pressure: 110% FS
Sealing: IP 65 (Protected against dust and jets of water)
Operating Temperature: -10° - 50°C (14° - 122°F)
Pressure Safety: Pressure equipment Directive Class
Approval: CE marked
Resolution (pressure): 10000 psi
Country of Origin: United Kingdom
Packaging and Delivery
Selling Units: Single item
Single package size: 28X26X11 cm
Single gross weight: 2.300 kg
