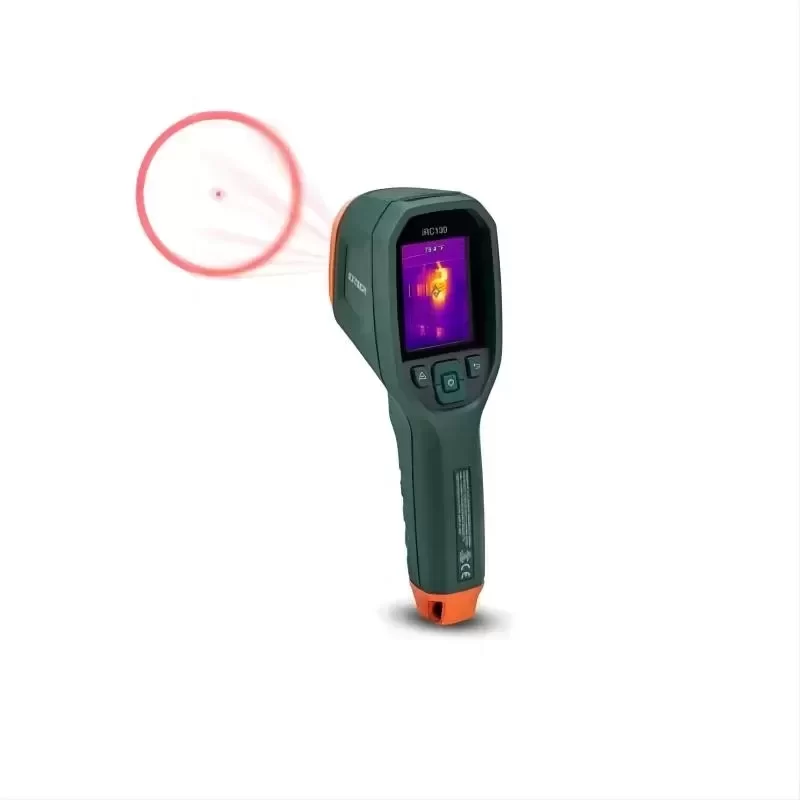

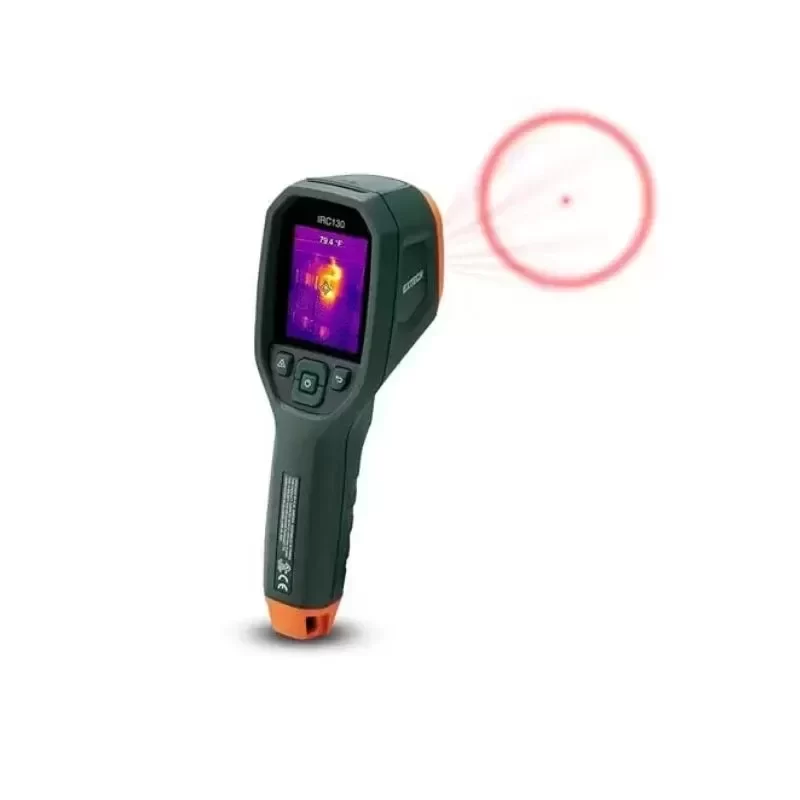

Extech IRC130 Thermal Imager IR Thermometer with MSX

Description

The Extech IRC130 is an industrial-grade Thermal Imager and Infrared (IR) Thermometer equipped with proprietary FLIR MSX (Multi-Spectral Dynamic Imaging) technology. Engineered for precision diagnostics, this device bridges the gap between standard spot pyrometers and full-resolution thermal cameras, providing critical temperature data for predictive maintenance and troubleshooting.

Technical Specifications:
Brand: Extech
Model Number: IRC130
IR Resolution: 80 x 60 pixels (4,800 measurement points)
Temperature Measurement Range: -25°C to 650°C
Thermal Sensitivity (NETD): < 70 mK
Field of View (FOV): 51° x 38°
Distance to Spot Ratio (D:S): 71:1
Basic Accuracy: ±1°C or ±1% of reading
Emissivity: Adjustable 0.10 to 0.99
Display: 2.4-inch TFT color LCD
Image Enhancement: MSX Technology (embosses visual details onto thermal image)
Power Source: Rechargeable 3.6V Lithium-ion battery
Environmental Protection: IP54
Drop Resistance: 2 meters
Weight: 0.39 kg

Industrial Application:

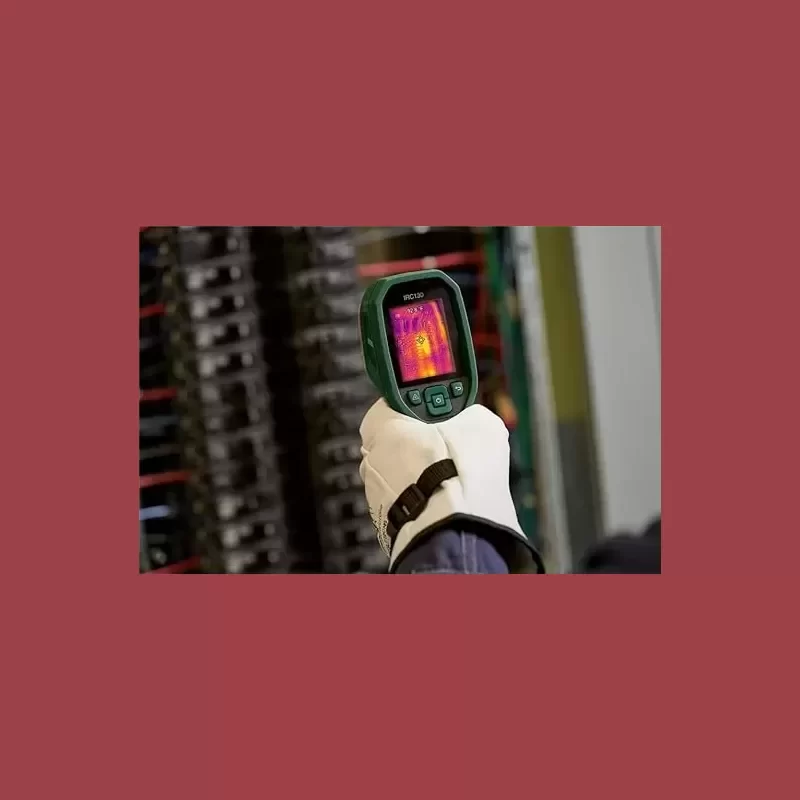

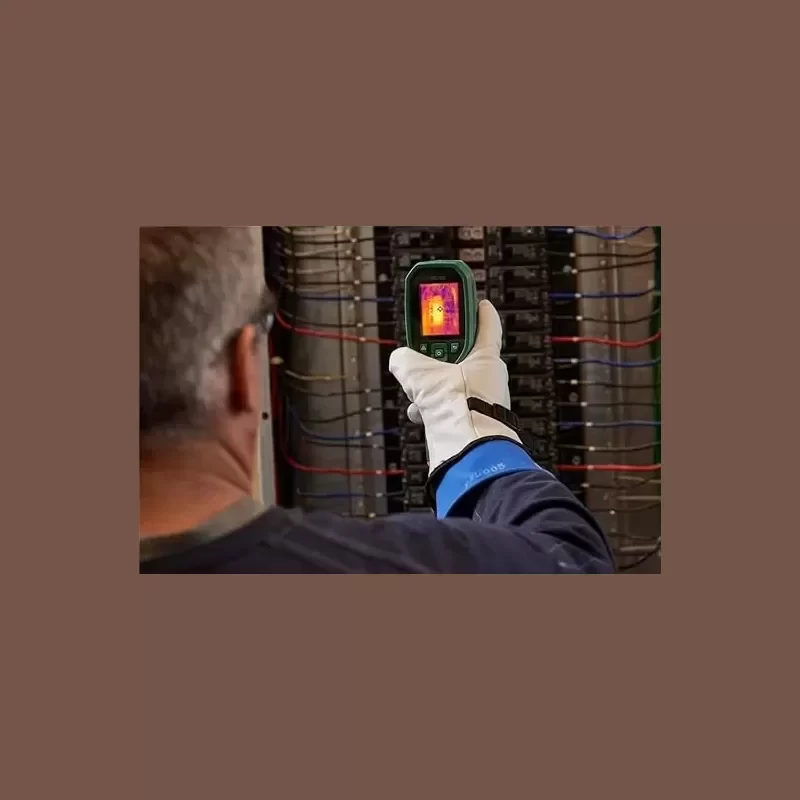

The IRC130 is specifically designed for high-density electrical panel inspections, HVAC system diagnostics, and mechanical component monitoring. By utilizing MSX technology, the imager overlays visual edge details onto the thermal image. This allows maintenance engineers to read component labels, wire numbers, and structural outlines directly on the thermal display, isolating overheating relays or unbalanced phases in complex switchgear without secondary visual inspections.

Procurement and Lifecycle Data:
Original Engineering: Authentic Extech (FLIR) manufacturing ensures factory-calibrated thermal accuracy and sensor longevity.
Technical Compatibility: Functions as a standalone diagnostic tool, compatible with standard industrial safety protocols requiring non-contact high-temperature measurement.
Lead Time: Original in Stock, verified for immediate global dispatch to support urgent facility maintenance requirements.

Key Attributes
Place of Origin: China
Model Number: IRC130
Brand Name: Extech
Product name: Extech
Model: IRC130
Temperature Range: -13 to 1202°F (-25 to 650°C)
Basic Accuracy: ±1%
Image Storage Capacity: 50,000 JPEG images
Response Time: 150 ms
IR Resolution: 80 x 60 (4800 pixels)
Display Resolution: 320 x 240 pixels
Image Frequency: 8.7 Hz
IP Rating: IP54 (IEC 60529)

Packaging and Delivery
Selling Units: Single item
Single package size: 32X21X15 cm
Single gross weight: 1.800 kg
