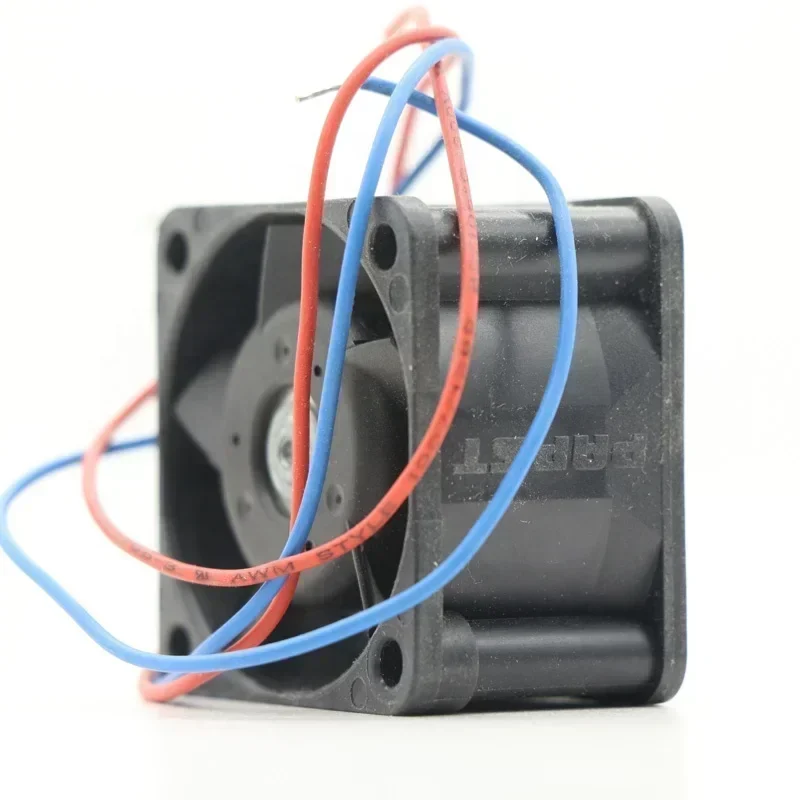

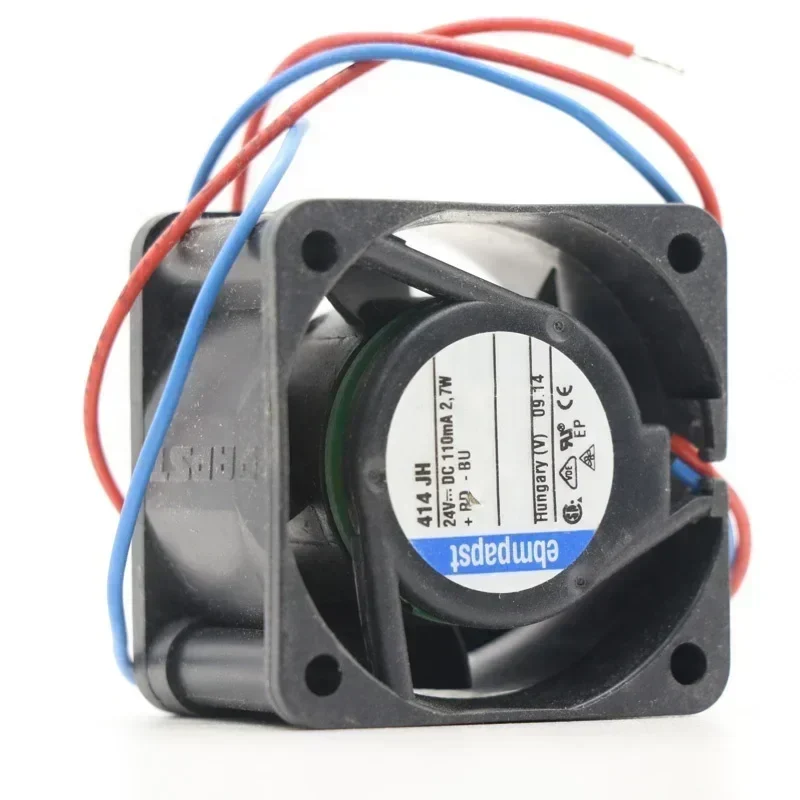

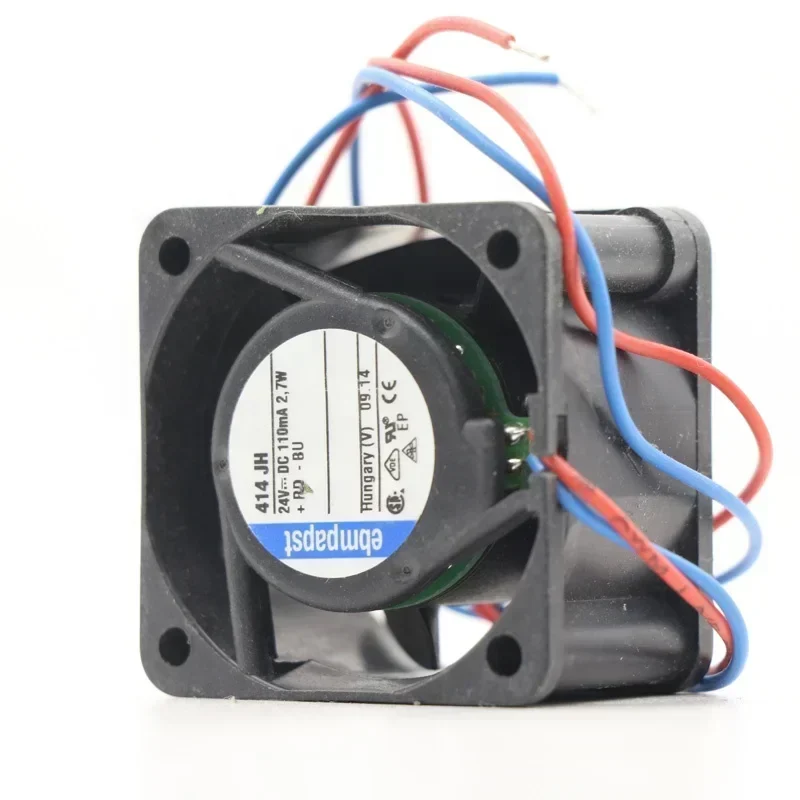

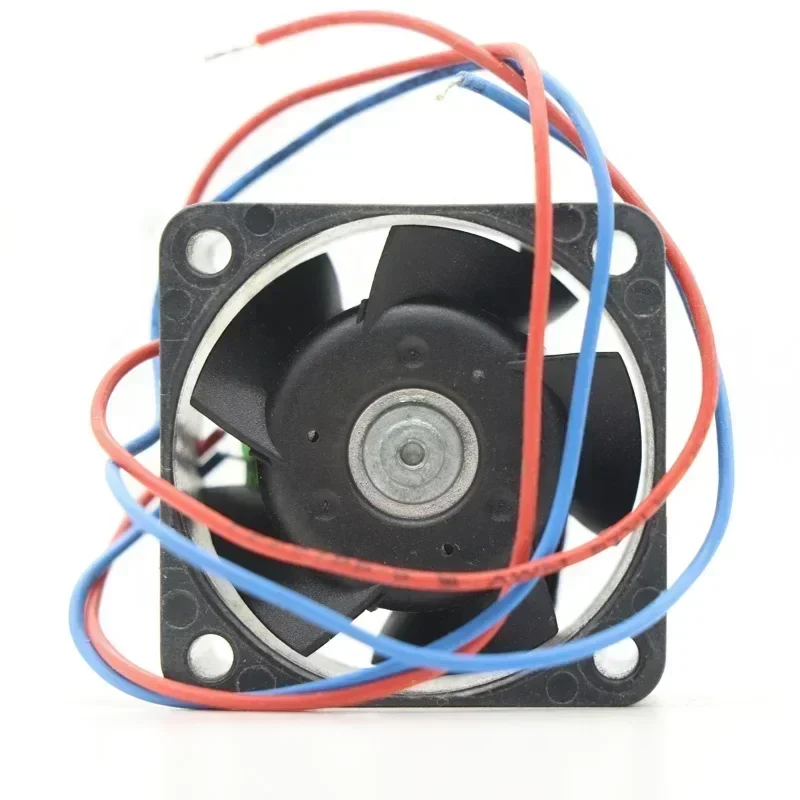

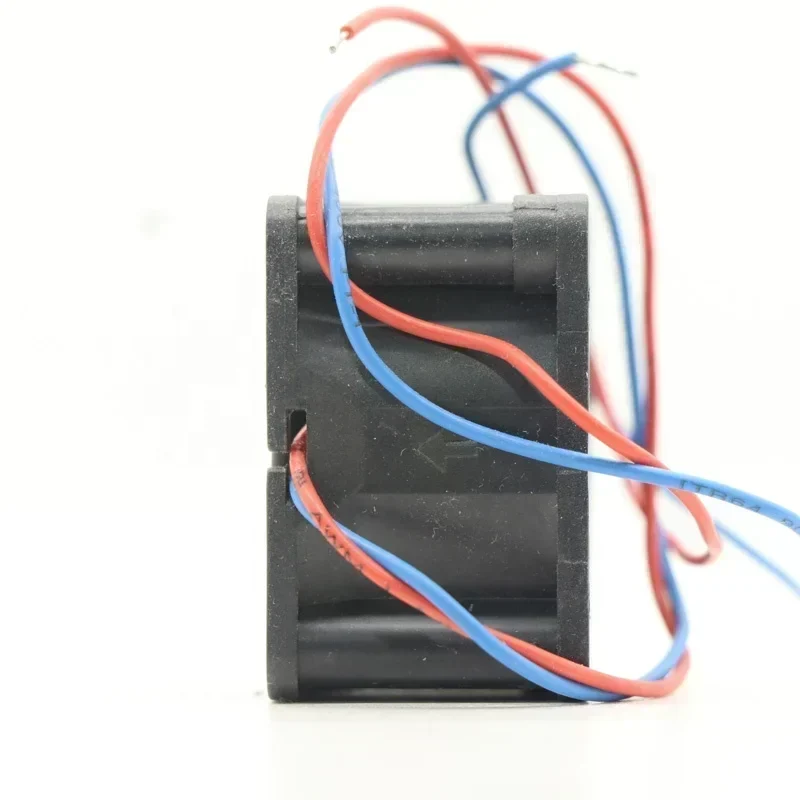

ebmpapst 414JH 40 x 40 x 25.4mm 24 V DC 3W 125mA 22m3/h 11700rpm Axial Fan
ebmpapst 414JH 40 x 40 x 25.4mm 24 V DC 3W 125mA 22m3/h 11700rpm Axial Fan
ebmpapst 414JH 40 x 40 x 25.4mm 24 V DC 3W 125mA 22m3/h 11700rpm Axial Fan
ebmpapst 414JH 40 x 40 x 25.4mm 24 V DC 3W 125mA 22m3/h 11700rpm Axial Fan
ebmpapst 414JH 40 x 40 x 25.4mm 24 V DC 3W 125mA 22m3/h 11700rpm Axial Fan
ebmpapst 414JH 40 x 40 x 25.4mm 24 V DC 3W 125mA 22m3/h 11700rpm Axial Fan

ebmpapst 414JH 40 x 40 x 25.4mm 24 V DC 3W 125mA 22m3/h 11700rpm Axial Fan

$17.86

SKU: 1601111717016 Brand:

Description

The ebm-papst 414JH represents the pinnacle of high-performance thermal management in a compact 40 x 40 x 25.4 mm form factor. Engineered for demanding industrial environments, this DC axial fan delivers exceptional pressure-to-volume flow characteristics, making it the premier choice for localized hot-spot cooling in high-density electronic enclosures.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: 414JH
Product Type: DC Axial Compact Fan
Nominal Voltage: 24 V DC
Voltage Range: 12 to 28 V DC
Power Consumption: 3.0 W
Nominal Current: 125 mA
Nominal Speed: 11700 rpm
Maximum Airflow: 22 m³/h
Sound Pressure Level: 46 dB(A)
Sound Power Level: 5.8 Bel(A)
Bearing Type: Dual Ball Bearing
Service Life L10 at 40 °C: 70000 hours
Service Life L10 at Maximum Temperature: 35000 hours at 70 °C
Housing Material: Fiberglass-reinforced plastic (PBT)
Impeller Material: Fiberglass-reinforced plastic (PA)
Direction of Rotation: Clockwise, looking at rotor
Direction of Airflow: Exhaust over struts
Electrical Connection: 2 single strands AWG 26, TR 64
Motor Protection: Protected against reverse polarity and locking
Approvals: VDE, CSA, UL, CE
Weight: 0.05 kg
Dimensions: 40 x 40 x 25.4 mm

Industrial Application Scenario:
In modern industrial automation, variable frequency drives (VFDs) and compact solar inverters generate intense localized heat within sealed IP-rated control cabinets. Standard cooling solutions often fail due to space constraints and high static pressure resistance. The ebm-papst 414JH solves this critical thermal bottleneck. Operating at 11700 rpm, it generates the necessary static pressure to force cooling air through densely packed semiconductor heatsinks, preventing thermal runaway and extending the operational lifespan of critical power electronics.

Commercial & Integration Value:
Original Engineering: This unit features ebm-papst Original Engineering, ensuring exact aerodynamic balance, optimized blade geometry, and premium dual ball bearings that withstand continuous 24/7 duty cycles.
Technical Compatibility: Designed for seamless drop-in Technical Compatibility with legacy 40mm cooling slots in major industrial inverter brands, minimizing system modification costs.
Lead Time: Contact our global sales engineering team for real-time inventory status, volume discounts, and optimized Lead Time schedules for scheduled maintenance turnarounds.

Key Attributes
Voltage: 24(V)
Mounting type: Free Standing
Type: Dc cooling fan
Warranty: 1 Year
Power Source: Electric
Blade material: PA Plastic Impeller
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: 414JH
Product name: 414JH
Nominal voltage: 24V
Bearing Type: Ball Bearing
Power consumption: 3 (w)
Current: 125(mA)
Speed: 11700 (r/min)
Air volume: 22m3/h
Model: DC
Noise: 43dB(A)

Packaging and Delivery
Selling Units: Single item
Single package size: 15X11X11 cm
Single gross weight: 0.300 kg

ebmpapst 414JH 40 x 40 x 25.4mm 24 V DC 3W 125mA 22m3/h 11700rpm Axial Fan

ebmpapst 414JH 40 x 40 x 25.4mm 24 V DC 3W 125mA 22m3/h 11700rpm Axial Fan

ebmpapst 414JH 40 x 40 x 25.4mm 24 V DC 3W 125mA 22m3/h 11700rpm Axial Fan

ebmpapst 414JH 40 x 40 x 25.4mm 24 V DC 3W 125mA 22m3/h 11700rpm Axial Fan

ebmpapst 414JH 40 x 40 x 25.4mm 24 V DC 3W 125mA 22m3/h 11700rpm Axial Fan

ebmpapst 414JH 40 x 40 x 25.4mm 24 V DC 3W 125mA 22m3/h 11700rpm Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
