$8.00

SKU: 62074255506 Brand:

Description

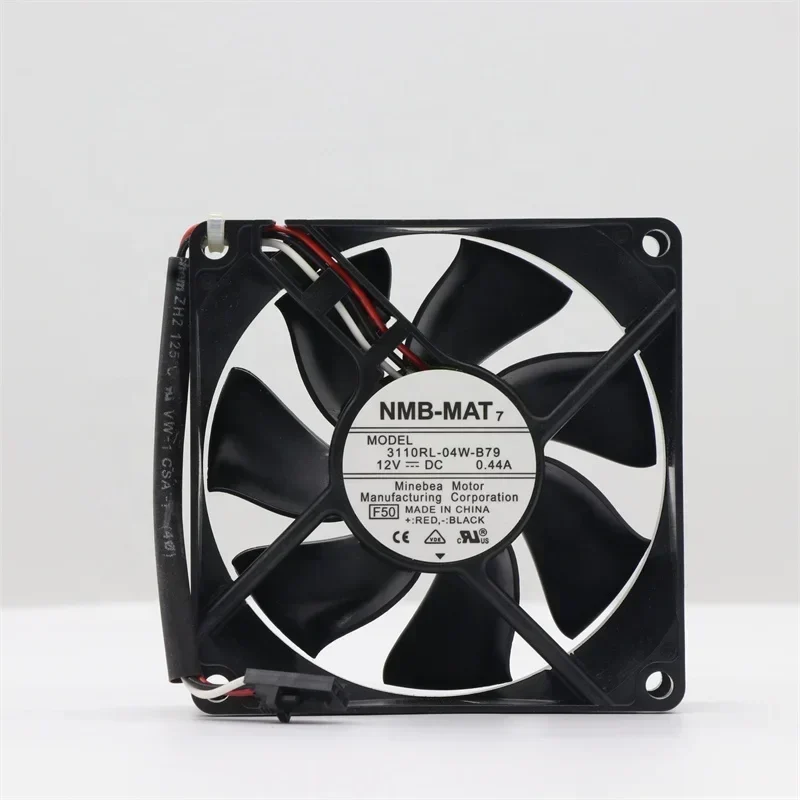

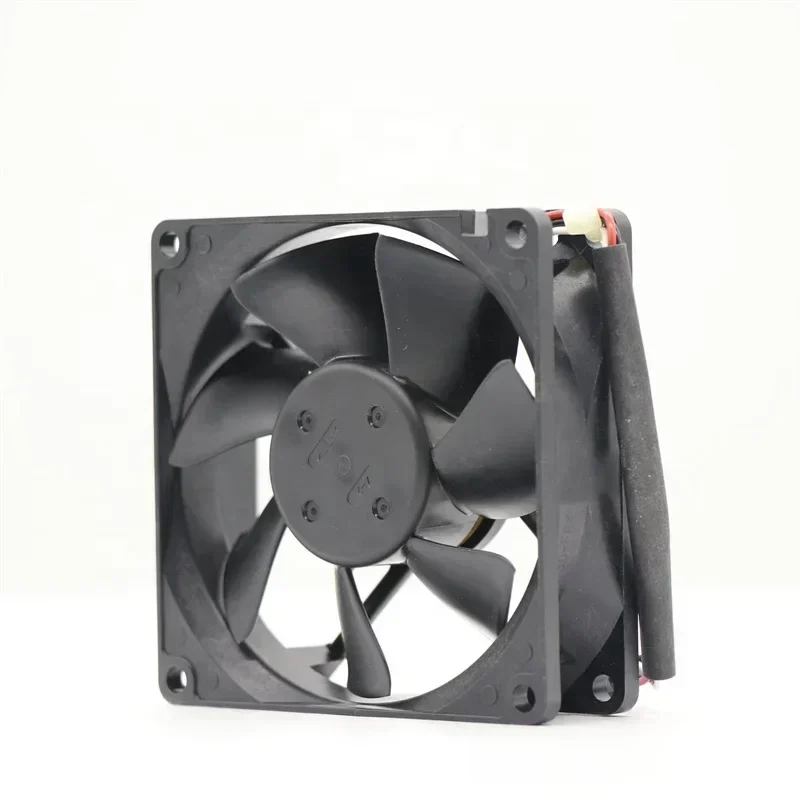

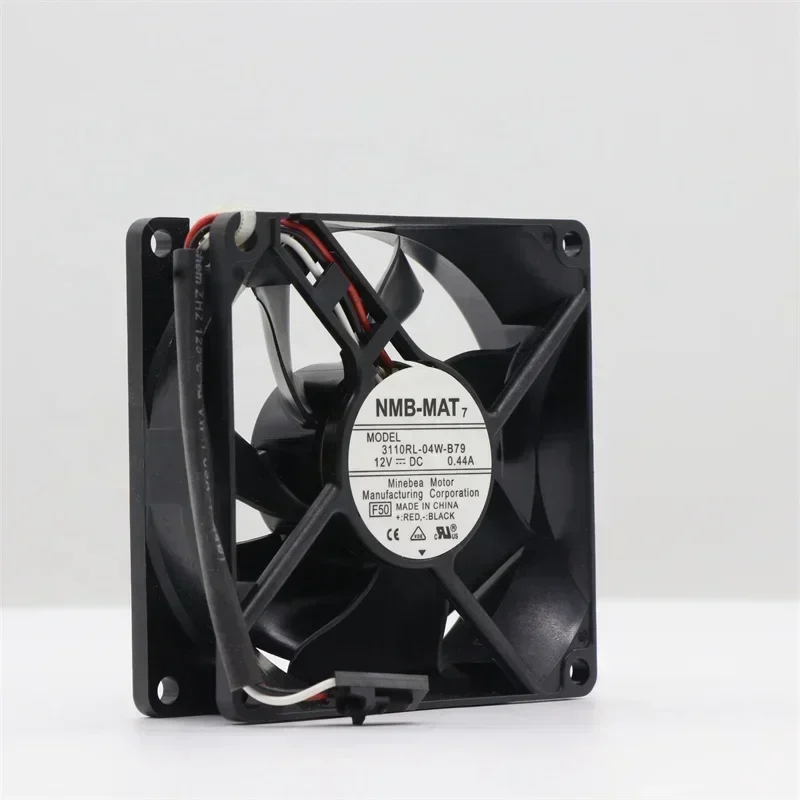

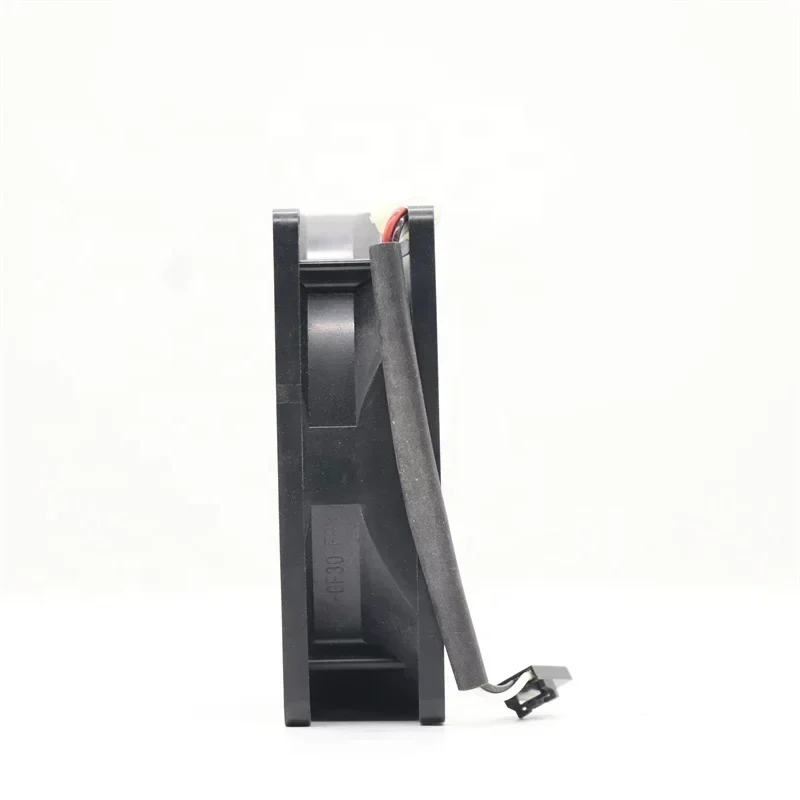

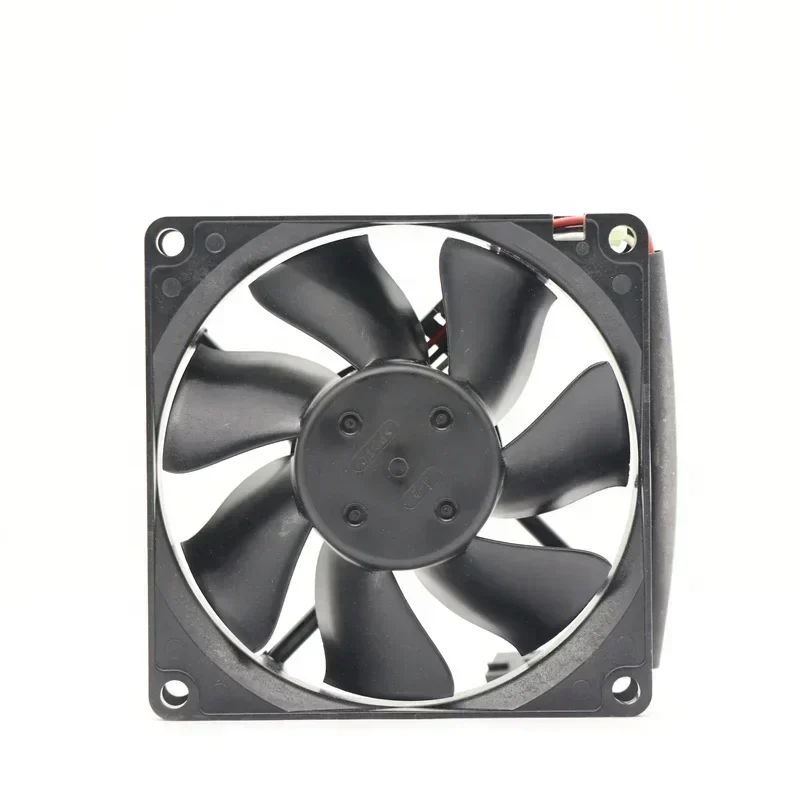

The NMB 3110RL-04W-B79 is a high-performance DC axial cooling fan engineered for rigorous thermal management in industrial chassis and power supply applications. Manufactured by MinebeaMitsumi, this 80x80x25mm unit delivers optimized airflow and static pressure, ensuring operational stability for heat-sensitive electronic components.

Technical Specifications:
Brand: NMB Technologies
Model Number: 3110RL-04W-B79
Fan Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.8V DC
Rated Current: 0.44A
Power Consumption: 5.28W
Bearing System: Double Ball Bearing
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Weight: 95g

Engineering & Material Profile:
Constructed with a UL94V-0 flammability-rated plastic frame and impeller, this fan guarantees durability in demanding environments. The integration of a precision double ball bearing system significantly extends the lifecycle, offering up to 70,000 hours of continuous operation at 25°C. The aerodynamic blade design minimizes acoustic noise while maximizing volumetric airflow (m³/min), providing an efficient cooling solution without compromising acoustic standards.

Industrial Application & Technical Compatibility:
Specifically designed for integration into server chassis, industrial power supplies, telecommunications equipment, and automated control cabinets. The 3110RL-04W-B79 resolves critical thermal bottlenecks by rapidly dissipating heat from densely packed enclosures. Its standard 8025 form factor ensures seamless Technical Compatibility with existing mounting profiles, making it an ideal drop-in replacement or OEM component.

Procurement Information:
We supply Original Engineering components directly from authorized channels. Contact our technical sales team to confirm current Lead Time, volume pricing, and global shipping options for the NMB 3110RL-04W-B79.

Key Attributes
Voltage: 12V)
Material: Plastic
Mounting type: Free Standing
Type: Dc cooling fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: Japan
Brand name: NMB
Model number: 3110RL-04W-B79
Type: Axial Fan
Nominal voltage: 12 V
Bearing Type: Ball Bearing
Power consumption: 5.28 (w)
Air flow: 13.7cfm
Current: 0.44(A)
Speed: 5450 r/min
Bearing system: BALL
Termination: 3-Wire
Noise: 55.6DBA

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X11 cm
Single gross weight: 1.000 kg

NMB 8025 8cm 12V DC 0.44A 3110RL-04W-B79 80x80x25mm Double Chassis Power Supply Axial Fan

NMB 8025 8cm 12V DC 0.44A 3110RL-04W-B79 80x80x25mm Double Chassis Power Supply Axial Fan

NMB 8025 8cm 12V DC 0.44A 3110RL-04W-B79 80x80x25mm Double Chassis Power Supply Axial Fan

NMB 8025 8cm 12V DC 0.44A 3110RL-04W-B79 80x80x25mm Double Chassis Power Supply Axial Fan

NMB 8025 8cm 12V DC 0.44A 3110RL-04W-B79 80x80x25mm Double Chassis Power Supply Axial Fan

NMB 8025 8cm 12V DC 0.44A 3110RL-04W-B79 80x80x25mm Double Chassis Power Supply Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
