$14.29

SKU: 887278740551 Brand:

Description

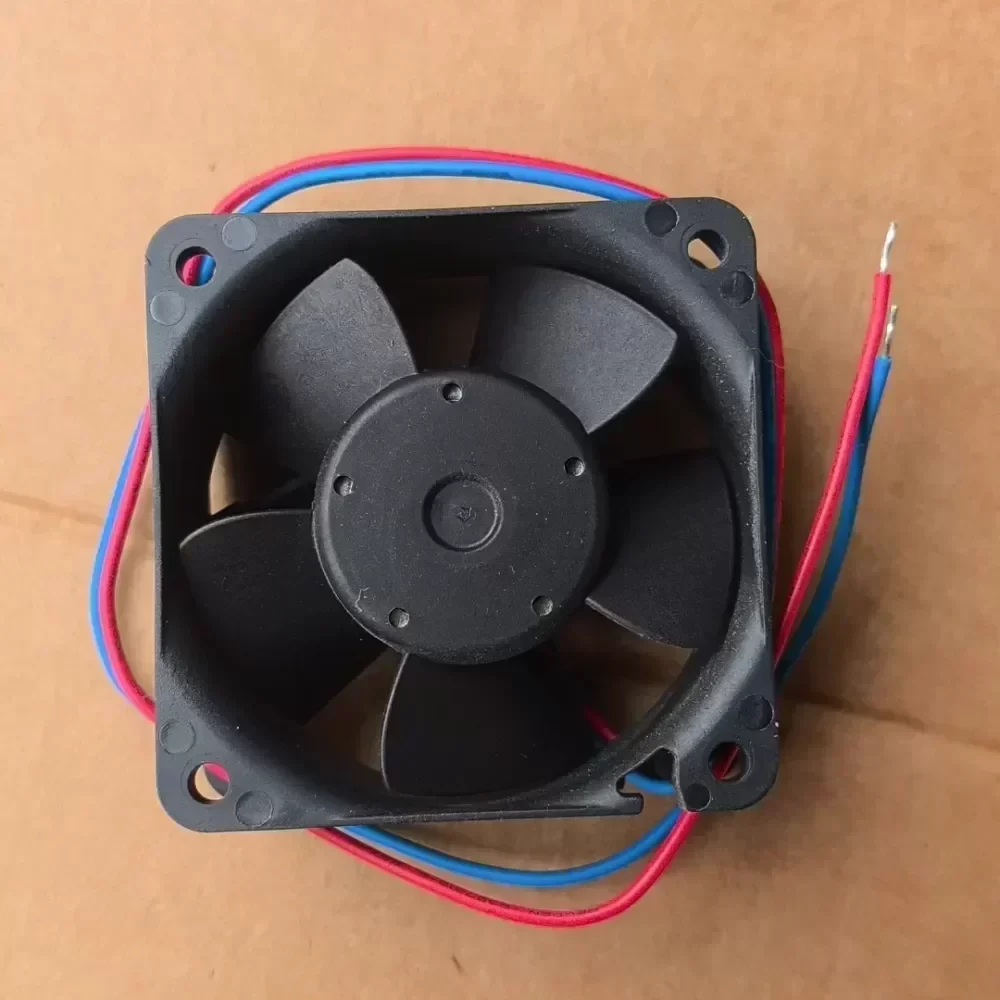

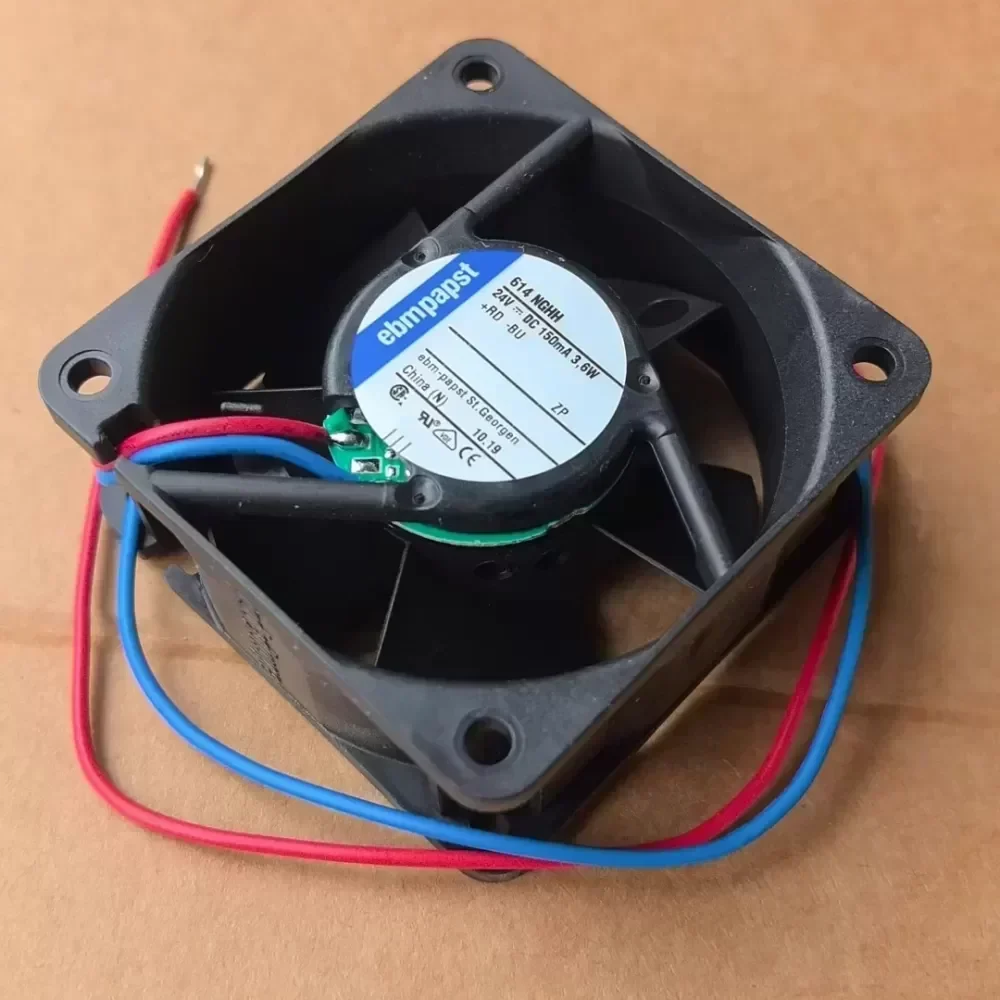

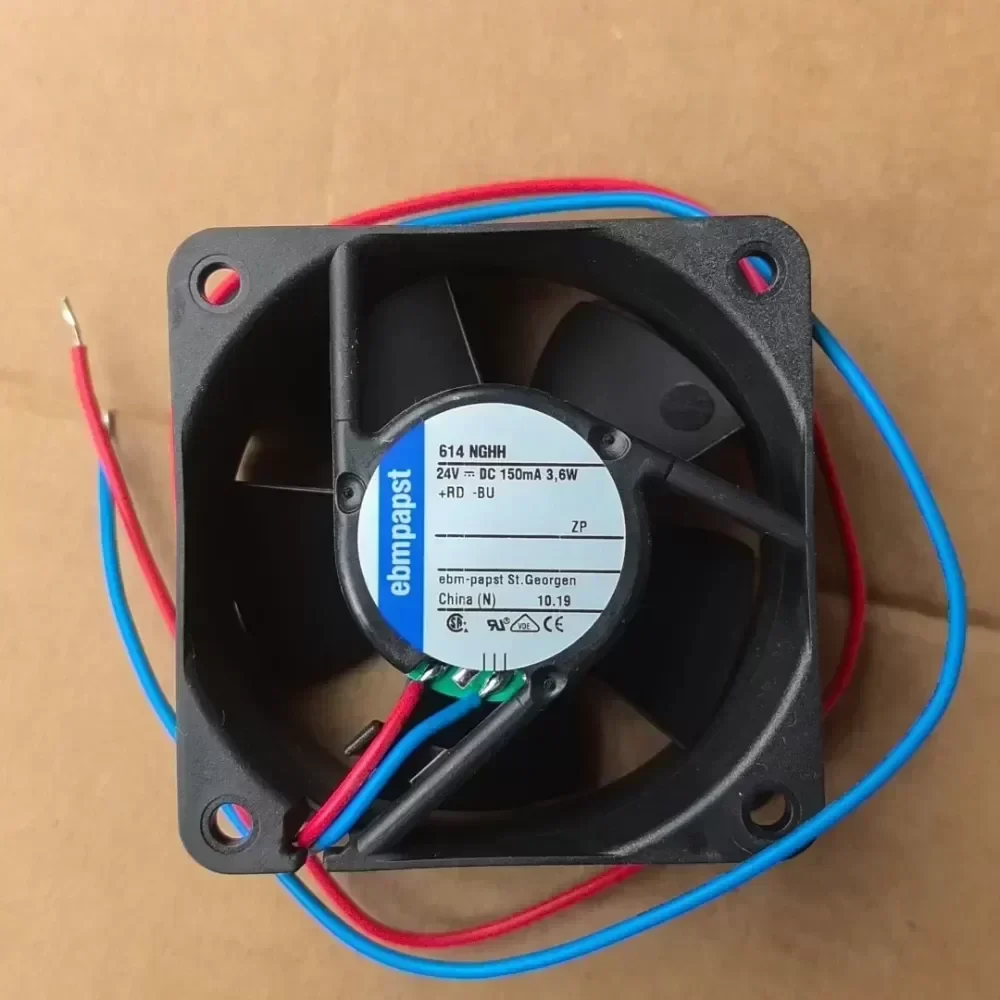

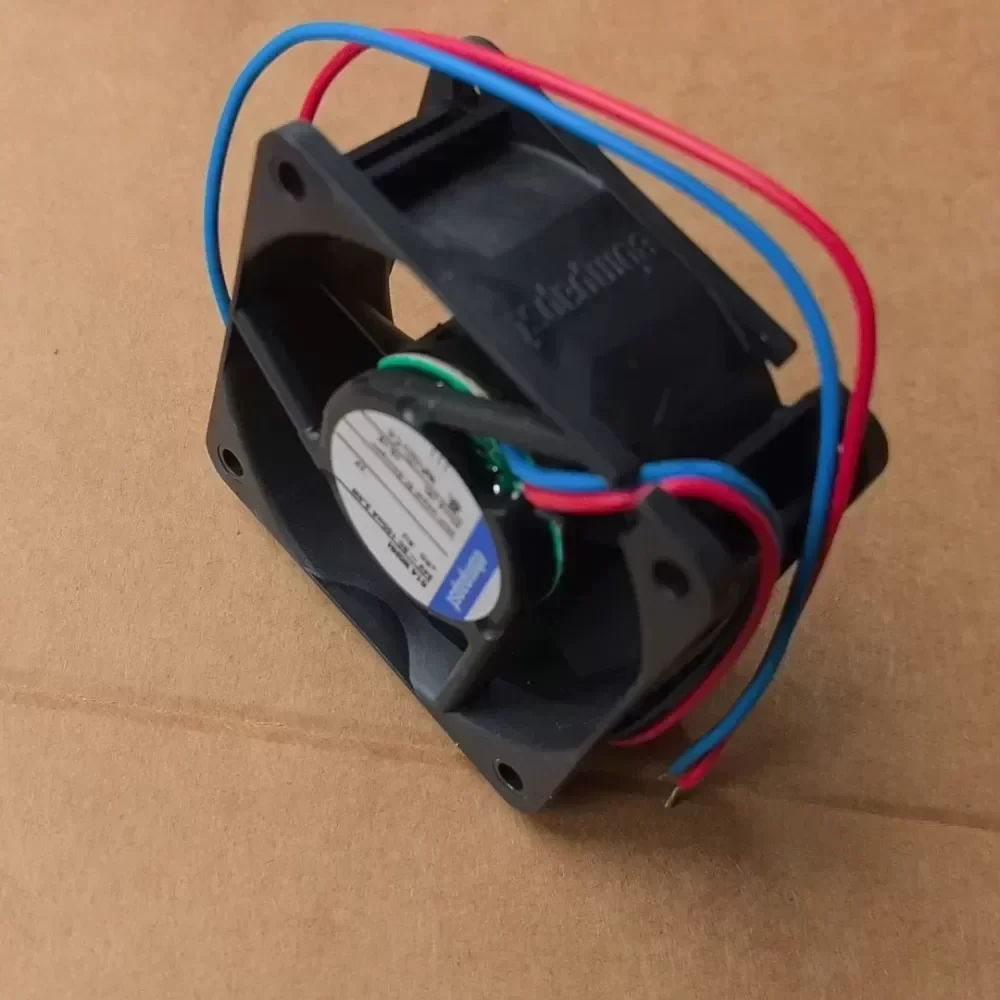

Manufacturer: ebmpapst
Model: 614NGHH
Product Type: DC Axial Fan
Nominal Voltage: 24 VDC
Voltage Range: 18.0 to 28.0 VDC
Power Consumption: 3.6 W
Nominal Current: 150 mA
Nominal Speed: 6850 RPM
Airflow Rate: 56.0 m³/h
Airflow Rate: 33.0 CFM
Sound Pressure Level: 41 dB(A)
Sound Power Level: 5.3 Bel(A)
Bearing Type: Dual Ball Bearing
Dimensions: 60 x 60 x 25 mm
Weight: 0.066 kg
Housing Material: Fiberglass-reinforced plastic (PBT)
Impeller Material: Fiberglass-reinforced plastic (PA)
Direction of Airflow: Exhaust over struts
Direction of Rotation: Clockwise, viewed toward rotor
Operating Temperature Range: -20 °C to +70 °C
Service Life L10 at 40 °C: 65000 h
Service Life L10 at Max Temp: 32500 h
Electrical Connection: 2 single strands AWG 24, TR 64
Motor Protection: Locked-rotor and reverse polarity protection
Certifications: VDE, CSA, UL, CE
Original Engineering: This unit utilizes ebmpapst external rotor motor technology, providing a compact design with high aerodynamic efficiency and low vibration levels.
Technical Compatibility: Engineered as a direct thermal management solution for 6025-series cooling requirements in high-density electronic enclosures and industrial automation components.
Industrial Scenario: The 614NGHH is specifically deployed in frequency inverters and power supply units where high static pressure is required to overcome the resistance of dense internal components. Its high-speed performance ensures critical cooling in environments where thermal throttling would otherwise lead to system failure or reduced component lifespan.
Lead Time: Available for immediate procurement to minimize maintenance downtime and support just-in-time manufacturing requirements.

ebmpapst 614NGHH fan 24V fan

ebmpapst 614NGHH fan 24V fan

ebmpapst 614NGHH fan 24V fan

ebmpapst 614NGHH fan 24V fan

ebmpapst 614NGHH fan 24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
