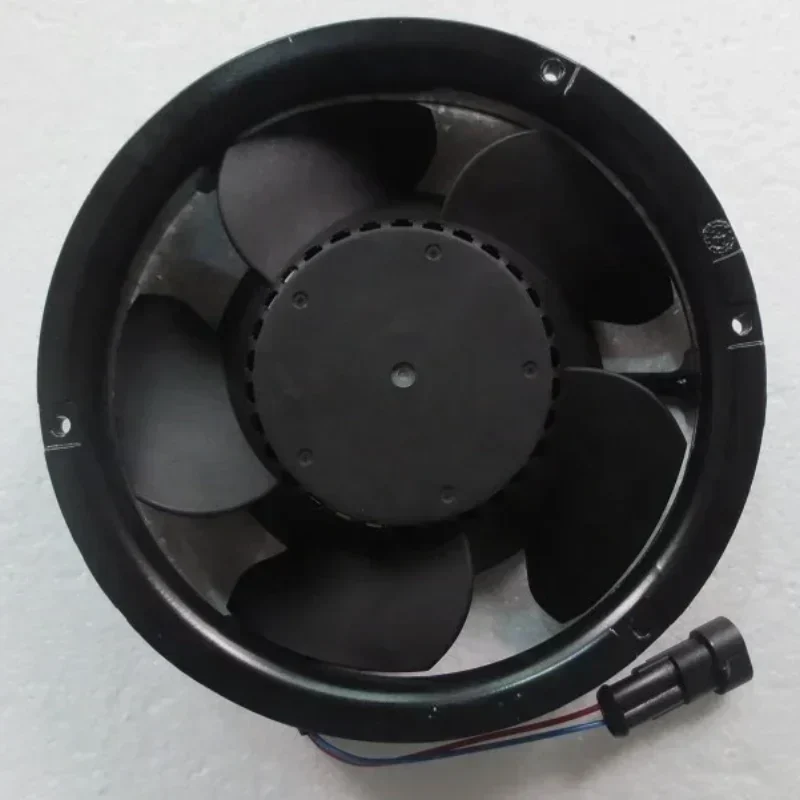

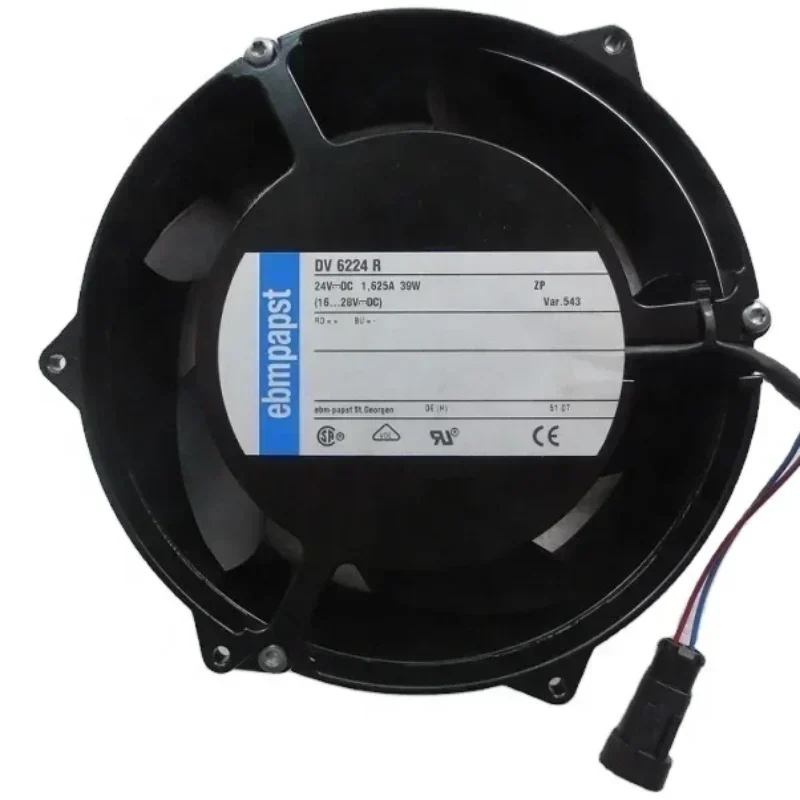

ebmpapst DV6224R 6314HR 24V DC 1.625A 172x172x51MM 318CFM 40W 4600RPM Siemens Axial Fan
ebmpapst DV6224R 6314HR 24V DC 1.625A 172x172x51MM 318CFM 40W 4600RPM Siemens Axial Fan
ebmpapst DV6224R 6314HR 24V DC 1.625A 172x172x51MM 318CFM 40W 4600RPM Siemens Axial Fan

ebmpapst DV6224R 6314HR 24V DC 1.625A 172x172x51MM 318CFM 40W 4600RPM Siemens Axial Fan

$88.30

SKU: 62179101863 Brand: ,

Description

The ebm-papst DV6224R (OEM reference 6314HR) is a high-performance DC axial cooling fan engineered specifically for demanding thermal management applications, including Siemens inverter cabinets and heavy-duty variable frequency drives (VFD). Designed to maintain optimal operating temperatures within dense electronic enclosures, this 24V DC fan delivers an exceptional airflow of 318 CFM (540 m³/h) at a rated speed of 4600 RPM, ensuring critical drive components are protected from thermal degradation.

Technical Specifications:
Brand: ebm-papst
Model Number: DV6224R / 6314HR
Fan Type: DC Axial Fan
Nominal Voltage: 24V DC
Operating Voltage Range: 16V to 30V DC
Nominal Current: 1.625 A
Power Consumption: 40 W
Nominal Speed: 4600 RPM
Maximum Airflow: 318 CFM (540 m³/h)
Dimensions: 172 x 172 x 51 mm
Weight: 0.82 kg
Acoustic Noise Level: 63 dB(A)
Operating Temperature Range: -20°C to +65°C
Connection Type: Wire Leads (AWG 22, TR 64)

Engineering & Material Profile:
Housing Material: Die-cast aluminum for superior structural integrity and heat dissipation.
Impeller Material: Fiberglass-reinforced plastic (PA) for optimized aerodynamic efficiency.
Bearing System: Precision ball bearings for extended service life and high-vibration tolerance.
Motor Protection: Electronic protection against reverse polarity and locked-rotor conditions.
Approvals: CE, UL, CSA, VDE.

Application & Technical Compatibility:
This axial fan is a critical spare part for Siemens inverter cabinets, providing forced convection cooling to power modules, IGBTs, and control boards. Its high static pressure capabilities make it ideal for enclosures with high airflow resistance. Replacing degraded fans with this Original Engineering component ensures exact Technical Compatibility, restoring the drive’s thermal equilibrium and preventing costly thermal tripping or premature component failure.

Procurement & Lifecycle Value:
Sourcing authentic ebm-papst cooling solutions guarantees maximum MTBF (Mean Time Between Failures) for your industrial automation infrastructure. We ensure optimized Lead Time for critical maintenance schedules, minimizing downtime for your Siemens drive systems.

Key Attributes
Voltage: 24(V)
Mounting type: Free Standing
Type: Duct Axial Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Cast Iron
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: DV6224R
Product name: DV6224R
Nominal voltage: 24V
Bearing Type: Ball Bearing
Power consumption: 40W
Current: 1.625(A)
Speed: 4600 RPM
Air volume: 318 cfm
Type: Tubeaxial
Termination Style: Wire Leads
Size: 172*172*51MM

Packaging and Delivery
Selling Units: Single item
Single package size: 28X28X12 cm
Single gross weight: 1.800 kg

ebmpapst DV6224R 6314HR 24V DC 1.625A 172x172x51MM 318CFM 40W 4600RPM Siemens Axial Fan

ebmpapst DV6224R 6314HR 24V DC 1.625A 172x172x51MM 318CFM 40W 4600RPM Siemens Axial Fan

ebmpapst DV6224R 6314HR 24V DC 1.625A 172x172x51MM 318CFM 40W 4600RPM Siemens Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
