$59.00

SKU: 62338457168 Brand:

Description

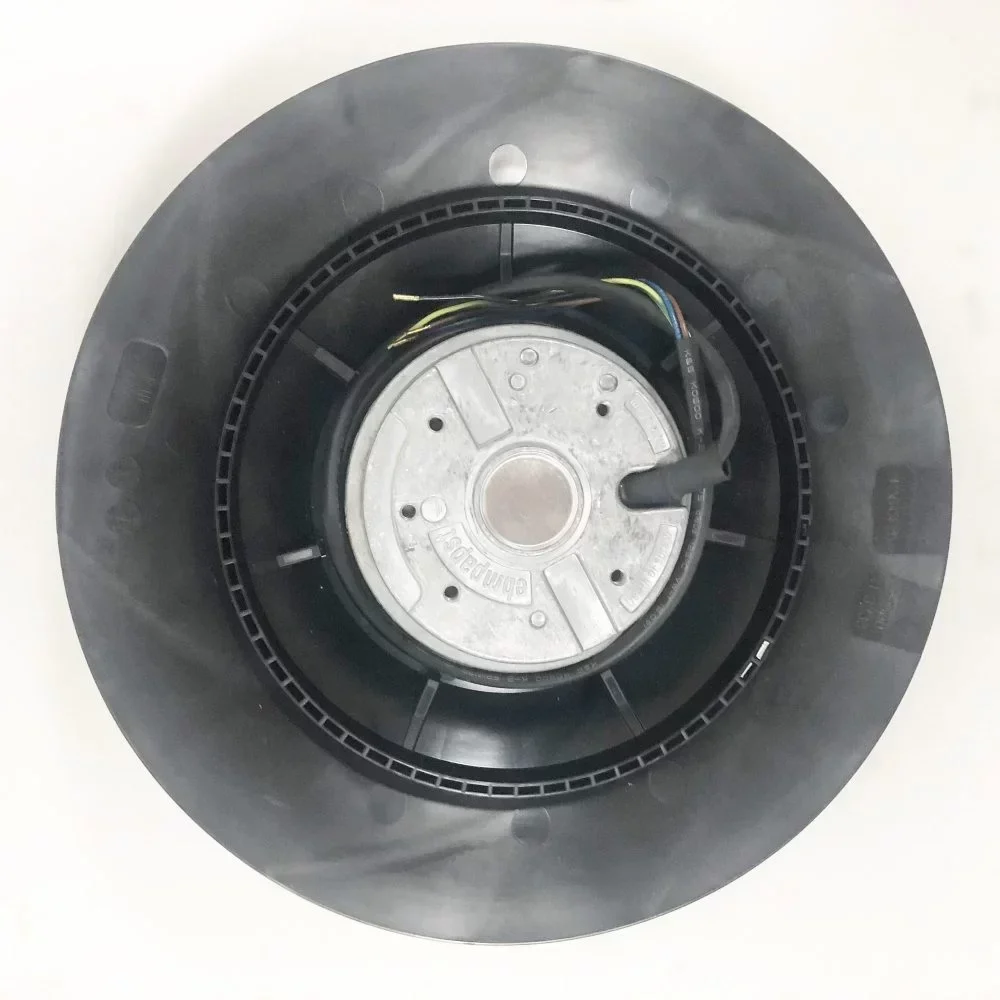

The EBM-PAPST R2E225-RA92-23-L02 is a high-performance, backward-curved centrifugal fan engineered for demanding industrial ventilation and thermal management applications. Utilizing Original Engineering principles, this motorized impeller integrates a highly efficient 2-pole AC single-phase motor directly with a glass-fiber reinforced plastic impeller, ensuring optimal aerodynamic performance and reduced acoustic noise. The free-standing mounting configuration allows for versatile integration into existing system architectures without the need for complex scroll housings.

Technical Specifications:
Brand: EBM-PAPST

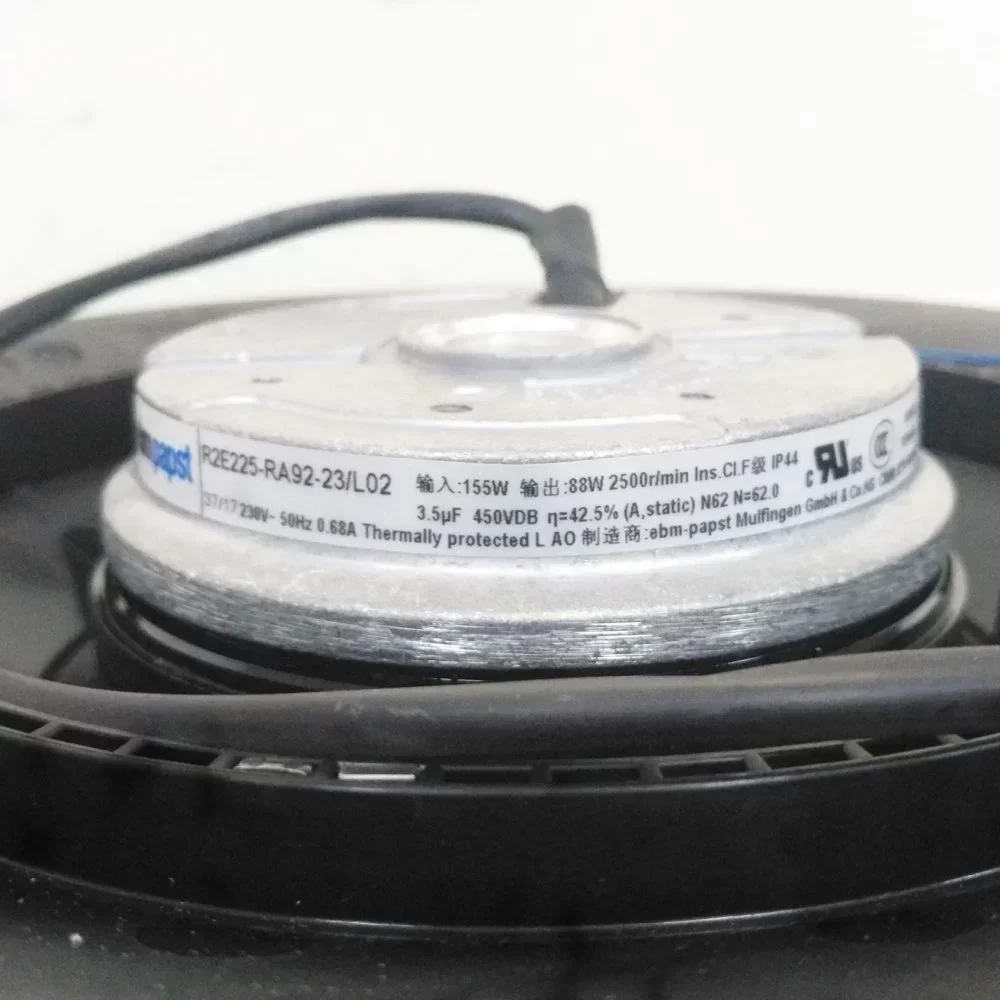

Model Number: R2E225-RA92-23-L02
Fan Type: Backward Curved Centrifugal Fan
Impeller Diameter: Ø 225 mm
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Motor Type: AC single-phase motor (2-pole)
Power Consumption: 155 W
Nominal Current: 0.71 A
Rated Speed: 2550 RPM
Maximum Airflow: 1250 m³/h
Operating Capacitor: 4.0 µF / 400 V
Operating Temperature Range: -25°C to +70°C

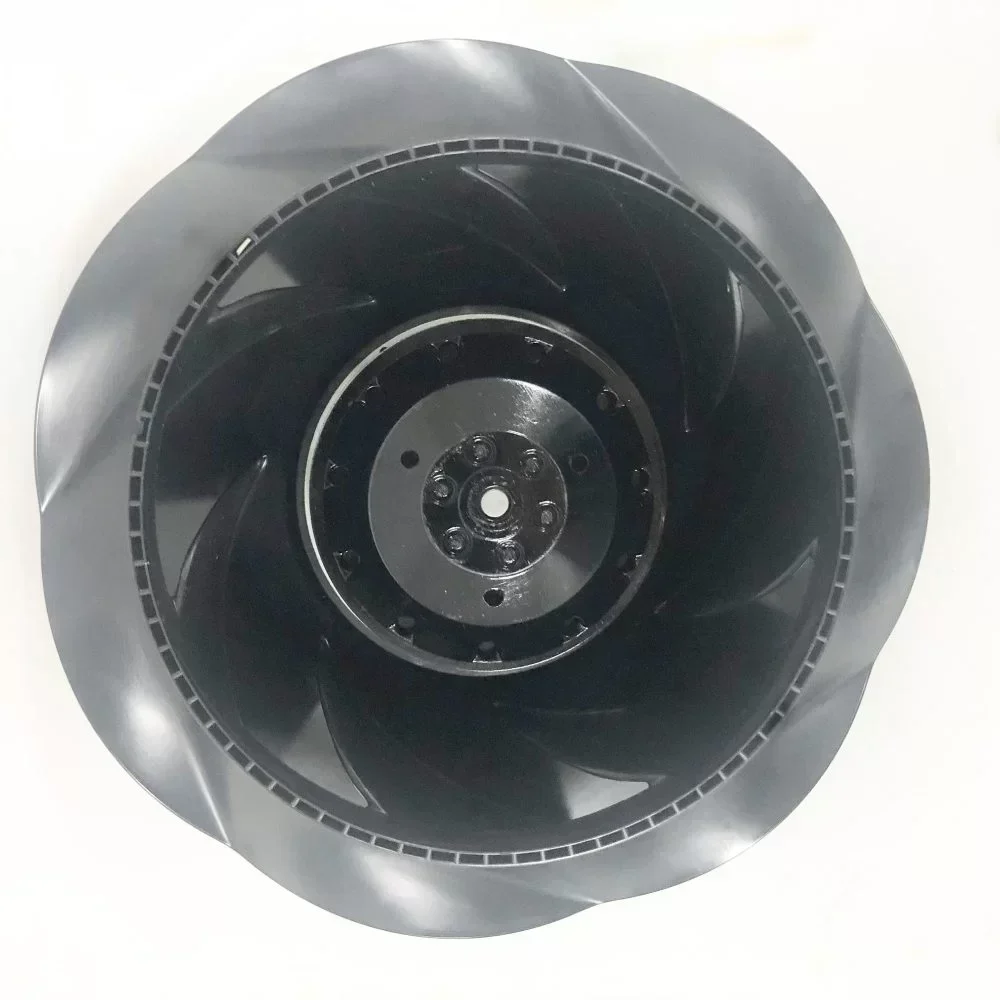

Impeller Material: PA plastic, glass-fiber reinforced
Rotor Surface: Painted black
Bearing System: Maintenance-free ball bearings
Degree of Protection: IP44
Insulation Class: F
Weight: 2.25 kg
Mounting Type: Free standing
Motor Protection: Thermal overload protector (TOP) wired internally

Industrial Application:
This specific centrifugal fan is critical for forced-air cooling in high-density electronics enclosures, telecommunications cabinets, and variable frequency drive (VFD) panels. The backward-curved blade geometry provides high static pressure capabilities, making it ideal for systems with high airflow resistance. The robust IP44 rating and wide operating temperature range ensure reliable continuous operation in harsh industrial environments, preventing thermal throttling in sensitive control electronics.

Procurement and Lifecycle:
Ensuring strict Technical Compatibility with OEM specifications, the R2E225-RA92-23-L02 serves as a direct drop-in replacement for legacy cooling units, minimizing system downtime. We provide accurate Lead Time estimates and guarantee authentic components to maintain the structural and thermal integrity of your critical infrastructure.

Mounting: Free Standing
Power source type: Corded Electric
Voltage: 230V
Material: Plastic
Blade Material: Plastic
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: R2E225-RA92-23-L02
Place of origin: Germany
Brand name: Ebmpapst
Product name: Ebmpapst centrifugal fan

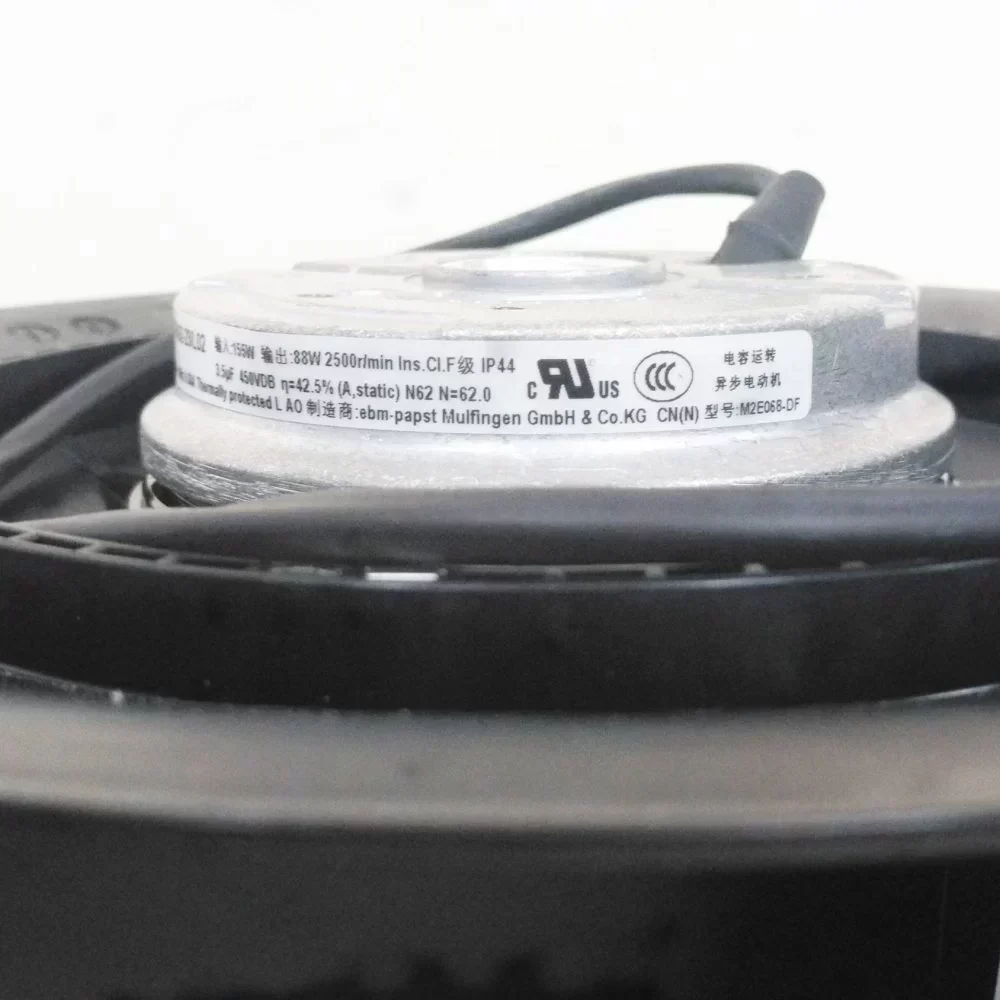

Motor: M2E068-DF
Motor bearing: Ball bearing
Color: Black
Weight: 2.4 kg
Size: 225 mm
Certification: Ce
Selling Units: Single item
Single package size: 30X30X30 cm
Single gross weight: 3.000 kg

ebmpapst R2E225-RA92-23-L02 Model 230V Centrifugal Fan with Plastic Blades Free Standing Mounting

ebmpapst R2E225-RA92-23-L02 Model 230V Centrifugal Fan with Plastic Blades Free Standing Mounting

ebmpapst R2E225-RA92-23-L02 Model 230V Centrifugal Fan with Plastic Blades Free Standing Mounting

ebmpapst R2E225-RA92-23-L02 Model 230V Centrifugal Fan with Plastic Blades Free Standing Mounting

ebmpapst R2E225-RA92-23-L02 Model 230V Centrifugal Fan with Plastic Blades Free Standing Mounting

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
