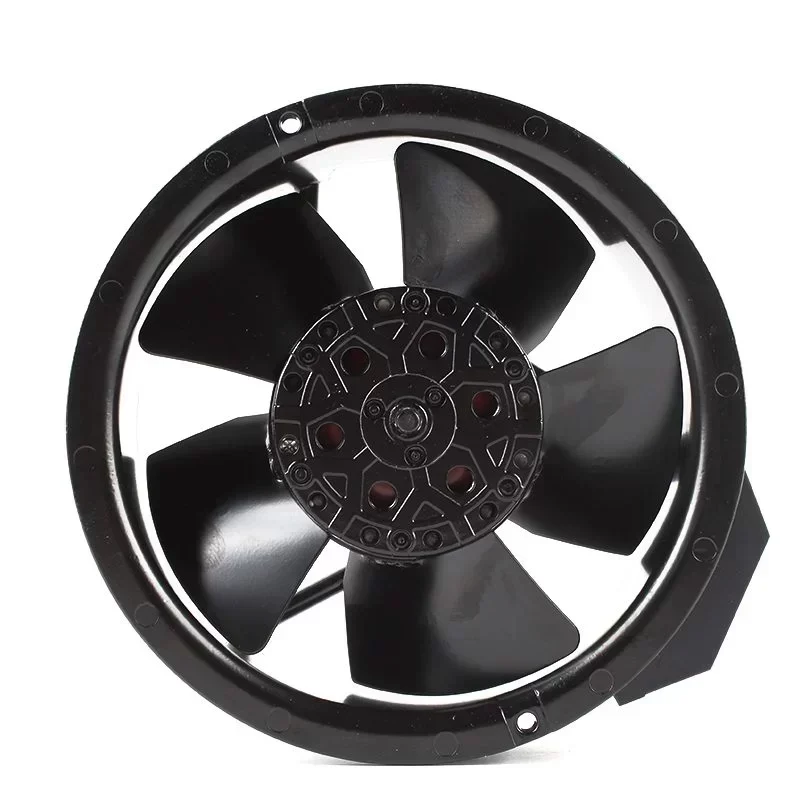

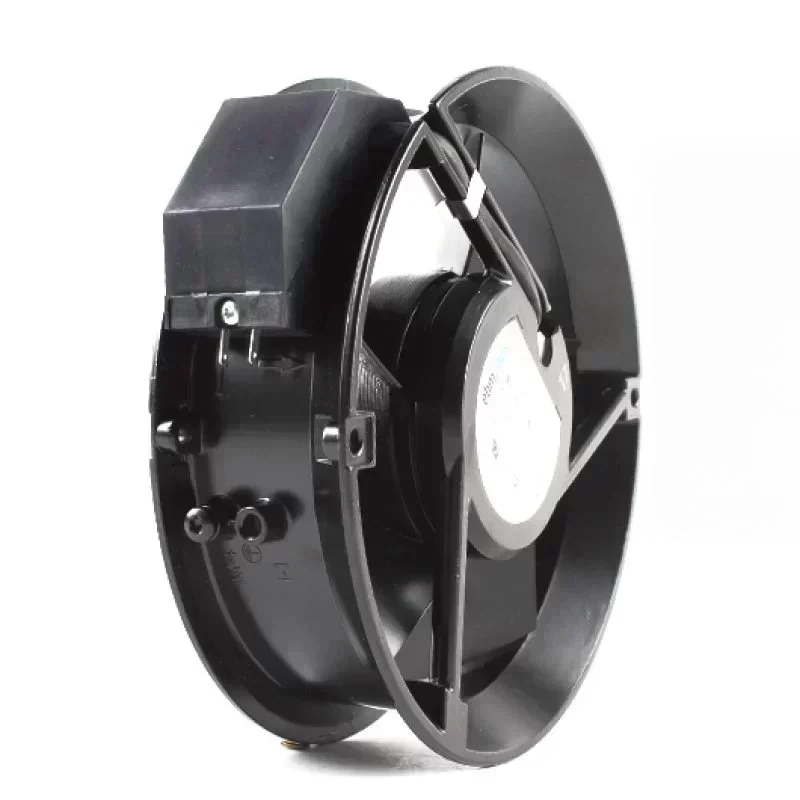

ebmpapst W2E143-AB09-01 230v 24w 2800rpm Ac Axial Fan
ebmpapst W2E143-AB09-01 230v 24w 2800rpm Ac Axial Fan
ebmpapst W2E143-AB09-01 230v 24w 2800rpm Ac Axial Fan

ebmpapst W2E143-AB09-01 230v 24w 2800rpm Ac Axial Fan

$54.00

SKU: 1601443094118 Brand:

Description

Manufacturer: ebm-papst
Model Number: W2E143-AB09-01
Product Category: AC Axial Fan
Motor Type: M2E052-BA
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Speed: 2800 min⁻¹ (50 Hz) / 3300 min⁻¹ (60 Hz)
Power Consumption: 24 W (50 Hz) / 26 W (60 Hz)
Current Draw: 0.12 A (50 Hz) / 0.11 A (60 Hz)
Airflow Volume: 325 m³/h (50 Hz) / 380 m³/h (60 Hz)
Static Pressure: 100 Pa (50 Hz) / 120 Pa (60 Hz)
Bearing Type: Maintenance-free ball bearings
Service Life (L10 at 40 °C): 70,000 hours

Mechanical and Material Specifications:
Housing Material: Die-cast aluminum, coated in black
Impeller Material: Sheet steel, painted black
Number of Blades: 7
Direction of Rotation: Counter-clockwise, viewed toward rotor
Direction of Airflow: Exhaust over struts
Dimensions: 172 x 150 x 38 mm
Weight: 0.80 kg
Electrical Connection: 2 flat plugs 2.8 x 0.5 mm

Environmental and Safety Standards:
Degree of Protection: IP20
Insulation Class: B
Operating Temperature Range: -25 °C to +70 °C
Motor Protection: Impedance protected against overloading
Approval Ratings: VDE, CSA, UL, CE
Conformity: EN 60335-1

Technical Compatibility and Application:
The ebm-papst W2E143-AB09-01 is a high-performance cooling solution utilizing Original Engineering to ensure long-term thermal stability in critical infrastructure. This model is specifically designed for integration into control cabinets, server racks, and industrial power supplies where space-saving dimensions must be balanced with high volumetric flow rates. Its robust aluminum construction allows for reliable operation in factory workshop environments subject to temperature fluctuations.

Industrial Scenario:
In automated manufacturing cells, heat dissipation from variable frequency drives (VFDs) and PLCs is essential to prevent logic errors and hardware degradation. The W2E143-AB09-01 provides the necessary static pressure to overcome internal resistance in densely packed enclosures. By maintaining a consistent thermal profile, this component minimizes unplanned downtime and optimizes the Lead Time for production cycles by ensuring machine availability.

Key Attributes
Voltage: 230 V
Material: Aluminum Alloy
Speed: 2800 RPM
Mounting type: Other
Type: Ac axial fan
Warranty: 1 Year
Power Source: Electric
Blade material: Aluminum Alloy
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: W2E143-AB09-01
Type: W2E143-AB09-01
Voltage: 230v
Frequency: 50hz
Speed: 2800rpm
Power input: 24w
Current draw: 0.12A
Max. ambient temperature: 60℃
Warranty: 1 year
Brand: Ebmpapst
Valid for approval / standard: CE

Packaging and Delivery
Selling Units: Single item
Single package size: 27X21X20.5 cm
Single gross weight: 2.000 kg

ebmpapst W2E143-AB09-01 230v 24w 2800rpm Ac Axial Fan

ebmpapst W2E143-AB09-01 230v 24w 2800rpm Ac Axial Fan

ebmpapst W2E143-AB09-01 230v 24w 2800rpm Ac Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
