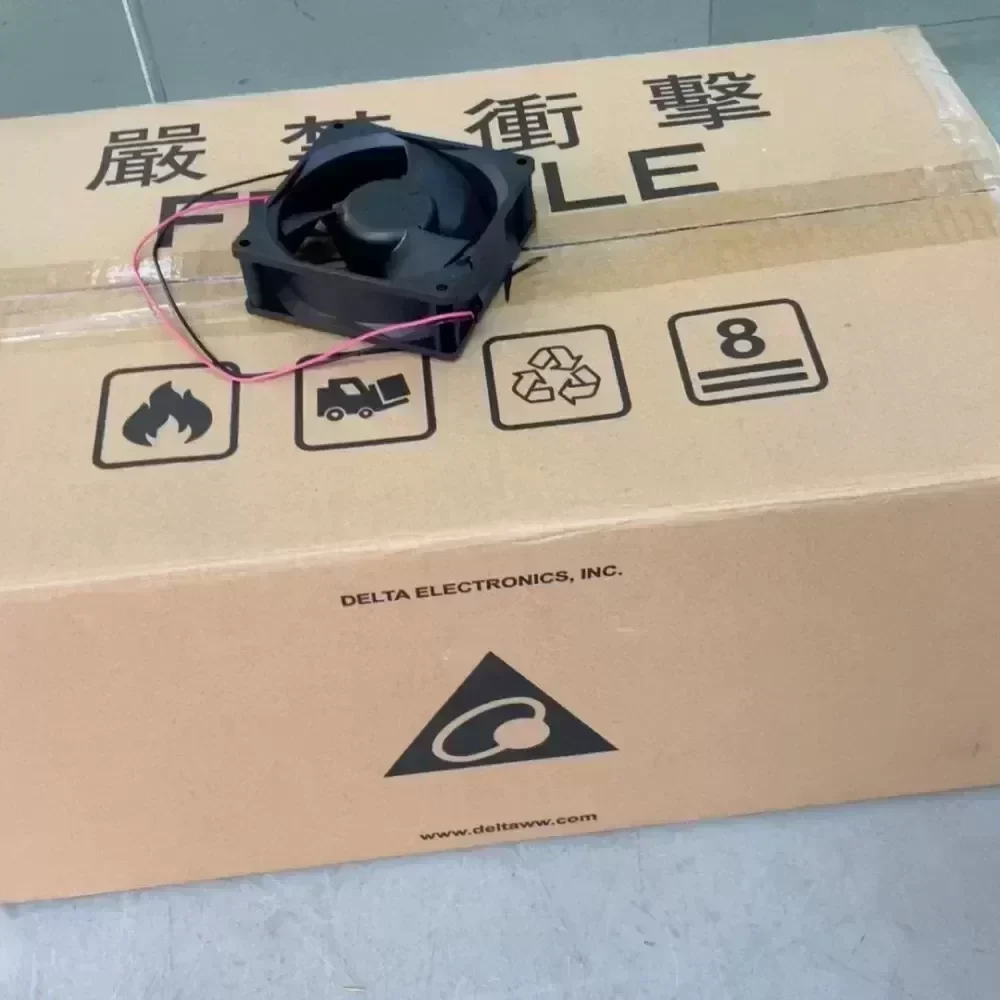

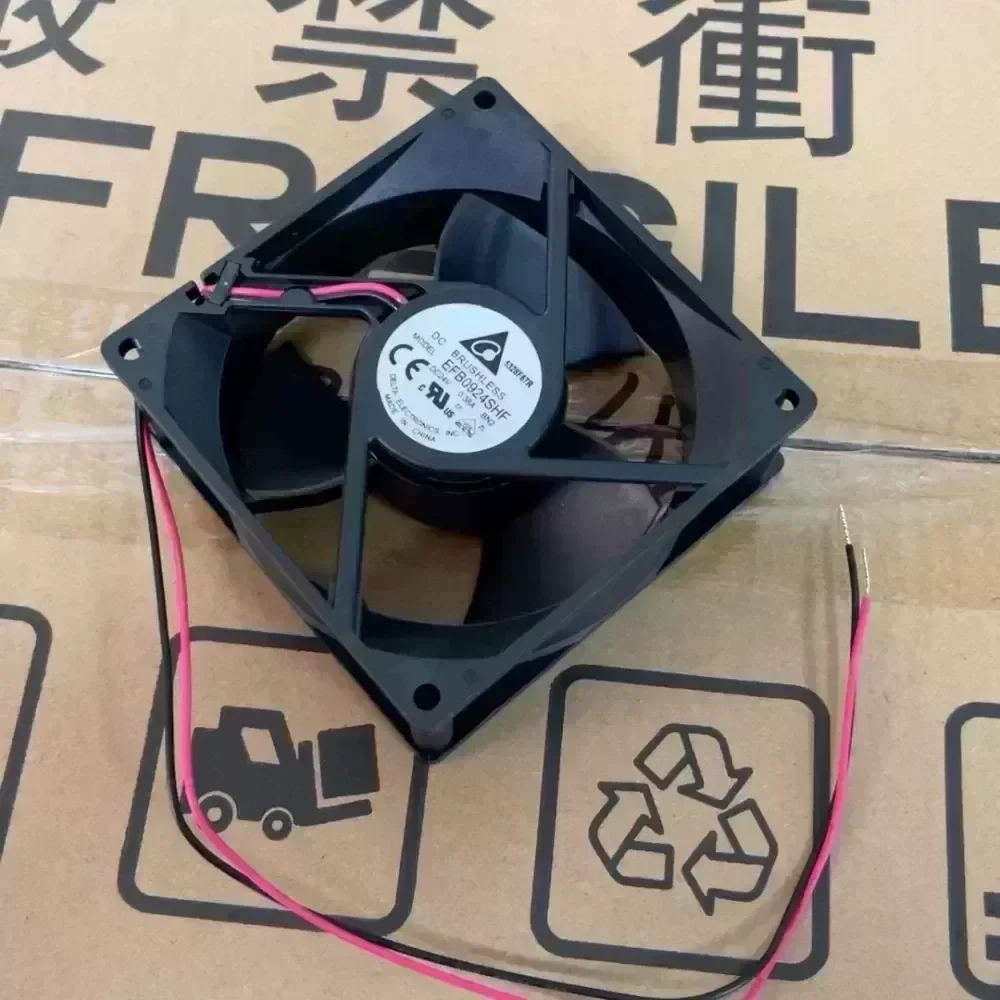

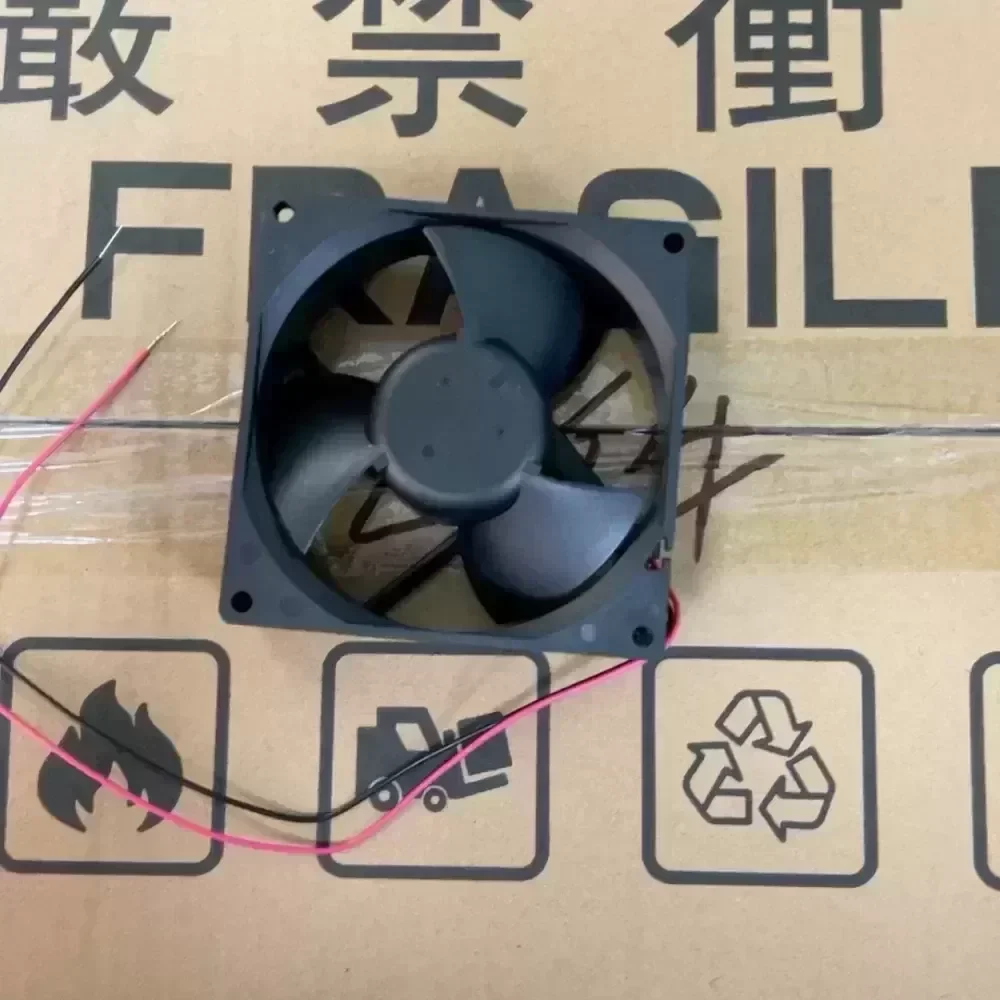

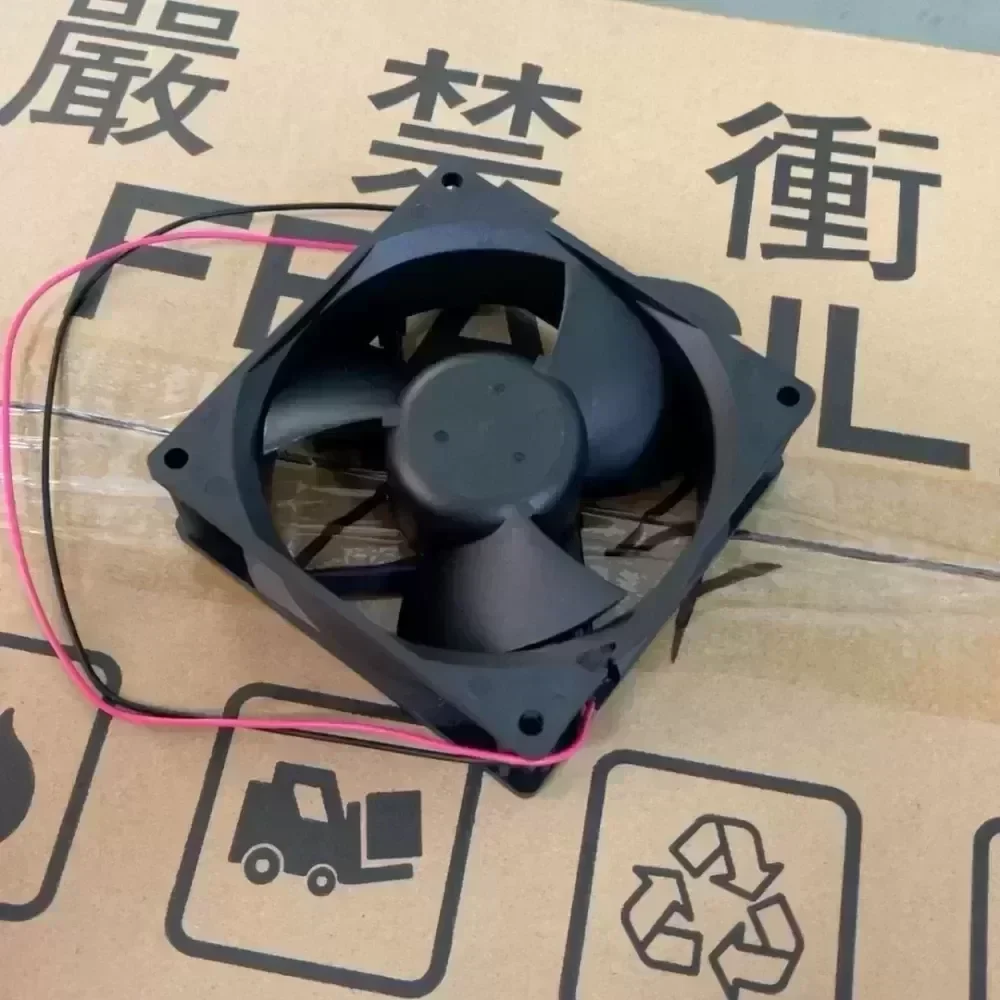

Delta Electronics EFB0924SHF-BN2 Industrial Axial Cooling Fan, This high-performance thermal management component is engineered for demanding industrial inverter and power supply applications. Featuring Original Engineering from Delta Electronics, this fan delivers high static pressure and volumetric airflow to prevent thermal degradation of sensitive electronic components.
Technical Specifications:
Manufacturer: Delta Electronics
Model Number: EFB0924SHF-BN2

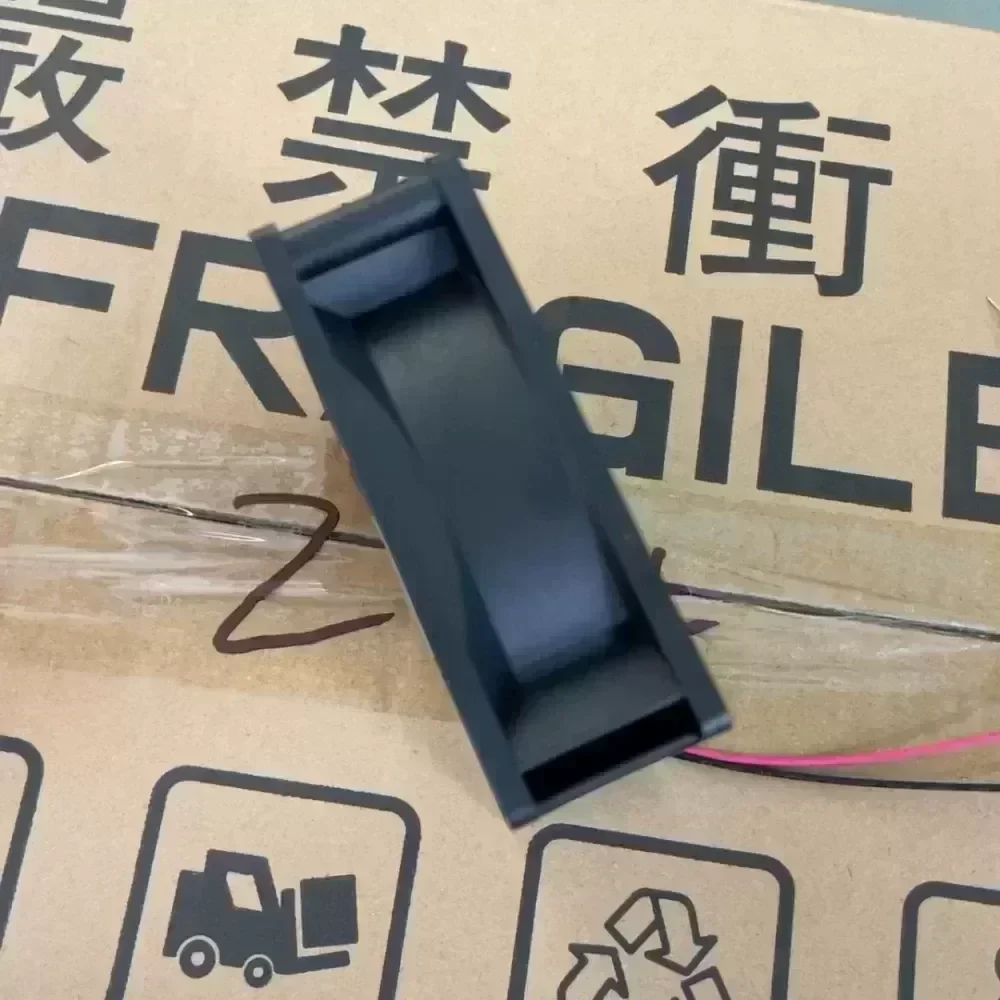

Frame Dimensions: 92 x 92 x 32 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 to 27.6 VDC
Rated Current: 0.38 A
Input Power: 9.12 W
Rated Speed: 4400 RPM
Maximum Air Flow: 77.7 CFM (2.20 m³/min)
Maximum Static Pressure: 11.20 mmH2O
Noise Level: 48.0 dBA
Bearing Type: Dual Ball Bearing
Termination: 2-Wire with Connector
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -10 °C to +70 °C
Life Expectancy: 70,000 Hours at 40 °C
Weight: 170 g
Application and Technical Compatibility:
The EFB0924SHF-BN2 is optimized for integration into variable frequency drives (VFDs), uninterruptible power supplies (UPS), and industrial control cabinets. Its dual ball bearing system enables mounting in any orientation while maintaining long-term operational stability under continuous duty cycles. This model offers direct Technical Compatibility with standard 90mm and 92mm cabinet cutouts requiring high-pressure cooling.
Procurement Information:
Condition: New Authentic
Lead Time: Please contact our sales department for current stock status and shipping schedule.
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Fans Maintenance and upkeep
1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;
2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.
3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;
4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
