K9RP60FC-B GGM magnetic brake motor

Description

The GGM K9RP60FC-B is an industrial-grade, single-phase reversible AC induction motor integrated with a power-off activated electromagnetic fail-safe brake. Engineered by GGM Co., Ltd. (South Korea), this compact 90 mm square frame actuator is specifically designed for systems requiring rapid directional reversal, high starting torque, and instant stopping with load-holding capability. The factory-integrated electromagnetic brake assembly ensures precise position retention and dynamic overrun suppression, preventing mechanical slippage upon power disruption.

MODEL NOMENCLATURE DECODING
Series Identifier (K): Standard Industrial AC Motor Series
Frame Size (9): 90 mm x 90 mm Flange Profile
Motor Function (R): Reversible Motor (Balanced 30-minute duty with internal friction mechanism for directional switching)
Shaft Profile (P): Helical Pinion Shaft (Designed for direct coupling with GGM K9P/K9G gearheads)
Rated Output Power (60): 60 Watts continuous rated mechanical output
Lead Wire & Housing Spec (F): Lead Wire Terminal Configuration / Thermal Protection Class
Operating Voltage Code (C): Single-Phase 220V / 230V AC (50/60 Hz)
Brake Mechanism (-B): Integrated Power-Off Activated Electromagnetic Friction Brake

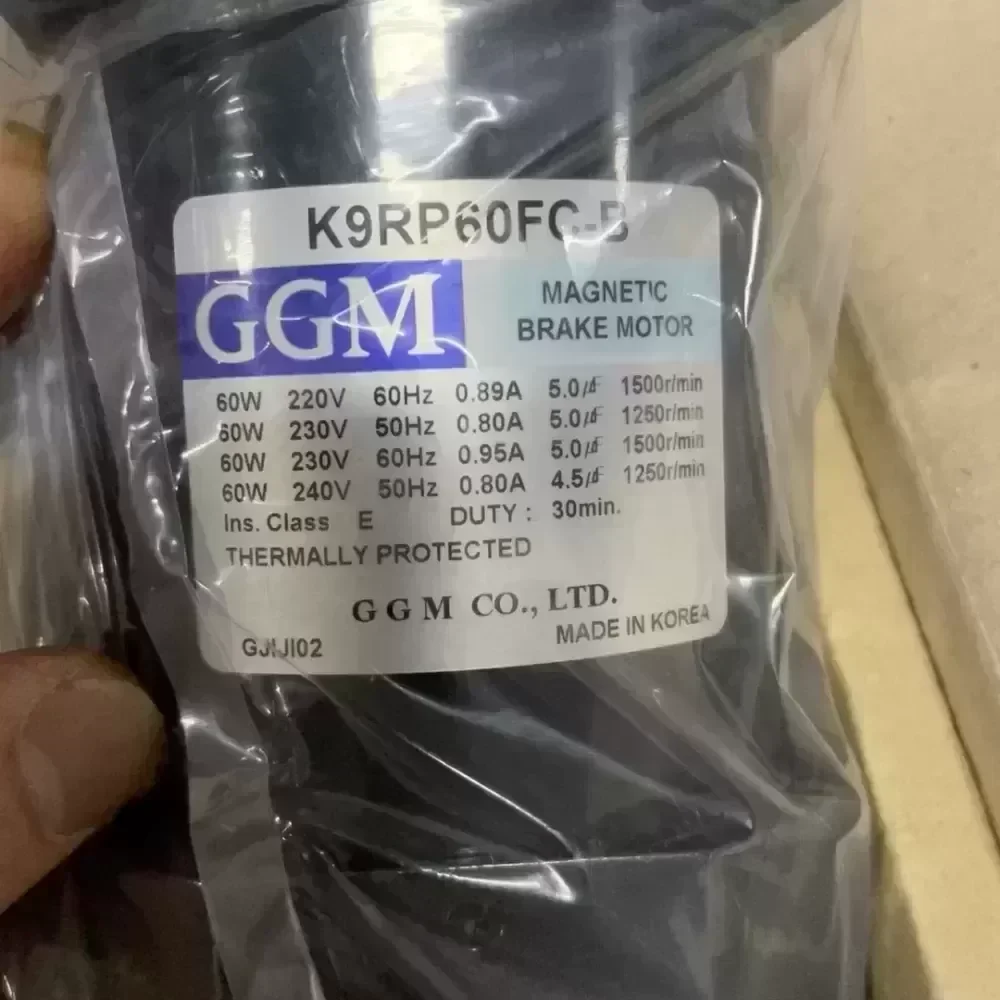

TECHNICAL SPECIFICATIONS
Manufacturer: GGM Co., Ltd.
Country of Origin: South Korea
Model Number: K9RP60FC-B
Motor Type: Single-Phase Reversible AC Induction Motor
Frame Size: 90 mm x 90 mm
Rated Output Power: 60 W
Rated Voltage: 220 V – 230 V AC, 1-Phase
Supply Frequency: 50 / 60 Hz
Rated Current: 0.89 A (at 60 Hz) / 0.85 A (at 50 Hz)
Rated Speed: 1500 r/min (50 Hz) / 1550 r/min (60 Hz nominal under load)
Synchronous Speed: 1800 r/min (60 Hz)
Duty Cycle: 30 Minutes Rated
Insulation Class: Class E (120 °C thermal endurance)
Brake Type: Electromagnetic AC/DC rectified power-off holding brake
Brake Response Time: Less than 50 ms
Shaft Type: High-precision machined pinion gear shaft
Housing Material: Die-cast aluminum alloy casing with anti-corrosion finish
Protection Rating: IP20 / IP40 equivalent (enclosed construction)
Ambient Operating Temperature: -10 °C to +40 °C
Ambient Humidity: Up to 85% RH (non-condensing)
Weight: Approx. 2.95 kg (including brake assembly)
Compliance: CE, RoHS

APPLICATION AND INTEGRATION SCENARIOS
The K9RP60FC-B is deployed in automated machinery requiring frequent bidirectional cycles and precise stop positioning without mechanical coasting. Critical applications include:
Conveyor diverters, cross-transfer units, and indexers in packaging lines.
Vertical lift mechanisms and miniature hoists requiring immediate fail-safe braking during power loss.
Automated sorting gates and indexing tables in electronic assembly automation.
Medical diagnostic equipment and inspection positioning stages.

TECHNICAL COMPATIBILITY AND SUPPLY DATA
Technical Compatibility: Directly pairs with GGM K9P series and K9G series gearheads to achieve gear reduction ratios ranging from 3:1 to 200:1. Replaces legacy or damaged units across standard 90 mm Asian and European mounting footprints.

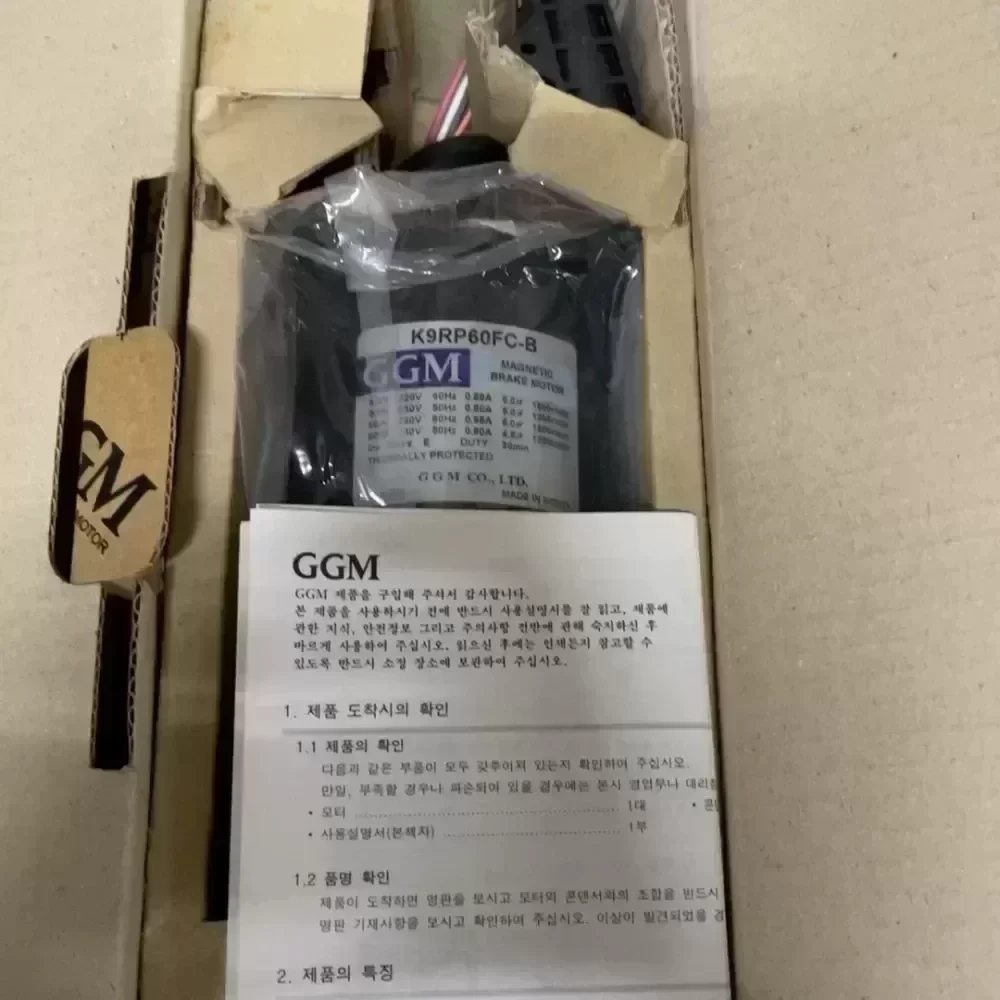

Condition: Brand new, unused in original packaging.
Original Engineering: Manufactured to strict OEM factory tolerances by GGM.
Lead Time: Immediate dispatch from stock for fast operational replacement and minimized line downtime.
