Description

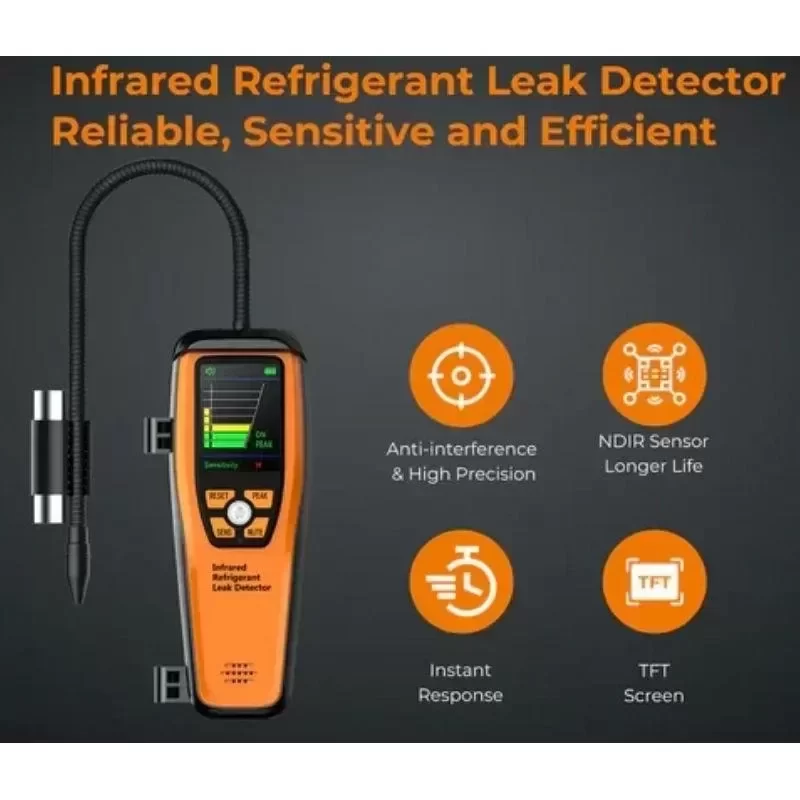

The Elitech ILD-200 is an industrial-grade, highly sensitive infrared electronic refrigerant leak detector engineered for heavy-duty HVAC/R maintenance, commercial refrigeration diagnostics, and heat pump system testing. Featuring advanced non-dispersive infrared (NDIR) technology, the ILD-200 provides precise detection of halogenated refrigerants without the degradation typical of standard heated-diode or corona-discharge sensors. Its IP65-rated housing ensures rugged operation in harsh industrial environments, offering complete protection against dust ingress and low-pressure water jets.
TECHNICAL SPECIFICATIONS
Manufacturer: Elitech
Model Number: ILD-200

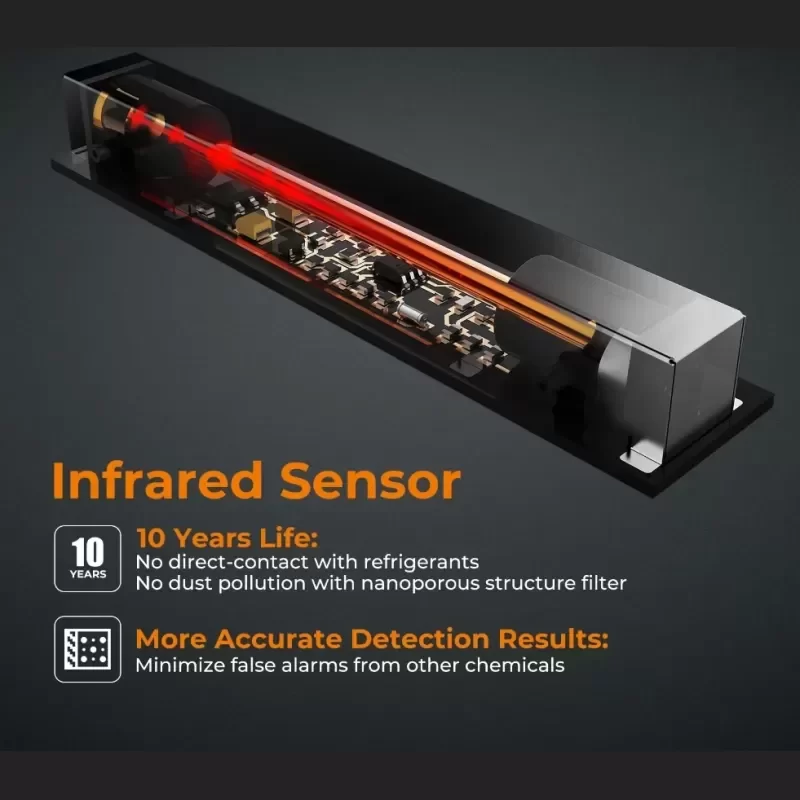

Sensor Type: Advanced Infrared Absorption (NDIR)
Sensor Life: Up to 10 Years (40,000 Operating Hours)
Maximum Sensitivity: 4 g/a (0.14 oz/yr)

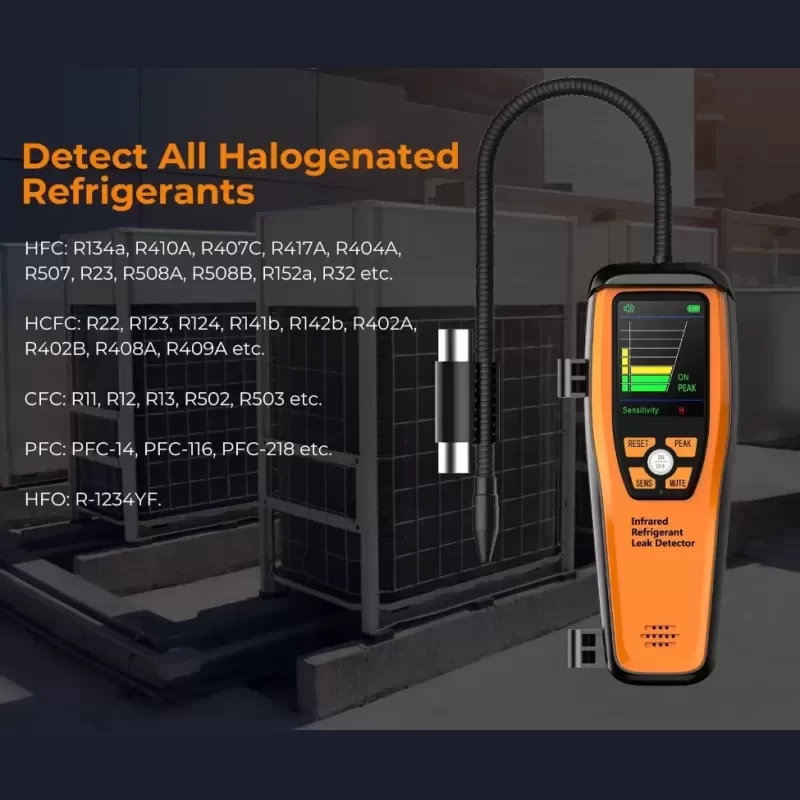

Compatible Refrigerants: CFCs, HCFCs, HFCs, HFOs, HC, and Blends (including R134a, R410A, R404A, R22, R1234yf, R32)
Response Time: Less than 1.0 Second
Warm-Up Time: 30 Seconds
Probe Length: 35.5 cm (14 Inches) Flexible Metal Probe

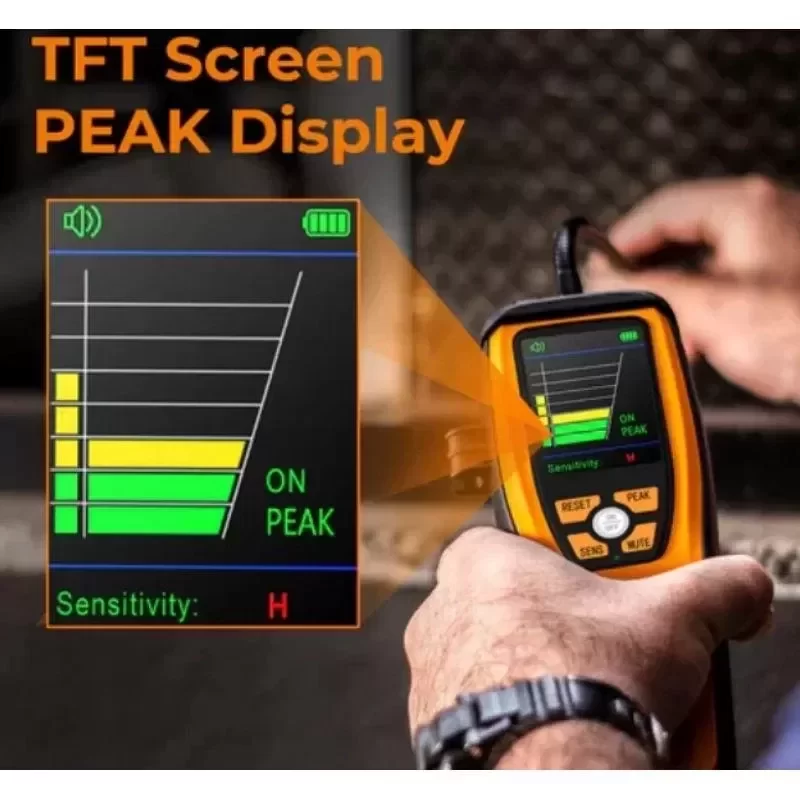

Display Type: 2.8-inch TFT LCD Color Screen
Alarm Modes: Audible Alert and Visual Bar Graph with Peak Indicator

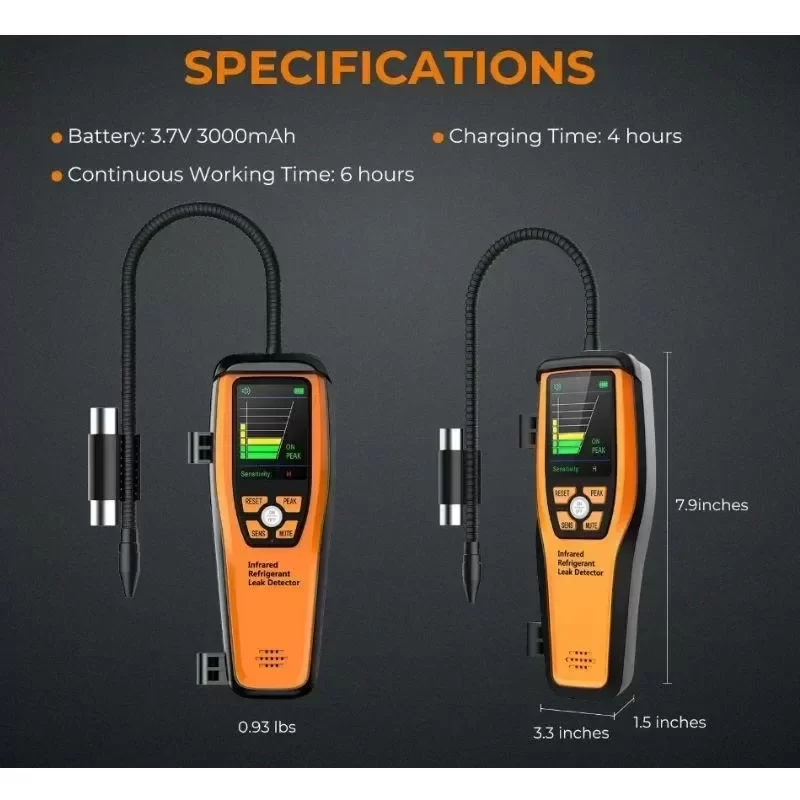

Power Supply: Rechargeable Lithium Battery (3.7V / 3000mAh)
Battery Runtime: 6 Hours Continuous Operation
Charging Interface: USB Type-C
Environmental Protection Rating: IP65
Operating Temperature: -10 °C to 52 °C
Storage Temperature: -20 °C to 60 °C
Certifications: SAE J1627, SAE J2791, SAE J2913, EN14624, CE
Weight: 0.45 kg
INDUSTRIAL APPLICATION & OPERATIONAL VALUE
In large-scale industrial cold chain facilities and heavy commercial HVAC operations, undetected refrigerant leaks compromise system efficiency, increase energy consumption, and violate environmental compliance regulations. The Elitech ILD-200 addresses these challenges by offering exceptional Technical Compatibility across all modern refrigerant classifications, including low-GWP HFOs. Thanks to its Original Engineering, the NDIR sensor does not trigger false alarms from moisture, oil vapors, or high ambient gas concentrations. This allows technicians to pinpoint minuscule leaks at joint welds, evaporator coils, and compressor seals rapidly, minimizing system downtime and maintaining chemical charge integrity. Global B2B procurement benefits from optimized Lead Time options to ensure field service teams remain equipped with reliable diagnostic instruments.
Key Attributes
Type: Refrigerant Leak Detector
Accuracy: 4g/year
Place of origin: China
Customized support: OEM
Power: 4g/year
Protection Class: IP65
Voltage: 3.7V
Brand name: Elitech
Warranty: 1 years
Sensor Type: Infrared
Sensor Sensibility: Max.4g/year
Sensor Life: 10 years
Detectable Gases: R134a, R410A, R32, R22, HFO-1234 and all HFCs, HCFCS, CFCS,PFCS
Auto OFF: After 10min of inactivity
Power: Built-in lithium battery 3.7V 3000mA
Battery Runtime: Up to 6 hours ccontinuously
Storage Temperature: -20°C~ 60°C(-4°F~ 140°F)
Alarm Mode: Audible and Visual
Packaging and Delivery
Selling Units: Single item
Single package size: 41X27X15 cm
Single gross weight: 1.600 kg
